Handlebar Component Fastener Torques
Left Hand Control Alignment

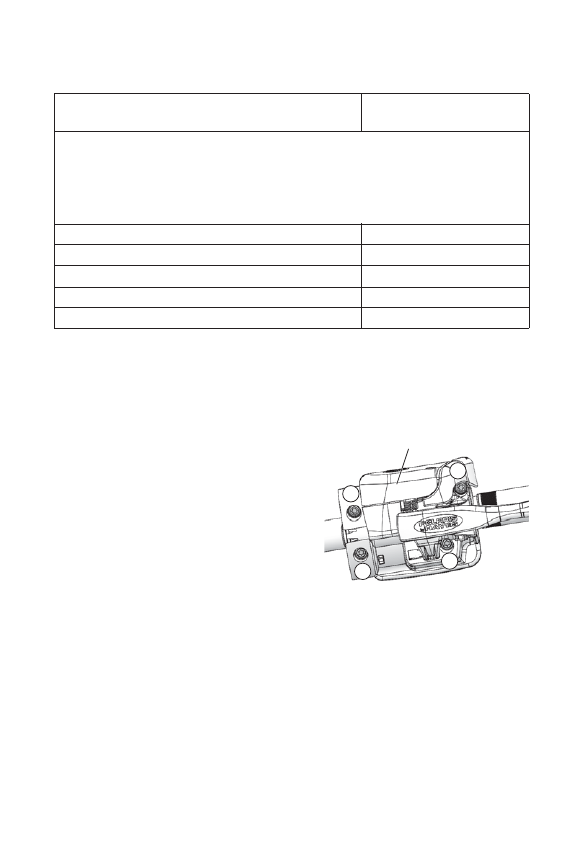

1. Loosen the four control block mounting screws.
CAUTION! Take care to avoid damaging hand warmer/brake switch wires
when moving components.
2. Move the control block to the
desired position.
NOTE:
If the control is loose and was
inadvertently moved without
loosening the screws, move the
control block slightly to the left or
right to relocate the pins.
3. Tighten the screws to specification
in the sequence shown in the
image. Do not over-torque.
Torque: 24 in-lbs (2.7 Nm)
Component
Torque
Do not over-tighten
IMPORTANT: Moving a handlebar component without first loosening its
screws/set screws may cut grooves into the handlebar, making it difficult
to secure the component. Do not move a handlebar component without
first loosening its mounting screws/set screws.
Take care to avoid damaging hand warmer/brake switch wires when
moving components.
1.
Left Hand Control/Brake Master Cylinder
24 in-lbs (2.7 Nm)
2.

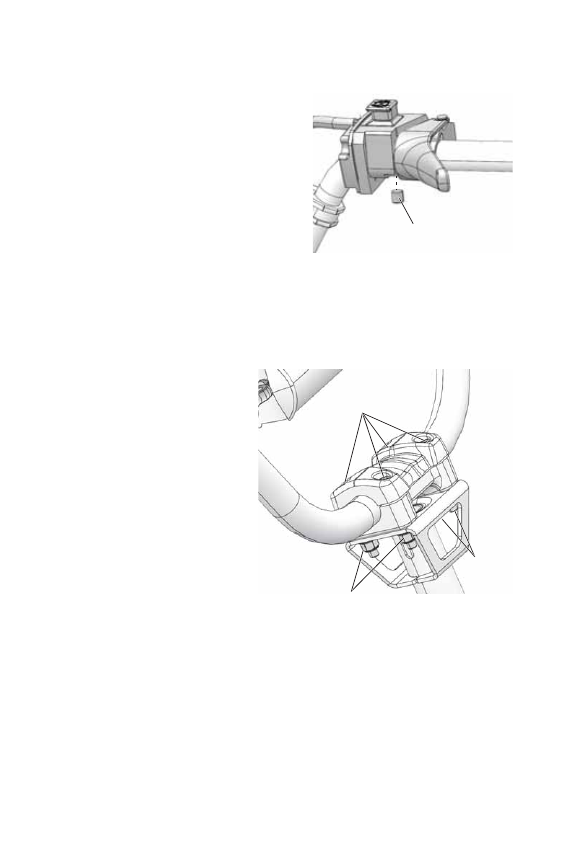

Throttle Lever Block Set Screw
35 in-lbs (4 Nm)
3.
Throttle Lever Block Cover Screws
6 in-lbs (0.7 Nm)
4.
Handlebar Clamp Screws
15-17 ft-lbs (20-23 Nm)
Hand Guard Mounts (if applicable)
Hand-Tight
1
2
3
4
Control Block
