FEATURES

Instrumentation

MFD Battery Replacement

5. Using needle-nose pliers, grasp the battery and rotate it so the lead-

ing edge of the battery is raised away from the battery holder. Pull

the battery out gently.

Tip: The battery will not come out of the holder unless the leading edge of the

battery is raised. Hold the battery compartment, not the wires, while remov-

ing the battery. Pulling on the wires will separate them from the battery

holder.

6. Install a new battery with fingers only.
7. Seal the end of the battery compartment using high strength double-

sided tape between the two compartment halves or high strength

single-sided tape around the outside of the compartment.

8. Make sure the taped seam of the compartment faces the downward

side of the wire harness.

9. Install a cable tie to secure the compartment to the wire harness in

the same location where the previous cable tie was located. Make

sure the battery wires are not stretched tight.

Gauge Cleaning

1. Wipe the gauge face as needed using a clean cloth and a mild soap

and water solution. Wipe dry with clean, soft cloth.

2. Clean the back side of the gauge using a clean cloth and a mild soap

and water solution. Do not remove the electrical connectors or pro-

tective rubber boot. Do not spray the back side of the gauge or the

wire harness with a pressure washer or other water source.

NOTICE: To prevent damage to the lens, do not use alcohol for cleaning. Do not

allow chemicals or sprays to come into contact with the lens.

Immediately clean off any gasoline that splashes on the gauge during

refueling.

50

THE PERFECT FIT

IQ Front Suspension Adjustments

Independent Front Suspension (IFS)

Break in the suspension for approximately 150 miles (240 km) before

making any fine-tuning adjustments.
Settings will vary from rider to rider, depending on rider weight, vehicle

speed, riding style, and trail conditions. We recommend starting with

factory settings and then customizing each adjustment individually to

suit rider preference. The snowmobile should be methodically tested,

one change at a time, under the same conditions (trail and snow condi-

tions, vehicle speed, riding position, etc.) after each adjustment until the

best ride is achieved.

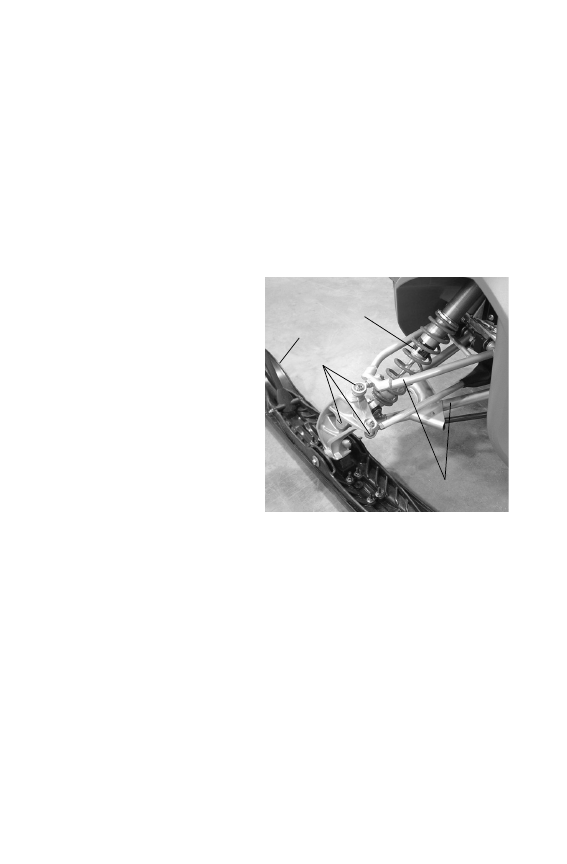

IFS Components

1. Skis
2. Front shocks and springs
3. Rod ends
4. A-arms

IFS Adjustment Options

• Front shock spring preload
• Optional springs
• Optional shock valving

1

2

3

4

51

THE PERFECT FIT

IQ Front Suspension Adjustments

Front Shock Spring Preload

Increasing spring preload will increase

ski-to-ground pressure. Decreasing spring

preload will decrease ski-to-ground pres-

sure. When adjusting, be sure the springs

on both the left and right sides of the

machine are at the same adjustment.
To change front shock spring preload,

grasp the spring and rotate it.
Increasing the spring preload too much

may adversely affect the handling of the

snowmobile and the performance of the

suspension. Never exceed one inch of pre-

load beyond the factory settings, and

ensure that both sides are adjusted the

same. When decreasing preload, make

sure at least two turns of preload are hold-

ing the spring between the retainer on the

top of the shock and the threaded spring

preload adjuster nut on the shock body.

Failure to do so could cause the retainer to fall off when the suspension

is fully extended.

Tip: Not all models have shocks with thread-adjustable spring preload. See your

dealer for more information.

NOTICE: On some models equipped with a plastic adjuster nut, the nut will

break if it is unscrewed from the threaded body. Do not force the nut if

resistance suddenly increases while you’re turning it.

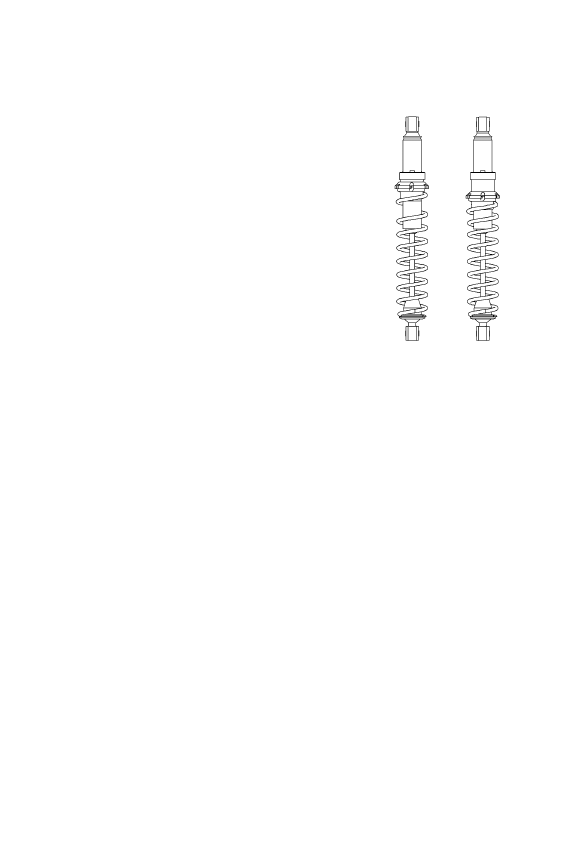

Low

Preload

High

Preload

52

THE PERFECT FIT

IQ Front Suspension Adjustments

Shock Valving

The shocks can be revalved if spring preload alone isn't sufficient and

further adjustment is desired to control suspension stiffness.

WARNING! Changing shock valving requires special tools and a sound

knowledge of mechanical theory, tool use, and shop procedures to perform the

work safely and correctly. Shocks contain high-pressure nitrogen gas. Use

extreme caution when handling high-pressure service equipment. We

recommend that this work be performed by a Polaris dealer.
