95

MAINTENANCE

Extended Storage

Engine and Carburetor Protection

Using a fuel stabilizer and topping off the fuel tank eliminates the need
to drain the fuel system. If you prefer to drain the fuel tank, use the
following procedure

1. Transfer unused fuel from the fuel tank to an approved fuel

container using a siphon pump. Do not re-use fuel after storage.

2. Securely support the front of the snowmobile with a jack stand so

the machine is elevated and the engine is tilted rearward.

3. Remove the spark plug(s).

4. Rotate the engine slowly, watching the piston until it's at bottom

dead center (BDC), the lowest position in the cylinder. On twin
cylinder models, the opposite piston will be up.

5. Pour approximately two ounces of POLARIS injector oil into the

spark plug hole.

6. Wait one to two minutes and perform steps 3-5 on remaining

cylinders.

7. Replace the spark plugs and lower the machine to the floor.

96

MAINTENANCE

Extended Storage

Electrical Connections

Separate electrical connector blocks and clean corrosive build-up from
connectors. Lubricate or pack connector blocks with dielectric grease
and re-connect.

Replace worn or frayed electrical wire and connectors. Be sure wiring
harness is properly secured away from sharp edges, steering linkage,
moving parts, and hot exhaust parts.

Track and Suspension

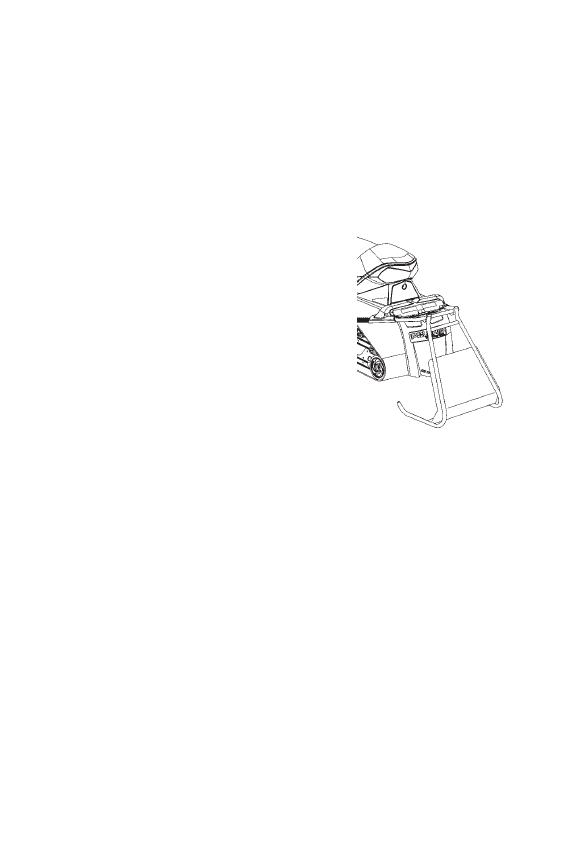

Moderate track tension should be main-
tained during summer storage. The
machine should be supported off the
ground to allow the track to hang freely.

97

MAINTENANCE

Extended Storage

Transporting the Snowmobile

Whenever the snowmobile is transported:

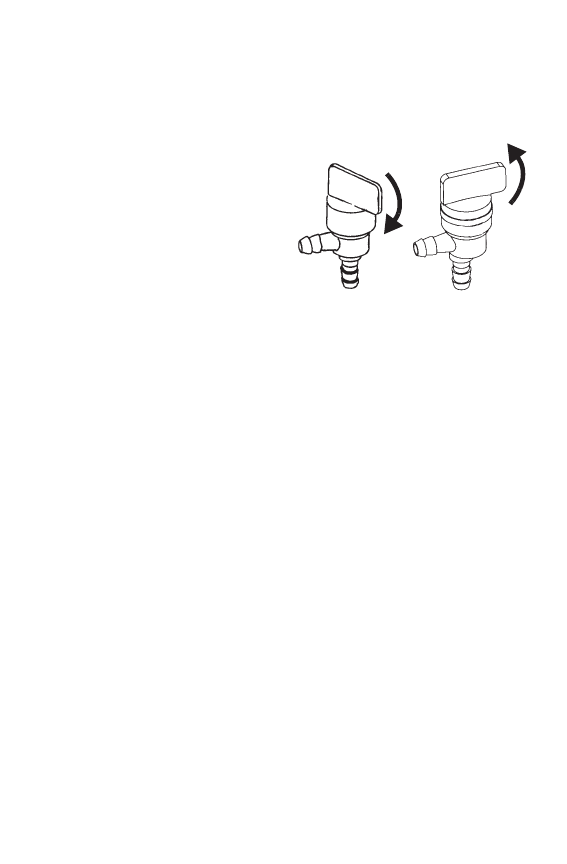

1. Turn the fuel valve

clockwise to OFF to shut
off the fuel supply. Turn the
valve counter-clockwise to
ON to turn the fuel supply
on. The fuel valve is
located under the hood.

2. Be sure the fuel cap is

securely installed.

3. Tie the snowmobile to the

transporting unit securely
using suitable straps.

OFF

ON

98

SPECIFICATIONS

600 IQ Racer

Capacities and Dimensions

Body Style

IQ

Rider Capacity

1 Rider

Coolant Capacity

5.7 qts. (5.4 l)

Fuel Capacity

4 gal. (15.1 l)

Oil Capacity

N/A

Chaincase Oil Capacity

11 oz. (325.3 ml)

Gearcase Oil Capacity

N/A

Length

117 in. (297 cm)

Designed Width

43.1 in. (109 cm)

Height

47 in. (119 cm)

Brake Type

Hayes Phantom

Drive Clutch Center Distance

10.625 in. (27 cm)

Drive Belt P/N

3211114

Clutch Type

P-85

Reverse Transmission

N/A

Engine and Cooling

Engine

S4954-6044-OI6J

Displacement

599 cc

Cylinders

2

Bore x Stroke (mm)

73.8x70

Alternator Output

220 watt

Carburetor/Throttle Body

1 Rack Mikuni

Carburetor Model

TM40

Idle RPM

1500 +/- 200

Rated Operating RPM

8400 +/- 200

Cooling

Liquid

Ignition Type

Digital

Ignition Timing

6° BTDC @ 2000 RPM

Spark Plug / Gap

Champion RN57YCC / .027 in. (0.70 mm)

Recommended Fuel Octane

92 non oxygenated

Carburetor Settings

Main Jet

460

Pilot Jet

55

Jet Needle

9FH4-57

Needle Jet

Q-0

Cutaway

1.5

Throttle Gap Under CA

2.0

Fuel Screw (from fully seated)

2.5

Air Screw (from fully seated)

N/A

Pilot Air Jet

0.7
