MAINTENANCE

General Maintenance

Tool Kit

A tool kit is included with each machine for emergency and routine

maintenance.  Always keep the tool kit with the snowmobile.

Fall Tune-Up

For maximum performance, arrange for a fall service tune-up with your

Polaris dealer.  His experienced and trained service technician will keep

your machine in peak operating condition.

113

MAINTENANCE

Track Maintenance

Track Inspection

1. Using a hoist, safely lift and

support the rear of the snow-

mobile off the ground.

2. Rotate the track by hand to

check for damage.

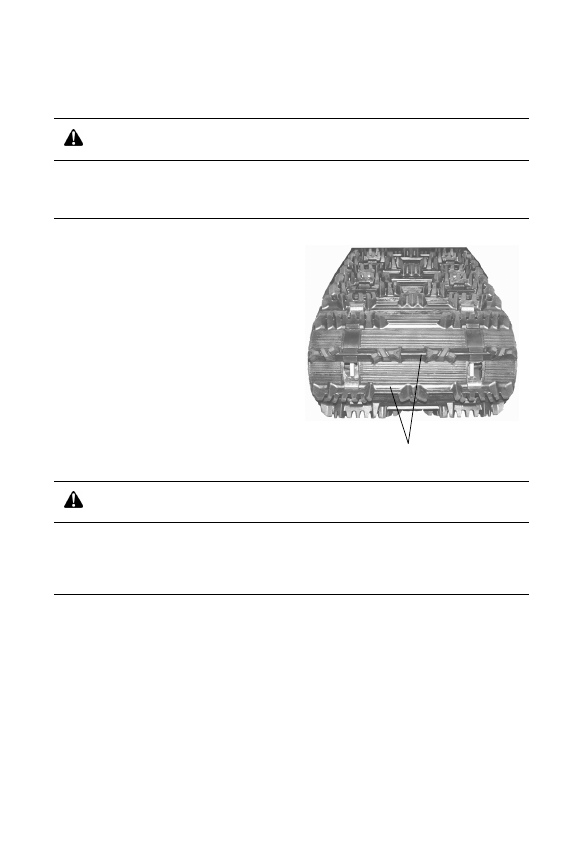

3. Carefully examine the track

along the entire length of each

rod (

✪).  Bend the track to

check for breakage.

4. Replace the track if any rod

damage is found.

Track Lubrication

The slide rail needs snow for lubrication.  Excessive wear indicates

insufficient lubrication.  A new rail slide can cause faster heat build-up

in limited lubrication, resulting in excessive wear.

NOTE: If excessive rail slide wear occurs due to poor snow conditions,

additional wheel kits are available.  See your dealer for more

information.

NOTE: Track damage or failure caused by operation on ice or under

other poor lubrication conditions will void the track warranty.

WARNING

Broken track rods can cause a rotating track to come off the machine, which

could cause serious injury or death.  Never operate with a damaged track.

Never rotate a damaged track under power.

WARNING

Operating with insufficient lubrication between the rail slide and track guide

clips can cause track failure, loss of vehicle control and loss of braking ability,

which can result in serious injury or death. Avoid operating for extended peri-

ods on ice and other surfaces that have little or no snow for lubrication.

✪

114

MAINTENANCE

Track Maintenance



Track Tension

Track adjustment is critical for proper handling.  Always maintain cor-

rect tension and alignment.

NOTE: Tension adjustments should be made only after the track is

warmed up and limber.

1. Turn the engine off.
2. Lift the rear of the machine and safely support it off the ground.
3. Place the recommended weight or downward pressure on the track

at the specified distance (see chart) ahead of the center of the rear

idler wheel.

NOTE: Measure at the point where the weight is hanging.

WARNING

Moving parts can cut and crush body parts.  When performing the checks

and adjustments recommended on the following pages, stay clear of all mov-

ing parts. Never perform track measurement or adjustments with the engine

running.

TRACK TENSION DATA CHART

Suspension

Weight

Measurement

Location

Slack

Measurement

IQ

10 lbs. (4.54 kg)

16

I

 ahead of

rear idler shaft

3/8

I

-1/2

I

(1-1.3 cm)

M-10

10 lbs. (4.54 kg)

16

I

 ahead of

rear idler shaft

7/8

I

-1 1/8

I

(2.2-2.9 cm)

115

MAINTENANCE

Track Maintenance

Track Tension

4. Check for specified slack between the wear surface of the track clip

and the plastic slider. Refer to the Track Tension Data Chart on page

114.

If the track needs adjustment:

5. Loosen the rear idler shaft bolt.
6. Loosen the locknuts.

7. Tighten or loosen the track adjusting screws (4) to provide equal

adjustment on both sides of the track.

8. Repeat the measurement on the other side of the track.

NOTE: Check more frequently when the machine is new.

9. Start the machine and slowly rotate the track at least five revolu-

tions.  Let the track come to a stop (do not apply brakes).

10. Check track alignment (see page 116) and adjust as necessary.
11. Tighten the locknuts.
12. Tighten the idler shaft bolts.
13. (

n

) Torque idler shaft bolts to 35 ft. lbs. (47.5 Nm).

S

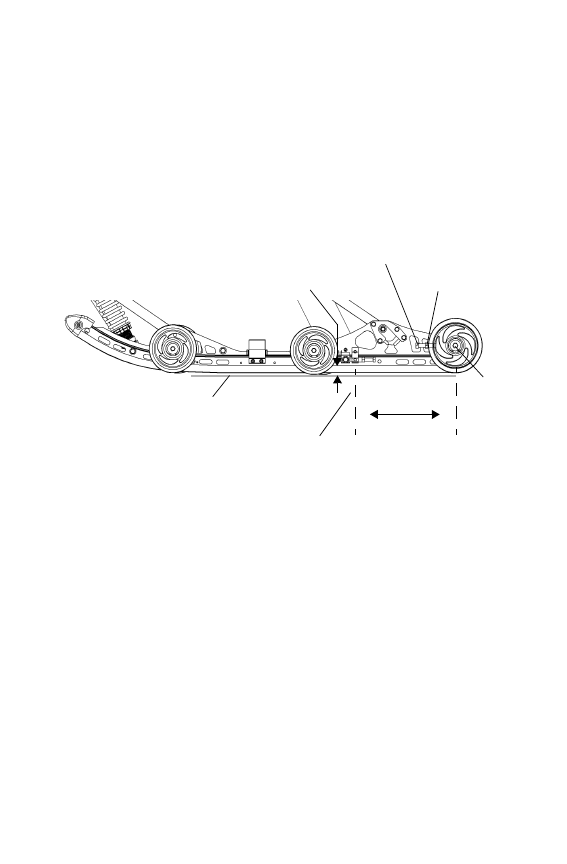

Slack Measurement

Lock Nut

Adjusting Screw

Track

10 lbs. (4.54 kg)

Shaft Bolt

16

I

(40 cm)
