Snowmobile Polaris 600 Fusion (2006 year). Instruction - part 9





36

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program
Clock Setting

1. While in the CLOCK display, press

and hold the SET button for five

seconds.

2. When the hour starts flashing press

the SET switch once to advance

one hour, or press and hold the

SET button to advance the hour

once every 0.2 seconds.

3. Press the MODE button to save the hour and flash the minutes.
4. Set the minutes in the same manner.
5. When finished, press the MODE button to save the new setting.

NOTE: If the MODE button is not pressed within ten seconds, the clock

will automatically save the new entry.

37

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program
The Engine Program automatically displays the engine coolant tempera-

ture, engine hours, electrical system voltage level and fuel level.  On

machines equipped with altimeter sensor and ambient air temperature

sensors, altitude and ambient air temperature will display as additional

screens in the engine program. Press the SET button to display the

ambient air temperature and altitude screens (if equipped).

Air Temperature (if equipped)

The MFD displays actual air temperature.

Press and hold the MODE switch for ten

seconds to switch between standard and

metric units of measurement.

Hour Meter

The hour meter records the total hours of

engine operation since manufacture.  This

meter cannot be reset.

Engine Temperature

A thermometer measures water temperature,

giving an indication of engine temperature.

38

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program
Altitude (if equipped)

The rider can calibrate the altimeter for current

atmospheric conditions. Altimeter accuracy

will be +/-300 ft. (91 m) after adjustment.

NOTE: Press and hold the MODE switch for

ten seconds to switch between stan-

dard and metric units of measure-

ment.  When "ALt" displays, the program is in the metric mode.

1. Enter the Engine Program and select the altimeter display.
2. Press and hold the SET button for five seconds.
3. When the digits begin to flash, press the SET button once to

advance 50 feet (15 m), or press and hold the button to advance 100

ft. (30 m) every 0.1 seconds. Adjust the altitude display to within 50

ft. (15 m) of current altitude.

NOTE: The gauge reads barometric pressure and allows the rider to

compensate for daily fluctuations in air pressure.  The gauge

can adjust the displayed altitude to +/- 1300 ft. (396 m) from the

preset value.  It will adjust up to +1300 ft. (396 m) above the

calibrated altitude.  Once the +1300 ft. (396 m) offset has been

reached, the next adjustment is -1300 ft. (396 m) from the cali-

brated altitude, and 50 ft. (15 m) will be added to the altitude

each time the SET button is pressed.

4. Press the MODE button to hold the reading at the adjusted value. If

it's not pressed within five seconds, the gauge will automatically

save the new setting.

39

FEATURES

Instrumentation

MFD Digital Display Programs

History Program
The History Program automatically displays electrical system voltage

level and fuel level.

While in the History mode, press the SET button to view maximum

vehicle speed, maximum engine rpm or the current service interval set-

ting. The gauge automatically logs the maximum speed and engine rpm

even if the History Program is not currently displayed.

The History Program will display the history of the Maximum Speed,

Maximum RPM and Service Interval settings.

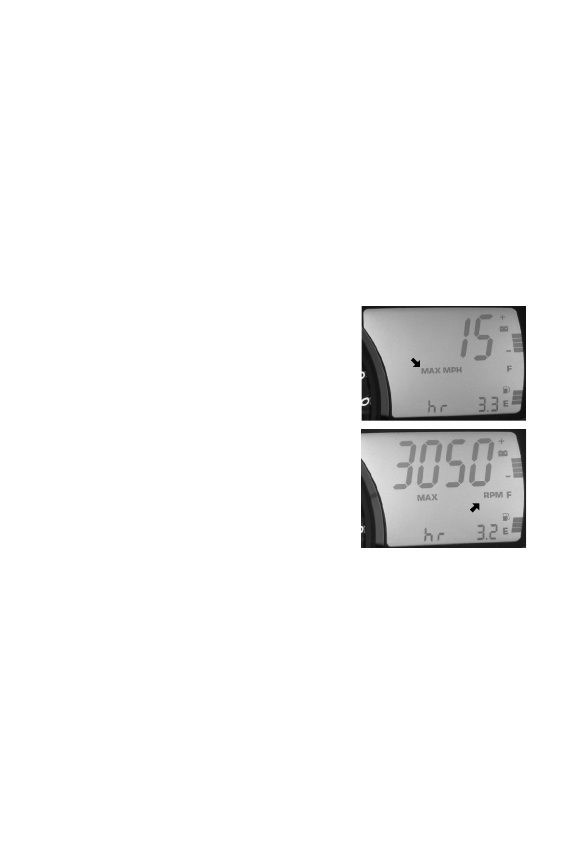

Maximum Speed/RPM Reset

While in either the MAX MPH or the MAX

RPM mode, press and hold the SET button

for three seconds to reset the recorded maxi-

mum values for both MPH and RPM.  Both

of these values are reset at the same time.

Reset the MAX MPH/RPM values before

each run to obtain accurate readings.

NOTE: Due to electrical noise, the MFD

may occasionally display MAX

MPH/RPM values that are not rep-

resentative of actual values.
