Snowmobile Polaris 550 IQ / 550 Shift (2012 year). Instruction - part 19





76

MAINTENANCE

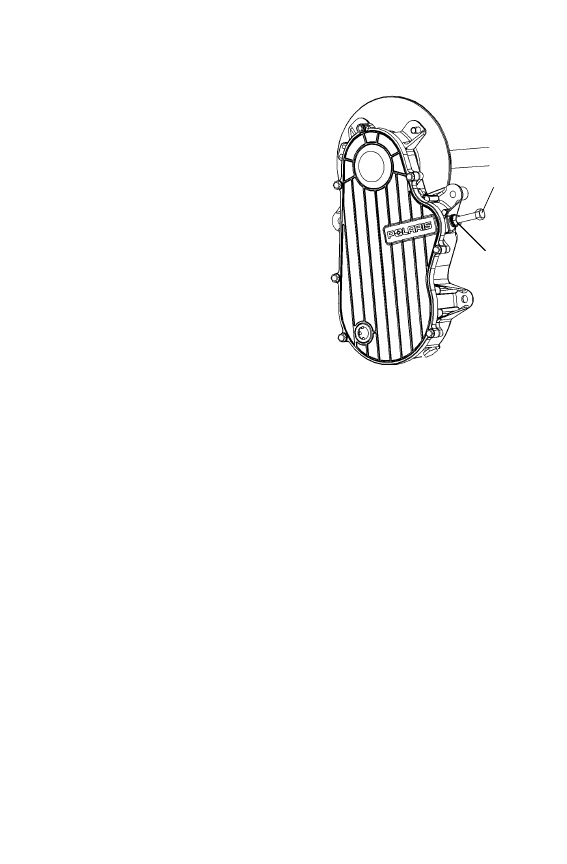

Drive Chain Tension

Check drive chain tension weekly and
before each long trip.  To obtain correct
chain tension:

1. Rotate the driven clutch counter-

clockwise to move all chain slack to
the tensioner side.  Lock the brake
lever lock, or have an assistant hold
the brake lever firmly.

2. Loosen the adjuster bolt jam nut (1).

3. Finger tighten the adjuster bolt (2)

until it can no longer be adjusted by
hand, then back off 1/4 turn.

4. Tighten the jam nut while holding

the adjuster bolt.  Torque to 21 ft.
lbs. (28 Nm).

5. Release the brake lever lock.

1

1

2

77

MAINTENANCE

Brakes

Hydraulic Brake Inspection

Inspect brake lever travel before each use of the snowmobile. See page
42.

Brake pads must be replaced when the brake pad material becomes thin-
ner than the backing plate (approximately 1/16I). A kit is available for
replacing brake pads. See your dealer.

WARNING! Brake failure during operation can result in serious injury or death.
Properly functioning brakes are vital to your safety. Be sure the brake pads do
not drag on the disc and that brake lever travel is not excessive. Always replace
brake pads when the brake pad material becomes thinner than the backing plate
(approximately 1/16

I

)

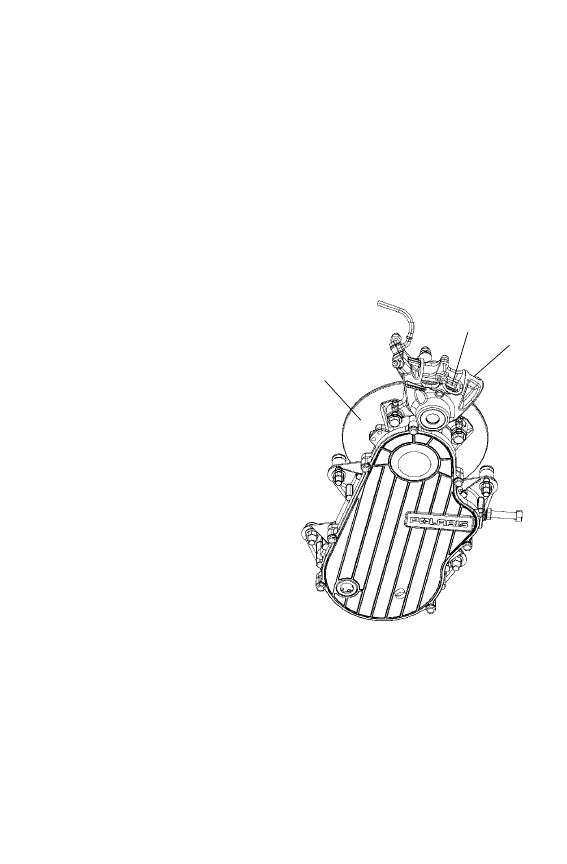

Brake Components

1. Brake Caliper

2. Brake Disc

3. Brake Pad Material

(Replace when thickness is
less than 1/16I/1.5 mm).

Excessive Lever Travel

Hydraulic brakes are self-
adjusting, but if excessive
brake pad clearance develops,
bring the machine to an autho-
rized POLARIS dealer for
inspection and adjustment.

2

1

3

78

MAINTENANCE

Brakes

Brake Fluid

WARNING! After opening a bottle of brake fluid, always discard any unused
portion. Never store or use a partial bottle. Brake fluid is hygroscopic, meaning it
rapidly absorbs moisture from the air. The moisture causes the boiling
temperature of the brake fluid to drop, which can lead to early brake fade and
the possibility of accident or serious injury.

The brake fluid level can be seen through a plastic sight glass in the
brake reservoir. If the fluid is sufficient, the sight glass will be black. If
the sight glass is any color other than black, add brake fluid.

Keep the master cylinder cover free of dirt and debris. The vent slits
allow for diaphragm movement, and if they become plugged, movement
of brake fluid below the diaphragm may be restricted, altering brake
function.

Replace brake fluid at least every two years with POLARIS DOT 4 high
temperature brake fluid. See page 98 for the part numbers of POLARIS
products.

NOTICE: Brake fluid will damage decals, paint and some plastics. Always wipe

up spills immediately.

79

MAINTENANCE

Brakes

Bleeding the Hydraulic Brake System

Air in the hydraulic brake system will cause spongy brake lever action.
Bleed the system before operating the snowmobile.

WARNING! Operating the vehicle with a spongy brake lever can result in loss of
brakes, which could cause an accident and lead to serious injury or death.
Never operate the vehicle with a spongy-feeling brake lever.

During the bleeding procedure, keep the brake handle as level as possi-
ble.  The reservoir must be in this position to minimize the possibility of
air entering the system through the reservoir vent.

1. Remove the brake master cylinder reservoir cover and gasket.

2. Fill the master cylinder reservoir to between the MIN and MAX

marks or 1/4-5/16I (.6-.8 cm) below the lip of the reservoir open-
ing.  Reinstall the gasket and cover.

3. Slip a rubber tube over the ball of the bleeder valve and direct the

flow of fluid into an approved container.

4. Squeeze the brake lever a full stroke.  Then unscrew the bleeder

valve 3/4 of a turn to release air.

5. Close the bleeder valve and release the brake lever.

6. Repeat steps 4 and 5 until fluid flows from the bleeder valve in a

solid stream free of air bubbles.

WARNING! Overfilling the master cylinder leaves no room for fluid expansion
and may cause the brakes to lock, resulting in serious injury or death. Always
add brake fluid to the fill line as recommended.

7. After bleeding is complete, refill the reservoir to the proper level.

See page 78.

8. Reinstall the gasket and cover.
