64

MAINTENANCE

Periodic Maintenance Interval Table

Item

See

Page

Frequency

150 mi.

(240 km)

500 mi.

(800 km)

1000 mi.

(1600 km)

2000 mi.

(3200 km)

Pre-

Season

BRAKES

Hose Routing

--

I

I

I

I

Hose Condition

--

I

I

I

I

Fluid Leaks

--

I

I

I

I

Brake Pads

77

I

I

I

I

Brake Disc

--

I

I

I

I

Parking Brake

43

I

I

I

I

Brake System

42, 77

I

Brake Fluid

78

I

FUEL MANAGEMENT

Pilot Air Screws

--

I

I

I

Carburetor
(synchronize)

74

I

I

I

Idle RPM

--

I

I

I

Throttle Lever

57

I

I

I

I

I

Oil Pump Lever
(synchronize)

--

I

I

I

Throttle Cable

67

L

L

L

Choke Cable

67

L

L

L

Choke

67

I

I

I

Vent Lines

--

I

I

I

I

Fuel Lines

73

I

I

I

I

I

Fuel Filter

73

R

R

Oil Filter

72

R

R

Oil Lines

72

I

I

I

Air Box

--

I

I

I

I

I

Drain and Water Traps

75

I

I

I

ELECTRICAL

Auxiliary Shut-Off
Switch

56

I

I

I

I

I

Throttle Safety Switch

56

I

I

I

I

I

Ignition Switch

--

I

I

I

I

I

Taillight

46

I

I

I

I

I

Brakelight

46

I

I

I

I

I

Headlight

46

I

I

I

I

I

65

MAINTENANCE

Periodic Maintenance Interval Table

I - Inspect (clean, adjust, tighten, lubricate, replace if necessary)
C - Clean

R - Replace

L - Lubricate

Item

See

Page

Frequency

150 mi.

(240 km)

500 mi.

(800 km)

1000 mi.

(1600 km)

2000 mi.

(3200 km)

Pre-

Season

CHASSIS

Ski Toe Alignment

--

I

I

I

Suspension Mounting
Bolts

--

I

I

I

I

I

Steering Fasteners

--

I

I

I

I

C

Rear Suspension Fas-
teners

--

I

I

I

I

I

Suspension Shock Oil

--

I

I

I

I

Cooling System

73

I

I

I

I

Drive Shaft Bearing

67

L

L

L

I

Jackshaft Bearings

96

L

L

L

I

Skags (Wear Bars)

93

I

I

I

I

I

Ski Saddle/Spindle
Bolts

--

I

I

I

I

I

Steering Arm(s)

--

I

Drive Chain Tension

76

I

I

I

I

I

Hood Latches

45

I

I

I

I

I

Rear Wheel Idler Bolts

89

I

I

I

I

I

Idler Bolt Jam Nut

89

I

I

I

I

I

Rear Suspension Pivot
Shafts

66

L

L

L

Camber Alignment

--

I

I

I

Handlebar Centering

--

I

Tether Switch and Strap

46

I

I

I

I

I

Track Alignment

90

I

I

I

I

I

Track Tension

88

I

I

I

I

I

Front Limiter Strap

--

I

I

I

I

I

Rail Slide Condition

94

I

Chaincase Oil

68

I

I

I

R

I

66

MAINTENANCE

Lubrication

Front Suspension

The front suspension does not require lubrication.

Rear Suspension

Lubricate the suspension pivot shafts with POLARIS Premium All Sea-
son Grease at the intervals outlined in the Periodic Maintenance Table
beginning on page 62 and before seasonal storage. When operating in
heavy, wet snow conditions, lubricate every 500 miles (800 km).

Lack of lubrication will adversely affect your ride and the life of the sus-
pension. For more information about suspension lubrication and adjust-
ments, see your POLARIS dealer.

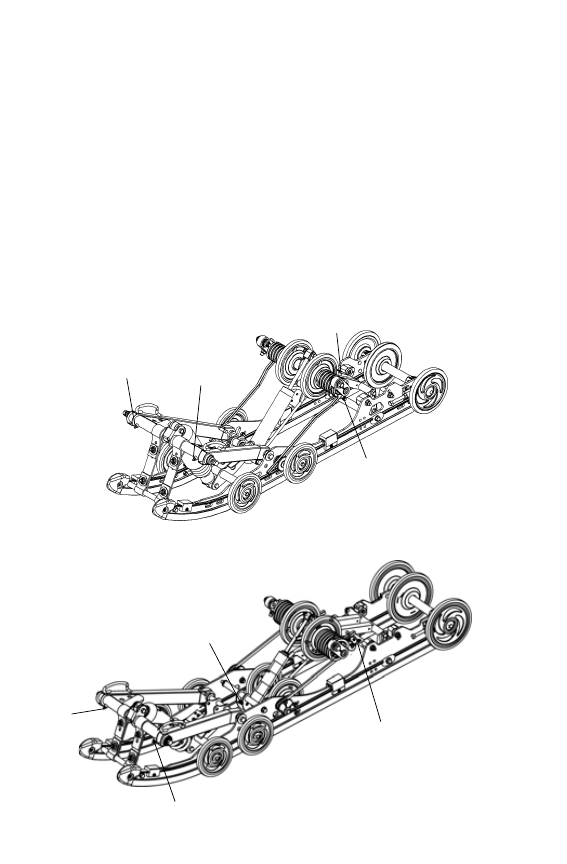

IQ Rear Suspension (121)

IQ Comfort Rear Suspension (136)

67

MAINTENANCE

Lubrication

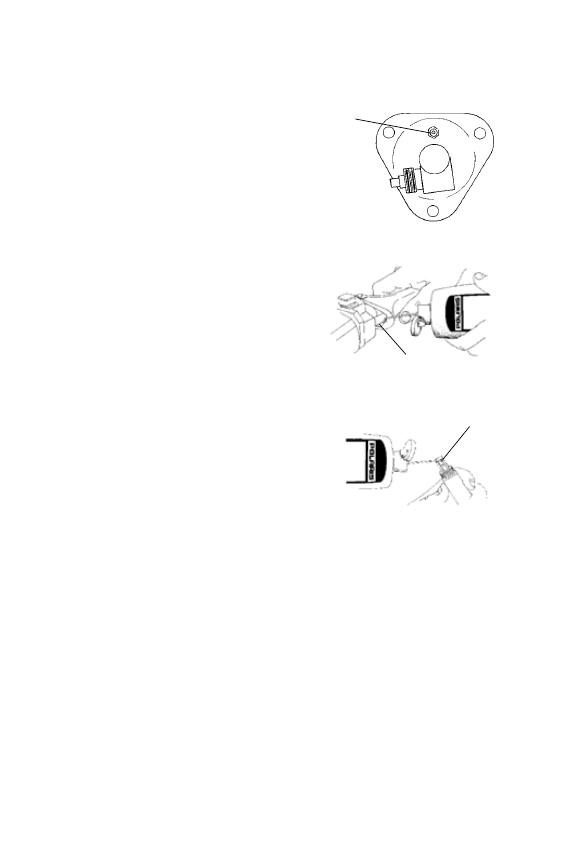

Driveshaft Bearing

Inject grease into the fitting on the
speedometer sensor housing until
grease purges from the seal on the
inside of the tunnel.  This should
take approximately two pumps.  Do
not use more than four pumps.

Throttle Cable

Lubricate the throttle cable lightly
with grease or oil. With the engine
off, turn the handlebars to the left
and lubricate liberally as shown.

Choke and Choke Cable

Lubricate the choke slide and cables
lightly with oil or grease. Before
turning the engine off, operate the
choke intermittently to draw mois-
ture out of the choke plunger area
and reduce the possibility of the
choke becoming frozen.
