Snowmobile Polaris 120 PRO R (2013 year). Instruction - part 19





77

ADULT SECTION

Maintenance

Storage

Track and Suspension

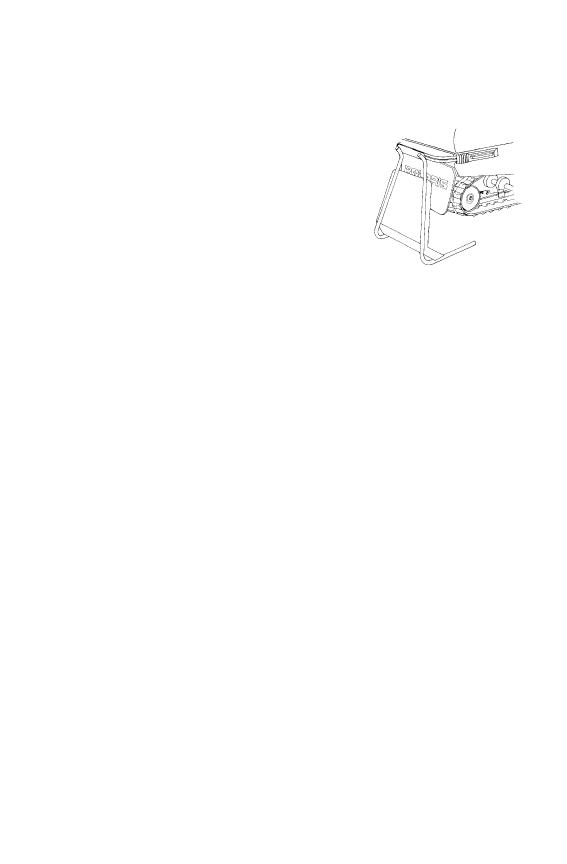

Support the rear of the snowmobile
slightly off the ground with an appropriate
snowmobile support. This will allow the
track to hang freely.

Elevate the front end of the machine and
place blocks securely under it to remove
tension from the shocks and springs. This
will minimize fatigue on the front shocks
and springs.

Storage Area
Your snowmobile should be stored in a dry garage or shed, out of direct
sunlight. It should be covered with a fabric snowmobile cover. Plastic
covers can cause condensation to form and may damage some snowmo-
bile components.

78

ADULT SECTION

Maintenance

Transporting the Snowmobile

Whenever the snowmobile is transported the following measures should
be taken:

1. Turn the fuel valve off.

2. Be sure the fuel cap is installed correctly.

3. Always tie the snowmobile to the transporting unit securely using

suitable straps.

Fall Tune-Up

To obtain maximum performance from your snowmobile, we encourage
you to arrange for a fall service tune-up with your POLARIS dealer.

Towing
Do not pull or tow any person or object behind this snowmobile. If a
disabled snowmobile must be towed by another snowmobile, attach the
tow rope to the spindles of the disabled snowmobile, not to the ski toe
loops.

Emergency Preparation
For your added protection, carry the following items in your snowmo-
bile when traveling farther than a five-minute walk from home.
• Extra Spark Plugs
• First  Aid  Kit
• Winter Survival Kit
• Extra  Gloves
• Owner's Manual

79

TROUBLESHOOTING

Engine Turns Over, Fails to Start

Contact your POLARIS dealer for service if you're unable to identify
solutions using the following chart.

Possible Cause

Solution

Tether switch not engaged

Install tether switch/strap

Engine stop switch not on

Pull stop switch up to RUN position

Throttle safety switch malfunction

See your POLARIS dealer

Out of fuel

Refuel

Clogged fuel valve or filter

Inspect and clean or replace

Water is present in fuel

Drain the fuel system and refuel

Fuel valve is off

Turn the fuel valve on

Old or non-recommended fuel

Replace with new fuel

Fouled or defective spark plug(s)

Inspect plug(s), replace if necessary

No spark to spark plug

Inspect plug(s), verify stop switch is

on

Overuse of choke

Inspect, clean and/or replace spark

plugs

Mechanical failure

See your POLARIS dealer

80

SPECIFICATIONS

Capacities and Dimensions

Body Style

Mini Indy

Rider/Weight Capacity

1/140 lbs. (63.5 kg) maximum

Dry Weight

147.5 lbs. (67 kg)

Fuel Tank Capacity

.5 gal. (1.9 l)

Engine Oil Capacity

20 oz. (.6 l)

Height

31 in. (79 cm)

Length

75 in. (191 cm)

Width

34 in. (86 cm)

Track Length

69 in. (175 cm)

Track Width

10 in. (25 cm)

Brake Type

Mechanical

Ski Center Distance

30 in. (76.2 cm)

Clutch Type

Centrifugal

Drive Chain Length

#40

Suspension

Front Type

IFS

IFS Shock Type

Mini

Rear Type

Mini Indy

Engine and Cooling

Engine Model Number

EH122PM01D

Alternator Output

50 watt @ 3600 RPM

Bore x Stroke

60 x 43 mm

Displacement

121 cc

Carburetor Model

Mikuni BV18

NOTE: These

carburetor settings are

to be used in

conjunction with the

jetting chart on the

following page, which is

based on the

recommended fuel

octane.

Idle RPM +/- 200

1650

Main Jet

70

Pilot Jet

50

Jet Needle

N/A

Needle Jet

N/A

Cutaway

170 Throttle Valve

Fuel Screw

1.75 Turns

Pilot Air Jet

1.3 mm

Cooling

Air

Cylinders

1

Ignition Timing

23° BTDC @ 3600 RPM

Ignition Type

Flywheel Magneto (solid state)

Spark Plug/Gap

NGK BR6ES/.028" (.70 mm)

Recommended Engine Oil

PS-4 or PS-4 Plus

Recommended Fuel Octane Minimum 87 octane non-oxygenated or 89

octane oxygenated
