Maintenance

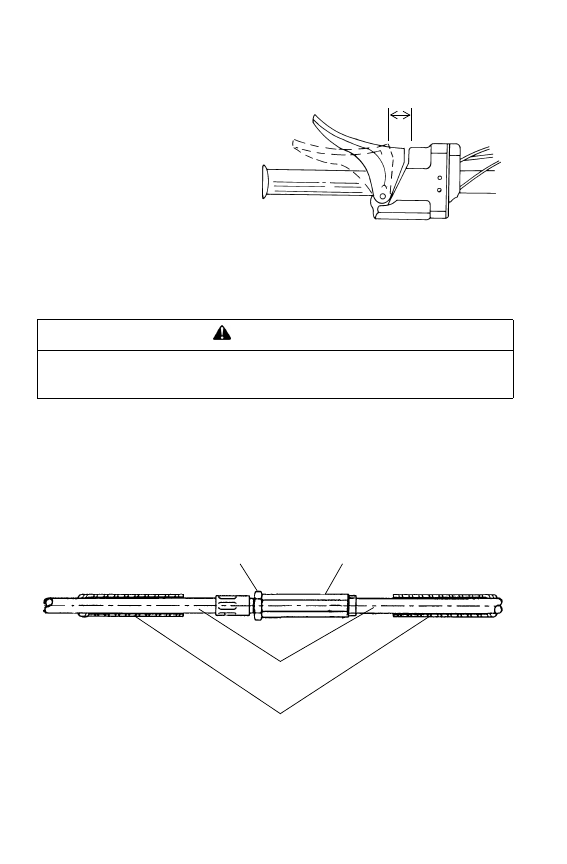

Brake Lever Travel

Firmly depress the brake lever.

Measure the clearance between

the lever and brake block.
If clearance is more than 3/4"

(19 mm), adjust the brake

cable as outlined below.

Brake Cable Adjustment

If proper adjustment cannot be achieved using the following methods,

check the brake band. If the brake band has excessive wear, see your

Polaris dealer for installation of a new band.

1. Slide the two rubber protector covers back to expose the cable

adjuster.

2. Using an 8mm wrench to hold the barrel nut, loosen the jam nut

with a 10mm wrench.

3. With your left hand, grasp the cables as close to the adjuster as pos-

sible. Use your right hand to rotate the barrel nut until you have

reached the proper brake lever adjustment.

WARNING

Improper brake adjustment can result in brake failure, which could result in

severe injury or death. Perform the adjustment procedures exactly as outlined,

or see your Polaris dealer for service.

3/4" (19 mm)

Rubber Covers

Cables

Barrel Nut

Jam Nut

57

ADULT SECTION

Maintenance

Brake Cable Adjustment

4. Check the actuator linkage to

ensure there is adequate

freedom of movement for

positive brake operation and

that all floating parts move

freely and that all parts are

mounted securely. Tighten

hardware as required.

5. Tighten the adjuster jam nut and

slide the rubber protectors onto

the adjuster.

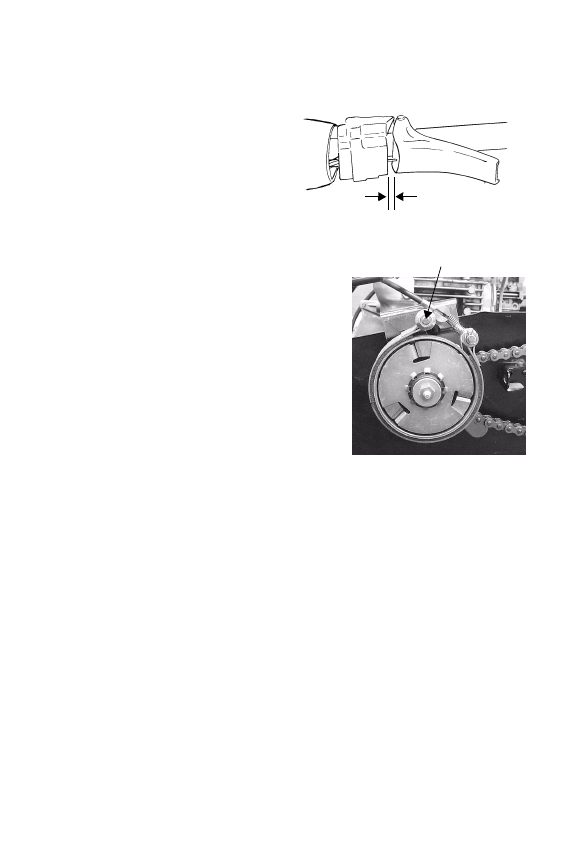

6. The brake band is adjusted

correctly when brake lever

freeplay is 1/4- 3/8" (6-10 mm)

and clearance between the brake

lever and block with the lever

fully depressed is no more than

3/4" (19 mm). Torque the band

bolt nut to 6 ft. lbs. (8 Nm).

1/4-3/8" (6-10 mm)

Band Bolt Nut

58

ADULT SECTION

Maintenance

Throttle Cable Lubrication

With the engine off, lubricate the

throttle cable occasionally. Turn

the handlebars to the left and

lubricate liberally with Polaris All

Season Grease.

Choke/Cable Lubrication

Lubricate the choke slide and

cables occasionally as shown.

Operate the choke intermittently

before turning the engine off. This

draws moisture out of the choke

plunger area and reduces the possi-

bility of the choke becoming fro-

zen.

Throttle Cable Pivot Slug

Lubricate the throttle cable pivot

slug every 50 hours or twice a year

using an aerosol lubricant.

Pivot Slug

59

ADULT SECTION

Maintenance

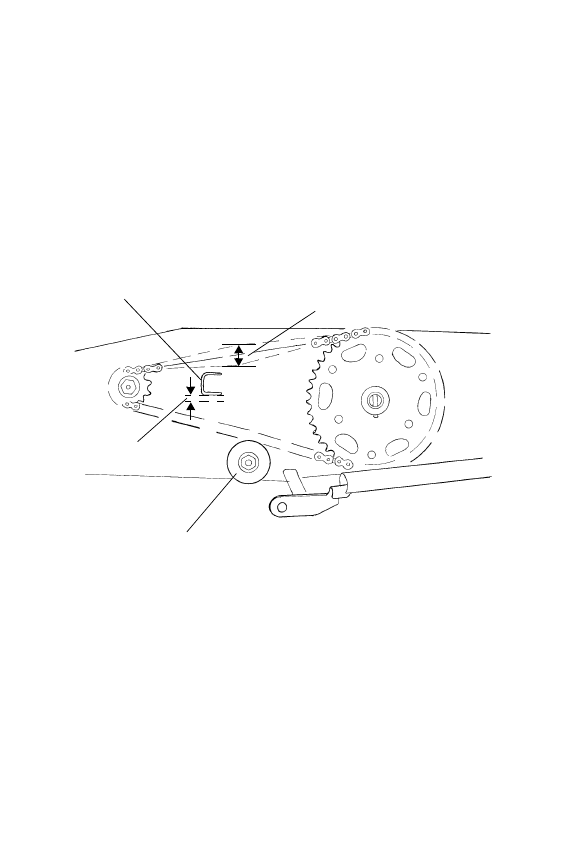

Chain Tensioner

Inspect the chain. Proper deflection is one inch (25 mm). Adjust the

chain if deflection is incorrect.
1. Loosen the nut on the chain tensioner.
2. Raise the tensioner until the correct deflection is attained.
3. Tighten the nut to 15-18 ft. lbs. (20-24 Nm).

NOTE:

When the chain has stretched to within 1/8" (3 mm) of the muffler

mount bracket on the chassis, replace the chain. Inspect the sprockets

as they also wear and often need replacement when the chain is

replaced.

Chain Tensioner

1" (25 mm)

1/8" (3 mm)

Muffler Mount Bracket
