Snowmobile Polaris SPORT TOURING/INT’L (2004 year). Instruction - part 5





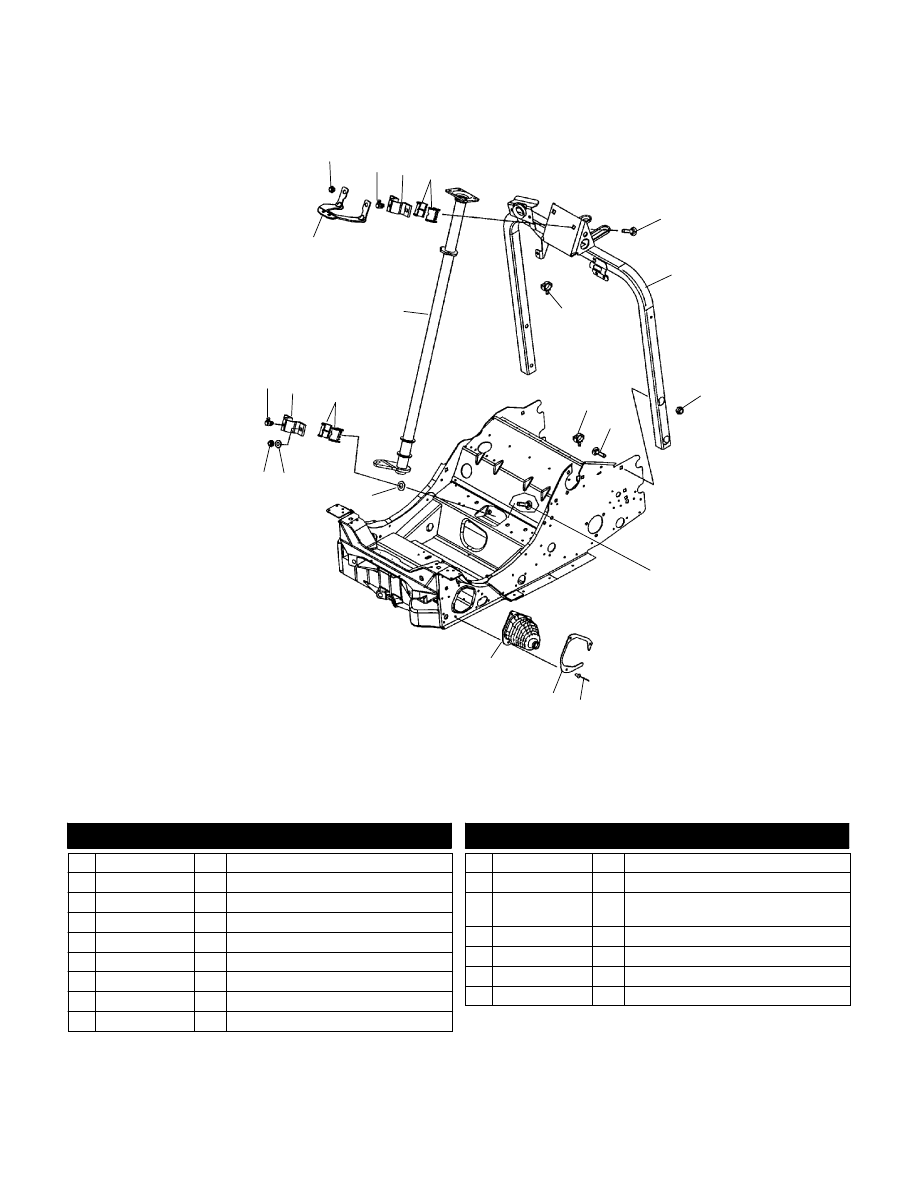

B3

STEERING

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

12

10

6

1

14

5

8

9

11

7

16

13

3

4

3

4

7

5

1

2

2

15

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7542324

4 Nut, Nylok

2 7080510

2 Fitting, Zerk

3 5133648

2 Bracket, Steering Post

4 5432785

4 Bushing, Steering Post

5 7517579

4 Bolt, Carriage

6 1013804-067

1 Hoop, Steering

7 4020139

4 Clip, Rosebud

8 7512377

4 Bolt, Carriage

9 7542343

4 Nut

10 7621433

6 Rivet

11 5244470

2 Plate, Tie Rod Boot

12 5433532

5433533

1

1

Boot, Tie Rod, LH

Boot, Tie Rod, RH

13 7547030

2 Palnut

14 7558402

2 Washer, Flat

15 1820965-067

1 Post, Steering

16 5245354

1 Bracket, Console, Front Neck

4/03

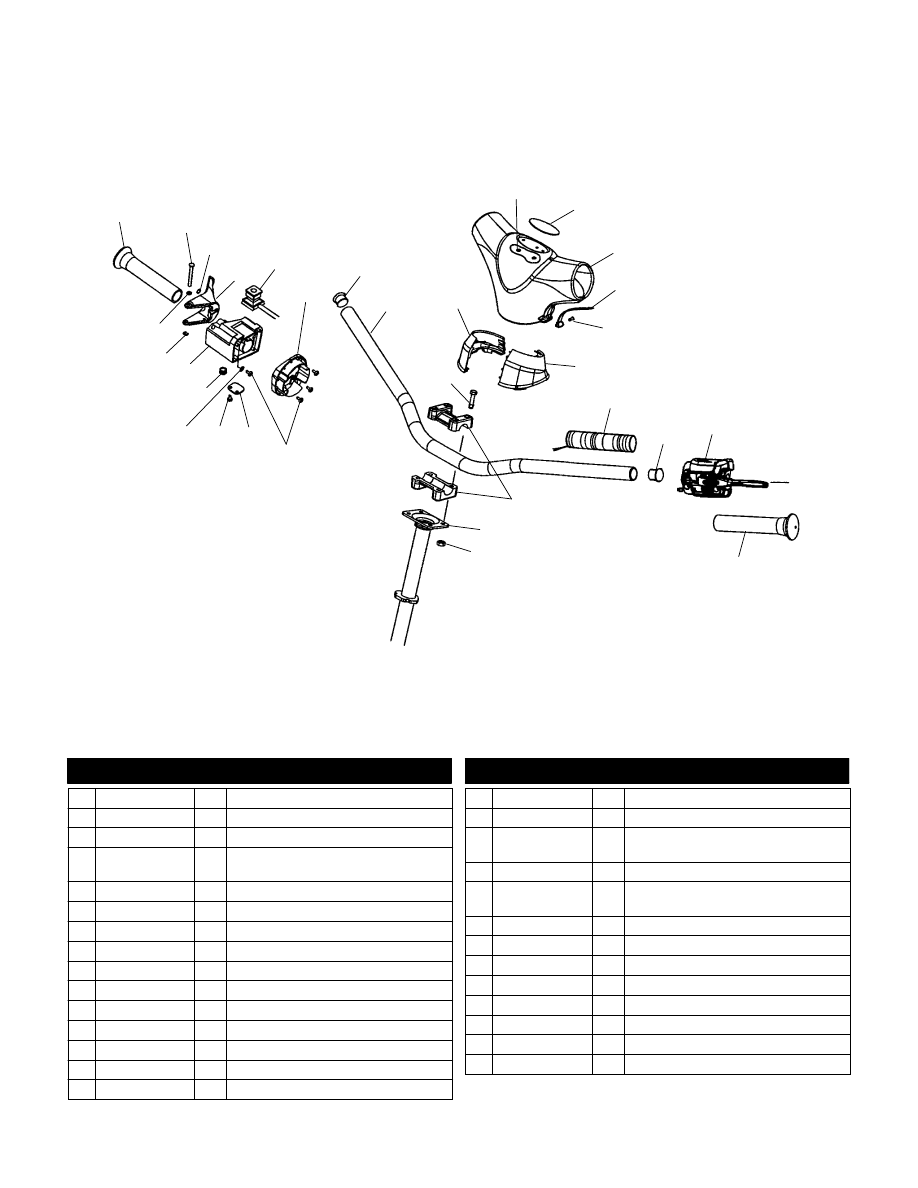

B4

HANDLEBAR

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

2

3

4

26

1

1

7

7

6

8

9

10

11

12

13

14

15

16

18

19

20

21

17

22

23

27

25

24

5

28

22

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty. Description

Ref. Part No.

Qty. Description

1 5432634

2 Grip, Handlebar

2 7661624

1 Pin, Retaining

3 7710503

1 Ring, Retaining

4 5432970

2010171

1

1

Lever, Throttle

Asm., Lever w/Heater, HI/LO

5 4110106

1 Switch, Auxiliary Shut-Off, Closed

6 5433345

1 Adaptor, Block, Throttle

7 5431096

2 Plug, Overflow

8 5243355-067

1 Handlebar

9 7517238

4 Screw

10 5434488

1 Collar, Console, RH

11 7670106

2 Nut, Push-On

12 5434179

1 Emblem, Star

13 5433159-070

1 Cover, Handlebar

14 5433160-070

2 Slide, Handlebar Cover

15 4010287

2 Dart, Clip Nylon

16 5434487

1 Collar, Console, LH

17 2460677

2 Heater, Grip, Lo/Med/Hi

18 --------------

1 Asm., Control, LH

(See Brake Pg. B5 Ref. 12)

19 5630187-067

2 Block, Handlebar

20 --------------

1 Post, Steering

(See Steering Pg. B3, Ref. 15)

21 7542122

4 Nut, Nylok

22 7511848

8 Screw

23 5432261

1 Holder, Wire

24 7555727

1 Washer

25 7512465

1 Screw, Set

26 5431592

1 Block, Throttle/Brake

27 7710401

1 Ring, Retaining

28 7555730

2 Washer

4/03

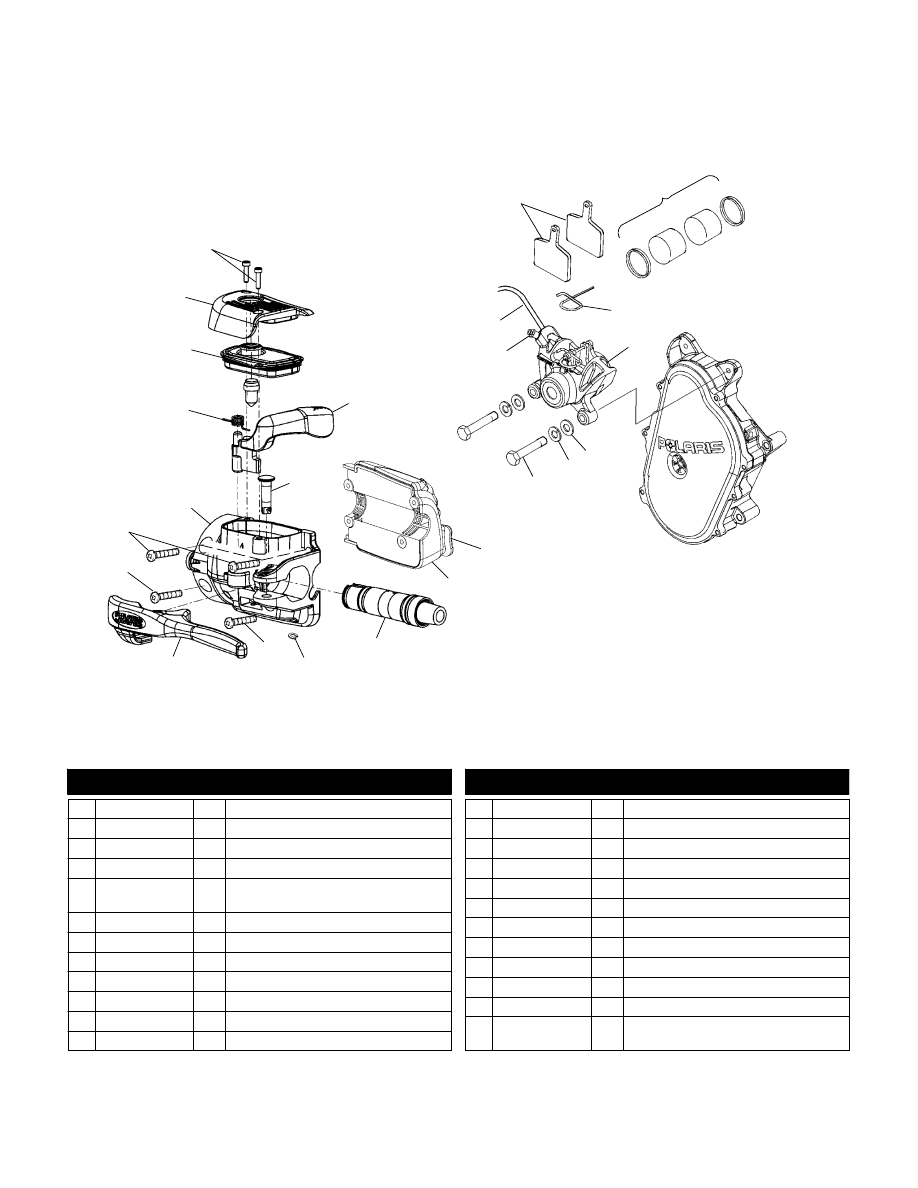

B5

BRAKE

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

20

19

18

24

23

21

16

1

2

3

15

14

12

6

11

5

8

4

9

13

10

7

22

17

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 2201254

1 Kit, Cover Screws

2 2201255

1 Kit, Cover Assembly (Incl. 1,3)

3 --------------

1 Gasket

4 2201250

1 Kit, Park Lever Spring

5 2202146

4010157

1

1

Kit, Asm., Master Cylinder (Incl. 1-11)

Switch, Brake Light

6 7517441

2 Screw

7 7512078

1 Screw

8 2201943

1 Kit, Lever

9 7517566

1 Screw

10 2201945

1 Kit, Snap Ring

11 2201944

1 Kit, Cartridge Subassembly

12 2010206

1 Asm., Control, LH, E/R

13 5433291

1 Button, Switch, HI/LO, LH Control

14 2201946

1 Kit, Pivot Pin

15 2201251

1 Kit, Park Lever and Spring (Incl. 4)

16 1910607

1 Line, Brake

17 2202205

1 Kit, Bleeder Fitting

18 7515534

2 Screw

19 7552603

2 Washer, Spring Lock

20 7556160

2 Washer

21 2202198

1 Kit, Asm., Brake Caliper (Incl. 17,22-24)

22 2202206

1 Kit, Pin Retaining

23 2202202

1 Kit, Brake Pad, Type 81

24 2202207

2202204

1

1

Kit, Piston/Seal

Kit, Seal

7/03

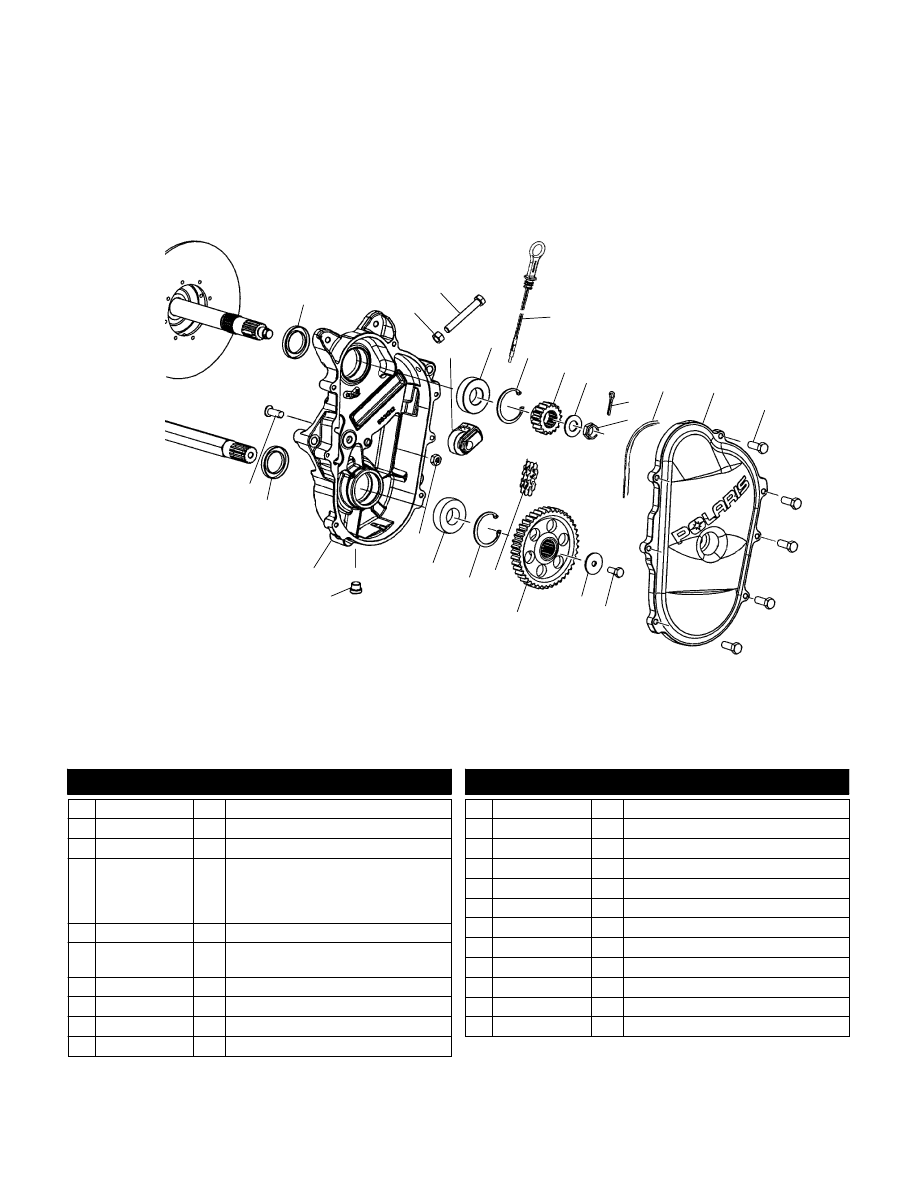

B6

CHAINCASE

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

1

3

2

5

7

8

4

9

11

10

12

13

14

15

16

18

17

6

21

1

7

5

22

20

19

E

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 3610030

2 Seal, Oil

2 7542404

1 Nut

3 7515459

1 Screw

4 1332266

5630123

3553002

7558702

1

1

1

2

Asm., Tightener, Sliding

Wheel, Idler

Bearing, Chaincase Idler

Washer, Thrust

5 3514309

2 Bearing, Ball

6 1332143

5410675

1

2

Asm., Dipstick (Incl. O-Ring)

O-Ring

7 7718406

2 Ring, Retaining

8 3221097

1 Sprocket, 21T, 3/4W

9 7571620

1 Washer, Spring

10 7661203

1 Pin, Cotter

11 7547202

1 Nut

12 5411497

1 Gasket, Chaincase O-Ring

13 5631354

1 Cover, Chaincase

14 7512242

5 Screw

15 7517979

1 Screw

16 7571618

1 Washer, Spring

17 3222101

1 Sprocket, 41T

18 3221109

1 Chain, 74P, 3/4W

19 7542451

1 Nut, Nylok

20 7052115

1 Plug

21 5134085

1 Chaincase

22 7515477

1 Screw, Carriage

4/03
