Snowmobile Polaris (2006 year). Instruction - part 53





10.12

FRONT SUSPENSION/STEERING

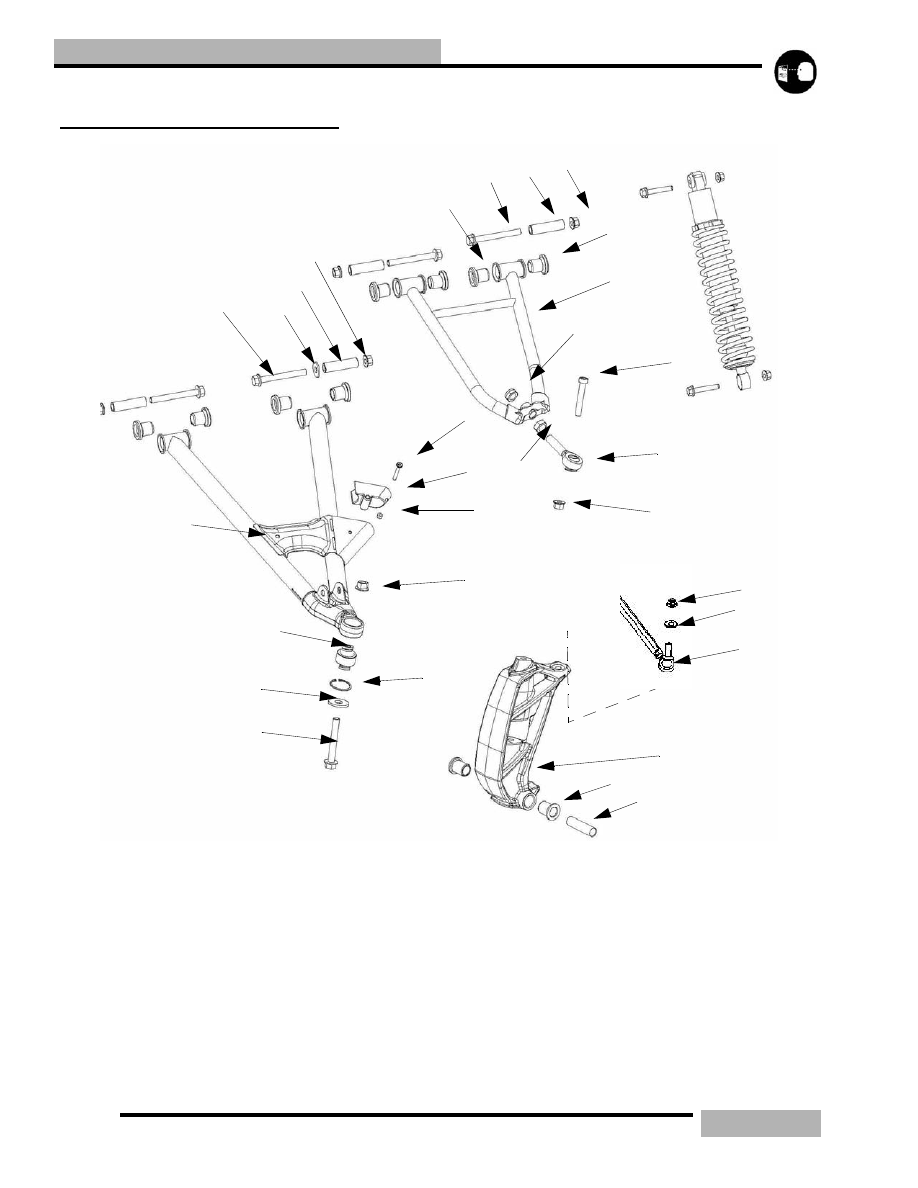

IQ FRONT SUSPENSION

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

10.13

FRONT SUSPENSION/STEERING

Table 10-8: IQ Front Suspension

ITEM

DESCRIPTION

 TORQUE SPECIFICATION / NOTES

1

Lower A-Arm pivot bolt

2

Flat washer

Critical for spacing the bolt from the sway bar.

3

Pivot Shaft

4

Flanged nut

 40 ft-lb (54Nm)

5

Pivot Bushing

6

Upper A-Arm pivot bolt

7

Pivot shaft

8

Flanged nut

 40 ft-lb (54Nm)

9

Pivot Bushing

10

Upper control arm

11

Camber lock nut

12

Rod end bolt

13

Rod end

14

Flanged nut

35 ft-lb (47Nm)

15

Screw

16

Jam nut

17

Swaybar slide

18

Nylok nut

19

Nut

29ft-lb (39Nm)

20

Lower control arm

21

Bearing

22

Retaining ring

23

Washer

24

Bolt

25

Steering arm nut

29ft-lb (39Nm)

26

Steering arm

27

Washer

28

Spindle

29

Bushing ski pivot bushing

30 Pivot

bushing

10.14

FRONT SUSPENSION/STEERING

SPINDLE REMOVAL

1.

Securely support the front of the machine so that it is off
the floor.

2.

Remove the ski(s).

3.

Remove the flanged nut (14) on bottom of the lower
spherical bearing (13).

4.

Remove the camber bolt (12) from the top of the spindle.

5.

Remove the steering arm (26) from the spindle, by
removing the but (27) and bolt (25).

6.

Remove the flanged nut (19) from the lower spherical
bearing.

7.

Remove the lower spherical bearing bolt (24) and washer
(23).

8.

Remove the spindle (28).

SPINDLE ASSEMBLY

1.

Replace the steering arm and torque the bolt (25) to 29 ft-
lb (39Nm).

2.

Replace the retainer ring (22) on to the lower portion of the
spherical bearing.

3.

Place the spindle onto the lower spherical bearing.

4.

Place the flanged nut (19) on the lower spherical bearing
bolt (24) and torque to 29 ft-lb (39Nm).

5.

Place the camber bolt (12) and torque the jam nut (14) to
35 ft-lb (47Nm).

LOWER SPHERICAL BEARING
REPLACEMENT

1.

Remove the spindle.

2.

Remove the snap ring (22) form the lower spherical
bearing.

3.

Replace the lower spherical bearing (21).

4.

Replace snap ring (22).

5.

Install spindle.

6.

Install the ski(s).

UPPER / LOWER CONTROL ARM
REMOVAL

1.

Remove the spindle(s) and shock(s).

2.

Remove the upper and lower control arm(s) bulk head
bolts (1,6).

3.

Remove the upper or lower control arm (10,20) and
remove all pivot bushings (5,9), and all pivot shafts (7).

UPPER / LOWER CONTROL ARM
INSTALLATION

1.

Replace the upper or lower control arm bushings (5,9) in
the control arm(s).

2.

Replace the upper or lower control arm(s) into the

bulkhead.

3.

Replace the upper or lower control arm bolts (1,6). Torque
to 40 ft-lb (54Nm).

NOTE:  The washer (2) is only located on the
rearward lower control arm mounting, and should be
located at the bolt head.

STEERING

INSPECTION

Prior to performing steering alignment, inspect all steering
and suspension components for wear or damage and replace
parts as necessary. Refer to steering assembly exploded views
in this chapter for identification of components and torque
values of fasteners. While disassembling, make notes of what
direction a bolt goes through a part, what type of nut is used in
an application, in which direction do the steering arms go on -
weld up or weld down, etc.

Some of the fasteners used in the IFS are special and cannot
be purchased at a hardware store. Always use genuine Polaris
parts and hardware when replacing front end components.
Review steering adjustment guidelines before making
adjustments.

The following components must be inspected at this time.

• Tie rods and tie rod ends

• Radius rods and radius rod ends

• Torsion bar and bushings / linkage (where applicable)

• Handlebars and steering post assembly

• Spindles and bushings

• Trailing arms and bushings

• Skis and skags

• Pitman arms / Idler arms

• Steering arms

• A-arms and bushings

• Shock absorbers, shock mounts, springs

• All related fasteners - check torque. Refer to steering

exploded views at the beginning of this section.

• Grease all fittings.

 Always follow rod end engagement guidelines. Maximum
setup width must be checked whenever front suspension
components are adjusted or replaced.

10.15

FRONT SUSPENSION/STEERING

ALINGMENT BAR SPECIFICATIONS

• DIAMETER: .623”-.625” (15.824-15.875mm)

• LENGTH: 45” (114.3cm)

• MATERIAL: C-1018

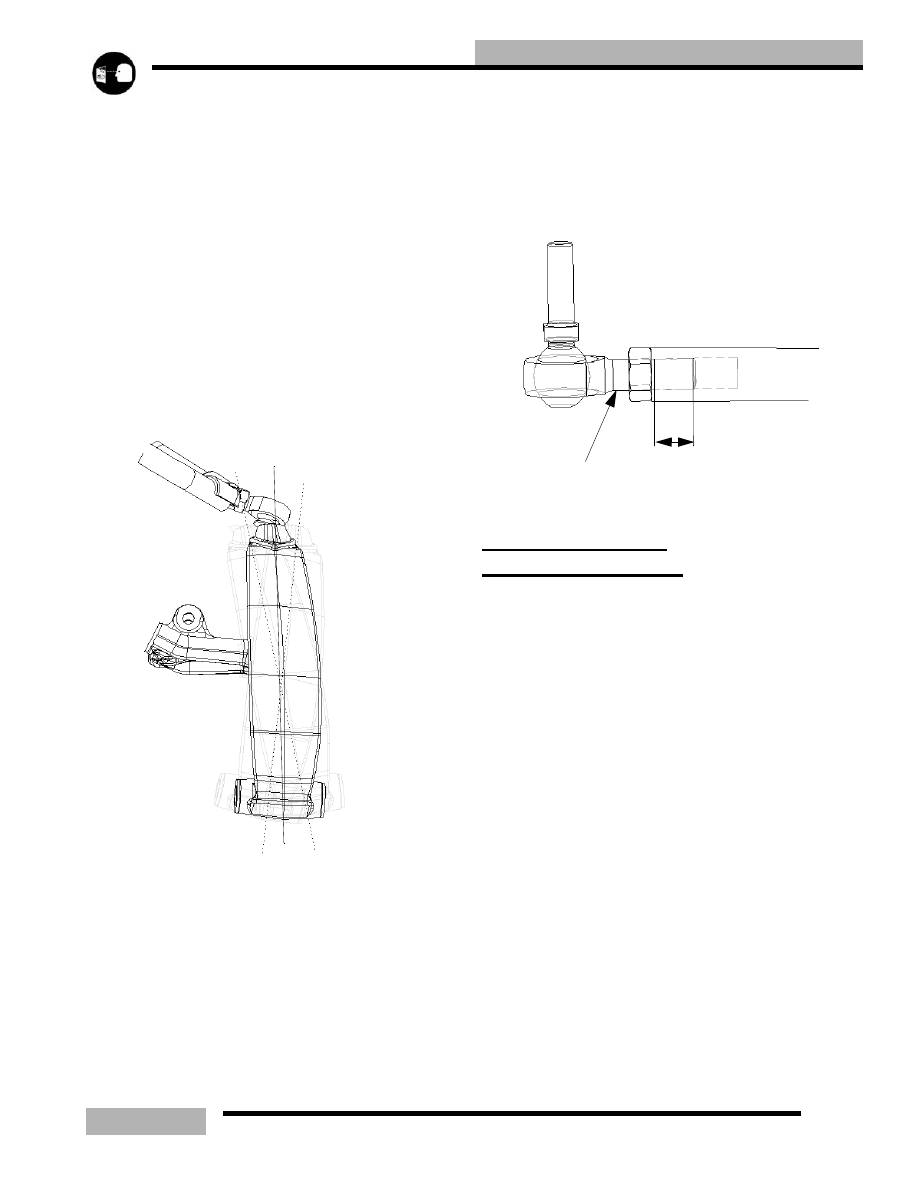

CAMBER DEFINITION

The following definitions of camber use automotive
terminology to describe positive and negative positions.

• 0 = Neutral camber. The spindle is 90_ (perpendicular)

to the ground.

• + = Positive camber. The bottom of the spinde is canted

inward toward the chassis.

• - = Negative camber. Spindle bottom is canted outward

from the chassis.

ROD END PROCEDURE

Rod ends must be parallel to their respective mounting surface
after tightening jam nut. Hold the rod end and tighten jam nut.
If possible, support the edge of the rod end to keep it from
rotating out of position until jam nut is tight. When rod ends
are properly tightened, the rod should rotate freely
approximately 1/8 turn.

ROD END ENGAGEMENT

Rod ends must engage the rod a minimum of 2x the thread
diameter when adjustment is complete.

Example: .4375” (11mm) rod end (A) X 2 = minimum thread
engagement (B) .875” (22mm).

CAMBER &TOE
SPECIFICATIONS

The following table is the factory specifications for the 2006
Polaris Snowmobile front suspension set up.

Maximum width and camber measurements are to be taken
with the front end elevated and shocks at full extension.

Toe alignment is measured at ride height. This means that the
machine is on the ground and resting at normal ride height, not
full rebound. Measure at a point 10” (2.54cm) forward of the
ski mount bolt and 10” (2.54cm) behind the ski mount bolt,
preferably on the center line of the carbide skags.

Width is measured from the center of the spindles.

Camber measurement is taken from the top of the alignment
bar to the top of the ski mount hole in the spindle with the
bushing removed.

+

-

0

A

B
