Snowmobile Polaris (2006 year). Instruction - part 23





4.2

CARBURETION

WARNINGS

WARNINGS

When ever servicing the carburetor or fuel
system, it is important to heed the following
warnings.

GENERAL INFORMATION

SERVICE PRECAUTIONS

In order to perform service work efficiently and to prevent
costly errors, the technician should read the text in this

manual, thoroughly familiarizing him/herself with procedures
before beginning. Photographs and illustrations have been
included with the text as an aid. Notes, cautions and warnings
have also been included for clarification of text and safety
concerns. However, a knowledge of mechanical theory, tool
use and shop procedures is necessary to perform the service
work safely and satisfactorily. Use only genuine Polaris
service parts.

Cleanliness of parts and tools as well as the work area is of
primary importance. Dirt and foreign matter will act as an
abrasive and cause damage to precision parts. Clean the
snowmobile before beginning service. Clean new parts before
installing.

Watch for sharp edges which can cause personal injury,
particularly in the area of the tunnel. Protect hands with
gloves when working with sharp components.

If difficulty is encountered in removing or installing a
component, look to see if a cause for the difficulty can be
found. If it is necessary to tap the part into place, use a soft
face hammer and tap lightly.

Some of the fasteners in the snowmobile were installed with
locking agents. Use of impact drivers or wrenches will help
avoid damage to fasteners.

Always follow torque specifications as outlined throughout
this manual. Incorrect torquing may lead to serious machine
damage or, as in the case of steering components, can result in
injury or death for the rider(s).

If a torquing sequence is indicated for nuts, bolts or screws,
start all fasteners in their holes and hand tighten. Then,
following the method and sequence indicated in this manual,
tighten evenly to the specified torque value. When removing
nuts, bolts or screws from a part with several fasteners, loosen
them all about 1/4 turn before removing them.

If the condition of any gasket or O-Ring is in question, replace
it with a new one. Be sure the mating surfaces around the
gasket are clean and smooth in order to avoid leaks.

Some procedures will require removal of retaining rings or
clips. Because removal weakens and deforms these parts, they
should always be replaced with new parts. When installing
new retaining rings and clips use care not to expand or
compress them beyond what is required for installation.

Because removal damages seals, replace any oil or grease
seals removed with new parts.

WARNING

Always stop the engine and refuel outdoors or in a well

ventilated area

WARNING

Do not smoke or allow open flames or sparks in or near

the area where refueling is performed or where gaso-

line is stored or used.

WARNING

Do not overfill the tank. Do not fill the tank neck.

WARNING

If you get gasoline in your eyes or if you swallow gaso-

line, see your doctor immediately.

WARNING

If you spill gasoline on your skin or clothing, immediate-

ly wash it off with soap and water and change clothing.

WARNING

Never start the engine or let it run in an enclosed area.

Gasoline powered engine exhaust fumes are poison-

ous and can cause loss of consciousness and death in

a short time.

4.3

CARBURETION

Polaris recommends the use of Polaris lubricants and greases,
which have been specially formulated for the top performance
and best protection of our machines. In some applications,
such as the engine, warranty coverage may become void if
other brands are substituted.

Grease should be cleaned from parts and fresh grease applied
before reassembly of components. Deteriorating grease loses
lubricity and may contain abrasive foreign matter.

Whenever removing or reinstalling batteries, care should be
taken to avoid the possibility of explosion resulting in serious
burns. Always disconnect the negative (black) cable first and
reconnect it last. Battery electrolyte contains sulfuric acid and
is poisonous! Serious burns can result from contact with the
skin, eyes or clothing. ANTIDOTE: External - Flush with
water. Internal - Drink large quantities or water or milk.
Follow with milk of magnesia, beaten egg, or vegetable oil.

Call physician immediately. Eyes - Flush with water for 15
minutes and get prompt medical attention.

GASOLINE VOTALITIY

See “GASOLINE VOLATILITY” on page 2.9.

2 STROKE GASOLINE / OIL PRE MIX

see “2 STROKE GASOLINE / OIL PRE MIX” on page 2.10

FUEL DELIVERY SYSTEM
(Carbureted)

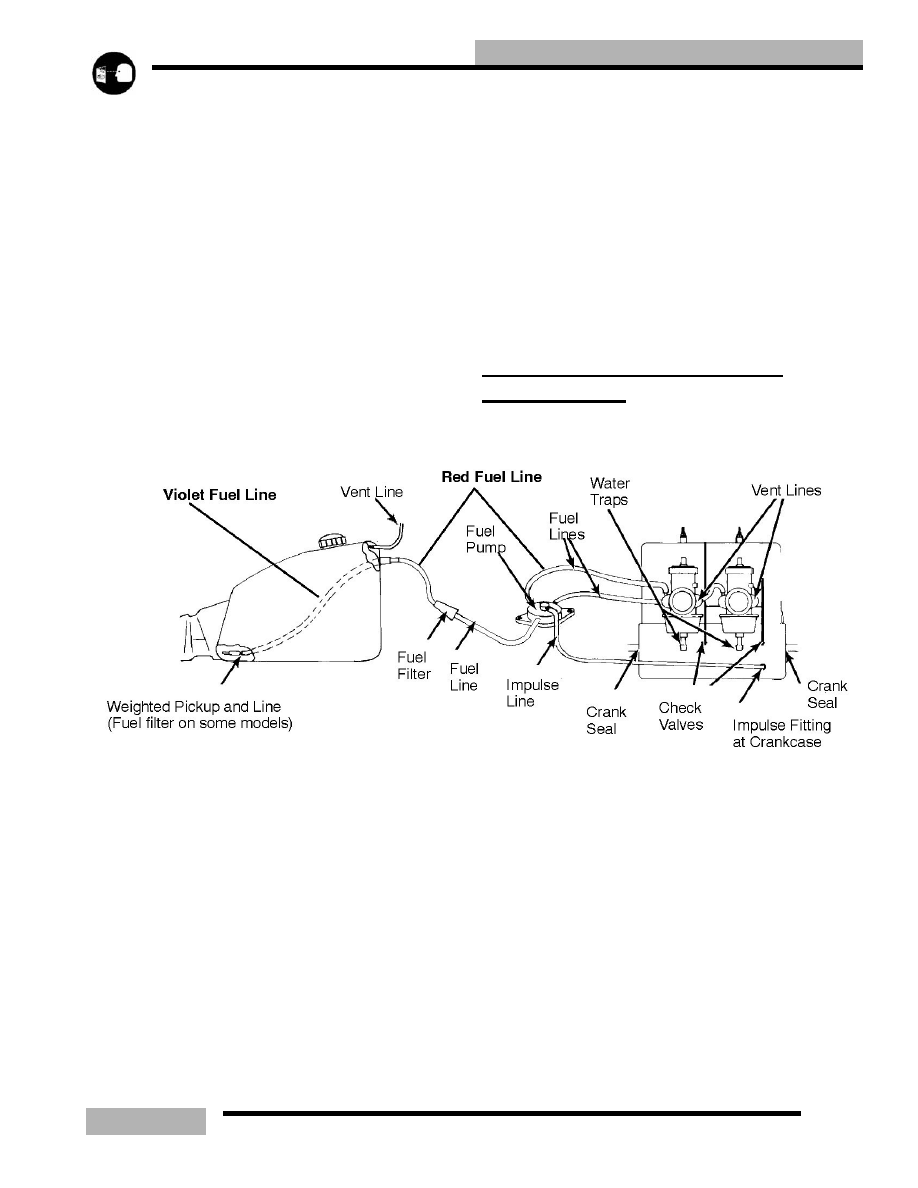

CARBURETED SYSTEM OVERVIEW

The carbureted fuel system contains many components which
directly affect fuel mixture and drive ability. When performing
diagnosis or carburetor maintenance, the entire fuel delivery
system should be inspected. The illustration above shows parts
of the system requiring periodic maintenance to ensure there is
no fuel or air leaks present.

Fuel filters should be replaced at least once per season. More
often if any contamination is suspected.

Fuel lines should be replaced every other season. More often if
they become brittle or swollen. Fittings should be inspected
for cracks or leaks. Do not use pliers or other tools that may
damage fuel lines when installing or removing fuel lines.

Test run and check the fuel system for leaks any time parts are
replaced. Verify that all lines are routed correctly and away
from any moving parts.

NOTE:  Some models use fuel filters that are located
inside the fuel tank. To inspect/replace filter, remove
fuel cap and use a long clean wire, bend one end in a
hook shape. Pull the fuel line that is in the tank up
through the filler hole. Inspect filter on end of fuel
pick up line. Replace if worn or clogged.

Red fuel line is the exterior line for outside the tank. The violet
line is the interior line for inside the fuel tank. They cannot be
interchanged! The violet line used inside the tank will fade and
turn clear after a relatively short time. This does not affect the
function or durability of the line.

4.4

CARBURETION

When replacing fuel line, be sure to use the correct color line
for inside or outside the fuel tank. Also, be very careful not to
bend fuel line to a point of kinking it. If it becomes kinked, it
must be replaced. Always inspect fuel lines when replacing, or
if carbs, carburetor racks, or fuel pumps are removed from
chassis.

FUEL PUMP (non-injected units)

FUEL PUMP OVERVIEW

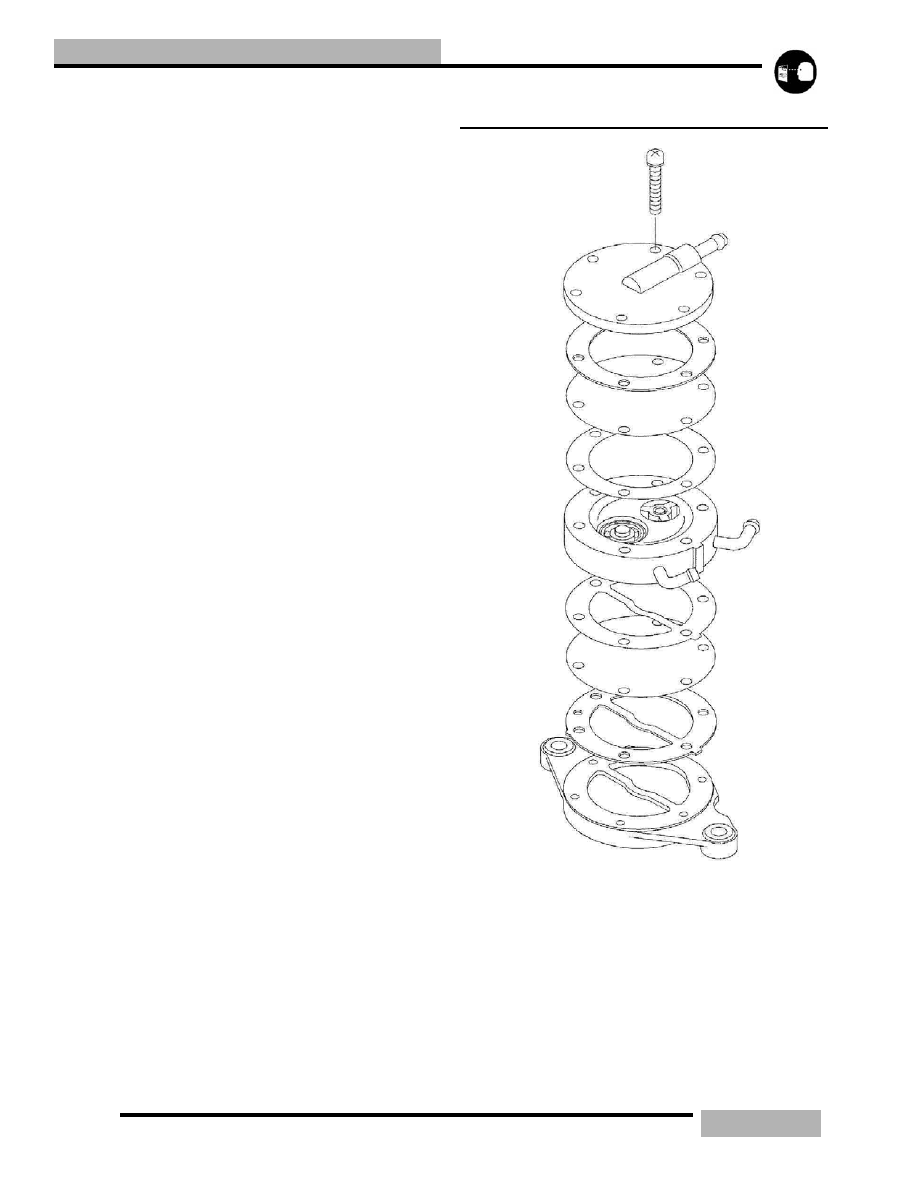

The fuel pumps (340/550 style shown). The differences are in
the size and location of the pumps. Pumps may be mounted to
the engine, air/oil box or to the chassis.

In the two cycle engine, the pressure in the crankcase changes
with the up and down stroke of the piston. The amplitudes of
pressure vary according to the RPM and degree of throttle

4.5

CARBURETION

opening. Whether idling or at full throttle, the pressure built up
in the crankcase has enough amplitude to operate the pump.

When the piston is on the upstroke, crankcase pressure in that
cylinder becomes less positive. The diaphragm in the fuel
pump moves toward the engine, causing a negative pressure or
suction in the pump chamber. This causes the inlet valve from
the fuel supply to open and permits fuel to enter the chamber.
This same suction causes the outlet valve (to the carburetor) to
close so that fuel cannot return form the carburetor.

When the piston begins its downward stroke, the pressure
from the crankcase becomes positive, causing the fuel pump
diaphragm to move in the opposite direction and reversing the
pressure in the fuel pump chamber. This causes the inlet valve
in the pump to close and the outlet valve to open, filling the
float bowl in the carburetor. When the float level in the
carburetor reaches its standard level, the needle valve will
close, preventing more fuel from entering the carburetor, even
though the fuel pump continues to try to provide the carburetor
with fuel.

MAINTENANCE

The impulse operated diaphragm fuel pump does not require
any specific scheduled maintenance. However, the following
procedures should be observed.

OPERATION

The pump may be checked for operation by removing the fuel
supply line from the carburetor and placing it into a container.
With the engine idling at approximately 2000 RPM, a steady
flow of fuel should be visible.

CLEANING

The pump and impulse line must be disassembled and cleaned
of foreign material in the event of piston or other internal
engine part failures which produce fragments.

INSPECTION

Disconnect impulse line from pump. Connect a Mity Vac to
impulse fitting (or line) and apply 4-6 PSI pressure.
Diaphragm should hold pressure indefinitely.

The diaphragms and check valves must be carefully examined
for cracks, holes, or other damage. If in doubt as to the
condition of any internal parts, replace all diaphragms, check
valves, and gaskets.

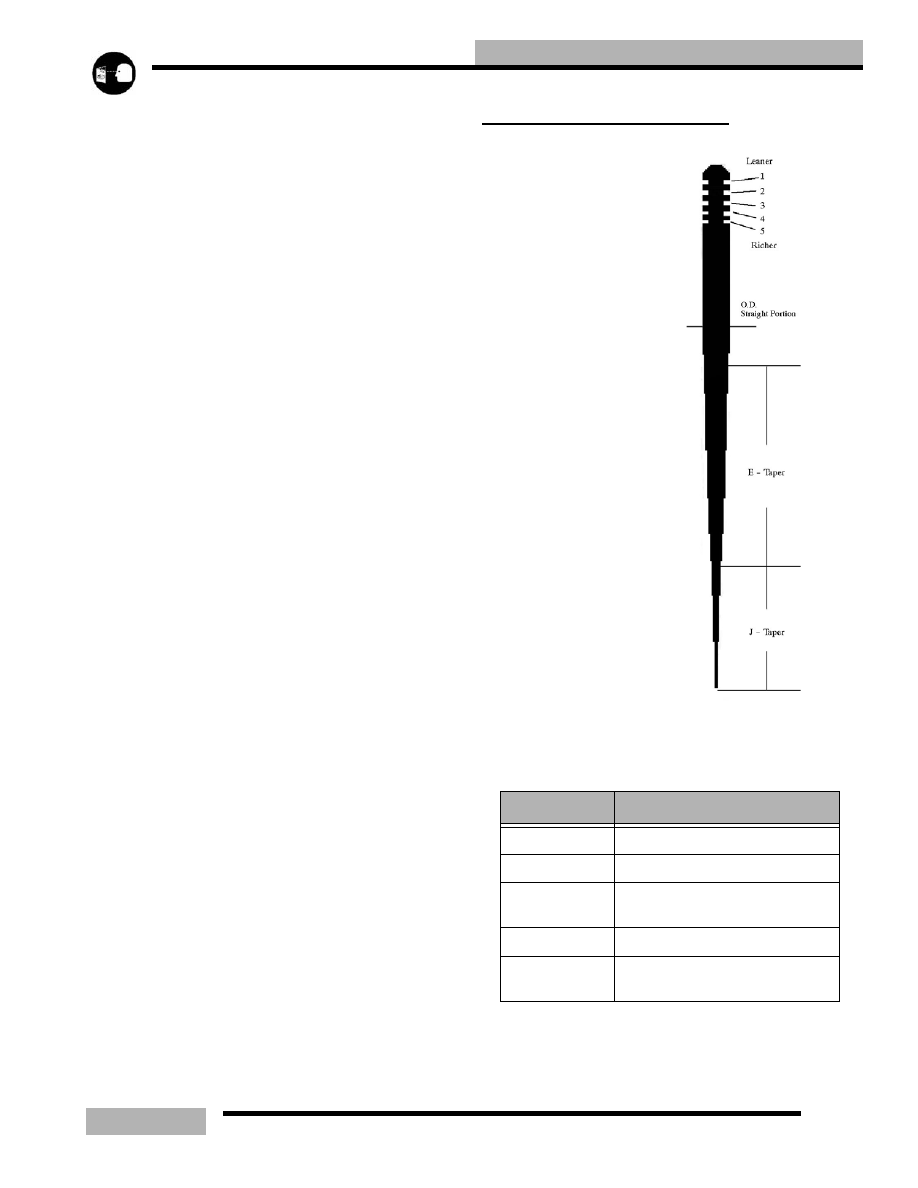

MIKUNI JET NEEDLE

OVERVIEW

This needle (example) is a
9DH01-57. The first number
is the approximate overall
length in 10mm increments of
the jet needle. The 9 indicates
the needle is approximately
90mm but less that 100mm in
length.

The letters on the jet needle
indicate the angle of both
tapers. The first letter
designates the taper angle of
the top section (closest to the
grooves) and the second letter
designates the angle of the
bottom taper. The taper
angles are graduated in 15'
(15 minute) increments. The
jet needle marked 9DH01-57
would have a top taper of 1_0'
and a bottom taper of 2_0'.

The number following the
letters on the jet needle is the
serial number and it varies
with individual jet needles.

The last number, 57 indicates
that the outside diameter is
2.57mm. The smaller the O.D., the richer the mixture.

Table 4-1: Mikuni Jet Needle

DESIGNATOR

DESCRIPTION

9

Overall length in 10mm increments

D

Taper of the top section of the needle

H

taper of the bottom section of the
needle

01

Serial number

-57

Outside diameter (O.D.) of the
straight portion
