Vauxhall Combo E (2023 year). Manual in english

166

Infotainment system

The station last played will be

received.

Selecting a waveband

Select OPTIONS and repeatedly

touch

to toggle between the

different wavebands.

Searching for stations

Automatic station search

Briefly touch

to play the

previous or next receivable station.

Manual station search

Press and hold

. Release when

the required frequency has almost

been reached.
A search is made for the next station

that can be received and it is played

automatically.

Station lists

In the station lists, all receivable radio

stations within the current reception

area are available for selection.
To display the station list of the

waveband currently active, select

List.

Select the desired station.
Update station lists

If the stations stored in the waveband-

specific station list can no longer be

received, the station lists must be

updated.
To start an update for the currently

active waveband, select

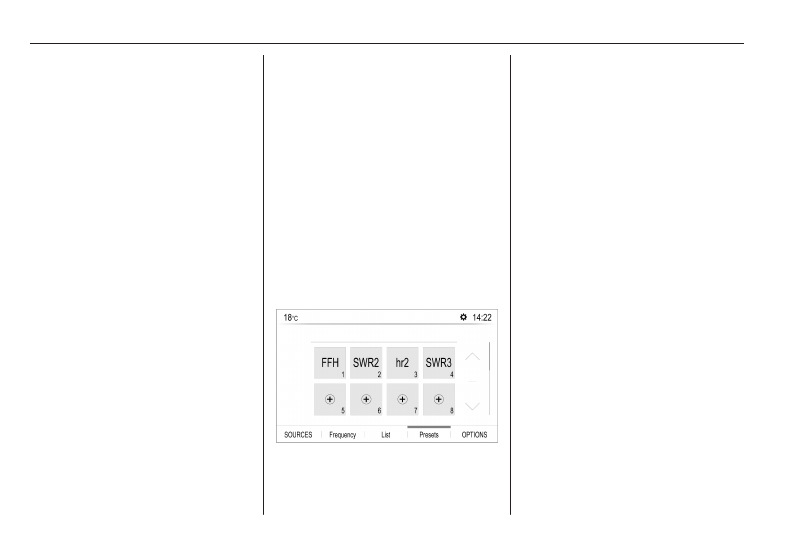

Storing favourite stations

Up to 24 radio stations of all

wavebands can be stored as

favourites in the Presets list.
Select Presets to display the preset

buttons.

Storing the currently active station

Touch and hold the desired button in

the Presets list for a few seconds. The

respective frequency or station name

is displayed on the button.
If a station is already stored on a

preset button, that station will be

overwritten by the new one.
Alternatively, touch ✩ Mem in the

radio main menu to store the currently

active station.

Storing a station from a station list

Select OPTIONS and then select the

desired waveband.
To store a station from the station list,

briefly touch ✩ next to the desired

station. The station is stored and the

number of the preset button will be

displayed. To delete a station,

touch

;

again.

Alternatively, touch and hold the

name of the station until it is stored.

To delete the station, touch and hold

the name of the station again until a

corresponding message is displayed.

Infotainment system

167

Retrieving stations

In the radio main menu select

Presets and then briefly touch the

preset button of the desired station.

Radio data system

Radio data system (RDS) is a service

of FM stations that considerably

facilitates the finding of the desired

station and its fault-free reception.

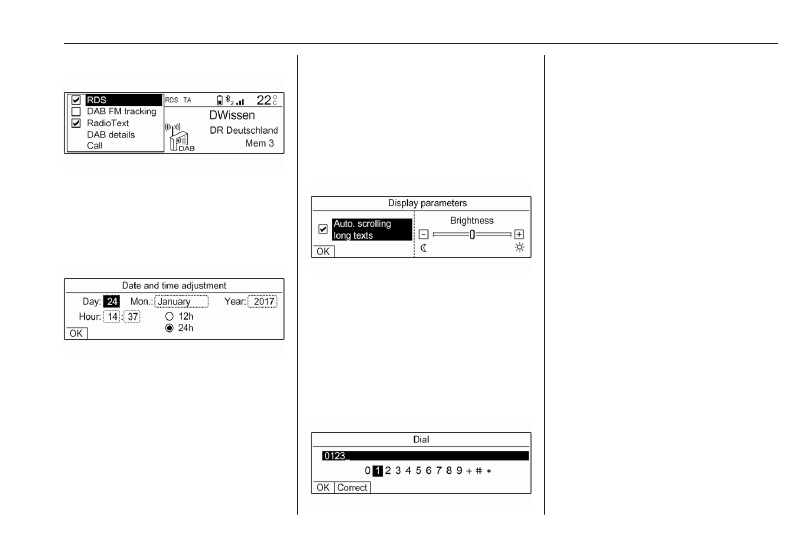

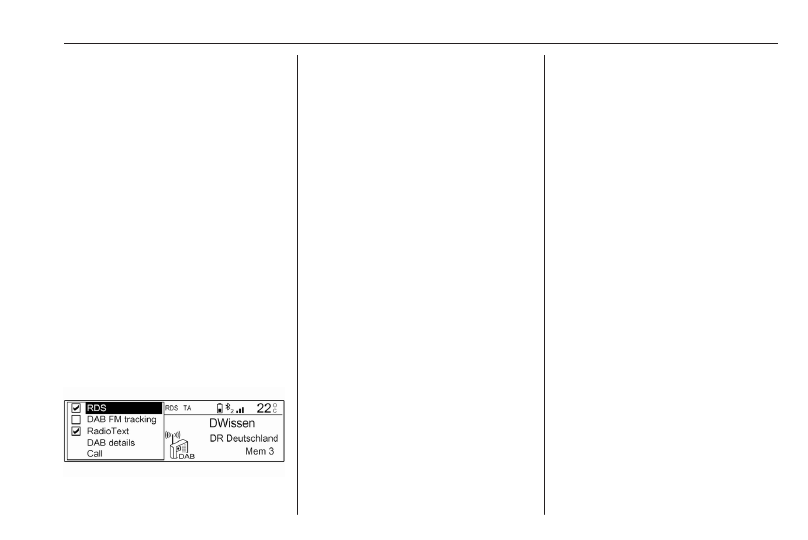

Activating RDS

In the radio main menu, select

OPTIONS and activate RDS.
If RDS is activated, RDS is displayed

in the bottom line of the radio main

menu.

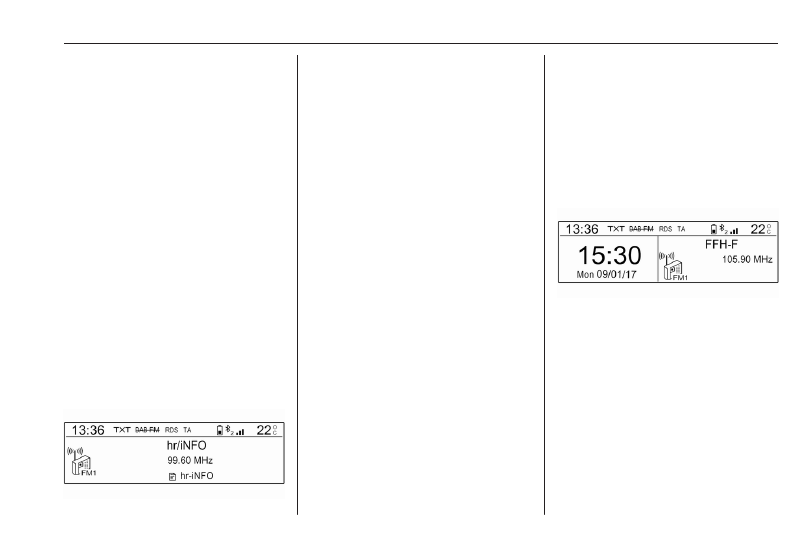

Radio text

If RDS is activated, information on the

radio programme currently active or

the music track currently playing are

displayed below the programme

name.
To show or hide the information, go to

the OPTIONS menu and activate or

deactivate Information.

Traffic announcements

Many RDS stations broadcast traffic

news. If the traffic announcements

function is activated, radio or media

playback is interrupted for the

duration of a traffic announcement.
To activate traffic announcements, go

to the OPTIONS menu and activate

TA.
If TA is activated, TA is displayed in

the bottom line of the radio main

menu.

Digital audio broadcasting

Digital audio broadcasting (DAB)

broadcasts radio stations digitally.
DAB stations are indicated by the

programme name instead of the

broadcasting frequency.

FM-DAB Linking

This function enables switching from

an FM station to a corresponding

DAB station and vice versa.
Switching from FM to DAB occurs as

soon as a corresponding DAB station

is available. Therefore, it is

recommended to store favourite

stations as DAB stations to reduce

frequent switching.
Switching from DAB to FM occurs if

the signal is too weak to be picked up

by the receiver.
Activation

Precondition is that RDS is activated

before FM-DAB Linking can be

activated.
To activate FM-DAB Linking, select

OPTIONS in the radio main menu and

then activate FM-DAB Follow-up.
The following symbol will be

displayed when FM-DAB Linking is

activated:

Deactivation

To deactivate FM-DAB Linking, select

OPTIONS in the radio main menu and

then deselect FM-DAB Follow-up.

168

Infotainment system

FM-DAB Linking will automatically be

deactivated when RDS is

deactivated.

External devices

USB ports

A USB port is located on the control

panel. Another USB port may be

located in the storage compartment

next to the Info Display.

Caution

To protect the system, do not use

a USB hub.

Notice

The USB ports must always be kept

clean and dry.

An MP3 player, USB device, SD card

(via USB connector / adapter) or

smartphone can be connected to

each USB port.
The Infotainment system can play

audio files or show picture files

contained in USB devices.

When connected to a USB port,

various functions of the devices

mentioned above can be operated via

the controls and menus of the

Infotainment system.

Notice

Not all auxiliary devices are

supported by the Infotainment

system.
Notice

If two USB ports are available: To

use the phone projection feature of

the Infotainment system, the

smartphone has to be connected to

the USB port on the control panel.

The USB port in the storage

compartment cannot be used for

Apple CarPlay.

Connecting / disconnecting a device

Connect one of the devices

mentioned above to a USB port. If

required, use the appropriate

connection cable. The music function

starts automatically.

Notice

If a non-readable USB device is

connected, a corresponding error

message appears and the

Infotainment system automatically

switches to the previous function.

To disconnect a USB device, select

another function and then remove the

USB device.

Caution

Avoid disconnecting the device

during playback. This may

damage the device or the

Infotainment system.

Bluetooth audio streaming

Streaming allows you to listen to

music from your smartphone.
For a detailed description on how to

establish a Bluetooth connection

172.

If audio playback does not start

automatically, it may be necessary to

start the playback on the smartphone.

Infotainment system

169

First adjust the volume on your

smartphone (to a high level). Then

adjust the volume of Infotainment

system.

File formats

The audio equipment supports

different file formats.

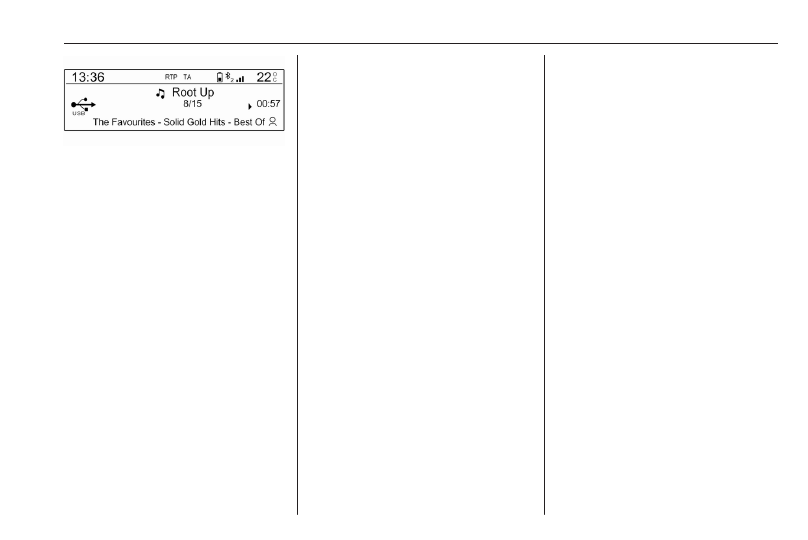

Activating the music function

Connecting the USB or Bluetooth

device.
If device already connected, but

playback of stored music files not

active:
Press

, select SOURCES and then

select the respective source.
Playback of the audio tracks starts

automatically.

Playback functions

Interrupting and resuming playback

Touch

to interrupt playback. The

screen button changes to

Touch

to resume playback.

Playing the previous or next track

Touch

Fast forwarding and rewinding

Touch and hold

. Release to

return to normal playback mode.
Alternatively, you can move the slider

showing the current track position to

the left or right.

Playing tracks randomly

Select OPTIONS and touch the

Random icon repeatedly:

: play tracks of currently selected

list (album, artist, etc.) in random

order.

: play tracks of currently selected

list (album, artist, etc.) in normal

playback mode.

Repeating tracks

Select OPTIONS and touch the

Repeat icon

repeatedly to select

one of the following options:

● repeat tracks of currently

selected list (album, artist, etc.)

● repeat tracks of currently

selected list (album, artist, etc.)

once

● play tracks of currently selected

list (album, artist, etc.) in normal

playback mode

Activating the picture viewer

Connecting the USB device.
If device already connected, but

picture viewer not active:
Press

, select Photos and choose

the desired folder and picture.

170

Infotainment system

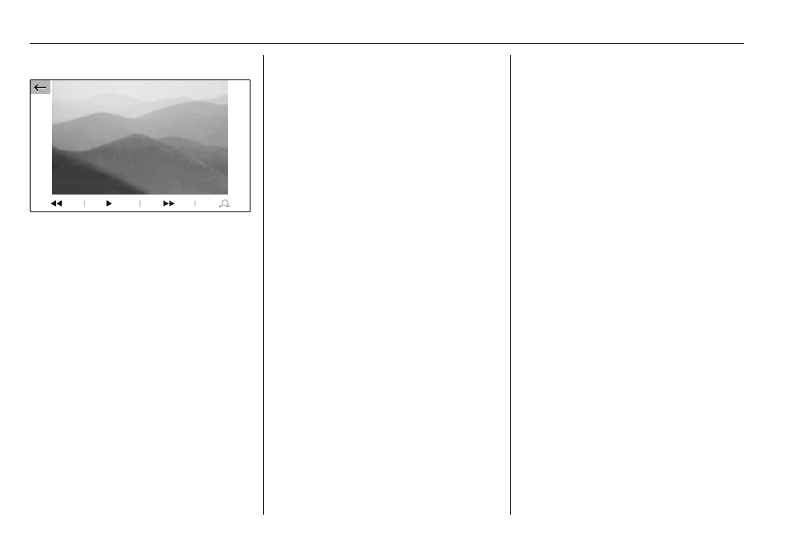

Touch the screen to display the menu

bar.

Viewing the previous or next


Touch

Starting or stopping a slide show

Select

to view the pictures stored

on the USB device in a slide show.
Touch

to end the slide show.

Phone projection

The phone projection applications

Apple CarPlay and Android Auto

display selected apps from your

smartphone on the Info Display and

allow their operation directly via the

Infotainment controls.
Check with the device's manufacturer

if this function is compatible with your

smartphone and if this application is

available in the country you are in.

Preparing the smartphone

iPhone

: Make sure Siri

is activated

on your phone.
Android phone: Download the

Android Auto app to your phone from

the Google Play™ Store.

Connecting the smartphone

iPhone

Connect the phone to the USB port.
If the phone is already connected via

Bluetooth, upon connecting to the

USB port and launching Apple

CarPlay, the Bluetooth connection

will disconnect. After disconnecting

the USB connection, the phone will be

connected via Bluetooth again.
Android phone

Connect the phone via Bluetooth

172 and then connect the phone to

the USB port.

Starting phone projection

If phone projection is not starting

automatically, press

and then

touch Apple CarPlay or

Android Auto.
The phone projection screen

displayed depends on your

smartphone and software version.

Returning to the Infotainment screen

Press, e.g., the

button on the

control panel.

Speech recognition

Embedded speech recognition

The embedded speech recognition of

the Infotainment system enables you

to operate various functions of the

Infotainment system via voice input. It

recognises commands and numeric

sequences independently of the

relevant speaker. The commands

and numeric sequences can be

spoken without a voice pause

between the individual words.

Infotainment system

171

In the event of incorrect operation or

commands, the speech recognition

gives visual and / or acoustic

feedback and requests you to re-

enter the desired command. Apart

from this, the speech recognition

acknowledges important commands

and will enquire if necessary.
In general, there are different ways to

speak commands for performing the

desired actions.

Notice

To ensure that conversations inside

the vehicle do not lead to

unintentional triggering of the

system functions, the speech

recognition does not start until it has

been activated.

Important information

Language support

● Not all languages available for

the display of the Infotainment

system are also available for the

speech recognition.

● If the display language currently

selected is not supported by the

speech recognition, speech

recognition is not available.

In such a case, you need to select

another language for the display

if you want to control the

Infotainment system via voice

input. To change the display

language

155.

Activating speech recognition

Notice

Speech recognition is not available

during an active phone call.

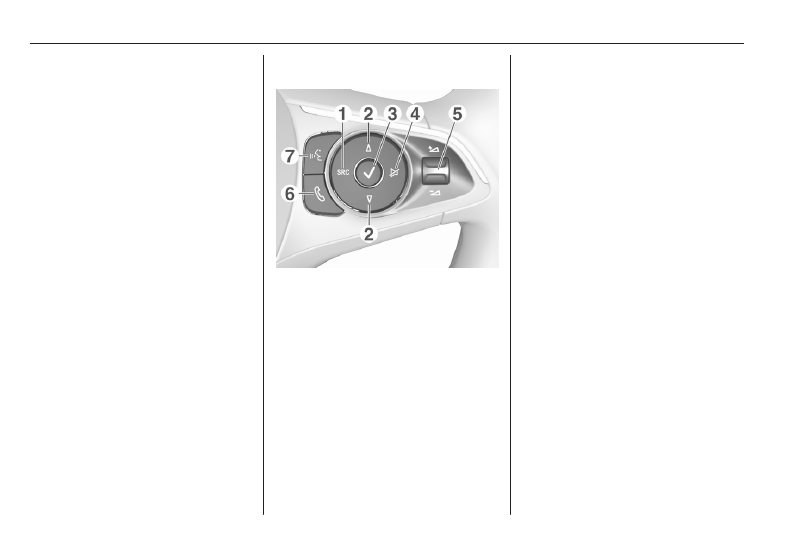

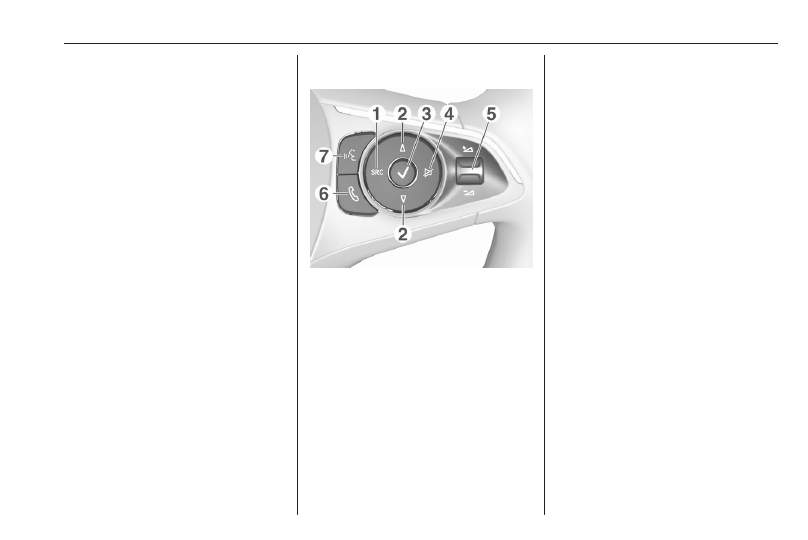

Activation via the

button on the

steering wheel

Press

on the steering wheel.

The audio system mutes, a voice

output message prompts you to say a

command, and help menus with the

most important commands currently

available are shown on the display.
The speech recognition is ready for

voice input, after a beep has been

given.
You can now say a voice command to

initiate a system function (e.g. playing

a preset radio station).

Adjusting the volume of voice

prompts

Press volume button on the steering

wheel upwards (increase volume)

or downwards (decrease volume)

Interrupting a voice prompt

As an experienced user, you can

interrupt a voice prompt by briefly

pressing

on the steering wheel.

Alternatively you can say "Set

dialogue mode as expert".
A beep is heard immediately, and a

command can be stated without

having to wait.

Cancelling a dialogue sequence

To cancel a dialogue sequence and

to deactivate the speech recognition,

press

on the steering wheel.

If you do not say any command for a

certain period of time, or if you say

commands that are not recognised by

the system, a dialogue sequence is

automatically cancelled.

172

Infotainment system

Operation via speech commands

Follow the instructions given by voice

output and shown on the display.
For best results:

● Listen for the voice prompt and

wait for the beep before saying a

command or replying.

● Read the example commands on

the display.

● The voice prompt can be

interrupted by pressing

again.

● Wait for the beep and then speak

the command naturally, not too

fast, not too slow.

Usually commands can be spoken in

a single command.

Voice pass-thru application

The voice pass-thru application of the

Infotainment system allows access to

the speech recognition commands on

your smartphone.
Voice pass-through is available via

the phone projection applications

Apple CarPlay and Android Auto

168.

Activating speech recognition

Press and hold

on the steering

wheel until a speech recognition

session is started.

Adjusting the volume of voice

prompts

Turn

on the control panel or press

volume button on the steering wheel

upwards (increase volume)

downwards (decrease volume)

Deactivating speech recognition

Press

on the steering wheel. The

speech recognition session is ended.

Phone

The phone function provides you with

the possibility of having mobile phone

conversations via a vehicle

microphone and the vehicle

loudspeakers as well as operating the

most important mobile phone

functions via the Infotainment system

in the vehicle. To be able to use the

phone function, the mobile phone

must be connected to the

Infotainment system via Bluetooth.

Not all phone functions are supported

by every mobile phone. The usable

phone functions depend on the

relevant mobile phone and network

provider. You can find further

information on this in the operating

instructions for your mobile phone, or

you can enquire about them with your

network provider.

Important information for

operation and traffic safety

Warning

Mobile phones have effects on

your environment. For this reason

safety regulations and directions

have been prepared. You should

be familiar with the related

directions before you use the

telephone function.

Warning

Use of the hands-free facility while

driving can be dangerous because

your concentration is reduced

when telephoning. Park your

Infotainment system

173

vehicle before you use the hands-

free facility. Follow the stipulations

of the country in which you find

yourself at present.
Do not forget to follow the special

regulations that apply in specific

areas and always switch off the

mobile phone if the use of mobile

phones is prohibited, if

interference is caused by the

mobile phone or if dangerous

situations can occur.

Pairing a device

During the pairing process, PIN code

exchange between the Bluetooth

device and the Infotainment system

and connection of the Bluetooth

devices to the Infotainment system

are carried out.

Important information

● Two paired Bluetooth devices

can be connected to the

Infotainment system at the same

time. One device in hands-free

mode, the other in audio

streaming mode, see description

on Bluetooth profile settings

below.
However, two devices cannot be

used in hands-free mode at the

same time.

● Pairing only needs to be carried

out once, unless the device is

deleted from the list of paired

devices. If the device has been

connected previously, the

Infotainment system establishes

the connection automatically.

● Bluetooth operation considerably

drains the device's battery.

Therefore, connect the device to

the USB port for charging.

Pairing a new device

1. Activate the Bluetooth function of

the Bluetooth device. For further

information, see the operating

instructions for the Bluetooth

device.

2. Press

and then touch Bluetooth

search.
A search for all Bluetooth devices

in the near environment is

performed.

3. Select the Bluetooth device you

wish to pair from the displayed list.

4. Confirm the pairing procedure:

● If SSP (secure simple

pairing) is supported:
Confirm the messages on the

Infotainment system and the

Bluetooth device.

● If SSP (secure simple

pairing) is not supported:
On the Infotainment system:

a message is displayed

asking you to enter a PIN

code on your Bluetooth

device.
On the Bluetooth device:

enter the PIN code and

confirm your input.
The Infotainment system and

the device are paired.

5. The phone book is downloaded

automatically to the Infotainment

system. Depending on the phone,

the Infotainment system must be

allowed access to the phone

book. If required, confirm the

messages displayed on the

Bluetooth device.

174

Infotainment system

If this function is not supported by

the Bluetooth device, a

corresponding message is

displayed.

Operations on paired devices

Press

, select TEL and then select

Bluetooth connection.
A list of all paired devices is

displayed.

Changing the Bluetooth profile

settings

Touch

next to the desired paired

device.
Activate or deactivate the profile

settings as desired and confirm your

settings.

Connecting a paired device

Devices which are paired but not

connected are identified by

—

Select the desired device to connect

it.

Disconnecting a device

The currently connected device is

identified by

“

Select the device to disconnect it.

Deleting a paired device

Touch

in the upper right corner of

the screen to display

icons next to

each paired device.
Touch

next to the Bluetooth device

you want to delete and confirm the

displayed message.

Phone main menu

Press

to display the phone main

menu.

Many functions of the mobile phone

can now be controlled via the phone

main menu (and associated

submenus), and via the phone-

specific controls on the steering

wheel.

Initiating a phone call

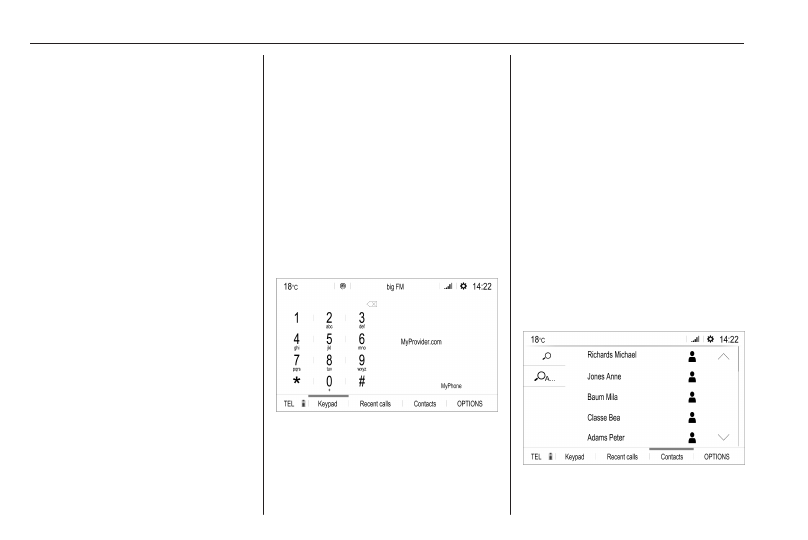

Entering a phone number

Enter a phone number using the

keypad in the phone main menu.
As soon as figures are entered,

matching entries from the contacts list

are displayed in alphabetical order.
Touch the desired list entry to initiate

a phone call.

Using the contacts list

The contacts list contains all phone

book entries from the connected

Bluetooth device.
Select Contacts to see the contacts

list.

Infotainment system

175

Searching for a contact

The contacts are ordered by the first

name or surname. To change the

order, touch OPTIONS and then

To scroll through the list, touch

To search for a contact via keyboard,

touch

To search for a contact via the first

letter, touch

and select the

desired letter.
Modifying or deleting a contact

Select

next to the contact and then

select the desired option.

Using the call history

All incoming, outgoing, or missed

calls are registered.
Select Recent calls to see the call

history.
Select the desired list entry to initiate

a call.

Incoming phone call

If an audio mode, e.g. the radio or

USB mode, is active at the moment a

call comes in, the audio source is

muted and stays muted until the call

ends.
A message with the caller's phone

number or name is displayed.

To answer the call, touch

To reject the call, touch

To put the call on hold, touch

. To

resume to the call, touch

To mute the microphone of the

Infotainment system, touch Micro

OFF and

will appear. To cancel the

mute function, press

again.

To continue conversation via the

mobile phone (private mode), touch

. To reactivate the conversation via

the Infotainment system, touch

again.

Notice

If you leave the vehicle and lock it

while you are still in a private mode

phone conversation, the

Infotainment system may remain

switched on until you leave the

Bluetooth reception area of the

Infotainment system.

Put incoming calls always on hold

For safety reasons the phone function

can put all incoming calls on hold by

default.
To activate this function, select

OPTIONS and then touch

until the

function is activated.

176

Infotainment system

Mobile phones and CB radio

equipment

Installation instructions and operating

guidelines

The vehicle specific installation

instructions and the operating

guidelines of the mobile phone and

hands-free manufacturer must be

observed when installing and

operating a mobile telephone. Failure

to do so could invalidate the vehicle

type approval (EU directive 95/54/

EC).
Recommendations for fault-free

operation:

● Professionally installed exterior

antenna to obtain the maximum

range possible

● Maximum transmission power

10 W

● Installation of the phone in a

suitable spot, consider relevant

Note in the section Airbag system

44.

Seek advice on predetermined

installation points for the external

antenna or equipment holder and

ways of using devices with a

transmission power exceeding 10 W.
Use of a hands-free attachment

without external antenna with mobile

telephone standards GSM

900/1800/1900 and UMTS is only

permitted if the maximum

transmission power of the mobile

telephone is 2 W for GSM 900 or

1 W for the other types.
For reasons of safety, do not use the

phone while driving. Even use of a

hands-free set can be a distraction

while driving.

Warning

Operation of radio equipment and

mobile telephones which fail to

meet above mentioned mobile

telephone standards is only

permitted using an antenna

located outside of the vehicle.

Caution

Mobile telephones and radio

equipment may lead to

malfunctions in the vehicle

electronics when operated inside

the vehicle with no exterior

antenna, unless the above

mentioned regulations are

observed.

Infotainment system

177

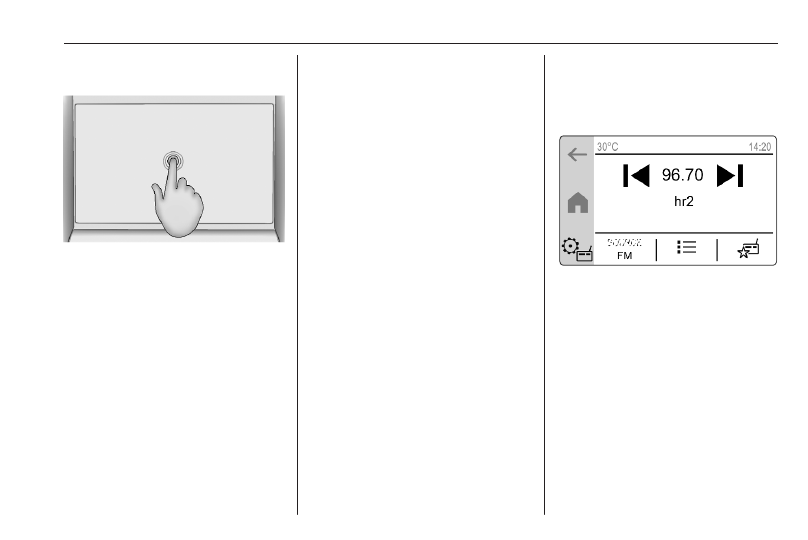

Touchscreen Radio

Introduction

Important information on operation

and traffic safety

Warning

The Infotainment system must be

used so that the vehicle can be

driven safely at all times. If in

doubt, stop the vehicle and

operate the Infotainment system

while the vehicle is stationary.

Radio reception

Radio reception may be disrupted by

static, noise, distortion or loss of

reception due to:

● changes in distance from the

transmitter

● multipath reception due to

reflection

● shadowing

Infotainment system

179

)

Press: switch power on / off

Turn: adjust volume

Display the radio menu

Display the media menu

for external devices

Display the phone menu if

a mobile phone is connected
Display a list of all paired

devices if no phone is connected

USB port for external devices

Display the system

settings menu

Display the vehicle

settings menu

Steering wheel controls

SRC (Source)
Select audio source,

confirm selection with

Long press: mute system

Select next / previous

preset radio station when

radio active
or select next / previous

track / picture when

external devices active

or select next / previous

entry in station list, media

list, call / contacts list when

operation started via

steering wheel controls
Confirm selection with

Confirm selected item
or open station list, media list

Activate / deactivate mute

function

Turn upwards /

downwards: increase /

decrease volume

Short press: accept

incoming call
Long press: reject

incoming call, hang up call

180

Infotainment system

or open call / contacts list
If phone call active: open

call in progress menu

Short press: activate

speech recognition

Top bar

The top bar on the screen indicates

the following information:

● time
● temperature

Screen operations

The display of the Infotainment

system has a touch-sensitive surface

that allows direct interaction with the

displayed menu controls.

Caution

Do not use pointed or hard items

like ballpoint pens, pencils or

similar for touch screen operation.

Use the following finger gestures to

control the Infotainment system.

Touch

Touch is used to open a menu or

select an option.

Infotainment system

181

Touch and hold

Touch and hold can be used to save

radio stations.

Returning to the previous screen

To return to the previous screen,

touch

in the upper left corner of

the screen.
When

is touched on the home

screen, the audio screen will be

displayed.

Returning to the home screen

To return to the home screen, touch

System settings

To display the system settings menu,

go to the home screen and select

The following submenus are

available:

● Display: Adjust the display

brightness and the text scrolling

or turn the screen off.

● Date/Time: Adjust the date and

the time.

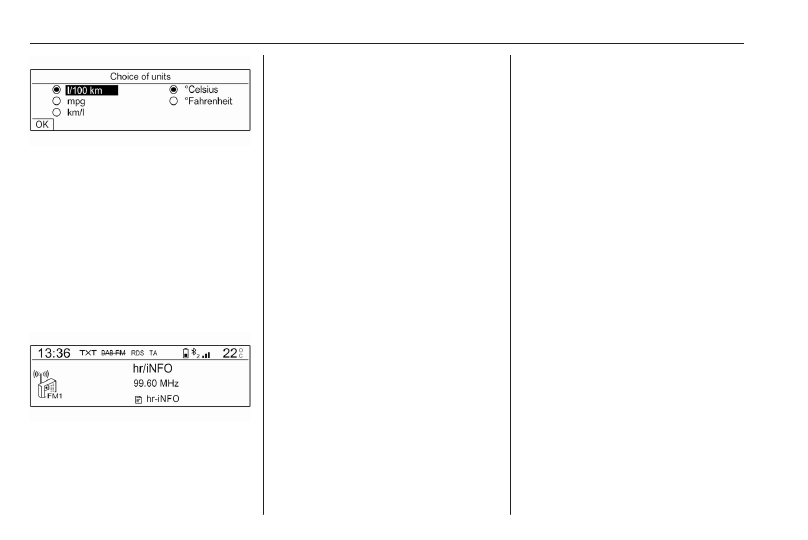

● System: Adjust the privacy

settings for data sharing and

vehicle position, reset the system

to the factory settings, adjust the

units and see the system

information.

● Languages: Change the system

language.

● Bluetooth: Display a list of all

paired devices.

● Audio: Activate / deactivate

speed compensated volume and

touch tones and adjust sound

distribution, ambience, bass and

treble.

Audio

Overview

: Touch to go to the

previous station / song or

touch and hold for

rewinding.

96.70

: Touch to enter a

frequency.

: Touch to go to the next

station / song or touch

and hold for fast

forwarding.

: Adjust the audio

settings.

SOURCE : Select the audio source.

182

Infotainment system

: Display the station list /

tracklist.

: Display the favourites

list.

Sources

Touch SOURCE and select the

desired audio source. The currently

active audio source will be indicated.
When an external device will be

connected, the Infotainment system

automatically selects the external

device as the audio source. When the

external device will be disconnected,

the previous audio source will be

selected.

Station tuning

To tune into a certain radio station,

open the station list

and touch

ABC. All receivable radio stations are

sorted by the first letter.
To tune into a specific frequency,

touch the frequency indication on the

radio main screen. A new screen will

be displayed with a number pad. A

frequency can be entered.

Station list

To display the station list, touch

The currently active radio station will

be indicated by

Favourite radio stations will be

indicated by

;

To update the station list, touch

and select Update list.

Favourites

Up to 16 radio stations can be saved

as favourites. Touch

to display the

favourites list.
To save the currently active radio

station as a favourite, touch and hold

the desired row in the favourites list.

Traffic announcement

Traffic announcement is a service of

FM radio stations. When traffic

programme is activated, the currently

playing audio source will be

interrupted when an FM radio station

is broadcasting traffic news. The

audio source will be switched back

when the traffic news are over.

Traffic announcements can be

activated or deactivated in the radio

settings

RDS switching

When RDS switching is activated, the

Infotainment system always tunes

into the best receivable broadcasting

frequency of the currently active radio

station.
RDS switching can be activated or

deactivated in the radio settings

Notice

After switching, the volume might be

different.

External devices

A USB port for the connection of

external devices is located next to the

Info Display.
When an external audio source (via

USB or Bluetooth) is connected and

selected as audio source, the

following symbols will be displayed on

the audio screen:

Infotainment system

183

: Interrupt playback.

: Resume playback.

: Display the tracklist.

: Display the library (folders,

artists, albums, playlists,

songs).

In the library

, the tracks can be

sorted by artist, album etc.
When a folder is selected in the library

, only the tracks of the

corresponding folder are displayed in

the tracklist

The following playback functions can

be activated in the media settings

Repeat : Repeat the tracks of the

current list.

Shuffle : Play tracks in random

order.

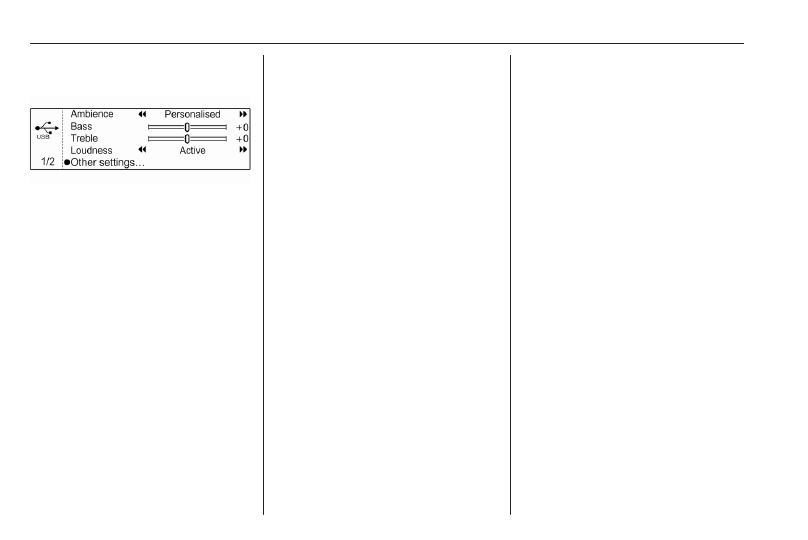

Audio settings

To adjust the audio settings,

touch

on the audio screen and

select Audio settings. The following

settings can be adjusted:

● Activate / deactivate speed

compensated volume

● Activate / deactivate touch tones

● Adjust sound distribution
● Adjust ambience, bass and treble

Speech recognition

The voice pass-thru application of the

Infotainment system allows access to

the speech recognition commands on

a smartphone. See the smartphone

manufacturer's operating instructions

to find out whether the smartphone

supports this feature.
In order to use the voice pass-thru

application, the smartphone must be

connected via Bluetooth

183.

Activating speech recognition

Press and hold

on the steering

wheel until a speech recognition

session is started.

Adjusting the volume of voice

prompts

Turn

)

on the control panel or press

the volume button on the steering

wheel upwards (increase volume)

or downwards (decrease volume)

Deactivating speech recognition

Press

on the steering wheel. The

speech recognition session is ended.

Phone

Not every mobile phone fully supports

the phone function. Therefore,

deviations from the range of functions

described below are possible.

Phone main menu

: Display the call list.

: Display the contact list.

: Display the number pad.

: Call the answering machine if

a voicemail number is set.

184

Infotainment system

: Display a list of all paired

devices.

: Adjust the phone settings.

Notice

On some mobile phones, access

permissions for contact and call lists

may have to be set when connecting

the mobile phone to the Infotainment

system.

Making a phone call

To make a phone call, either choose

a contact from the contact list or dial

a phone number via the number pad.

Phone settings

To go to the phone settings menu, go

to the phone menu and select

The following settings are adjustable:

● Putting phone calls automatically

on hold.

● Setting a voicemail number.

Pairing a phone

To pair a mobile phone, proceed as

follows:

1. Enable Bluetooth on the mobile

phone and ensure it is visible for

other devices.

2. On the Info Display, select

Telephone

Manage devices.

3. Touch Add.

Mobile phones are being

searched.

4. Select the desired mobile phone.
5. Select the Infotainment system

from the Bluetooth device list on

the mobile phone.

6. Compare and confirm the shown

code on the mobile phone and on

the Info Display. Touch OK on the

Info Display.
Alternatively, a number pad might

appear on the Info Display. Enter

the code that is shown on the

mobile phone.

Some mobile phones require

access to certain phone features,

follow the instructions.

7. Determine whether the mobile

phone is to be connected for the

phone function and music

streaming.

Once the mobile phone is

successfully paired, it will be

connected automatically and shown

as connected.
If the mobile phone is connected for

the phone function,

will be

displayed in the list of paired devices.
If the mobile phone is connected for

music streaming,

will be displayed

in the list of paired devices.

Disconnecting and connecting a

mobile phone

1. In the phone menu on the Info

Display, select Bluetooth.

2. To disconnect the currently

connected mobile phone, touch

the corresponding mobile phone

and select Yes.

Infotainment system

185

The mobile phone is

disconnected.

3. To connect another paired mobile

phone, touch the corresponding

mobile phone and select Yes.
The mobile phone is connected.

Deleting a paired mobile phone

1. In the phone menu on the Info

Display, select Bluetooth

Manage devices.

2. Touch Delete.
3. Select the desired mobile phone.
4. Touch Yes.

The mobile phone is deleted.

Radio

Important information on

operation and traffic safety

Warning

Drive safely at all times when

using the Infotainment system.
If in doubt, stop the vehicle before

operating the Infotainment

system.

Radio reception

Radio reception may be disrupted by

static, noise, distortion or loss of

reception due to:

● changes in distance from the

transmitter

● multi-path reception due to

reflection

● shadowing

Theft-deterrent feature

The Infotainment system is equipped

with an electronic security system for

the purpose of theft deterrence.

The Infotainment system therefore

functions only in your vehicle and is

worthless to a thief.

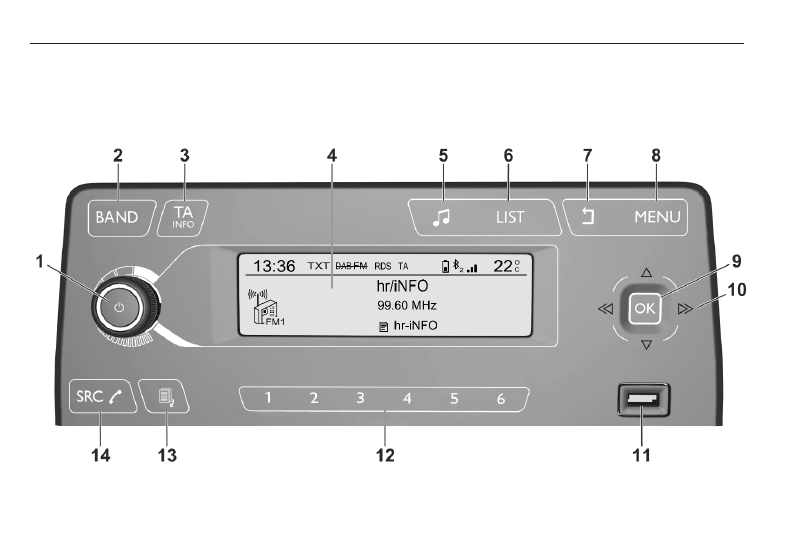

Infotainment system

187

If switched off: short press:

switch power on
If switched on: short press:

mute system; long press:

switch power off
Turn: adjust volume

BAND
Short press: toggle

between the wavebands ..... 194

TA INFO
Short press: activate or

deactivate traffic

announcements .................. 194
Long press: open the TA

settings ................................ 194

Info Display

Short press: open menu

for tone and volume settings

LIST
Radio: short press: display

stations list; long press:

update stations list .............. 194
Media: short press: display

folders list; long press:

display the track listing

options ................................ 196

Menu: one level back
Input: delete last character

or entire entry ...................... 198

MENU
Short press: display home page

OK
Short press: confirm a

setting or open a submenu

{

}

Radio: short press:

manual station search ......... 194
Media: short press: select

next or previous folder,

genre, artist or playlist;

long press: scroll in a list ..... 196

Radio: short press:

automatic station search

for the previous or next

station; long press: seek

up or down .......................... 194
Media: short press: select

previous or next track; long

press: fast forward or

rewind ................................. 196

11 USB port ............................. 196
12 Preset buttons

Short press: select

favourites ............................ 194
Long press: save radio

stations as favourites .......... 194

Short press: toggle

through the different

display modes
Long press: turn display off

(while the sound remains active)

188

Infotainment system

14 SRC

Short press: toggle

between the audio sources . 194
Long press: open phone

menu if phone connected . . . 198

Steering wheel controls

SRC
Select audio source,

confirm selection with

Select next / previous

preset radio station when

radio active .......................... 194
or select next / previous

track when media sources

active ................................... 196

or select next / previous

entry in call / contacts list

when phone function

active and call / contact list

open .................................... 198
Confirm selection with

Confirm selected item
Open list

Activate/deactivate mute

function

Turn upwards /

downwards: increase /

decrease volume

Take phone call .................. 198
or reject phone call ............. 198
or open call / contacts list . . . 198

Activate voice pass-thru

application ........................... 198

Infotainment system

189

Control elements

The Infotainment system is operated

via function buttons, navigation

buttons and menus that are shown on

the display.
Inputs are made optionally via:

● the control panel on the

Infotainment system

● controls on the steering wheel

Switching the Infotainment

system on or off

Press

briefly. After switching on,

the last selected Infotainment source

becomes active.

Notice

Some functions of the Infotainment

system are only available if ignition

is switched on or engine is running.

Press

again to turn the system off.

Automatic switch-off

If the Infotainment system is switched

on by pressing

while the ignition is

switched off, it switches off again

automatically after a certain time.

Setting the volume

Turn

. The current setting is shown

on the display.
When the Infotainment system is

switched on, the last selected volume

is set.

Speed compensated volume

When the automatic volume function

is activated, the volume is adapted

automatically to make up for the road

and wind noises as you drive.

Mute function

Press

on the steering wheel to

mute the audio sources.
To cancel the mute function, press

again.

Changing the display mode

There are three different display

modes available:

● full screen display
● splitted display with time and

date information shown on the

left side of the screen

● black display

Repeatedly press

to toggle

between full screen display mode and

splitted display mode.
Press and hold

to turn the display

off while the sound remains active.

Press

again to reactivate the

display.

190

Infotainment system

Modes of operation

Radio

Repeatedly press BAND to toggle

between the different wavebands and

select the desired waveband.
For a detailed description of the radio

functions

194.

USB port

Repeatedly press SRC

to toggle

between the different audio sources

and select USB mode.
For a detailed description on

connecting and operating external

devices

196.

Bluetooth music

Repeatedly press SRC

to toggle

between the different audio sources

and select Bluetooth music mode.
For a detailed description on

connecting and operating external

devices

196.

Phone

Before the phone function can be

used, a connection to a Bluetooth

device has to be established. For a

detailed description

198.

Press MENU to display the home

page. Select Telephone by pressing

and

and then press OK to

confirm. The phone menu is

displayed.
For a detailed description of mobile

phone operation via the Infotainment

system

198.

OK button

Press OK:

● to confirm or activate the

selected option

● to confirm a set value
● to activate or deactivate a

function

● to open a menu

button

Press

● to exit a menu
● to return from a submenu to the

next higher menu level

Examples of menu operation

Selecting an option

Press

{

}

to move the

cursor (= coloured background) to the

desired option.
Press OK to confirm the selected

option.

Infotainment system

191

Activating a setting

Press

{

}

to select the

desired setting.
Press OK to activate the setting.

Setting a value

Press

to select the current

value of the setting.
Press OK to confirm the selection.
Press

to adjust the desired

value.
Press OK to confirm the set value.

The cursor then switches to the value

of the next setting. To switch to the

value of another setting, press

{

}

. If the values of all settings

are set, select OK on the display and

press OK.

Adjusting a setting

Select the desired setting and press

OK.
Press

until the setting is

adjusted as desired.
Select OK on the display and press

OK to confirm the setting.

Entering a character sequence

To enter character sequences, e.g.

telephone numbers:
Press

to select the desired

character.
Press OK to confirm the selected

character.
The last character in the character

sequence can be deleted by selecting

Correct on the display and pressing

OK.
To change the position of the cursor

in the character sequence already

entered, select the character

sequence and press

move the cursor to the desired

position.
To confirm the character sequence,

press

}

to select OK on the display

and then press OK.

Audio and volume settings

In the tone and volume settings

menu, the tone characteristics and

volume settings can be adjusted.
The settings on page 1 can be set

individually for each audio source.

The settings on page 2 are set for all

audio sources.

192

Infotainment system

Press

to open the tone and volume

settings menu.

Press

again to display the second

tone and volume settings page.

Alternatively, select Other settings….

Sound adjustment

To change the sound of the

Infotainment system, select a tone

style or adjust the tone characteristics

manually.

Tone style

To activate a tone style, select

Ambience. To toggle between the

different tone styles, repeatedly press

If the tone style is set to Personalised,

Bass and Treble can be set manually.

Bass and treble

To enhance or attenuate the deep

frequencies, select Bass.

To enhance or attenuate the high

frequencies, select Treble.
Repeatedly press

to adjust

the settings.

Notice

If the settings of Bass or Treble are

adjusted, the tone style is set to

Personalised.

Loudness

The Infotainment system has a

loudness compensation function for

better sound quality at low volume

levels. It is set to Active by default.
To change the loudness setting,

select Loudness. Press

toggle between the settings Active

and Inactive.

Volume distribution

The volume distribution within the

passenger compartment can be

optimised for the driver or for all

passengers.
Select Distribution. Press

to toggle between the settings Driver

and All passengers.

If Driver is selected, the volume

balance is automatically optimised for

the driver.
If All passengers is selected, the

volume distribution between left and

right in the passenger compartment

can be set manually.
Select Balance. Repeatedly press

to move the point of the highest

sound level to the left or

to move

the point of the highest sound level to

the right.

Automatic volume adjustment

The volume of the Infotainment

system can be adjusted automatically

according to the speed of the vehicle.
Select Auto. volume. Press

to toggle between the settings

Active and Inactive.

Infotainment system

193

System settings

Configuring the system

Open the settings menu to perform

some basic system configurations,

e.g.:

● Adjust the display of units for

temperature or fuel consumption

● Change the display language
● Adjust date and time

Changing display language

Press MENU and then select

Personalisation-configuration.
Select Display configuration and then

select Choice of language.
To adjust the language for the menu

texts, select the desired language

and press OK.

Adjusting time and date

Press MENU and then select

Personalisation-configuration.
Select Display configuration and then

select Date and time adjustment.
Changing the time format

To change the time format, select

12h or 24h and press OK.

Setting time and date

By default the displayed time and

date is automatically adjusted by the

system.
To manually adjust the displayed time

and date:
Select the value of the desired

settings, e.g. Day and press OK.
Press

{

}

to set the desired value

and press OK to confirm.
To confirm the set date and time,

select OK on the display.

Adjusting the screen

Press MENU and then select

Personalisation-configuration.
Select Display configuration and then

select Display personalisation.
Text scroll function

If long texts on the screen should be

scrolled automatically, activate Auto.

scrolling long texts.

Select OK on the display.
If Auto. scrolling long texts is

deactivated, long texts are truncated.
Adjusting the brightness

In the Brightness section, select + or

- to increase or decrease the

brightness of the screen.
Press OK to confirm and then

repeatedly press OK to adjust the

brightness to the desired level.
To confirm the brightness adjustment,

select OK on the display.

Adjusting the units for temperature

and fuel consumption

Press MENU and then select

Personalisation-configuration.
Select Display configuration and then

select Choice of units.
Select the desired unit and press OK.

194

Infotainment system

Select OK on the display.

Audio

Repeatedly press BAND to toggle

between the different wavebands.

Select the desired waveband.
As an alternative, repeatedly press

SRC

to toggle between all audio

sources and select the desired

waveband.

The station last selected in the

respective waveband is played.

Searching for stations

Automatic station search

Press

to play the previous

or next station in the station memory.

Manual station search

Press and hold

. Release

when the required frequency has

almost been reached.
A search is made for the next station

that can be received and it is played

automatically.

Station tuning

Press or press and hold

{

}

to set

the desired frequency manually.

Stations lists

The stations received best in the

location you are in are stored in the

waveband-specific stations list.
Displaying the stations list

Press LIST to display the stations list

of the waveband currently active.
Scroll through the list and select the

desired station.

Notice

The station currently playing is

marked with

Updating the stations list

Press and hold LIST until a message

indicating the update process is

displayed.
The stations list is updated.

Preset buttons

The six favourite radio stations of

each waveband can be stored on

preset buttons. When pressing one of

the preset buttons, the favourites

page is displayed.

Notice

The station currently playing is

marked with

Storing preset stations

To store a station to a preset button,

activate the desired waveband and

station. When the station is playing,

press and hold one of the preset

button 1...6 on which the desired

station is to be stored.
The station name or frequency is

displayed next to the respective

favourite on the screen.

Infotainment system

195

Retrieving preset stations

To retrieve a station stored as a

favourite, press the respective preset

button 1...6.

Radio data system

Radio data system (RDS) is a service

of FM stations that considerably

facilitates the finding of the desired

station and its fault-free reception.

Alternative frequencies

If the FM signal of a station is too

weak to be picked up by the receiver,

the Infotainment system can

automatically tune to an alternative

FM frequency to continue the

programme.
Activate the FM waveband and then

press OK to display the waveband

menu. Activate RDS.

If RDS alternative frequency search is

activated, RDS is displayed in the top

line of the screen. If a station is not an

RDS station, RDS is crossed out.

Notice

This function can also be changed

via the multimedia menus. Press

MENU and then select Multimedia.

Radio text

Radio text contains additional

information broadcasted by the radio

stations, e.g. station name, title or

artist of the song currently playing,

news information etc.
Activate the FM waveband and then

press OK to display the waveband

menu. Activate RadioText.
If the radio text function is activated,

TXT is displayed in the top line of the

screen. If a station does not support

the radio text function, TXT is crossed

out.

Notice

This function can also be changed

via the multimedia menus. Press

MENU and then select Multimedia.

Traffic announcements (TA)

Radio traffic service stations are RDS

stations that broadcast traffic news. If

this function is activated, only traffic

service stations are searched for and

played.
Radio and media playback is

interrupted for the duration of the

traffic announcements.
To activate or deactivate the traffic

announcement standby facility of the

Infotainment system, press TA. A

corresponding message is displayed

confirming your action.
If traffic announcements are

activated, TA is displayed in the top

line of the screen. If a station is not a

radio traffic service station, TA is

crossed out.

Digital audio broadcasting

Alternative frequencies

If the DAB signal of a service is too

weak to be picked up by the receiver,

the Infotainment system can

automatically tune to an alternative

FM frequency to continue the

programme.

196

Infotainment system

Activate the FM waveband and then

press OK to display the waveband

menu. Activate DAB FM tracking.

Notice

This function can also be changed

via the multimedia menus. Press

MENU and then select Multimedia.

If DAB FM automatical tracking is

activated, DAB FM is displayed in the

top line of the screen. If a station does

not support this function, DAB FM is

crossed out.

DAB station details

Activate the FM waveband and then

press OK to display the waveband

menu.
Select DAB details to display detailed

information on the DAB station

currently playing.

External devices

USB ports

On the control panel, there is a USB

port for the connection of external

audio data sources.

Notice

The socket must always be kept

clean and dry.

Connecting a USB device

An MP3 player, USB device or SD

card (via USB connector / adapter)

can be connected to the USB port. A

USB hub is not supported. If required,

use the appropriate connection cable.

Notice

Not all auxiliary devices are

supported by the Infotainment

system. Check the compatibility list

on our website.

When connected to the USB port,

various functions of the above

devices can be operated via the

controls and menus of the

Infotainment system.
The Infotainment system

automatically creates playlists upon

connection.

Disconnecting a USB device

Press SRC

to select a different

audio source and then remove the

USB storage device.

Caution

Avoid disconnecting the device

during playback. This may

damage the device or the

Infotainment system.

File formats

The audio equipment supports

different audio file formats.

Activating the USB music function

If the device is not yet connected to

the Infotainment system, connect the

device.
The Infotainment system

automatically switches to USB music

mode.
If the device is already connected,

repeatedly press SRC

to change to

USB music mode.
Playback of the audio tracks starts

automatically.

Infotainment system

197

Playing the next or previous track

Press

to play the next track.

Press

to play the previous track.

Fast forwarding and rewinding

Press and hold

. Release to

return to normal playback mode.

Playing the next or previous folder/

artist/playlist

Press

}

to play the next folder, artist,

album, or playlist depending on the

track listing options.
Press

{

to play the previous folder,

artist, album, or playlist depending on

the track listing options.

Browse menu

Using the browse menu, you can

search for a track via categories.

Browse function

To display the browse list, press

LIST. The tracks are sorted in

categories of folders, genres, artists,

and playlists.
Select the desired categories and

choose a track. Select the track to

start playback.

Choice of track listing

Press and hold LIST to display a

selection menu. Scroll through the list

and select the desired track listing

option. The browse menu is changed

accordingly.

Notice

Depending on the metadata stored

on the device, not all track listing

options may be available.
Notice

This function can also be changed

via the multimedia menus. Press

MENU and then select Multimedia.

USB music menu

In the USB music menu, you can set

the play mode for the tracks on the

device connected.

Activate the USB music mode and

then press OK to display the USB

music menu.
Activate the desired play mode.
Normal: The songs of the album,

folder or playlist chosen are played in

the usual order.
Random: The songs of the album,

folder or playlist chosen are played in

random order.
Random all: All tracks stored on the

device connected are played in

random order.
Repeat: The album, folder or playlist

chosen is played repeatedly.

Connecting a Bluetooth device

Bluetooth enabled audio sources

(e.g. music mobile phones, MP3

players featuring Bluetooth, etc.) can

be connected wirelessly to the

Infotainment system.
The external Bluetooth device must

be paired to the Infotainment system

198.

Vauxhall Combo E (2023 year). Manual in english - page 6
