Vauxhall Combo E (2023 year). Manual in english

Seats, restraints

folded with considerable power.

Risk of injury, particularly to

children.
Ensure that nothing is attached to

the rear seats or located on the

seat cushion.

Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or vehicle.

Unfolding the seats

To fold up, raise the backrests and

guide them into an upright position

until they engage audibly.

The backrests are properly engaged

when the red mark near the release

lever is no longer visible.

Warning

When folding up, ensure that

backrests are securely locked in

position before driving. Failure to

do so may result in personal injury

or damage to the load or vehicle in

the event of hard braking or a

collision.

Third row seats

Warning

When rear seats or backrests are

being adjusted or folded, keep

hands and feet away from the

moving area.
Never adjust seats while driving as

they could move uncontrollably.
Drive only with engaged seats and

backrests.

Warning

When installing the rear seats,

ensure that the seat assembly is

properly located on the anchor

points, the locks are fully engaged,

and the backrest is returned to the

correct position.
Failure to do so may result in

personal injury in the event of hard

braking or a collision.

Seats, restraints

Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or vehicle.

Depending on version, the load

compartment area can be increased

by folding up or removing the third row

seats.

Folding the seats

1. Push the head restraint

downwards and if necessary fold

down the seats of the second row.
Head restraints

Folding the seats of the second

row

2. Pull the lever and fold down the

backrest onto the seat cushion.

3. Pull the handle and tilt the entire

seat forwards.

4. Secure the folded seat in the

upright position by attaching the

strap to one of the pillars of the

head restraint in front of the folded

seat.

Unfolding the seats

1. Ensure that the seat belts do not

obstruct the unfolding

manoeuvre.

2. Remove the strap and lower the

seat assembly to the floor,

ensuring the rear support is

located on the anchor point and

securely latched into position.

3. Raise the backrest and adjust the

head restraint.

Seats, restraints

Removing the seats

1. Push the head restraint

downwards and if necessary fold

down the seats of the second row.
Head restraints

Folding the seats of the second

row

2. Pull the lever and fold down the

backrest onto the seat cushion.
Pull the handle and tilt the entire

seat forwards (refer to "Folding

the seats" above).

3. Pull the loop to disengage the

locks and remove the seat

assembly from the floor anchor

points.

Installing the seats

1. Attach the seat assembly front

supports to the front anchor

points.

2. Fold the seat backwards to the

floor to fix its rear anchor point.

3. Raise the backrest and adjust the

head restraint.

Longitudinal seat adjustment

Pull the handle, slide the seat, then

release the handle. Try to move the

seat back and forth to ensure that the

seat is locked in place.

Seats, restraints

Seat belts

The seat belts are locked during

heavy acceleration or deceleration of

the vehicle, holding the occupants in

the seat position. Therefore the risk of

injury is considerably reduced.

Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger

their fellow occupants and

themselves.

Seat belts are designed to be used by

only one person at a time.
Child restraint system

50.

Periodically check all parts of the seat

belt system for damage, soiling and

proper functionality.
Have damaged components

replaced. After an accident, have the

seat belts and triggered seat belt

pretensioners replaced by a

workshop.

Notice

Make sure that the seat belts are

neither damaged by shoes or sharp-

edged objects nor trapped. Prevent

dirt from getting into the seat belt

retractors.
Notice

Use the belt buckle inteded for the

respective seat belt when fastening

in order to ensure proper

functionality.

Seat belt reminder

Each seat is equipped with a seat belt

reminder, indicated by a control

indicator

for the respective seat in

the roof console

92.

Seat belt force limiters

Stress on the body is reduced by the

gradual release of the seat belt during

a collision.

Seat belt pretensioners

In the event of a head-on, rear-end or

side-on collision of a certain severity,

the front seat belts and the outer

second row seat belts are tightened

by seat belt pretensioners.

Warning

Incorrect handling (e.g. removal or

fitting of seat belts) can trigger the

seat belt pretensioners.

Deployment of the seat belt

pretensioners is indicated by

continuous illumination of control

indicator

92.

Triggered seat belt pretensioners

must be replaced by a workshop.

Seat belt pretensioners can only be

triggered once.

Seats, restraints

Notice

Do not affix or install accessories or

other objects that may interfere with

the operation of the seat belt

pretensioners. Do not make any

modifications to seat belt

pretensioner components as this will

invalidate the vehicle operating

permit.

Three-point seat belt

Fasten

Withdraw the seat belt from the

retractor, guide it untwisted across

the body and insert the latch plate into

the buckle. Make sure the seat belt

lies across the shoulder and fits tightly

to the body while driving.

Loose or bulky clothing prevents the

belt from fitting snugly. Do not place

objects such as handbags or mobile

phones between the seat belt and

your body.

Warning

The seat belt must not rest against

hard or fragile objects in the

pockets of your clothing.

Seat belt reminder

92,

99.

Unfasten

To release seat belt, press red button

on seat belt buckle and guide the seat

belt back.

Centre seat belt of the second

seat row

The centre seat is equipped with a

particular three-point seat belt.

Seats, restraints

Pull latch plates with the seat belt out

of seat belt holder in the roof.

Insert lower latch plate into left-hand

buckle (1) at the centre seat. Guide

the upper latch plate with the seat belt

over the lap area and the shoulder (do

not twist) and insert it into right-hand

buckle (2) at centre seat.
To unfasten the seat belt, first press

the button on the right-hand buckle

(2) and remove upper latch plate.

Then press the button on the left-

hand buckle (1) and remove lower

latch plate. The seat belt retracts

automatically.

Using seat belts while pregnant

Warning

The lap belt must be positioned as

low as possible across the pelvis

to prevent pressure on the

abdomen.

Seats, restraints

Airbag system

The airbag system consists of a

number of individual systems

depending on the scope of

equipment.
When triggered the airbags inflate

within milliseconds. They also deflate

so quickly that it is often unnoticeable

during the collision.

Warning

The airbag system deploys in an

explosive manner, repairs must be

performed by skilled personnel

only.

Warning

Adding accessories that change

the vehicle's frame, bumper

system, height, front end or side

sheet metal, may keep the airbag

system from working properly. The

operation of the airbag system can

also be affected by changing any

parts of the front seats, seat belts,

airbag sensing and diagnostic

module, steering wheel,

instrument panel, inner door seals

including the speakers, any of the

airbag modules, ceiling or pillar

trim, front sensors, side impact

sensors or airbag wiring.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

The airbag systems and belt

pretensioner control electronics are

located in the centre console. Do not

put any magnetic objects in this

area.
Do not affix any objects onto the

airbag covers and do not cover them

with other materials. Have damaged

covers replaced by a workshop.
Each airbag is triggered only once.

Have deployed airbags replaced by

a workshop. Furthermore, it may be

necessary to have the steering

wheel, the instrument panel, parts of

the panelling, the door seals,

handles and the seats replaced.
Do not make any modifications to

the airbag system as this will

invalidate the vehicle operating

permit.

Control indicator

for airbag systems

92.

Child restraint systems on front

passenger seat with airbag

systems

Seats, restraints

EN: NEVER use a rearward-facing

child restraint on a seat protected by

an ACTIVE AIRBAG in front of it;

DEATH or SERIOUS INJURY to the

CHILD can occur.
DE: Nach hinten gerichtete

Kindersitze NIEMALS auf einem Sitz

verwenden, der durch einen davor

befindlichen AKTIVEN AIRBAG

geschützt ist, da dies den TOD oder

SCHWERE VERLETZUNGEN DES

KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège

d'enfant orienté vers l'arrière sur un

siège protégé par un COUSSIN

GONFLABLE ACTIF placé devant lui,

sous peine d'infliger des

BLESSURES GRAVES, voire

MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de

retención infantil orientado hacia

atrás en un asiento protegido por un

AIRBAG FRONTAL ACTIVO. Peligro

de MUERTE o LESIONES GRAVES

para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ

устанавливать детское

удерживающее устройство лицом

назад на сиденье автомобиля,

оборудованном фронтальной

подушкой безопасности, если

ПОДУШКА НЕ ОТКЛЮЧЕНА! Это

может привести к СМЕРТИ или

СЕРЬЕЗНЫМ ТРАВМАМ

РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts

gericht kinderzitje op een stoel met

een ACTIEVE AIRBAG ervoor, om

DODELIJK of ERNSTIG LETSEL van

het KIND te voorkomen.
DA: Brug ALDRIG en bagudvendt

autostol på et forsæde med AKTIV

AIRBAG, BARNET kan komme i

LIVSFARE eller komme ALVORLIGT

TIL SKADE.
SV: Använd ALDRIG en bakåtvänd

barnstol på ett säte som skyddas med

en framförvarande AKTIV AIRBAG.

DÖDSFALL eller ALLVARLIGA

SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin

suunnattua lasten turvaistuinta

istuimelle, jonka edessä on

AKTIIVINEN TURVATYYNY, LAPSI

VOI KUOLLA tai VAMMAUTUA

VAKAVASTI.

NO: Bakovervendt

barnesikringsutstyr må ALDRI brukes

på et sete med AKTIV

KOLLISJONSPUTE foran, da det kan

føre til at BARNET utsettes for

LIVSFARE og fare for ALVORLIGE

SKADER.
PT: NUNCA use um sistema de

retenção para crianças voltado para

trás num banco protegido com um

AIRBAG ACTIVO na frente do

mesmo, poderá ocorrer a PERDA DE

VIDA ou FERIMENTOS GRAVES na

CRIANÇA.
IT: Non usare mai un sistema di

sicurezza per bambini rivolto

all'indietro su un sedile protetto da

AIRBAG ATTIVO di fronte ad esso:

pericolo di MORTE o LESIONI

GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό

κάθισμα ασφαλείας με φορά προς τα

πίσω σε κάθισμα που προστατεύεται

από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,

διότι το παιδί μπορεί να υποστεί

ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ

ΤΡΑΥΜΑΤΙΣΜΟ.

Seats, restraints

PL: NIE WOLNO montować fotelika

dziecięcego zwróconego tyłem do

kierunku jazdy na fotelu, przed

którym znajduje się WŁĄCZONA

PODUSZKA POWIETRZNA.

Niezastosowanie się do tego

zalecenia może być przyczyną

ŚMIERCI lub POWAŻNYCH

OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet

sistemini KESİNLİKLE önünde bir

AKTİF HAVA YASTIĞI ile

korunmakta olan bir koltukta

kullanmayınız. ÇOCUK ÖLEBİLİR

veya AĞIR ŞEKİLDE

YARALANABİLİR.
UK: НІКОЛИ не використовуйте

систему безпеки для дітей, що

встановлюється обличчям назад,

на сидінні з УВІМКНЕНОЮ

ПОДУШКОЮ БЕЗПЕКИ, інакше це

може призвести до СМЕРТІ чи

СЕРЙОЗНОГО ТРАВМУВАННЯ

ДИТИНИ.
HU: SOHA ne használjon hátrafelé

néző biztonsági gyerekülést előlről

AKTÍV LÉGZSÁKKAL védett ülésen,

mert a GYERMEK HALÁLÁT vagy

KOMOLY SÉRÜLÉSÉT okozhatja.

HR: NIKADA nemojte koristiti sustav

zadržavanja za djecu okrenut prema

natrag na sjedalu s AKTIVNIM

ZRAČNIM JASTUKOM ispred njega,

to bi moglo dovesti do SMRTI ili

OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega

varnostnega sedeža, obrnjenega v

nasprotni smeri vožnje, na sedež z

AKTIVNO ČELNO ZRAČNO

BLAZINO, saj pri tem obstaja

nevarnost RESNIH ali SMRTNIH

POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni

sistem za decu u kome su deca

okrenuta unazad na sedištu sa

AKTIVNIM VAZDUŠNIM

JASTUKOM ispred sedišta zato što

DETE može da NASTRADA ili da se

TEŠKO POVREDI.
MK: НИКОГАШ не користете детско

седиште свртено наназад на

седиште заштитено со АКТИВНО

ВОЗДУШНО ПЕРНИЧЕ пред него,

затоа што детето може ДА ЗАГИНЕ

или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте

детска седалка, гледаща назад,

върху седалка, която е защитена

чрез АКТИВНА ВЪЗДУШНА

ВЪЗГЛАВНИЦА пред нея - може да

се стигне до СМЪРТ или

СЕРИОЗНО НАРАНЯВАНЕ на

ДЕТЕТО.
RO: Nu utilizaţi NICIODATĂ un scaun

pentru copil îndreptat spre partea din

spate a maşinii pe un scaun protejat

de un AIRBAG ACTIV în faţa sa;

acest lucru poate duce la DECESUL

sau VĂTĂMAREA GRAVĂ a

COPILULUI.
CS: NIKDY nepoužívejte dětský

zádržný systém instalovaný proti

směru jízdy na sedadle, které je

chráněno před sedadlem AKTIVNÍM

AIRBAGEM. Mohlo by dojít k

VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ

DÍTĚTE.
SK: NIKDY nepoužívajte detskú

sedačku otočenú vzad na sedadle

chránenom AKTÍVNYM AIRBAGOM,

pretože môže dôjsť k SMRTI alebo

VÁŽNYM ZRANENIAM DIEŤAŤA.
LT: JOKIU BŪDU nemontuokite atgal

atgręžtos vaiko tvirtinimo sistemos

sėdynėje, prieš kurią įrengta AKTYVI

ORO PAGALVĖ, nes VAIKAS GALI

ŽŪTI arba RIMTAI SUSIŽALOTI.

Seats, restraints

LV: NEKĀDĀ GADĪJUMĀ

neizmantojiet uz aizmuguri vērstu

bērnu sēdeklīti sēdvietā, kas tiek

aizsargāta ar tās priekšā uzstādītu

AKTĪVU DROŠĪBAS SPILVENU, jo

pretējā gadījumā BĒRNS var gūt

SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole

suunatud lapseturvaistet istmel, mille

ees on AKTIIVSE TURVAPADJAGA

kaitstud iste, sest see võib

põhjustada LAPSE SURMA või

TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li

jħares lejn in-naħa ta’ wara fuq sit

protett b’AIRBAG ATTIV quddiemu;

dan jista’ jikkawża l-MEWT jew

ĠRIEĦI SERJI lit-TFAL.
GA: Ná húsáid srian sábháilteachta

linbh cúil RIAMH ar shuíochán a

bhfuil mála aeir ag feidhmiú os a

chomhair. Tá baol BÁIS nó GORTÚ

DONA don PHÁISTE ag baint leis.
Additionally, for safety reasons a

forward-facing child restraint system

must only be used subject to the

instructions and restrictions in the

table

54.

The airbag label is located on both

sides of the front passenger sun visor.
Airbag deactivation

49.

Front airbag system

The front airbag system consists of

one airbag in the steering wheel and

one in the roof on the front passenger

side. These can be identified by the

word AIRBAG.
The front airbag system is triggered in

the event of a front-end impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and head of

the front seat occupants

considerably.

Warning

Optimum protection is only

provided when the seat is in the

proper position.
Seat position

32.

Keep the area in which the airbag

inflates clear of obstructions.
Fit the seat belt correctly and

engage securely. Only then is the

airbag able to protect.

Seats, restraints

Side airbag system

The side airbag system consists of an

airbag in each front seat backrest.

This can be identified by the word

AIRBAG.
The side airbag system is triggered in

the event of a side impact of a certain

severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the upper body and pelvis in

the event of a side-on collision

considerably.

Warning

Keep the area in which the airbag

inflates clear of obstructions.

Notice

Only use protective seat covers that

have been approved for the vehicle.

Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of

an airbag in the roof frame on each

side. This can be identified by the

word AIRBAG on the roof pillars.
The curtain airbag system is triggered

in the event of a side-on impact of a

certain severity. The ignition must be

switched on.

The inflated airbags cushion the

impact, thereby reducing the risk of

injury to the head in the event of a

side-on impact considerably.

Seats, restraints

Warning

Keep the area in which the airbag

inflates clear of obstructions.
The hooks on the handles in the

roof frame are only suitable for

hanging up light articles of

clothing, without coat hangers. Do

not keep any items in these

clothes.

Airbag deactivation

The front passenger airbag system

must be deactivated for child restraint

system on the passenger seat

according to the instructions in the

table

54. The side airbag and

curtain airbag systems, the belt

pretensioners and all driver airbag

systems will remain active.

The front passenger airbag system

can be deactivated via a key-

operated switch on the passenger

side of the instrument panel.
Use the ignition key to choose the

position:
OFF

: front passenger airbag is

deactivated and will not

inflate in the event of a

collision, control indicator

OFF

illuminates

continuously in the centre

console

: front passenger airbag is

active

Danger

Deactivate passenger airbag only

in combination with the use of a

child restraint system, subject to

the instructions and restrictions in

the table

54.

Otherwise, there is a risk of fatal

injury for a person occupying a

seat with a deactivated front

passenger airbag.

Seats, restraints

If the control indicator

illuminates

for approx. 60 seconds after the

ignition is switched on, the front

passenger airbag system will inflate

in the event of a collision.
If the control indicator

illuminates

after the ignition is switched on, the

front passenger airbag system is

deactivated. It stays on while the

airbag is deactivated.
If both control indicators are

illuminated at the same time, there is

a system failure. The status of the

system is not discernible, therefore

no person is allowed to occupy the

front passenger seat. Contact a

workshop immediately.
Consult a workshop immediately if

neither of the two control indicators

are illuminated.
In the event of a fault a warning

message is displayed in the Driver

Information Centre and warning

chime will sound.
Change status only when the vehicle

is stopped with the ignition off.
Status remains until the next change.

Control indicator for airbag

deactivation

93.

Child restraints

Child restraint systems

Danger

Make sure that children below

sufficient size and weight are

protected using a suitable child

restraint system. Never place a

child on the lap.

Danger

If using a rear-facing child restraint

system on the front passenger

seat, the airbag system for the

front passenger seat must be

deactivated. This also applies to

certain forward-facing child

restraint systems as indicated in

the tables

54.

Airbag deactivation

49.

Airbag label

44.

Seats, restraints

We recommend a child restraint

system which is tailored specifically to

the vehicle. For further information,

contact your workshop.
In case of any interference of the child

restraint system with vehicle seat

head restraint, adjust or remove the

corresponding head restraint

31.

When a child restraint system is being

used, pay attention to the following

usage and installation instructions

and also those supplied with the child

restraint system. The given

restrictions in the table refer to a test

body, which is the maximum

envelope of all existing child restraint

systems. Make sure that the front

seats do not interfere with the used

child restraint system.
Always comply with local or national

regulations. In some countries, the

use of child restraint systems is

forbidden on certain seats.
Only drive with the driver seat

correctly adjusted

32.

Child restraint systems can be

fastened with:

● Three-point seat belt
● ISOFIX brackets
● Top-tether

Three-point seat belt

Child restraint systems can be

fastened by using a three-point seat

belt. After fastening the child restraint

system the seat belt has to be

tightened

54.

ISOFIX brackets

Fasten vehicle-approved ISOFIX

child restraint systems to the ISOFIX

brackets. Specific vehicle ISOFIX

child restraint system positions are

marked in the ISOFIX table

54.

The ISOFIX brackets are located

below the i-Size symbol in the seat

cover.
An i-Size child restraint system is an

universal ISOFIX child restraint

system according UN Regulation No.

129.
All i-Size child restraint systems can

be used on any vehicle seat suitable

for i-Size, i-Size table

54.

Either a Top-tether strap or a support

leg must be used in addition to the

ISOFIX brackets.
A support leg must be placed firmly on

the floor. Positioning the support leg

in a footwell storage is not permitted.

Seats, restraints

i-Size child seats and vehicle seats

with i-Size approval are marked with

i-Size symbol, see illustration.

Top-tether anchors

Top-tether anchors are marked with

the symbol

for a child seat.

In addition to the ISOFIX brackets,

fasten the Top-tether strap to the

Top-tether anchors.
Third row seats

38.

ISOFIX child restraint systems of

universal category positions are

marked in the table by IUF

54.

Selecting the right system

The rear seats are the most

convenient location to fasten a child

restraint system.
Children should travel facing

rearwards in the vehicle as long as

possible. This makes sure that the

child's backbone, which is still very

weak, is under less strain in the event

of an accident. Do not use forward

facing child restraint system at all

seats when child's weight is below 13

kg.
Suitable are child restraint systems

that comply with valid UN ECE

regulations. Check local laws and

regulations for mandatory use of child

restraint systems.

The following child restraints are

recommended for the following

weight classes:

● Group 0+:

Römer Baby-Safe Plus with

ISOFIX base for children up to

13 kg

● Group I:

Römer Duo Plus ISOFIX with

ISOFIX and Top-tether for

children from 9 kg to 18 kg

● Group II, Group III:

Römer Kidfix XP with or without

ISOFIX for children from 15 kg to

36 kg

● Group III: Graco Booster for

children from 22 kg to 36 kg

Ensure that the child restraint system

to be installed is compatible with the

vehicle type.
Child seat at the front: Adjust the front

passenger seat to the highest and

fully back longitudinal position with

the backrest straightened.
Child seat at the rear: Move the

vehicle's front seat forward and

straighten the backrest so that the

Seats, restraints

legs of the child in the forward facing

or the rearward facing child seat do

not touch the vehicle's front seat.
Please follow the child restraint

system manufacturer's instructions to

install the corresponding child

restraint system in the vehicle.
For semi-universal or vehicle specific

child restraint system (ISOFIX or

belted child restraint system), see the

vehicle list provided in the user

manual of the child restraint system.
Ensure that the mounting location of

the child restraint system within the

vehicle is correct, see following table.
Allow children to enter and exit the

vehicle only on the side facing away

from the traffic.
When the child restraint system is not

in use, secure the seat with a seat belt

or remove it from the vehicle.

Notice

Do not affix anything on the child

restraint systems and do not cover

them with any other materials.
A child restraint system which has

been subjected to stress in an

accident must be replaced.

Seats, restraints

Child restraint installation locations

Installation of universal, ISOFIX and i-Size child seats

As required by European regulations, this table gives the options for installing child seats secured using the seat belt and

universally approved as well as the larger ISOFIX and i-Size child seats on seat positions equipped with ISOFIX mountings

in the vehicle.
Yes : Suitable for fitment of the designated category of the child restraint system.

No : Not suitable for fitment of the designated category of the child restraint system.

Front passenger seat Second row outer seats

Second row centre

seat

Third row seats

Position compatible with a

universal child seat

Yes

Position compatible with an

i-Size child seat

Yes

Position equipped with a top-

tether fixing

Yes

Carrycot type of child seat

Rearward facing ISOFIX child

seat

Seats, restraints

Front passenger seat Second row outer seats

Second row centre

seat

Third row seats

Forward facing ISOFIX child

seat

Booster child seat

Universal child seat: chiId seat that can be installed in all vehicles using the seat belt.

To install a rearward facing child seat at this seat position, the front passenger's airbag must be deactivated OFF.

Only a forward facing child seat is authorised at this seat position with the front passenger's airbag activated ON.

Move the vehicle seat forwards as far as necessary and adjust the seat backrest as far as necessary to a vertical position to ensure

that the belt runs forwards from the upper anchorage point.

Adjust the seat backrest as far as necessary to a vertical position to ensure that the seat belt is tight on the buckle side.

Move the respective front seat ahead of the child restraint system forwards as far as necessary.

Adjust the respective headrest as necessary or remove if required.

Adjust the seat backrest of the respective seat ahead of the child restraint system as far as necessary to a vertical position to have

enough space for the feet of the child.

Rules:

● A position that is i-Size compatible is also compatible for R1, R2 and F2X, F2, B2.
● A position that is R3 compatible is also compatible for R1, R2 and R2X.
● A position that is R2 compatible is also compatible for R1.
● A position that is F3 compatible is also compatible for F2X and F2.
● A position that is B3 compatible is also compatible for B2.

Size of child restraint fixture (1, 2, 3):

● R1 means rearward facing child restraint fixture for mass group 0 up to 10 kg and mass group 0+ up to 13 kg, age

around 0-1 year.

● R2 means reduced size of rearward facing child restraint fixture for mass group 0+ up to 13 kg and mass group 1

from 9 to 18 kg, age around 2-4 years.

Storage

Storage compartments ................ 57

Glovebox ................................... 57

Cupholders ................................ 57

Front storage ............................. 58

Overhead console ..................... 59

Underseat storage ..................... 60

Centre console storage ............. 61

Footwell storage ........................ 61

Load compartment ....................... 62

Ladder flap ................................ 62

Load compartment cover ........... 63

Lashing eyes ............................. 65

Cargo management system ...... 66

Safety net .................................. 67

Load compartment grille ............ 69

Warning triangle ........................ 71

First aid kit ................................. 72

Roof rack system ......................... 72

Roof rack ................................... 72

Loading information ..................... 73

Overload indicator ..................... 74

Storage compartments

Warning

Do not store heavy or sharp

objects in the storage

compartments.

Glovebox

To open the glovebox pull the handle.
The glovebox should be closed whilst

driving.

Cupholders

Front cupholder

Cup holders are located at the sides

of the instrument panel.

Storage

A storage compartment is located

above the Instrument cluster.

A coin holder is located on the

instrument panel.

Folding the centre seatback

The front centre passenger seat

backrest has a document tray.
Seat folding

34.

Warning

When the front centre passenger

seat is in the folded position, the

front passenger airbag system

must be deactivated.
Airbag deactivation

49.

Overhead console

Store only lightweight items such as

paperwork or maps.

Storage

The separation of the four

compartments can be taken out.
The maximum permitted load is 6 kg.

Warning

Secure objects to prevent them

from falling out and causing injury.

Slide the flaps to open.
Close whilst driving. The maximum

permitted load is 10 kg.

Pull handle to open.
Close whilst driving. The maximum

permitted load is 10 kg.

Underseat storage

There may be a storage box under the

centre bench seat. Lift up the seat

cushion by pulling the handle. The

storage box can be locked by a

padlock.

Storage

Load compartment

Depending on version, the load

compartment area can be increased

by folding up or removing the third row

seats. The seat backrests of the

second row can be folded forward

separately. Additionally, the backrest

of the passenger seat can be folded.
Depending on the loading, only single

seats or backrests can be folded.
Folding passenger seat

Folding second row seats

Folding or removing third row seats

Ladder flap

The ladder flap is available for

transporting long loads.

Opening the ladder flap

1. Press the lever and disengage the

spring clip from the retainer by

pulling.

2. Lift the ladder flap.

3. Move past the point of resistance

to lock the ladder flap with the

props.

Support bar

Rest long loads on the support bar.

Storage

1. Push the lever to the top.
2. Push the support bar a bit to the

front and then guide it down to the

door pillar.

3. Hold the long load in the angled

position.

4. Move the support bar below the

load to its original position. Fix it

by pressing the lever downwards

past the point of resistance.
The rear doors will only lock when

the support bar is installed.

5. Secure the loads firmly. The side

supports can be used as hooking

points.

Closing the ladder flap

1. Check that the support bar is

properly locked.

2. Lower the ladder flap.
3. Fix the spring clip in its retainer.

Load compartment cover

Rear luggage cover

Do not place any objects on the cover.

Closing the cover

Pull the load compartment cover

towards the rear and engage it in the

side brackets.

Opening the cover

Remove load compartment cover

from side brackets. Guide the cover

until it is fully rolled up.

Storage

Removing the cover

Open the load compartment cover.
Compress the load compartment

cover at one side and lift it up.

Remove the load compartment cover.

Stowing in the load compartment

If the load compartment cover is not

used, stow it in the load compartment.

It can be stowed behind the second or

third row seats.

Fitting the cover

Insert the load compartment cover

into the recess at one side. Compress

the cover at the other side and

engage it in the recess.

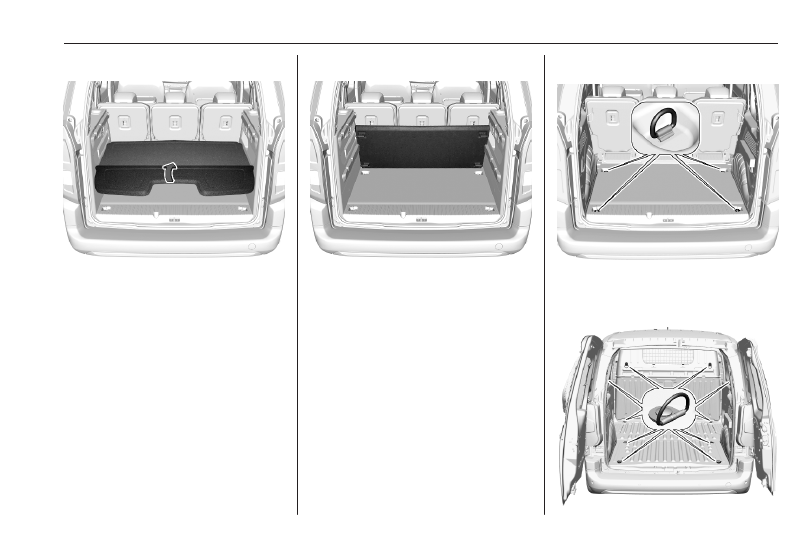

Rear parcel shelf

Do not place any excessively heavy

or sharp-edged objects on the rear

parcel shelf. The maximum load

permissible is 25 kg. With high loads

install the safety net behind the rear

seats

67.

Installing the rear parcel shelf

The rear parcel shelf can be installed

in two positions.
Fit the parcel shelf by engaging in the

retainers on both sides.

Storage

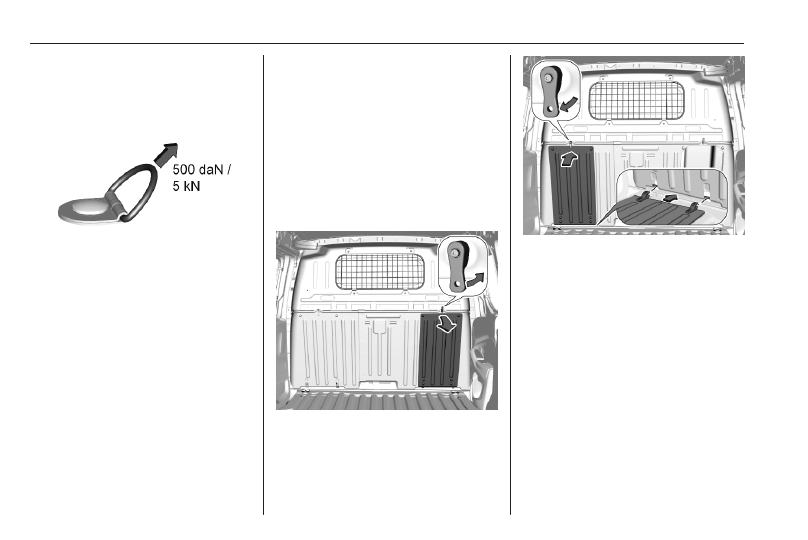

Lashing eyes may be located on the

vehicle floor and / or in the sidewall.

The number and location of the

lashing eyes may vary depending on

the vehicle.

The maximum force applied to the

lashing eyes should not exceed

500 daN / 5 kN / 5000 N.
Depending on country, the maximum

force may be shown on a label.

Notice

Specifications on the label always

have priority over those given in this

manual.

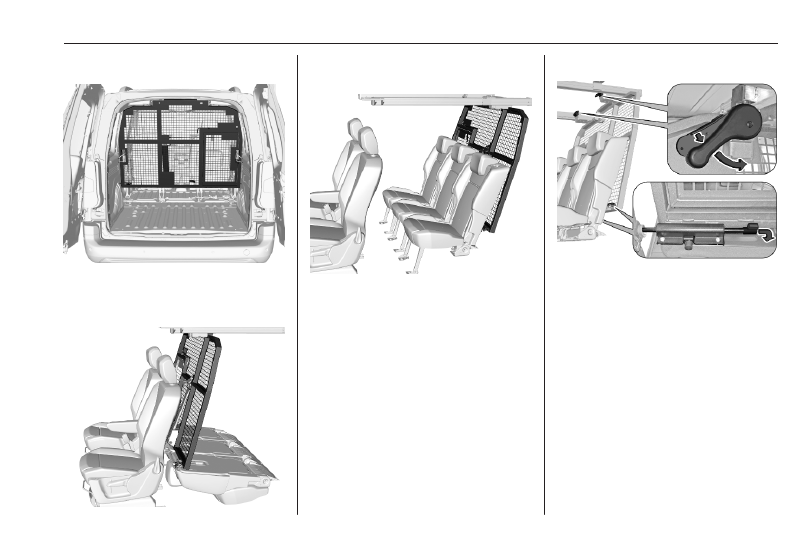

Cargo management system

Depending on version, a partition

behind the front seats protects the

driver and front passengers against

the risk of load movement.

There may be a flap in the partition

behind the passenger seat which can

be removed to accommodate long

objects. A protective cover is

provided in the vehicle to assure safe

transportation.
If the outer passenger seat backrest

is folded down and the partition flap is

open, the centre seat has to stay free.

Removing the flap

1. Release the locking device, lower

the flap and then remove it.

2. Stow the flap behind the driver's

seat.

Turn the locking device upwards.

Put the hinges of the flap in their

housing, lift the flap and close the

locking device.

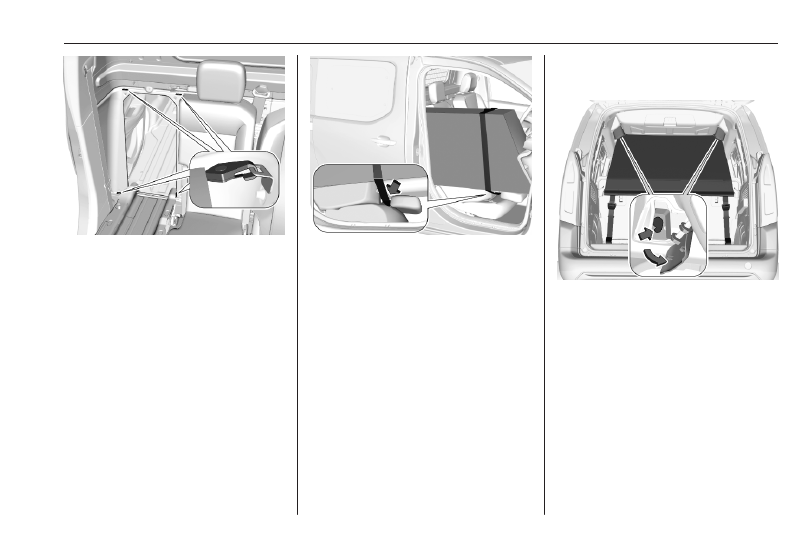

Fitting the protective cover

The protective cover must be

installed whenever the outer

passenger seat backrest is folded

down and the partition flap is open.

1. Fold the outer passenger seat

backrest

34.

Storage

2. Attach the four snap hooks of the

cover on the corresponding

lashing eye.

3. Pull the head restraint from the

folded backrest, leaving two

notches visible on the head

restraint rod

31.

4. Load the objects.

5. Pass the strap of the cover around

the head restraint. Tension the

strap by pulling at the loose end.

With fitted protective cover the

maximum load on the folded backrest

is 100 kg.

Safety net

Depending on version, the safety net

can be installed behind the rear seats

or, if the rear seat backrests are

folded, behind the front seats.
Passengers must not be transported

behind the safety net.

Installation

Behind the rear seats

● There are installation openings

on both sides in the roof frame

above the rear seats. Open the

covers and suspend and engage

rod of net at one side, compress

rod and suspend and engage at

the other side.

Storage

● Attach the hooks of safety net

straps in the lashing eyes behind

the rear seats.
Tension both straps by pulling at

the loose end.

● Rear seat backrests must be

raised up.

Behind the front seats

● There are installation openings

on both sides in the roof frame

above the front seats. Open the

covers and suspend and engage

rod of net at one side, compress

rod and suspend and engage at

the other side.

● Wind one strap around the bar

located under the front driver

seat cushion. The other one wind

around the bar of the passenger

seat. Then secure each hook to

the corresponding strap.
Tension both straps by pulling at

the loose end.

● Push down head restraints and

fold down rear seat backrests

62.

Storage

Load compartment grille

Depending on version a partition

protects the driver and passengers

against the risk of load movement.

The partition can be placed behind

the front or rear seats.

There is a flap in the partition which

can be opened to accommodate long

objects. A protective cover is

provided in the vehicle to assure safe

transportation.
If the side seat backrest is folded

down and the partition flap is open the

centre seat has to stay free.
If the backrest of the rear seat is

lowered and the flap open to transport

long objects, the front passenger seat

has to stay free.

Moving the partition

1. Release the four locking devices

on the top and the bottom of the

partition.

2. To be placed behind the front

seats fold down the rear seat

backrests

Vauxhall Combo E (2023 year). Manual in english - page 2
