Airbus A320. AIRCRAFT CHARACTERISTICS AIRPORT AND MAINTENANCE PLANNING (2016-2023) - page 2
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
B
A
AILERON UP
A/C IN MAINTENANCE
MAXIMUM RAMP
MAXIMUM RAMP
CONFIGURATION
WEIGHT FWD CG
WEIGHT AFT CG
DESCRIPTION
MID CG
m
ft
m
ft
m
ft
AILERON INBD
A
4.35
14.27
4.24
13.91
4.20
13.78
AILERON OUTBD
B
4.55
14.93
4.44
14.57
4.39
14.40
N_AC_020300_1_0440101_01_00
Ground Clearances
Aileron Up
FIGURE-2-3-0-991-044-A01
Page 12
May 01/16
2-3-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
G
F
E
D
C B
A
SPOILERS EXTENDED
A/C IN MAINTENANCE
MAXIMUM RAMP
MAXIMUM RAMP
CONFIGURATION
WEIGHT FWD CG
WEIGHT AFT CG
DESCRIPTION
MID CG
m
ft
m
ft
m
ft
SPOILER 1 INBD
A
3.75
12.30
3.64
11.94
3.63
11.91
SPOILER 1 OUTBD
B
4.01
13.16
3.90
12.80
3.88
12.73
SPOILER 2 INBD
C
4.07
13.35
3.96
12.99
3.94
12.93
SPOILER 2/3
D
4.21
13.81
4.11
13.48
4.08
13.39
SPOILER 3/4
E
4.35
14.27
4.24
13.91
4.21
13.81
SPOILER 4/5
F
4.47
14.67
4.36
14.31
4.33
14.21
SPOILER 5 OUTBD
G
4.59
15.06
4.48
14.70
4.45
14.60
N_AC_020300_1_0200101_01_01
Ground Clearances
Spoilers - Extended
FIGURE-2-3-0-991-020-A01
Page 13
May 01/16
2-3-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
A
B C
D
E
F
G
LEADING EDGE SLATS EXTENDED
A/C IN MAINTENANCE
MAXIMUM RAMP
MAXIMUM RAMP
CONFIGURATION
WEIGHT FWD CG
WEIGHT AFT CG
DESCRIPTION
MID CG
m
ft
m
ft
m
ft
SLAT 1 INBD
A
2.57
8.43
2.48
8.14
2.50
8.20
SLAT 1 OUTBD
B
2.98
9.78
2.88
9.45
2.90
9.51
SLAT 2 INBD
C
3.07
10.07
2.97
9.74
2.98
9.78
SLAT 2/3
D
3.36
11.02
3.26
10.70
3.26
10.70
SLAT 3/4
E
3.61
11.84
3.51
11.52
3.50
11.48
SLAT 4/5
F
3.86
12.66
3.76
12.34
3.73
12.24
SLAT 5 OUTBD
G
4.09
13.42
3.98
13.06
3.95
12.96
N_AC_020300_1_0210101_01_01
Ground Clearances
Leading Edge Slats - Extended
FIGURE-2-3-0-991-021-A01
Page 14
May 01/16
2-3-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-4-1
Interior Arrangements - Plan View
**ON A/C A320-200 A320neo
Interior Arrangements - Plan View
1.
This section provides the typical interior configuration.
Page 1
May 01/16
2-4-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
ATTENDANT SEAT
GALLEY
AFT PASSENGER
AFT PASSENGER
/CREW DOOR
/CREW DOOR
LAVATORY
LAVATORY
PASSENGER SEATS (180 TOTAL)
ECONOMY CLASS 180 SEATS
(6 ABREAST − 28/29 in PITCH)
ATTENDANT SEATS 5
GALLEYS 2
LAVATORIES 3
ECONOMY
CLASS SEATS
EMERGENCY EXIT
EMERGENCY EXIT
EMERGENCY EXIT
EMERGENCY EXIT
ATTENDANT SEAT
FWD PASSENGER
FWD PASSENGER
/CREW DOOR
/CREW DOOR
GALLEY
LAVATORY
N_AC_020401_1_0030101_01_03
Interior Arrangements - Plan View
Typical Configuration - Single-Class, High Density
FIGURE-2-4-1-991-003-A01
Page 2
May 01/16
2-4-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
ATTENDANT SEAT
GALLEY
AFT PASSENGER
AFT PASSENGER
/CREW DOOR
/CREW DOOR
LAVATORY
LAVATORY
PASSENGER SEATS (150 TOTAL)
FIRST CLASS 12 SEATS
(4 ABREAST − 36 in PITCH)
ECONOMY CLASS 138 SEATS
(6 ABREAST − 32 in PITCH)
ATTENDANT SEATS 4
GALLEYS 2
LAVATORIES 3
ECONOMY
CLASS SEATS
EMERGENCY EXIT
EMERGENCY EXIT
EMERGENCY EXIT
EMERGENCY EXIT
ATTENDANT SEAT
FIRST
CLASS SEATS
FWD PASSENGER
FWD PASSENGER
/CREW DOOR
/CREW DOOR
GALLEY
LAVATORY
N_AC_020401_1_0090101_01_01
Interior Arrangements - Plan View
Typical Configuration - Two-Class
FIGURE-2-4-1-991-009-A01
Page 3
May 01/16
2-4-1
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-5-0
Interior Arrangements - Cross Section
**ON A/C A320-200 A320neo
Interior Arrangements - Cross Section
1.
This section provides the typical configuration.
Page 1
May 01/16
2-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
6 ABREAST−WIDER AISLE
0.43 m
(17 in)
1.50 m
(59 in)
0.64 m
(25 in)
3.63 m
(143 in)
N_AC_020500_1_0050101_01_01
Interior Arrangements - Cross Section
Economy Class, 6 Abreast - Wider Aisle (Sheet 1 of 2)
FIGURE-2-5-0-991-005-A01
Page 2
May 01/16
2-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
6 ABREAST−WIDER SEAT
0.46 m
(18 in)
1.58 m
(62 in)
0.48 m
(19 in)
3.63 m
(143 in)
N_AC_020500_1_0050102_01_03
Interior Arrangements - Cross Section
Economy Class, 6 Abreast - Wider Seat (Sheet 2 of 2)
FIGURE-2-5-0-991-005-A01
Page 3
May 01/16
2-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
4 ABREAST−FIRST CLASS
0.57 m
(22.6 in)
1.45 m
(57 in)
0.69 m
(27 in)
3.58 m
(141 in)
N_AC_020500_1_0060101_01_01
Interior Arrangements - Cross Section
First-Class
FIGURE-2-5-0-991-006-A01
Page 4
May 01/16
2-5-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-6-0
Cargo Compartments
**ON A/C A320-200 A320neo
Cargo Compartments
1.
This section provides the cargo compartments locations, dimensions and loading combinations.
Page 1
May 01/16
2-6-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
N_AC_020600_1_0030101_01_00
Cargo Compartments
Locations and Dimensions
FIGURE-2-6-0-991-003-A01
Page 2
May 01/16
2-6-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
N_AC_020600_1_0060101_01_00
Cargo Compartments
Loading Combinations
FIGURE-2-6-0-991-006-A01
Page 3
May 01/16
2-6-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-7-0
Door Clearances and Location
**ON A/C A320-200 A320neo
Door Clearances
1.
This section provides door identification and location.
NOTE : Dimensions of the ground clearances are approximate and will vary with tire type, weight
and balance and other special conditions.
Page 1
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
FWD
OVERWING
AFT
PASSENGER/CREW
EMERGENCY
PASSENGER/CREW
DOOR (LH)
EXIT DOORS (LH)
DOOR (LH)
AFT
OVERWING
FWD
PASSENGER/CREW
EMERGENCY
PASSENGER/CREW
DOOR (RH)
EXIT DOORS (RH)
DOOR (RH)
BULK CARGO
AFT CARGO
FWD CARGO
COMPARTMENT
COMPARTMENT
COMPARTMENT
DOOR
DOOR
DOOR
N_AC_020700_1_0030101_01_00
Door Identification and Location
Door Identification (Sheet 1 of 2)
FIGURE-2-7-0-991-003-A01
Page 2
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
29.53 m
(96.88 ft)
15.28 m
(50.13 ft)
14.43 m
(47.34 ft)
5.04 m
(16.54 ft)
8.16 m
(26.77 ft)
22.69 m
(74.44 ft)
26.29 m
(86.25 ft)
N_AC_020700_1_0030102_01_00
Door Identification and Location
Door Location (Sheet 2 of 2)
FIGURE-2-7-0-991-003-A01
Page 3
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
1.80 m
(5.91 ft)
0.48 m
0.81 m
(1.57 ft)
(2.66 ft)
C
L
0.61 m
(2.00 ft)
2.54 m
(8.33 ft)
CRITICAL CLEARANCE
LIMIT
5.02 m
(16.47 ft)
2.38 m
(7.81 ft)
1.85 m
(6.07 ft)
C
CL
L
SEE
0.03 m
CHAPTER
(0.10 ft)
2−3
N_AC_020700_1_0220101_01_00
Doors Clearances
Forward Passenger/Crew Doors
FIGURE-2-7-0-991-022-A01
Page 4
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
FWD
0.85 m
(2.79 ft)
14.43 m
(FROM NOSE)
(47.34 ft)
0.50 m
(1.64 ft)
A
B
0.47 m
(1.54 ft)
C
L
SEE
SECTION
0.20 m
2−3
(0.66 ft)
A
B
1.23 m
(4.04 ft)
0.90 m
(2.95 ft)
0.12 m
(0.39 ft)
0.50 m
(1.64 ft)
(TOP OF FLOOR)
A A
B B
(FRAME 47)
NOTE:
ESCAPE SLIDE COMPARTMENT DOOR OPENS ON WING UPPER SURFACE.
N_AC_020700_1_0230101_01_00
Doors Clearances
Emergency Exits
FIGURE-2-7-0-991-023-A01
Page 5
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
1.79 m
(5.87 ft)
0.81 m
(2.66 ft)
FWD
A
CRITICAL
CLEARANCE
LIMIT
0.58 m
A (1.90 ft)
2.44 m
(8.01 ft)
29.64 m
(FROM NOSE)
(97.24 ft)
0.03 m
SEE
1.85 m
(0.10 ft)
CHAPTER
(6.07 ft)
2−3
0.60 m
(1.97 ft)
A A
N_AC_020700_1_0240101_01_00
Doors Clearances
Aft Passenger/Crew Doors
FIGURE-2-7-0-991-024-A01
Page 6
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
A
8.16 m
(FROM NOSE)
(26.77 ft)
1.50 m
1.24 m
(4.92 ft)
(4.07 ft)
FWD
SEE
CHAPTER
2−3
A
3.95 m
(12.96 ft)
1.82 m
(5.97 ft)
A A
2.71 m
(8.89 ft)
CFM56 = 2.18 m (7.15 ft)
IAE V2500 = 2.11 m (6.92 ft)
N_AC_020700_1_0250101_01_00
Door Clearances
Forward Cargo Compartment Door
FIGURE-2-7-0-991-025-A01
Page 7
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320neo
A
8.16 m
(FROM NOSE)
(26.77 ft)
1.50 m
1.24 m
(4.92 ft)
(4.07 ft)
FWD
SEE
CHAPTER
2−3
A
3.95 m
(12.96 ft)
1.82 m
(5.97 ft)
A A
CFM ENGINE = 2.47 m (8.10 ft)
PW ENGINE = 2.43 m (7.97 ft)
CFM/PW ENGINE = 2.05 m (6.73 ft)
N_AC_020700_1_0260101_01_00
Door Clearances
Forward Cargo Compartment Door
FIGURE-2-7-0-991-026-A01
Page 8
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
A
22.69 m
(FROM NOSE)
(74.44 ft)
1.43 m
1.23 m
(4.69 ft)
(4.04 ft)
FWD
SEE
CHAPTER
2−3
A
3.95 m
1.82 m
(12.96 ft)
(5.97 ft)
A A
FWD
2.03 m
(6.66 ft)
N_AC_020700_1_0270101_01_00
Doors Clearances
Aft Cargo Compartment Door
FIGURE-2-7-0-991-027-A01
Page 9
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
A
0.89 m
(2.92 ft)
0.77 m
(2.53 ft)
A
SEE
CHAPTER
0.95 m
2−3
FWD
A A
(3.12 ft)
2.19 m
(7.19 ft)
6.10 m
(20.01 ft)
N_AC_020700_1_0280101_01_00
Doors Clearances
Bulk Cargo Compartment Door
FIGURE-2-7-0-991-028-A01
Page 10
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
A
16.36 m
1.83 m
(53.67 ft)
(6.00 ft)
AIRCRAFT
1.94 m
0.49 m
(6.36 ft)
(1.61 ft)
0.21 m
(0.69 ft)
1.76 m
84°
(5.77 ft)
1.23 m
(4.04 ft)
GROUND LINE
0.14 m
(0.46 ft)
NOTE:
A
VALUE OF CG: 25% RC.
N_AC_020700_1_0290101_01_00
Doors Clearances
Main Landing Gear Doors
FIGURE-2-7-0-991-029-A01
Page 11
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
A
16.23 m
2.23 m
(53.25 ft)
(7.32 ft)
AIRCRAFT
1.94 m
0.49 m
(6.36 ft)
(1.61 ft)
1.76 m
82.5°
(5.77 ft)
1.27 m
(4.17 ft)
GROUND LINE
0.16 m
(0.52 ft)
NOTE:
A
VALUE OF CG: 25% RC.
N_AC_020700_1_0300101_01_00
Doors Clearances
Main Landing Gear Doors (Bogie)
FIGURE-2-7-0-991-030-A01
Page 12
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
0.63 m
(2.07 ft)
FR1
1.54 m
(5.05 ft)
65°
N_AC_020700_1_0310101_01_00
Doors Clearances
Radome
FIGURE-2-7-0-991-031-A01
Page 13
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
FR80
FR84
3.86 m
3.23 m
(12.66 ft)
(10.60 ft)
1.50 m
1.40 m
(4.92 ft)
(4.59 ft)
NOTE:
VALUE OF CG: 25% RC.
N_AC_020700_1_0320101_01_00
Doors Clearances
APU and Nose Landing Gear Doors
FIGURE-2-7-0-991-032-A01
Page 14
May 01/16
2-7-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-8-0
Escape Slides
**ON A/C A320-200 A320neo
Escape Slides
1.
General
This section provides location of cabin escape facilities and related clearances.
2.
Location
Escape facilities are provided at the following locations:
-
One escape slide at each passenger/crew door (total four)
-
One escape slide for each emergency exit door (total two). Dual lane offwing escape slides are
installed above the wings in the left and right wing-to-fuselage fairings for off-the-wing
evacuation.
Page 1
May 01/16
2-8-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
AFT CABIN ESCAPE SLIDE
OFF WING ESCAPE SLIDE
COCKPIT ESCAPE
FWD CABIN ESCAPE SLIDE
ROPE
NOTE:
LH SHOWN, RH SYMMETRICAL.
N_AC_020800_1_0050101_01_03

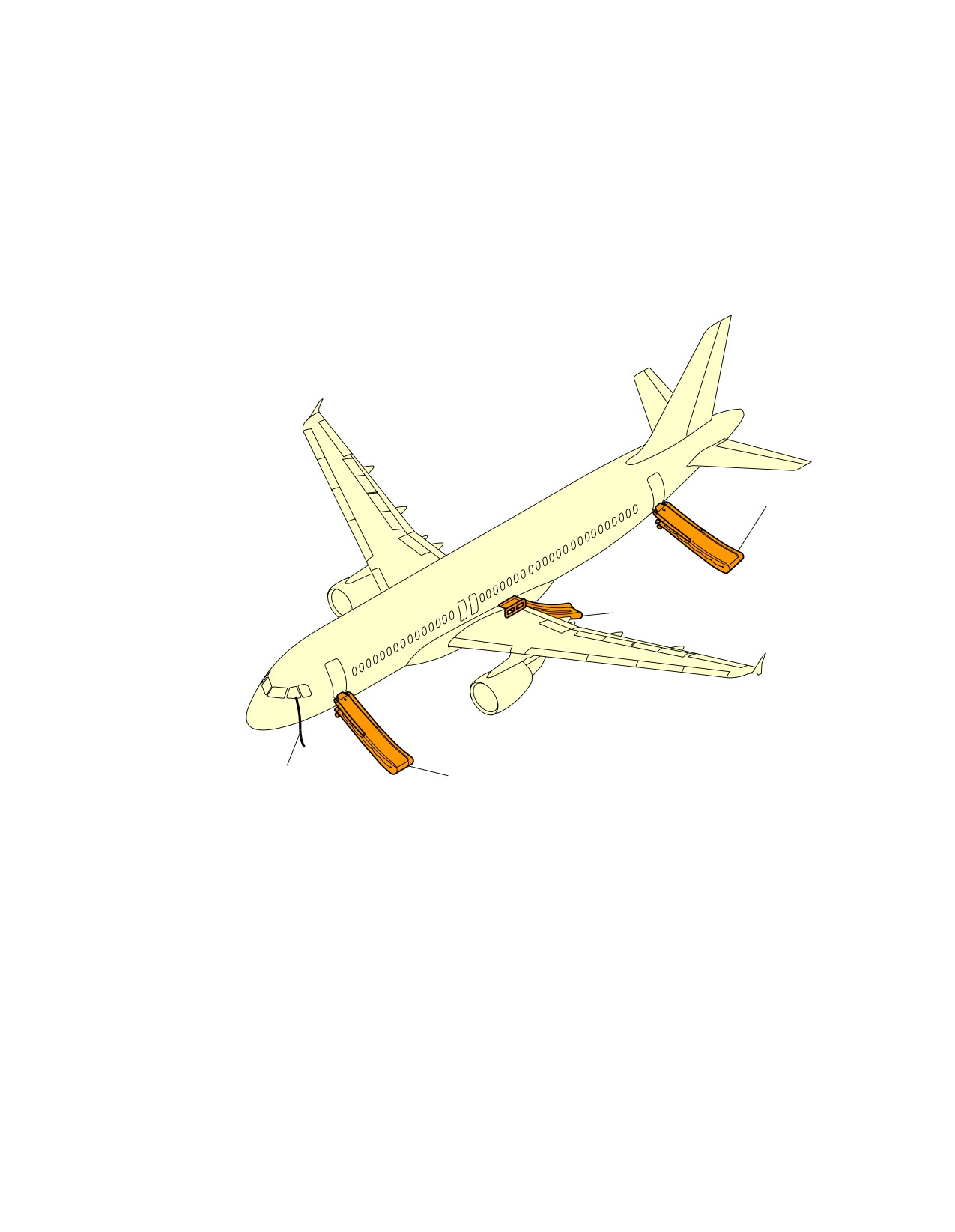

Escape Slides
Location
FIGURE-2-8-0-991-005-A01
Page 2
May 01/16
2-8-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
N_AC_020800_1_0060101_01_02
Escape Slides
Dimensions
FIGURE-2-8-0-991-006-A01
Page 3
May 01/16
2-8-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-9-0
Landing Gear
**ON A/C A320-200 A320neo
Landing Gear
1.
General
The landing gear is of the conventional retractable tricycle type comprising:
-
Two main gears with twin-wheel or four-wheel bogie assembly,
-
A twin-wheel nose gear.
The main landing gears are located under the wing and retract sideways towards the fuselage
centerline.
The nose landing gear retracts forward into a fuselage compartment located between FR9 and FR20.
The landing gears and landing gear doors are operated and controlled electrically and hydraulically.
In abnormal operation, the landing gear can be extended by gravity.
For landing gear footprint and tire size, refer to 07-02-00.
2.
Main Landing Gear
A. Twin-Wheel
Each of the two main landing gear assemblies consists of a conventional two-wheel direct type
with an integral shock absorber supported in the fore and aft directions by a fixed drag strut
and laterally by a folding strut mechanically locked when in the DOWN position.
B. Four-Wheel Bogie
Each of the two main landing gear assemblies consists of a direct-action shock absorber on
which is installed a four-wheel bogie beam.
The shock absorber is supported in the fore and aft directions by a fixed drag strut and laterally
by a folding strut mechanically locked when in the DOWN position.
3.
Nose Landing Gear
The nose landing gear consists of a leg with a built-in shock absorber strut, carrying twin wheels with
adequate shimmy damping and a folding strut mechanically locked when in the DOWN position.
4.
Nose Wheel Steering
Steering is controlled by two hand wheels in the cockpit. For steering angle controlled by the hand
wheels, refer to AMM 32-51-00.
For steering angle limitation, refer to AMM 09-10-00.
Page 1
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
A steering disconnection box is installed on the nose landing gear to allow steering deactivation for
towing purposes.
5.
Landing Gear Servicing Points
A. General
Filling of the landing-gear shock absorbers is done through MIL-PRF-6164 standard valves.
Charging of the landing-gear shock absorbers is accomplished with nitrogen through MIL-
PRF-6164 standard valves.
B. Charging Pressure
For charging of the landing-gear shock absorbers, refer to AMM 12-14-32.
6.
Braking
A. General
The four main wheels are equipped with carbon multidisc brakes.
The braking system is electrically controlled and hydraulically operated.
The braking system has four braking modes plus autobrake and anti-skid systems:
-
Normal braking with anti-skid capability,
-
Alternative braking with anti-skid capability,
-
Alternative braking without anti-skid capability,
-
Parking brake with full pressure application capability only.
B. In-Flight Wheel Braking
The main gear wheels are braked automatically before the wheels enter the wheel bay.
The nose gear wheels are stopped by the wheels contacting a rubbing strip (the brake band)
when the gear is in the retracted position.
Page 2
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
HINGED FAIRING
(MECHANICALLY OPERATED)
HINGED
FAIRING
FIXED
DOOR ACTUATING CYLINDER
FAIRING
B
A
C
ADJUSTABLE
RAMP
PROXIMITY SENSORS
STEPS
UPLOCK
ROLLER
FIXED
ACTUATING CYLINDER
MAIN DOOR
RAMPS
(HYDRAULICALLY OPERATED)
DOWNLOCK
ACTUATOR
E
LOCK STAY
MAIN FITTING
SIDE STAY
SHOCK ABSORBER
TORQUE
LINK
D
A
NOTE: MAIN DOOR SHOWN OPEN IN GROUND MAINTENANCE POSITION.
N_AC_020900_1_0100101_01_00
Landing Gear
Main Landing Gear - Twin-Wheel (Sheet 1 of 2)
FIGURE-2-9-0-991-010-A01
Page 3
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
DOOR
LOCKSTAY
LOCKING
GROUND LOCK SLEEVE
ACTUATING
ACTUATING
PIN
CYLINDER
CYLINDER
LOCKING
PIN
FLAG
FLAG
B
C
BOTTOM FILLING AND
CHARGING CONNECTION
TOP FILLING AND CHARGING
CONNECTION
E
D
EXAMPLE
N_AC_020900_1_0100102_01_01
Landing Gear
Main Landing Gear - Twin-Wheel (Sheet 2 of 2)
FIGURE-2-9-0-991-010-A01
Page 4
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
2 265 mm
(89.17 in)
2 868.70 mm
(112.94 in)
3 795 mm
Y=
COMPRESSED
(149.41 in)
EXTENDED
469.90 mm
(18.50 in)
3 453 mm
80°30
(135.94 in)
20 252.50 mm
RETRACTION
X=
(797.34 in)
ANGLE
927.10 mm
(36.50 in)
N_AC_020900_1_0110101_01_00
Landing Gear
Main Landing Gear Dimensions - Twin-Wheel
FIGURE-2-9-0-991-011-A01
Page 5
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
HINGED
FAIRING
FIXED
DOOR ACTUATING
FAIRING
CYLINDER
B
A
C
STEPS
AJUSTABLE
RAMP
MAIN DOOR
ACTUATING CYLINDER
UPLOCK
DOOR
ROLLER
RAMPS
DOWNLOCK
ACTUATOR
D
LEG UNIT
STRUT ASSEMBLY
LOCK STAY
SHOCK ABSORBER
TORQUE
PITCH TRIMMER
LINK
BRAKE BAR
A
NOTE: MAIN DOOR SHOWN OPEN IN GROUND MAINTENANCE POSITION.
N_AC_020900_1_0120101_01_00
Landing Gear
Main Landing Gear - Four-Wheel Bogie (Sheet 1 of 2)
FIGURE-2-9-0-991-012-A01
Page 6
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
DOOR
LOCKSTAY
LOCKING
GROUND LOCK SLEEVE
ACTUATING
ACTUATING
PIN
CYLINDER
CYLINDER
LOCKING
PIN
FLAG
FLAG
B
C
TOP FILLING AND CHARGING
CONNECTION
D
N_AC_020900_1_0120102_01_01
Landing Gear
Main Landing Gear - Four-Wheel Bogie (Sheet 2 of 2)
FIGURE-2-9-0-991-012-A01
Page 7
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200
2 506 mm
(98.66 in)
2 978.70 mm
(117.27 in)
COMPRESSED
Y = 3 795 mm
(149.41 in)
X = 20 266 mm
80°30
(797.87 in)
RETRACTION
ANGLE
1 005 mm
(39.57 in)
780 mm
(30.71 in)
N_AC_020900_1_0130101_01_00
Landing Gear
Main Landing Gear Dimensions - Four-Wheel Bogie
FIGURE-2-9-0-991-013-A01
Page 8
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
DOOR UPLOCK
BELL
FR9
ASSEMBLY
GEAR UPLOCK
CRANK
DRAG STRUT
ASSEMBLY
DOOR
ASSEMBLY
FR20
ACTUATING
CYLINDER
CONTROL ROD
B
C
ROTATING ROD
FITTING
ASSEMBLY
FWD DOORS
AFT DOORS
LEG DOOR
A
ACTUATING
CYLINDER
D
DOWNLOCK
PROXIMITY
DETECTORS
NOSE WHEEL
STEERING
SERVO CONTROL
STEERING
E
ACTUATING
CYLINDER
SHOCK
TORQUE
ABSORBER
LINK
TOWING
FITTING
A
N_AC_020900_1_0140101_01_00
Landing Gear
Nose Landing Gear (Sheet 1 of 2)
FIGURE-2-9-0-991-014-A01
Page 9
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
LOCKSTAY
NLG DOOR
SAFETY PIN
DOWNLOCK
SAFETY PIN
DOOR HINGE
NLG DOOR
FLAG
FLAG
B
C
RH SHOWN
LH SYMMETRICAL
TOWING LEVER
FILLING AND CHARGING
CONNECTION
NORMAL POSITION
(NOSE WHEEL STEERING
OPERATIONAL)
TOWING POSITION
(NOSE WHEEL STEERING DEACTIVATED)
SAFETY PIN
D
E
(TOWING POSITION)
N_AC_020900_1_0140102_01_01
Landing Gear
Nose Landing Gear (Sheet 2 of 2)
FIGURE-2-9-0-991-014-A01
Page 10
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
92°
1 957.03 mm
(77.05 in)
2 338 mm
(92.05 in)
430 mm
(16.93 in)
9°
7 561 mm
X =
(297.68 in)
500 mm
(19.69 in)
N_AC_020900_1_0150101_01_00
Landing Gear
Nose Landing Gear Dimensions
FIGURE-2-9-0-991-015-A01
Page 11
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo

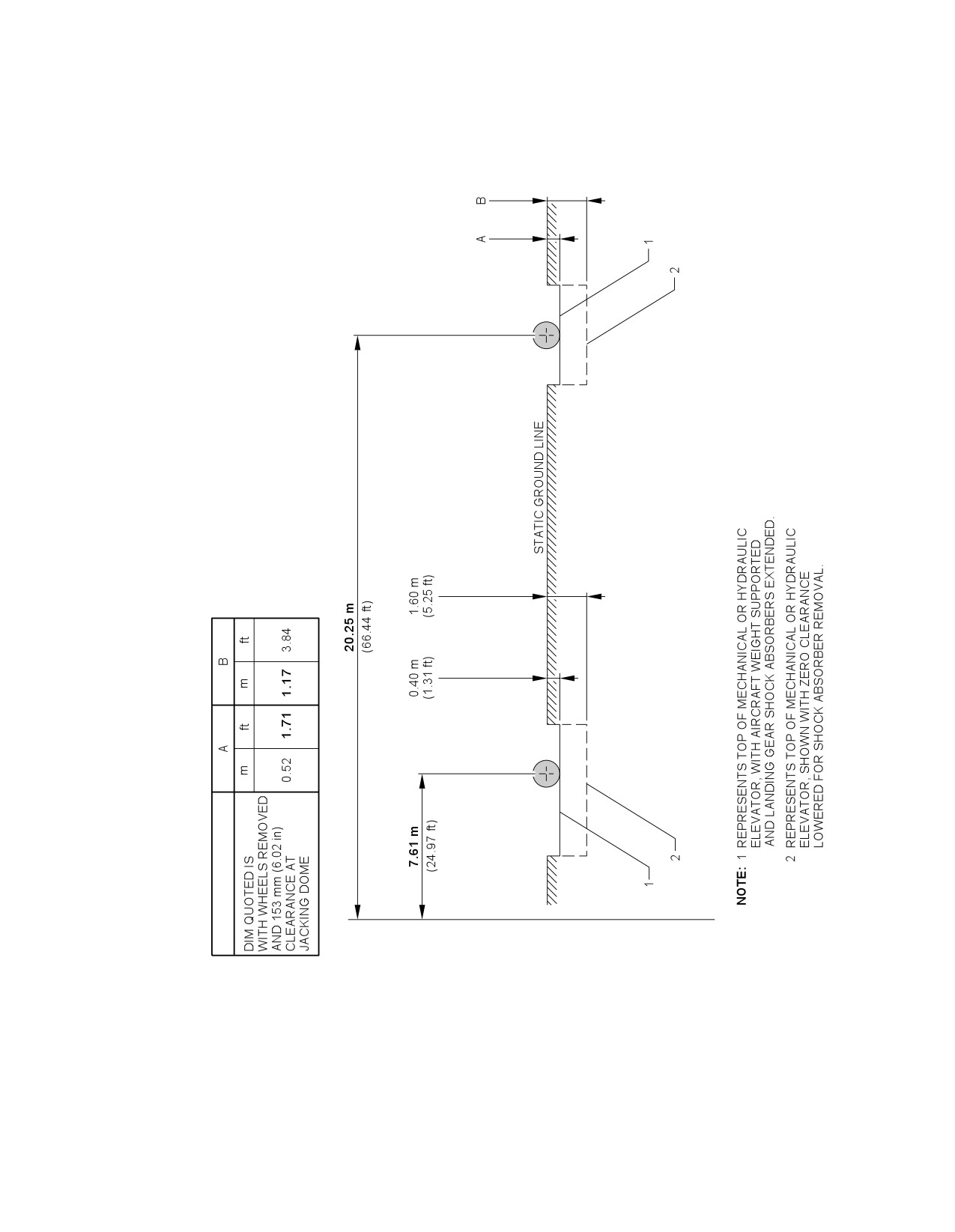

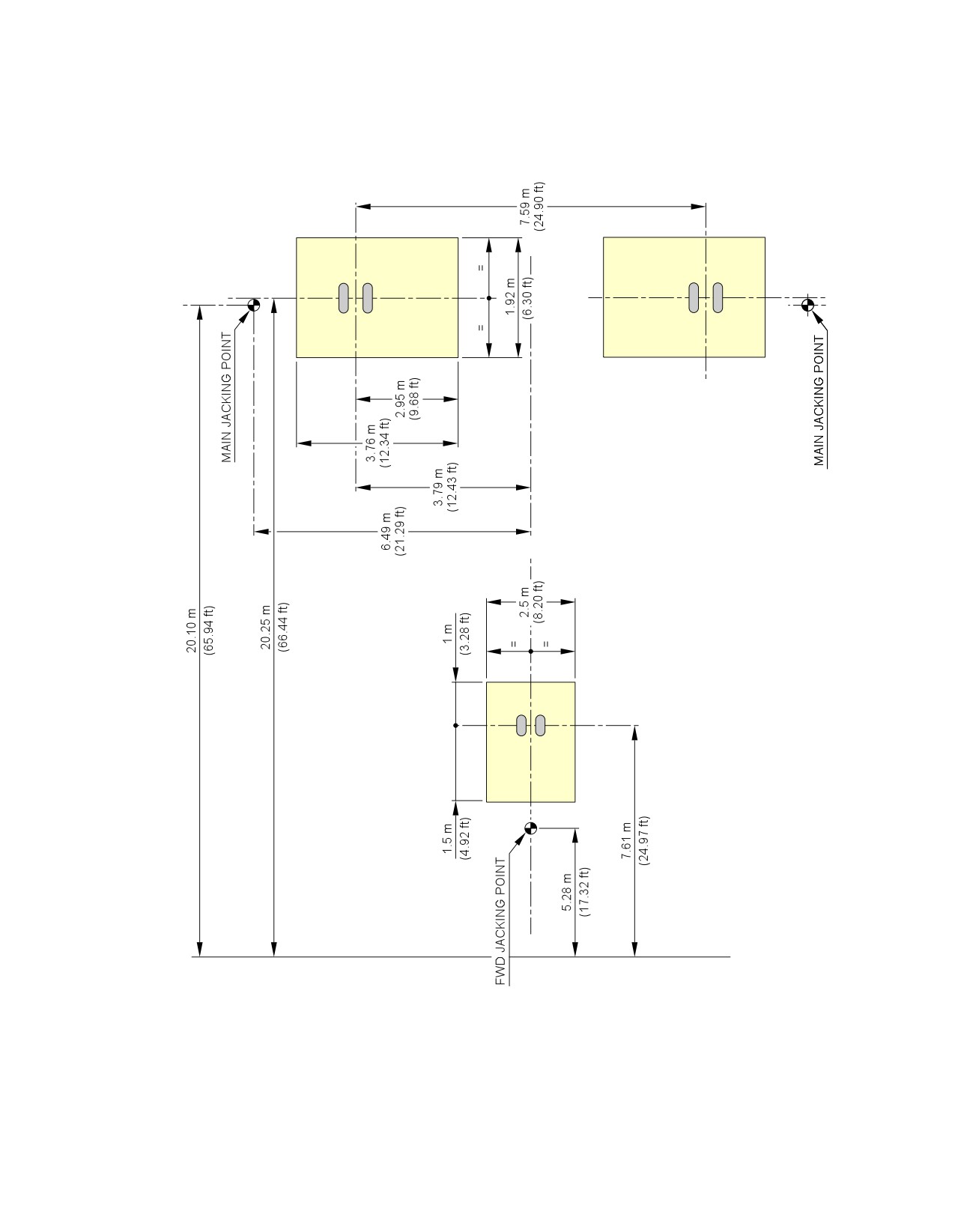

Landing Gear Maintenance Pits
1.
Description
The minimum maintenance pit envelopes for the landing-gear shock absorber removal are shown in
FIGURE 2-9-0-991-024-A and FIGURE 2-9-0-991-025-A.
All dimensions shown are minimum dimensions with zero clearances.
The dimensions for the pits have been determined as follows:
-
The length and width of the pits allow the gear to rotate as the weight is taken off the landing
gear.
-
The depth of the pits allows the shock absorber to be removed when all the weight is taken off
the landing gear.
Dimensions for elevators and associated mechanisms must be added to those in FIGURE
2-9-0-991-024-A and FIGURE 2-9-0-991-025-A.
Page 12
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
FROM X0
N_AC_020900_1_0240101_01_00
Landing Gear Maintenance Pits
Maintenance Pit Envelopes
FIGURE-2-9-0-991-024-A01
Page 13
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
FROM X0
N_AC_020900_1_0250101_01_00
Landing Gear Maintenance Pits
Maintenance Pit Envelopes
FIGURE-2-9-0-991-025-A01
Page 14
May 01/16
2-9-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-10-0
Exterior Lighting
**ON A/C A320-200 A320neo
Exterior Lighting
1.
General
This section provides the location of the aircraft exterior lighting.
EXTERIOR LIGHTING
ITEM
DESCRIPTION
1
RIGHT NAVIGATION LIGHT (GREEN)
2
TAIL NAVIGATION LIGHT (WHITE)
3
LEFT NAVIGATION LIGHT (RED)
4
RETRACTABLE LANDING LIGHT
5
RUNWAY TURN OFF LIGHT
6
TAXI LIGHT
7
TAKE-OFF LIGHT
8
LOGO LIGHT
9
UPPER ANTI-COLLISION LIGHT/BEACON (RED)
10
LOWER ANTI-COLLISION LIGHT/BEACON (RED)
11
WING STROBE LIGHT (HIGH INTENSITY, WHITE)
12
TAIL STROBE LIGHT (HIGH INTENSITY, WHITE)
13
WING/ENGINE SCAN LIGHT
14
WHEEL WELL LIGHT (DOME)
15
CARGO COMPARTMENT FLOOD LIGHT
Page 1
May 01/16
2-10-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
2
8
12
8
9
11
1
RH
3
LH
10
13
11
RH
1
LH
3
6
5
7
4
N_AC_021000_1_0090101_01_00
Exterior Lighting
FIGURE-2-10-0-991-009-A01
Page 2
May 01/16
2-10-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
2
1
3
5
5
7
N_AC_021000_1_0100101_01_00
Exterior Lighting
FIGURE-2-10-0-991-010-A01
Page 3
May 01/16
2-10-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
12
9
10
11
11
13
13
4
6
N_AC_021000_1_0110101_01_00
Exterior Lighting
FIGURE-2-10-0-991-011-A01
Page 4
May 01/16
2-10-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
**ON A/C A320-200 A320neo
8
8
15
14
15
EXAMPLE FOR LIGHT N° 15
CEILING LIGHT
SPOT LIGHT
GROUND
N_AC_021000_1_0190101_01_00
Exterior Lighting
FIGURE-2-10-0-991-019-A01
Page 5
May 01/16
2-10-0
@A320
AIRCRAFT CHARACTERISTICS - AIRPORT AND MAINTENANCE PLANNING
2-11-0
Antennas and Probes Location
**ON A/C A320-200 A320neo
Antennas and Probes Location
1.
This section gives the location of antennas and probes.
Page 1
May 01/16
2-11-0
