T.O. GR1F16CJ1CL2

F32

OTHER CONSIDERATIONS:

Large asymmetric loads severely limit lateral control when

rolling away from the heavy wing. Until determining net

asymmetry, limit max bank angle change to 90

, avoid abrupt

control inputs, and do not exceed 10

AOA.

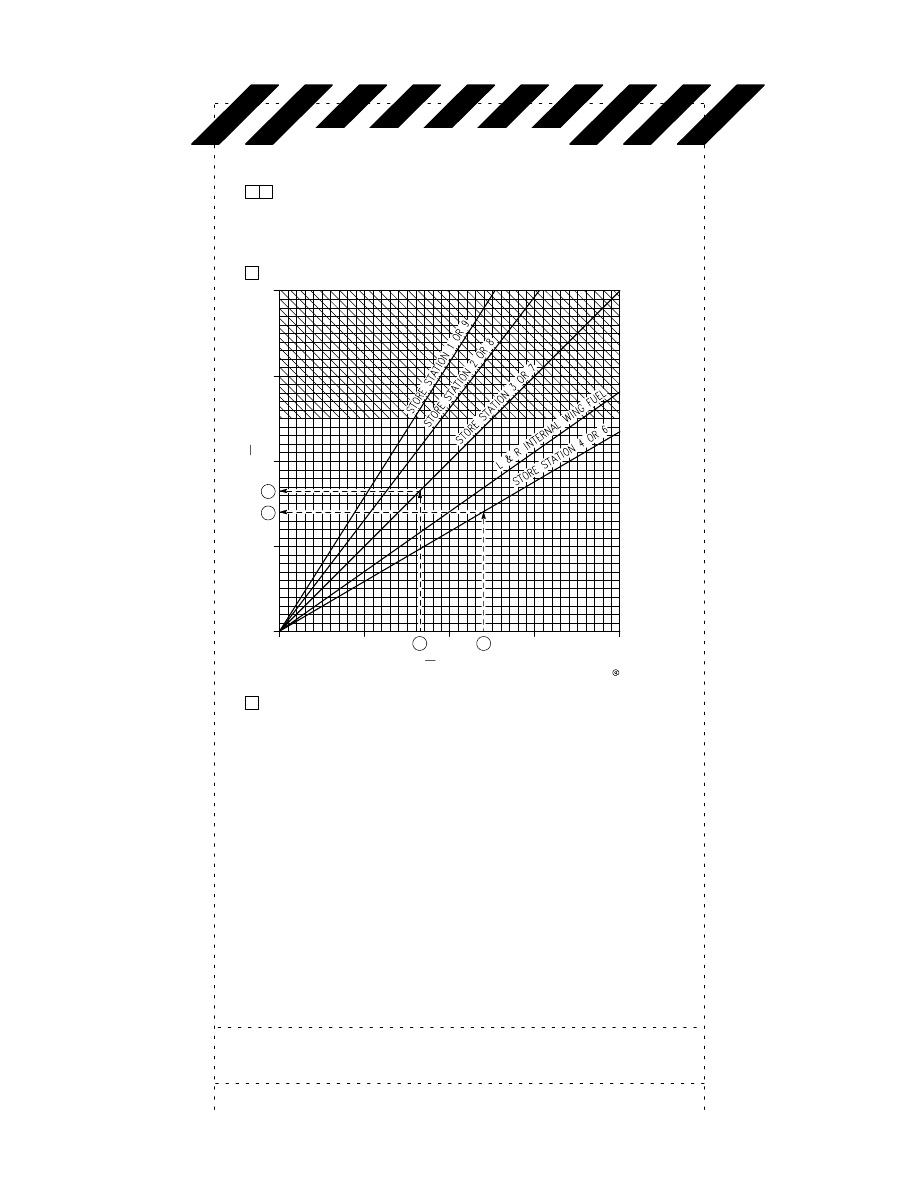

Asymmetric Moment

GR1F-16C-1CL-1-0020X37

WEIGHT 1000 POUNDS

ASYMMETRIC MOMENT 1000 FOOT-POUNDS

Selectively jettison stores from the heavy wing to obtain a net

asymmetry less than 25,020 ftlb. Refer to SELECTIVE

JETTISON, page F27.

F32

8 1/2 " Page

T.O. GR1F16CJ1CL2

F33

ASYMMETRIC STORES (LANDING)

1. AOA - 10

max.

2. Determine net asymmetry.

If asymmetry is greater than 25,020 ftlb:

3. Stores - Jettison (as required).

(Cont)

F33

8 3/4

ASYMMETRIC STORES (LANDING)

" Page

T.O. GR1F16CJ1CL2

F34

OTHER CONSIDERATIONS:

Lower LG at a safe altitude and check handling qualities

until roll authority is insufficient or up to 12

AOA max.

Max maneuvering AOA for approach and landing is 10

AOA or 2

less than the AOA at which roll authority is

insufficient to maintain wings level, whichever is less.

The decision to land with a large asymmetry should

consider such factors as weather conditions, runway

length/width and surface conditions (RCR), arresting gear

availability, crosswind component/gusts, and pilot experience.

With crosswind component greater than 10 kts (5 kts

if the net asymmetry exceeds 20,000 ftlb), land with heavy

wing into the crosswind even if this results in landing

downwind. Failure to do so may result in inadequate roll

control.

Do not exceed the max AOA, as determined during the

controllability check, during final approach, flare, touchdown,

or twopoint aerodynamic braking.

F34

8 3/4 " Page

T.O. GR1F16CJ1CL2

F34.1

If asymmetry is greater than 10,000 ftlb:

4. Controllability - Check.

If landing is feasible:

5. Fly a shallow, poweron, straightin approach.

6. Roll trim and lateral stick - As required.

7. Rudder trim - Trim into the heavy wing (if

required).

If landing is not feasible:

5. Go to EJECTION (TIME PERMITTING), page

F23.

If asymmetry is less than 10,000 ftlb:

4. Land normally.

END

F34.1

8 5/8 " Page

T.O. GR1F16CJ1CL2

F35

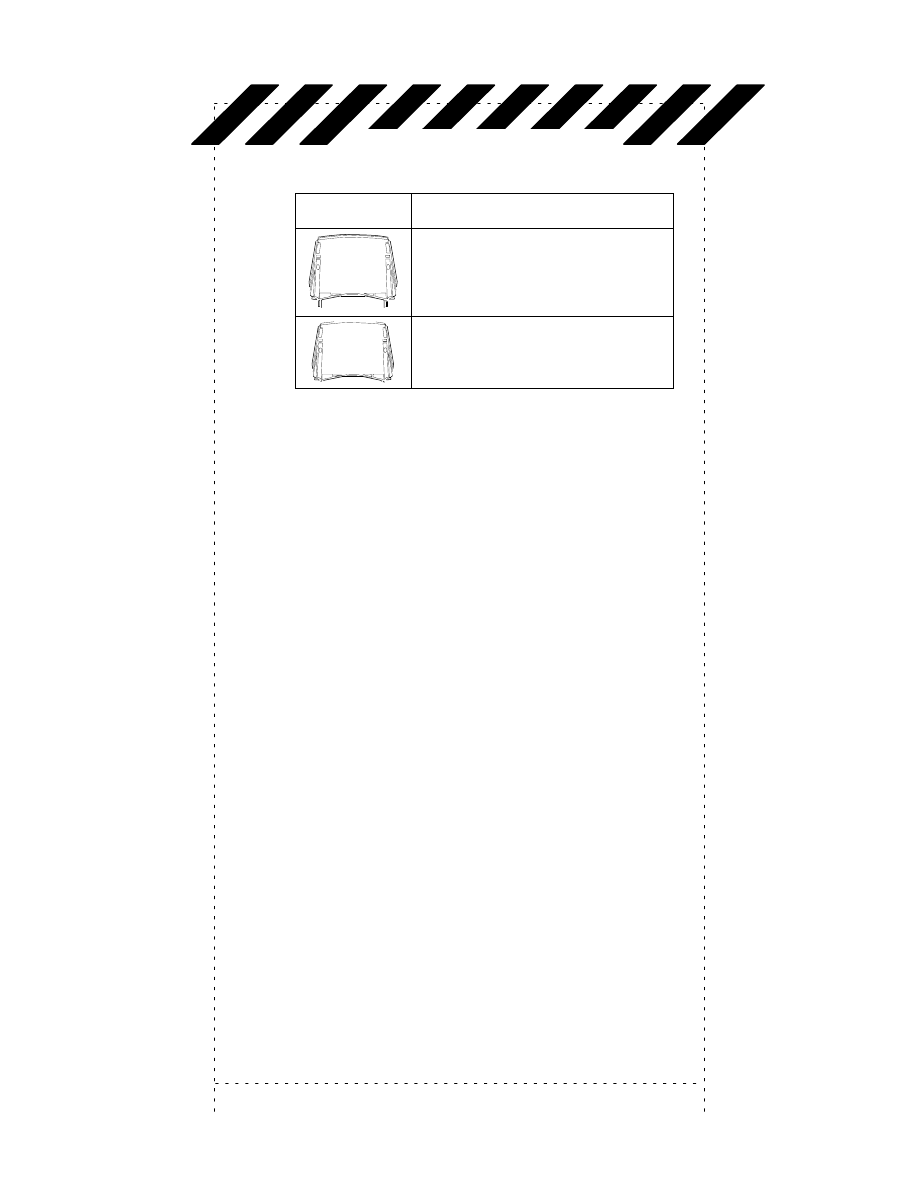

Warning/Caution Lights

LIGHT

REMARKS

SEAT NOT

ARMED

Ejection safety lever up (system

safe)

STORES

CONFIG

STORES CONFIG sw is in incorrect

position or loading category in SMS

software disagrees with actual GP/

STORE/LINE loading category.

Verify STORES CONFIG sw is in

proper position for aircraft loading

category

BUC

None

EEC

None

ATF NOT

ENGAGED

If in ATF, climb to a safe altitude

and verify:

AIR REFUEL sw CLOSE

ALT FLAPS sw NORM

TRIM/AP DISC sw NORM

No CADC failures

NOTE

Deselect ATF until the cause of

the caution light illumination can

be determined.

RADAR

ALT

Malfunction of radar altimeter

(Mode 4)

IFF

MODE 4 REPLY sw in OUT with

CNI knob in BACKUP; zeroized or

not coded; correct code not selected

(A or B); code does not match code

interrogation; mode 4 inoperative;

or RF sw in QUIET or SILENT

INLET

ICING

If in areas of known or suspected

icing conditions, position engine

ANTI ICE sw to ON

HOOK

Hook not up and locked

F35

WARNING/CAUTION LIGHTS

T.O. GR1F16CJ1CL2

F36

Warning/Caution Lights

LIGHT

REMARKS

OBOGS

The ECS pressure has dropped

below 10 psi, interrupting oxygen

production. Attempt to increase

ECS air pressure by increasing

throttle setting, increasing air

speed, and/or decreasing altitude

AVIONICS

FAULT

Several causes. Note PFL display(s)

on PFLD and depress FACK,

FAULT ACK button to acknowl

edge fault(s) and to reset AVION

ICS FAULT caution light. Perform

fault recall(s) as desired to deter

mine if the failure condition still

exists

C DF

CONFIG

TO/LDG

All LG not down and locked or

TEF's not fully down with LG han

dle down

NUCLEAR

Malfunction in nuclear circuitry

PROBE HEAT

Ground: Place PROBE HEAT sw to

OFF for 1 minute (caution light

goes off) when OFF is selected);

then reselect PROBE HEAT. If cau

tion light comes on simultaneously

with reselection of PROBE HEAT, a

probe heater or monitoring system

failure has occurred. If caution

light does not come on when

PROBE HEAT is reselected, one/

both AOA probe heaters were shut

off to prevent overheat
In Flight: Probe heater(s) or moni

toring system failure. Place PROBE

HEAT sw to PROBE HEAT, if re

quired, and avoid areas of known or

suspected icing conditions

F36

AIR REFUEL

T.O. GR1F16CJ1CL2

AR1

SECTION AR

AIR REFUELING PROCEDURES

WITH KC135, KC10, AND KDC10

TABLE OF CONTENTS

NORMAL AIR REFUELING PROCEDURES

AR2

. . .

VISUAL SIGNALS

AR3

. . . . . . . . . . . . . . . . . . . . . . .

SYSTEM MALFUNCTIONS

AR7

. . . . . . . . . . . . . . .

KC10/KDC10 BOOM FLCS FAILURE

AR7

. . . .

BRUTE FORCE DISCONNECT

AR9

. . . . . . . . . . . . .

AIR REFUEL

T.O. GR1F16CJ1CL2

AR2

NORMAL AIR REFUELING PROCEDURES

Armament Safety Check

1. MASTER ARM switch-OFF or SIMULATE.

2. LASER ARM switch-OFF.

3. SMS-Confirm ordnance safe.

4. CMDS switches (9)-OFF.

Precontact

1. TACAN-As required.

2. Emitters (ECM/FCR/RDR ALT) - As required

(Quiet/Silent/STBY/OFF).

3. HOT MIC CIPHER switch-HOT MIC.

4. Exterior lights (Night)-DIM, STEADY.

5. ANTI COLLISION light switch (Night)-OFF.

6. AIR REFUEL switch-OPEN.

7. AR status indicator light-RDY.

Contact

1. AR status indicator light-AR/NWS.

2. Fuel transfer-Monitor.

Disconnect

1. A/R DISC button-Depress momentarily, then

release.

2. AR status indicator light-DISC.

Post Air Refueling

1. AIR REFUEL switch-CLOSE.

2. AR status indicator lights(3)-Off.

3. Fuel quantity-Check.

4. MASTER ARM switch-As required.

5. SMS-As required.

6. CMDS switches (9)-As required.

7. ECM-As required.

8. TACAN-As required.

9. FCR/Radar-As required.

10. RDR ALT-As required.

11. LASER ARM switch-As required.

12. Exterior lights-As required.

T.O. GR1F16CJ1CL2

AR3

Visual Signals

SIGNAL

INDICATION

1. Boom in Trail

(a) Extended 10 feet

Ready for contact *

(b) Fully extended

1. Tanker manual operation without

tanker disconnect capability

2. Acknowledge receiver's MBL signal

Offload complete

2. Boom Stowed

(a) Fully retracted

Tanker air refueling system inoperative

(b) Extended 5 feet

System malfunction, tanker and receiver
check air refueling systems

3. Flashing receiver director lights/Tanker

lower rotating beacon ON

BREAKAWAY

4. Receiver director lights going OUT

during contact **

Tanker request for disconnect, receiver
return to precontact position

5. Receiver closing and opening receptacle

door when in precontact position

1. Manual Boom Latching
2. Acknowledge tanker's manual operation

without tanker disconnect capability
signal

6. Steady light from receiver or rocking

of wings ***

Emergency fuel shortage exists

7. Flashing light from receiver cockpit area Initiate toboggan maneuver

AR3

T.O. GR1F16CJ1CL2

AR4

Visual Signals - (Cont)

INDICATION

SIGNAL

BOOM AIR

REFUELING

PROBE &

DROGUE RE

FUELING

8. (a) Same receiver returns to precontact with re

ceptacle door open
(DAY): Pilot signals closed fist, thumb to
mouth plus hand signaling number
(NIGHT): Same receiver returns to pre
contact with receptacle door open, ready for
contact ****

Additional fuel
requiredEM
CON 24

(b) Same receiver returns to precontact ready

for contact
(DAY): Pilot signals closed fist plus hand
signaling number
(NIGHT): Same receiver returns to pre
contact ready for contact ****

Additional fuel
requiredEM
CON 24

*Receiver(s) in the observation position will move to the precontact position

in their briefed sequence only after insuring that the boom is in the ready

for contact position and the preceding receiver has cleared the tanker. The

receiver will stabilize in the precontact position, then move to the contact

position. The boom operator will not give the ready for contact signal until

the preceding receiver has cleared the tanker.

**The receivers will advise the tanker of any pilot director light malfunctions/

deficiencies.

***If fuel shortage occurs at times other than scheduled air refueling, the

receiver should be positioned so the signal may be seen from the tanker

cockpit.

****Additional fuel offloaded will be 5M for large receiver aircraft, 2M for small

receiver aircraft, on each subsequent contact.

AR4

T.O. GR1F16CJ1CL2

AR6

OTHER CONSIDERATIONS:

A small amount of fuel spray from the nozzle and receptacle

during fuel transfer does not require fuel transfer to be

terminated. The receiver pilot should be notified if this

condition exists and the air refueling operations will be

continued or discontinued at his discretion.

Normal FLCS gains and tank pressures will be regained.

The RDY, AR/NWS, and DISC lights will not indicate

normally. The NWS light will not illuminate when nosewheel

steering is engaged.

The receiver pilot must inform the tanker he is ready to

receive fuel and coordinate the disconnect cycle for the

conclusion of refueling.

Prior to attempting this method of transferring fuel, the

boom operator will brief the receiver pilot and thoroughly

coordinate the procedures to be used. Both tanker and receiver

crews will monitor the refueling with extreme caution.

When notified that a KC10/KDC10 boom flight

control system failure has occurred, do not initiate a disconnect

unless directed by the boom operator.

Follow the boom operator's instruction explicitly. To reduce

the probability of boom strike after disconnect, it may be

necessary to remain in a stabilized position to allow for

aerodynamic fairing of the boom control surfaces.

AR6

8 1/2 " Page

T.O. GR1F16CJ1CL2

AR7

SYSTEM MALFUNCTIONS

When any system malfunction or condition exists

which could jeopardize safety, air refueling will not be

accomplished except during fuel emergencies or when

continuance of fueling is dictated by operational

necessity.

Slipway Door Will Not Open

No backup system is provided to open or close the slip

way door if hydraulic system B fails.

Slipway Door Will Not Close

1. AR switch-CLOSE.

Inoperative Boom/Receptacle Latching

If fuel shortage requires:

1. Boom operator-Inform of the need to accom

plish manual boom/receptacle pressure refuel

ing.

KC10/KDC10 BOOM FLCS FAILURE

Do not disconnect until cleared by boom operator.

AR7

8 3/4

SYSTEM MALF/KC10/KDC10 BOOM FAIL

" Page
