F16C/D. FLIGHT MANUAL (2002) - page 49

T.O. GR1F16CJ1CL2

E12

OTHER CONSIDERATIONS:

1

W

F

Do not delay lowering LG below 2000 feet AGL.

F

If LG handle does not lower, select BRAKES CHAN 2 and

position ALT FLAPS sw to EXTEND. Nozzle remains closed,

resulting in higher than normal landing thrust.

2

D

Alternate LG extension can be used up to 300 kts; however,

the NLG may not fully extend until 190 kts. Time above 190 kts

should be minimized in case there is a leak in the pneumatic

lines.

D

If an unsafe MLG indication exists and both MLG are out of the

wheel wells, pulling the ALT GEAR handle is not recommended.

3

C

F

NWS is not available following alternate LG extension.

F

Do not depress the ALT GEAR reset button while pulling the

ALT GEAR handle. This action may preclude successful LG

extension.

F

Pulling the ALT GEAR handle with normal system B hydraulic

pressure, e.g., NLG fails to extend, may result in hydraulic

system B failure within 15 minutes.

4

 If possible, get visual confirmation of LG position. If all

WHEELS down lights were initially off with the LG handle down

and use of the hook may be required after touchdown, verify

before landing that the hook extends.

5

C

 If the LG was alternately extended due to failure of system

B, only brake/JFS accumulator braking is available and after

stopping, the parking brake should be engaged until chocks

are installed.

6

 Up to 300 kts may be required to provide sufficient g force.

7

 If possible, get visual confirmation of LG position.

8

 From the front cockpit, the top of the speedbrakes should be

slightly above a line drawn from the tip of the horizontal tail to

the top of the vertical tail root fairing.

9

C

 If RMLG WHEELS down light is off, speedbrakes may not

be limited to 43º.

E12

8 1/2 " Page

T.O. GR1F16CJ1CL2

E13

ALTERNATE LG EXTENSION

1. LG handle - DN. (Use DN LOCK REL, if required.)

1

W

2. ALT GEAR handle - Pull (if required) (190 kts, if

practical).

2



3

C

If LG indicates safe:

3. Land normally.

4

4. Stop straight ahead on the runway.

5

C

If LG indicates unsafe:

3. Stick - Apply alternating g forces (-1.0 to +3.0g)

to free LG.

6

If LG indicates safe:

4. Land normally.

7

5. Stop straight ahead on the runway.

5

C

If LG still indicates unsafe:

4. Speedbrakes - Verify opening is less than 43

º

.

8

9

C

5. Go to LANDING WITH LG UNSAFE/UP, page

E15.

END

E13

8 3/4

ALTERNATE LG EXTENSION

" Page

T.O. GR1F16CJ1CL2

E14

 OTHER CONSIDERATIONS:

1

 Prior to landing with any of the LG unsafe or up, consider the

following:

D

Airfield facilities.

D

Hook engagement limits.

D

Crosswind component.

D

Runway and overrun conditions.

2

W

 If time permits, delay landing until external fuel tanks are

empty. If an immediate landing is required, jettison all external

fuel tanks.

3

W

 Failure to depressurize external fuel tanks significantly

increases the probability of tank explosion and fire.

4

 Delay placing the AIR REFUEL sw to OPEN until all external

fuel tanks are empty.

5

 If either MLG is not extended, EPU operation cannot be

terminated with the EPU sw after engine shutdown.

E14

8 3/4 " Page

T.O. GR1F16CJ1CL2

E15

LANDING WITH LG UNSAFE/UP

1

If conditions are not favorable:

1. Refer to EJECTION (TIME PERMITTING),

page F23.

To accomplish the landing:

1. Retain empty fuel tanks and racks.

2

W

2. Armament - Jettison.

3. GW - Reduce.

4. TANK INERTING sw - TANK INERTING even

if Halon is not available.

5. AIR REFUEL sw - OPEN.

3

W

4

6. FCR - OFF.

7. ST STA/HDPT/ECM power - Off.

8. SHOULDER HARNESS knob - LOCKED.

9. Go to page E16.

5

(Cont)

E15

LANDING WITH LG UNSAFE/UP

T.O. GR1F16CJ1CL2

E16

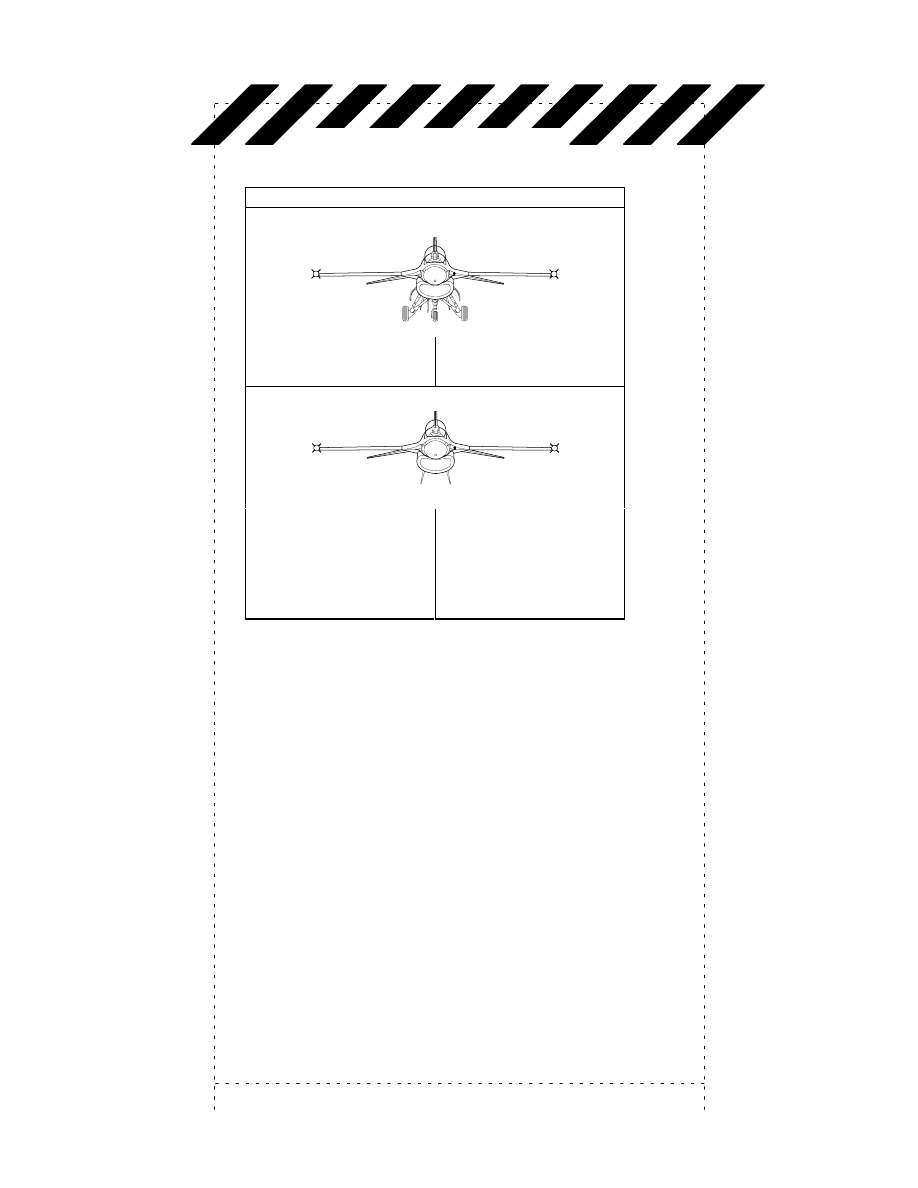

LG  Unsafe/Up Landing

APPROACHEND ARRESTMENT

AVAILABLE

UNAVAILABLE

ALL LG INDICATE UNSAFE

BUT APPEAR NORMAL

10. HOOK-DOWN.

11. APPROACHEND

CABLE-ENGAGE.

10. LAND NORMALLY.

AVAILABLE

UNAVAILABLE

ALL LG UP

ARRESTMENT NOT REC

OMMENDED. USE AP

PROACHEND ARREST

MENT UNAVAILABLE

PROCEDURE.

10. EPU-ON.

11. ALT FLAPS-EXTEND.

12. LOW ANGLE APPROACH AT

13

°

AOA.

13. THROTTLE-OFF IMMEDI

ATELY PRIOR TO

TOUCHDOWN.

E16

T.O. GR1F16CJ1CL2

E16.1

LG  Unsafe/Up Landing

APPROACHEND ARRESTMENT

AVAILABLE

UNAVAILABLE

BOTH MLG UP OR UNSAFE

10. ALT GEAR HANDLE - IN.

11. WAIT 5 SEC.

12. LG HANDLE - UP.

13. ALT GEARRESET BUTTON-

DEPRESS (2 SEC).

14. USE ALL LG UP PROCE

DURE.

15. IF NLG DOES NOT

RETRACT:

a. HOOK-DOWN.

b. LOW ANGLE

APPROACH

AT 11

°

AOA.

c. ATTEMPT A FLYIN

ENGAGEMENT.

d. THROTTLE-OFF

AFTER ENGAGEMENT.

IF THE ENGAGEMENT

IS MISSED, MAINTAIN

WINGS LEVEL AND

GO AROUND. IF A

GOAROUND IS NOT

ACCOMPLISHED,

THE AIRCRAFT MAY

GROUND LOOP.

10. ALT GEAR HANDLE-IN.

11. WAIT 5 SEC.

12. LG HANDLE-UP.

13. ALT GEAR RESET BUT

TON-DEPRESS (2 SEC).

14. USE ALL LG UP

PROCEDURE.

15. IF NLG DOES NOT

RETRACT:

a. CONSIDER LANDING

FROM LOW ANGLE AP

PROACH AT 13

°

AOA IF

WING FUEL TANKS ARE

CARRIED.

b. RECOMMEND EJEC

TION IF WING FUEL

TANKS ARE NOT CAR

RIED OR IF CONDI

TIONS ARE NOT CON

SIDERED FAVORABLE

FOR AN ATTEMPTED

LANDING WITH WING

FUEL TANKS.

E16.1

8 7/8 " Page

T.O. GR1F16CJ1CL2

E16.2

LG Unsafe/Up Landing

APPROACHEND ARRESTMENT

AVAILABLE

UNAVAILABLE

NLG UP OR UNSAFE

ARRESTMENT NOT REC

OMMENDED. USE AP

PROACHEND ARREST

MENT UNAVAILABLE

PROCEDURE.

10. EPU-ON.

11. LOW ANGLE APPROACH

AT 13

°

 AOA.

12. THROTTLE-OFF AFTER

TOUCHDOWN.

13. LOWER NOSE TO RUN

WAY BEFORE CONTROL

EFFECTIVENESS BEGINS

TO DECAY.

14. EPU-OFF AFTER STOP.

E16.2

8 7/8 " Page

T.O. GR1F16CJ1CL2

E16.3

LG Unsafe/Up Landing

APPROACHEND ARRESTMENT

AVAILABLE

UNAVAILABLE

ONE MLG AND NLG UP OR UNSAFE

ARRESTMENT NOT REC

OMMENDED. USE AP

PROACHEND ARREST

MENT UNAVAILABLE

PROCEDURE.

10. ALT GEAR HANDLE-IN.

11. WAIT 5 SEC.

12. LG HANDLE-UP.

13. ALT GEAR RESET BUT

TON-DEPRESS (2 SEC).

14. USE ALL LG UP

PROCEDURE.

15. IF LG DOES NOT RETRACT:

a. CONSIDER LANDING

FROM A LOW ANGLE

APPROACH AT 13

°

AOA IF EXTERNAL FUEL

TANK(S) IS CARRIED.

NOTE

LAND ON SIDE OF
RUNWAY AWAY FROM
THE UNSAFE MLG.

b. RECOMMEND EJEC

TION IF EXTERNAL

FUEL TANK(S) IS NOT

CARRIED OR IF CON

DITIONS ARE NOT

CONSIDERED FAVOR

ABLE FOR AN AT

TEMPTED LANDING

WITH EXTERNAL FUEL

TANK(S).

E16.3

8 3/4 " Page

T.O. GR1F16CJ1CL2

E16.4

LG Unsafe/Up Landing

APPROACHEND ARRESTMENT

AVAILABLE

UNAVAILABLE

ONE MLG INDICATES UNSAFE

BUT APPEARS NORMAL

10. HOOK-DOWN.

11. LOW ANGLE APPROACH

AT 11

°

 AOA.

12. AFTER TOUCHDOWN, USE

ROLL CONTROL, IF NEC

ESSARY, TO HOLD WING

UP. IF ROLL CONTROL IS

NEEDED TO HOLD WING

UP, MAINTAIN LANDING

ATTITUDE FOR ENGAGE

MENT. IF ROLL CONTROL

IS NOT NEEDED TO HOLD

WING UP, LOWER NOSE

FOR ARRESTMENT.

13. THROTTLE-OFF AFTER

ENGAGEMENT.

IF THE ENGAGEMENT

IS MISSED AND ROLL

CONTROL WAS NEC

ESSARY TO HOLD

WING UP, MAINTAIN

WINGS LEVEL AND GO

AROUND. IF A GO

AROUND IS NOT AC

COMPLISHED, THE AIR

CRAFT MAY GROUND

LOOP.

10. ALT GEAR HANDLE-IN.

11. WAIT 5 SEC.

12. LG HANDLE-UP.

13. ALT GEAR RESET BUT

TON-DEPRESS (2 SEC).

14. USE ALL LG UP PROCE

DURE.

15. IF LG DOES NOT RETRACT:

a. CONSIDER LANDING

FROM LOW ANGLE

APPROACH AT 13

°

AOA IF EXTERNAL FUEL

TANK(S) IS CARRIED.

NOTE

LAND ON SIDE OF
RUNWAY AWAY FROM
THE UNSAFE MLG.
b. RECOMMEND EJEC

TION IF EXTERNAL

FUEL TANK(S) IS NOT

CARRIED OR IF CON

DITIONS ARE NOT

CONSIDERED FAVOR

ABLE FOR AN AT

TEMPTED LANDING

WITH EXTERNAL FUEL

TANK(S).

E16.4

8 3/4 " Page

T.O. GR1F16CJ1CL2

E16.5

LG Unsafe/Up Landing

APPROACHEND ARRESTMENT

AVAILABLE

UNAVAILABLE

ONE MLG UP

10. ALT GEAR HANDLE-IN.

11. WAIT 5 SEC.

12. LG HANDLE-UP.

13. ALT GEAR RESET BUT

TON-DEPRESS (2 SEC).

14. USE ALL LG UP PROCE

DURE.

15. IF LG DOES NOT RETRACT:

a. HOOK-DOWN.

b. LOW ANGLE

APPROACH

AT 11

°

 AOA.

c. AFTER TOUCHDOWN,

USE ROLL CONTROL

TO HOLD WING UP

AND MAINTAIN LAND

ING ATTITUDE FOR EN

GAGEMENT.

d. THROTTLE-OFF AFTER

ENGAGEMENT.

IF THE ENGAGEMENT

IS MISSED, MAINTAIN

WINGS LEVEL AND GO

AROUND. IF A GO

AROUND IS NOT AC

COMPLISHED, THE AIR

CRAFT MAY GROUND

LOOP.

10. ALT GEAR HANDLE-IN.

11. WAIT 5 SEC.

12. LG HANDLE-UP.

13. ALT GEAR RESET BUT

TON-DEPRESS (2 SEC).

14. USE ALL LG UP PROCE

DURE.

15. IF LG DOES NOT RETRACT:

a. CONSIDER LANDING

FROM LOW ANGLE

APPROACH AT 13

°

AOA IF EXTERNAL FUEL

TANK(S) IS CARRIED.

NOTE

LAND ON SIDE OF
RUNWAY AWAY FROM
THE UNSAFE MLG.
b. RECOMMEND EJEC

TION IF EXTERNAL

FUEL TANK(S) IS NOT

CARRIED OR IF CON

DITIONS ARE NOT

CONSIDERED FAVOR

ABLE FOR AN AT

TEMPTED LANDING

WITH EXTERNAL FUEL

TANK(S).

E16.5

8 5/8 " Page

T.O. GR1F16CJ1CL2

E16.6

NOTES:

E16.6

8 5/8 " Page

MISC

F

T.O. GR1F16CJ1CL2

F1

NOTES:

MISC

F

T.O. GR1F16CJ1CL2

F2

Miscellaneous

ABORT

F5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ACTIVATED EPU

F13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ANTISKID MALFUNCTION

F9

. . . . . . . . . . .

ASYMMETRIC STORES (LANDING)

F33

. . . . . . . . . . . . . . . . . .

BRAKE FAILURE

F7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CABLE ARRESTMENT

F11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 OR

CADC MALFUNCTION

GO TO B7

. . . . . . . .

CANOPY MALFUNCTIONS

F25

. . . . . . . . . . . . . . . . . . . . . . . . .

COCKPIT PRESSURE/TEMPERATURE

MALFUNCTION

F21

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CONTROLLABILITY CHECK

GO TO B21

. . . . . . . . . . . . . . . . .

DRAG CHUTE DEPLOYED IN FLIGHT

F15

. . . . . . . . . . . . . . . .

DRAG CHUTE FAILURE

F15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EGI FAILURE

F29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EJECTION

F23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EMERGENCY JETTISON

F27

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

EQUIP HOT CAUTION LIGHT

F17

. . . . . . . .

GROUND EGRESS

F7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARNING/CAUTION LIGHTS

F35

. . . . . . .

HOT BRAKES

F31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HYDRAZINE LEAK

F13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

EGI

FAILURES F29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NET ARRESTMENT

F11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NLG WOW SWITCH FAILURE

F31

. . . . . . . . . . . . . . . . . . . . . . .

NWS FAILURE/HARDOVER

F15

. . . . . . . . . .

WARNING/CAUTION LIGHTS

F36

. . . . . . .

  OBOGS MALFUNCTION

F17

. . . . . . . . . .

ANTI

SKID

CADC

CADC

ENGINE

FAULT

EQUIP

HOT

HOOK

NWS

FAIL

OBOGS

CANOPY

OXY LOW

T.O. GR1F16CJ1CL2

F3

PBG MALFUNCTION

F19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARNING/CAUTION LIGHTS

F36

. . . . . . .

SELECTIVE JETTISON

F27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SMOKE OR FUMES

F19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARNING/CAUTION LIGHTS

F35

. . . . . . . . . . . . . . . . . . . . . .

PROBE HEAT

F3

5 " Page

T.O. GR1F16CJ1CL2

F4

OTHER CONSIDERATIONS:

1

W



F

 When braking absorbs a high amount of energy, do not

shut down engine until firefighting equipment is available and

do not use the parking brake.

F

 Hot wheels and brakes may ignite leaking hydraulic fluid.

Wheel fusible plugs may relieve tire pressure within 15 minutes

after stop.

2

W

 When the throttle is retarded to IDLE from MAX AB, the

thrust and rpm decay to idle can take up to 24 seconds. Do not

mistake high thrust/rpm for failure of the engine to respond to

the idle command. Engine shutdown from MAX AB may result

in a tailpipe fire.

3

W

 The hook may miss the cable if the aircraft is not slow

enough to compress the MLG struts sufficiently to make WOW

or if forward stick pressure is held.

4

 With engine shut down, NWS is lost and EPU does not

activate automatically. After hydraulic pressure drops, braking

is available using the brake/JFS accumulators only. Stop

straight ahead and engage parking brake.

F4

5 " Page

T.O. GR1F16CJ1CL2

F5

ABORT

1

W

1. Throttle - IDLE.

2

W

2. DRAG CHUTE sw - DEPLOY (if required).

3. Wheel brakes - Apply (as required).

4. HOOK sw - DN (if required).

3

W

If on fire:

5. Throttle - OFF.

4

6. FUEL MASTER sw - OFF.

END

F5

5 1/4

ABORT

" Page
