Navistar trucks. Model: 3200, 4100, 4200, 4300, 4400, 7300, 7400. Service manual (2009) - page 14

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

199

12.6. CONNECTOR COMPOSITE (1011), P. 4

INTERNATIONAL TRUCK AND ENGINE CORPORATION

NAME

DATE

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

RELEASE NO.

ELECTRICAL CIRCUIT DIAGRAM

CHANGE

SHEET

DRAWN

PART NO.

DATE

REFERENCE

REV

CHK

U00DAG9

CONNECTOR COMPOSITES - MATING VIEW SHOWN

31MAY00

04

42/43/44/85/8600 & 73/74/7500 CIRC DIAGRAMS

P52778H

AE08-52376

CHAPTER 12

RMVD & ADDED MULTIPLE

B

56507K

CIR NUMBERS TO (1011).

FUSE BLOCK #1 (1011)

LOCATED IN INSTRUMENT PANEL

BODY LOCK - 3536085C1

A

D

1

2

H

G

3

E

4

F

C

J

B

NOTE:

CIRCUIT NAMES DEGINATED WITH PARENTESES REPRESENT
BUSS BARS

CONNECTOR - 3534572C1

CAV

CIR

GAUGE

COLOR

TERM

A1

A78P

16

LT GN

3573312C1

A2

A14AS

10

RD

3536303C1

A3

A14

10

RD

3536303C1

A4

A14AB

10

RD

3536303C1

B1

A78J

16

LT GN

3573312C1

B2

A86M

14

LT GN

3573312C1

B3

A81B

12

LT GN

3573311C1

B4

A81A

12

LT GN

3573311C1

C1

A62M

16

DK BL

3573312C1

C2

(A14AS)

-

-

3536303C1

C3

(A14)

-

-

3536303C1

C4

(A14AB)

-

-

3536303C1

D1

A62N

16

DK BL

3573312C1

D2

A73B

16

LT GN

3573312C1

D3

  -

 -

 -

 -

D4

A63D

18

DK BL

3573312C1

D4

A86A

20

LT GN

3573312C1

E1

A12C

10

LT BL

3536298C1

E1

A12B

10

LT BL

3573311C1

E2

(A14AS)

 -

 -

3536303C1

E3

(A14)

-

-

3536303C1

E4

A14AB

 -

 -

3536303C1

F1

A12P

18

LT BL

3573312C1

F1

A12N

18

LT BL

3573312C1

F2

A15

18

RD

3573312C1

F2

A98

18

VT

3573312C1

F3

A84

14

LT GN

3573312C1

F4

 -

 -

 -

 -

G1

(A12C)

 -

 -

3536298C1

G1

(A12B)

 -

 -

3536298C1

G2

(A14AS)

 -

 -

3536303C1

G3

(A14)

 -

 -

3536303C1

G4

(A14AB)

 -

 -

3536303C1

H1

A86F

18

LT GN

3573312C1

H1

A86

20

LT GN

3573312C1

H2

A28

16

TN

3573312C1

H3

A14G

16

RD

3573312C1

H4

A73C

12

LT GN

3573311C1

LOCATION

CAVITY

RATING

PART NUMBER

PART NUMBER

DESCRIPTION

FUSE

BREAKER

F13

A1, B1

10 AMPS

3534209C1

3536178C1

RIGHT MIRROR HEAT

F9

C1, D1

5 AMPS

3534208C1

-

OPTIONAL PANEL LIGHTS

F5

E1, F1

5 AMPS

3534208C1

-

SYSTEM CONTROLLER/6 SW PACK

F1

G1, H1

10 AMPS

3534209C1

3536178C1

CB/RADIO

F14

A2, B2

20 AMPS

353421C1

3536180C1

AUX POWER SOURCE

F10

C2, D2

5 AMPS

3534208C1

-

HEATER-A/C CONTROL

F6

E2, F2

5 AMPS

3534208C1

-

KEY SWITCH/DIAGNOSTIC CONN

F2

G2, H2

15 AMPS

3534210C1

3536179C1

INSTRUMENT CLUSTER

F15

A3, B3

30 AMPS

3534213C1

3536182C1

POWER WINDOW/LOCK-DRIVERS DOOR

F11

C3, D3

N/A

 -

-

 -

F7

E3, F3

15 AMPS

3534210C1

3536179C1

CIGAR LIGHTER

F3

G3, H3

15 AMPS

3534210C1

3536179C1

OWNER/OPERATOR

F16

A4, B4

30 AMPS

3534213C1

3536182C1

POWER WINDOW/LOCK-PASS RT FRT DR

F12

C4, D4

10 AMPS

3534209C1

3536178C1

DOME LIGHTS/MAP LIGHTS/RADIO

F8

E4, F4

 -

 -

-

NOT AVAILABLE

F4

G4, H4

30 AMPS

3534213C1

3536182C1

HEATER-A/C BLOWER

Figure 199

Connector Composite (1011)

S08315

200

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

12.7. CONNECTOR COMPOSITE (1012), P. 5

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CHAPTER 12

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00DAG9

31MAY00

P52778H

AE08052376

005

CNA1

31MAR09

ADDED MXT EFFECTS

E

61817B

FUSE BLOCK #2 (1012)

LOCATED IN INSTRUMENT PANEL

BODY LOCK - 3536085C1

A

D

1

2

H

G

3

E

4

F

C

J

B

NOTE:

CIRCUIT NAMES DESIGNATED WITH PARENTHESES REPRESENT BUSS BARS

CONNECTOR - 3534572C1

* W/ MWM ENGINE

# W/ MXT

RELAY PIN #

85, 86, 30, 87, 87a

CAVITY

PART NUMBER

RELAY DESCRIPTION

D3, F4, D4, F3, E3

3519350C1

IGNITION

G3, J4, G4, J3, H3

3519350C1

ACCESSORY

A3, C4, A4, C3, B3

3519350C1

AUTO SHIFT

CAV

CIR

GAUGE

COLOR

TERM

A1

A13AJ

10

PK

3536303C1

A2

A13AJ

10

PK

3515516C1

A2

(A13AH)

 -

 -

3515516C1

A3

A92-GA

16

WH

3515517C1

A3*

A17JA

16

PK

3573312C1

A4

A13DE

16

PK

3515517C1

A4*

A24-GE

16

WH

3573312C1

B1

A41B

16

GY

3573312C1

B2

A99E

16

VT

3573311C1

B2#

A99E

16

PL

3573311C1

B2*

A17H

16

PK

3573312C1

B3*

A24-GF

16

WH

3573312C1

B4

 -

 -

 -

 -

C1

(A13AJ)

 -

 -

3536303C1

C2

(A13AH)

 -

 -

3515516C1

C3

A17C

16

PK

3536295C1

C4

A92DW

16

TN

3515517C1

C4*

A17H

16

PK

3573312C1

D1

A13B

16

PK

3573312C1

D2

A13HC

18

PK

3515517C1

D2

A13HC

16

PK

3573312C1

D3

A11-GAD

16

WH

3573311C1

D3

A11-GAF

16

WH

3573311C1

D4

A14AV

10

RD

3573311C1

LOCATION

CAVITY

RATING

PART NUMBER

PART NUMBER

DESCRIPTION

FUSE

BREAKER

F23

A1, B1

5 AMPS

3534208C1

 -

COMPASS/TEMP

F21

C1, D1

5 AMPS

3534208C1

-

OWNER/OPERATOR

F19

E1, F1

5 AMPS

3534208C1

-

INST CLUSTER/HTR-A/C CONTROLS

F17

G1, H1

10 AMPS

3534209C1

3536178C1

ALLISON LCT/EATON AUTOSHIFT-AUTOCLUTCH

F24

A2, B2

5 AMPS

3534208C1

 -

ACCELERATOR/CLUTCH SW

F22

C2, D2

5 AMPS

3534208C1

-

HYD BRK MON/DRIVERS INFO CENTER

F20

E2, F2

5 AMPS

3534208C1

-

SYSTEM CONTROLLER & HVAC LPM

F18

G2, H2

10 AMPS

3534209C1

3536178C1

LEFT MIRROR HEAT

CAV

CIR

GAUGE

COLOR

TERM

E1

(A13AJ)

 -

 -

3536303C1

E2

A13AH

10

PK

3515516C1

E3

 -

 -

 -

 -

E4

 -

 -

 -

 -

F1

A75C

18

LT GN

3536295C1

F1

A28A

16

TN

3536295C1

F2

A13AF

18

PK

3515517C1

F2

A75D

18

LT GN

3515517C1

F3

A13AH

10

PK

3573311C1

F4

A13AG

16

PK

3573312C1

G1

(A13AJ)

 -

 -

3536303C1

G2

A78M

16

LT GN

3573312C1

G3

A11-GAF

16

WH

3573312C1

G3*

A24-GE

16

WH

3573311C1

G4

A14AT

10

RD

3573311C1

G4#

A12B

10

LTBL

3573311C1

H1

A13DE

16

PK

3536295C1

H1

A92Y

16

TN

3536295C1

H1

A92VA

16

PK

3573312C1

H2

A78H

16

LT GN

3573312C1

H3

-

-

-

-

H4

-

-

-

-

J1

-

-

-

-

J2

-

0

-

-

J3

A12B

10

LT BL

3573311C1

J3#

A14AT

10

RD

3573311C1

J4

A12M

16

LT BL

3573312C1

J4#

A12

18

LT BL

3515517C1

Figure 200

Connector Composite (1012)

S08315

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

201

12.8. CONNECTOR COMPOSITE (1013), P. 6

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CHAPTER 12

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00DAG9

31MAY00

P52778H

AE08052376

006

CNA1

31MAR09

ADDED MXT EFFECTS

J

61817B

A

D

1

2

3

E

F

J

B

H

4

FUSE BLOCK #3 (1013)

(LOCATED IN INSTRUMENT PANEL)

CONNECTOR - 3534572C1
BODY LOCK - 3536085C1

G

C

NOTE:
CIRCUIT NAMES DESIGNATED WITH PARENTHESES REPRESENT BUSS BARS

* W/ COMMUNICATION SYSTEM, AWARE
& W/ MXT VEHICLE

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

A1

A13FB

10

PK

3515516C1

A2

A13FB / (A13FA)

10 / -

PK / -

3536303C1

A3

A12D

10

LTBL

3573311C1

A4

A12E

10

LTBL

3573311C1

B1

A21C

16

TN

3573312C1

B1&

IGN

16

PK

3573312C1

B2

A13DA

16

PK

3573312C1

B3

A12X

14

LTBL

3573312C1

B3

A12S

16

LTBL

3573312C1

B3&

A1RCP

12

PK

3573311C1

B4

A78L

16

LTGN

3573312C1

C1

(A13FB)

-

-

3515516C1

C2

(A13FA)

-

-

3536303C1

C3

-

-

-

-

C3&

A12D

10

LTBL

3536303C1

C4

A13G

16

WH

3573312C1

D1

A59H

18

BK

3573312C1

D2

A13RA

18

PK

3536295C1

D2

A12RD

18

RD

3515517C1

D2

HA13A

16

PK

3573312C1

D2*

A13A

16

PK

3573312C1

D2*

A13B

16

PK

3573312C1

D3

A92#125

18

TN

3515517C1

D3

A104H

16

DKBL

3573312C1

D3&

ACC

16

LTBL

3573312C1

D4

A13

16

PK

3573312C1

D4

A13RB

18

PK

3536295C1

D4

A104E

16

DKBL

3573312C1

LOCATION

CAVITY

RATING

PART NUMBER FUSE

PART NUMBER BREAKER

DESCRIPTION

F33

A1, B1

7.5/10 AMPS

3534209C1

3536178C1

ETHER START / XFER CASE

F31

C1, D1

5 AMPS

3534208C1

-

LIFT AXLE

F29

E1, F1

5 AMPS

3534208C1

-

OPT WARNING LTS

F27

G1, H1

5 AMPS

3534208C1

-

OPEN

F34

A2, B2

10 AMPS

3534209C1

3536178C1

SNOWVALVE

F32

C2, D2

10 AMPS

3534209C1

-

TELEMATICS W/ AWARE

F30

E2, F2

5 AMPS

3534208C1

-

2-WAY RADIO

F28

G2, H2

10 AMPS

3534209C1

3536178C1

QUALCOM

F35

A3, B3

5 / 20 AMPS

3534208C1 / 3534211C1

3536180C1

TRLR AUX / ROOF AUX /

ECU  FOR MXT VEHICLE

C3, D3

10 AMPS

3534209C1

3536178C1

TRANSFER CASE FOR

MXT VEHICLE

F36

A4, B4

5 AMPS

3534208C1

-

POWER MIRROR

RELAY PIN NUMBER

85, 86, 30, 87, 87a

CAVITY

PART NUMBER

RELAY DESCRIPTION

D3, F4, D4, F3, E3

3519350C1

EATON AUTOSHIFT

D3, F4, D4, F3, E3

3519350C1

REMOTE STOP

G3, J4, G4, J3, H3

3519350C1

IGNITION

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

E1

(A13FB)

-

-

3515516C1

E2

(A13FA)

-

-

3536303C1

E3

-

-

-

-

E4

-

-

-

-

F1

A13K

16

PK

3573312C1

F2

-

-

-

-

F3

A92RK

18

TN

3515517C1

F3

A104C

16

DKBL

3573312C1

F4

A13RA

18

PK

3515517C1

F4

A104D

18

DKBL

3573312C1

G1

-

-

-

-

G2

A13FA

10

PK

3536303C1

G3

A11-GBA

18

WH

3515517C1

G4

A13FJ

10

RD

3573311C1

H1

-

-

-

-

H2

A13F

16

PK

3573311C1

H3

-

-

-

-

H4

-

-

-

-

J1

-

-

-

-

J2

-

-

-

-

J3

A13FA

10

PK

3573311C1

J4

A13DB

18

PK

3515517C1

Figure 201

Connector Composite (1013)

S08315

202

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

12.9. CONNECTOR COMPOSITE (1014), P. 7

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CHAPTER 12

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00DLCK

21JUN00

P52778H

AE08-52376

007

CNA1

31MAR09

ADDED MXT EFFECTS

G

61817B

NOTE:
CIRCUIT NAMES DESIGNATED WITH PARENTHESES REPRESENT BUSS BARS

FUSE BLOCK #4 (1014)

(LOCATED IN INSTRUMENT PANEL)

CONNECTOR - 3534572C1
BODY LOCK - 3536085C1

A

E

3

J

2

H

G

4

F

C

B

D

1

* W/ COMMUNICATION SYSTEM, AWARE
& W/  MXT VEHICLE

B

F A

E

C

D

CONNECTOR - 3544677C1
BODY LOCK - 3544678C1

PWR OPT (1014)

(LOCATED IN INSTRUMENT PANEL)

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

A1

A14FG

10

RD

3536298C1

A2

A14FM

10

RD

3536303C1

A3

A70NS

16

RD

3573312C1

A4

A12Z

14

LTBL

3573312C1

B1

A81D

12

LTGN

3573311C1

B2

A14NS

10

BK

3573311C1

B2&

P3PWR

14

RD

3573312C1

B3

A70NP

16

RD

3573312C1

B4

A12U

14

LTBL

3573312C1

C1

A14FG

10

RD

3536298C1

C2

A14FM

10

RD

3536303C1

C3

-

-

-

-

C4

-

-

-

-

D1

A14HE

16

RD

3573312C1

D2

HA14A

16

RD

3573312C1

D2

A14A

16

RD

3573312C1

D2*

A14C

16

RD

3573312C1

D2&

P4PWR

14

RD

3573312C1

D3

A58AE

20

BN

3536294C1

D3

A104A

18

DKBL

3515517C1

D4

A58AC

16

BN

3573311C1

D4

A104EA

16

DKBL

3573312C1

E1

A14FG

10

RD

3536298C1

E2

A14FM

10

RD

3536303C1

LOCATION

CAVITY

RATING

PART NUMBER FUSE

PART NUMBER BREAKER

DESCRIPTION

F43

A1, B1

30 AMPS

3534213C1

3536182C1

POWER WINDOW / LOCK-PASS

R RR DR

F41

C1, D1

5 AMPS

3534208C1

-

TRAILER AUX

F39

E1, F1

5 AMPS

3534208C1

-

AUX GA & SW PACK / DRIVERS

INFO CTR

F37

G1, H1

30 AMPS

3534213C1

3536182C1

POWER WINDOW / LOCK-PASS

L RR DR

F44

A2, B2

5 / 20 AMPS

 3534209C1 /

3534211C1

3536180C1

AUX TRAILER SOCKET SWITCH /

POWER OPT FOR MXT VEHICLE

F42

C2, D2

10 / 15

AMPS

 3534209C1 /

3534210C1

-

TELEMATICS W/ AWARE

F40

E2, F2

10 AMPS

3534209C1

3536178C1

AIR SHIELD LIGHT

F38

G2, H2

10 AMPS

3534209C1

3536178C1

W/ QUALCOM OR

F38

G2, H2

20 AMPS

3534211C1

3536180C1

W/ AIR SEAT, HYD CHASSIS

F45

A3, B3

OPEN

-

-

-

F46

A4, B4

20 AMPS

3534211C1

3536180C1

ROOF AUX

RELAY PIN NUMBER

85, 86, 30, 87, 87a

CAVITY

PART NUMBER

RELAY DESCRIPTION

D3, F4, D4, F3, E3

3519350C1

LIGHTED AIR SHIELD

G3, J4, G4, J3, H3

3519350C1

ROOF MTD ACCESSORY

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

E3

A72B

12

OR

3573311C1

E3

A13RS

18

PK

3515517C1

E4

-

-

-

-

F1

A14FF

16

RD

3573312C1

F2

A58AB

16

BN

3573312C1

F2&

P5PWR

14

RD

3573312C1

F3

A58AB

16

BN

3573312C1

F3

A72C

12

OR

3573311C1

F3

A104B

16

DKBL

3573312C1

F4

A58AB

16

BN

3573312C1

F4

A104C / A104B

16 / 18

DKBL

3573311C1

G1

A14FG

10

RD

3536303C1

G2

A14FM

10

RD

3536303C1

G3

-

-

-

-

G4

A14FR

10

RD

3573311C1

H1

A81C

12

LTGN

3573311C1

H2

A14J

14

RD

3573312C1

H3

-

-

-

-

H4&

PWR

14

RD

3573312C1

J1

-

-

-

-

J2

-

-

-

-

J3

A12Z

14

LTBL

3573312C1

J4

A12Y

14

LTBL

3573312C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

&A

P3PWR

14

RD

3534165C1

&B

P3GRD

14

WH

3534165C1

&C

P4PWR

14

RD

3534165C1

&D

P4GRD

14

WH

3534165C1

&E

P5PWR

14

RD

3534165C1

&F

P5GRD

14

WH

3534165C1

Figure 202

Connector Composite (1014)

S08315

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

203

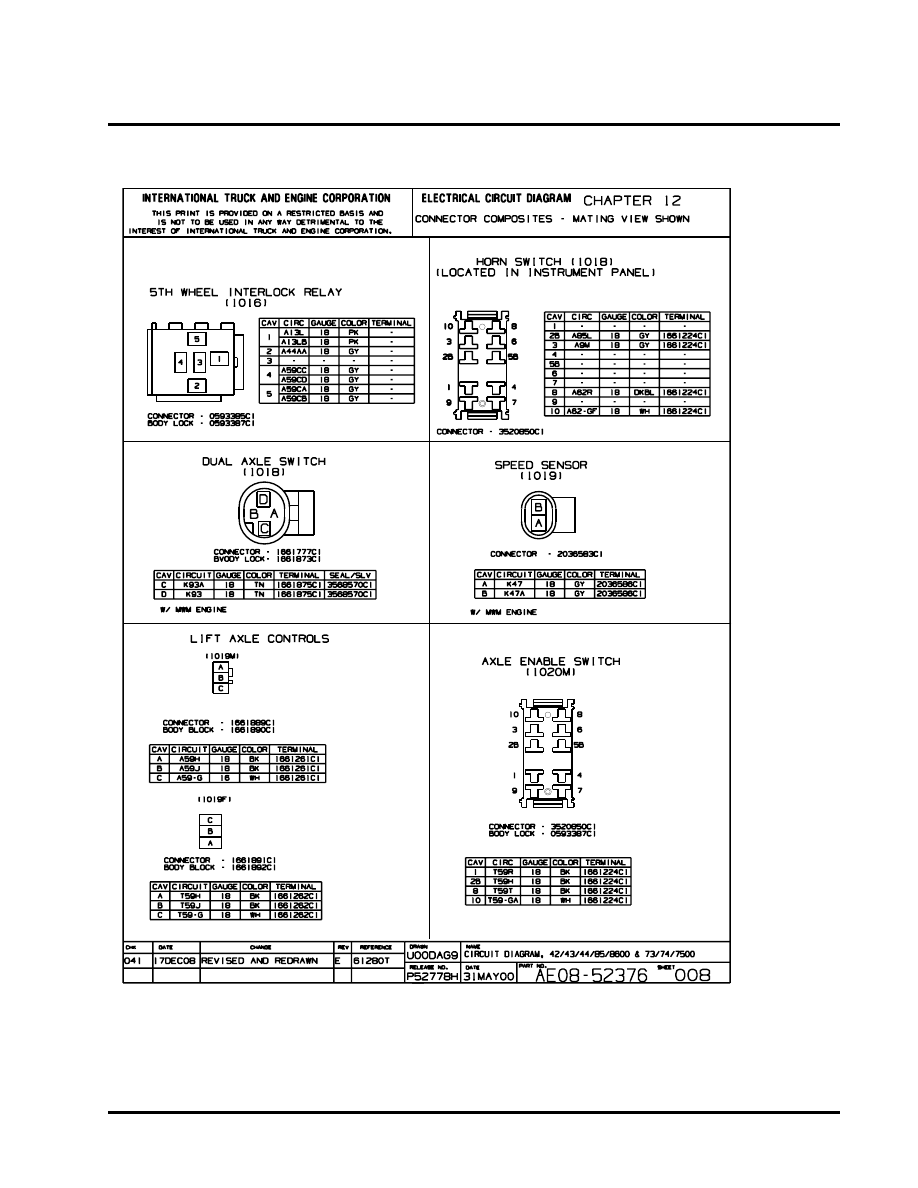

12.10. CONNECTOR COMPOSITES (1016), (1018), (1019), (1019F), (1019M), (1020M), P.
8

Figure 203

Connector Composites (1016), (1018), (1019), (1019F), (1019M), (1020M)

S08315

204

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

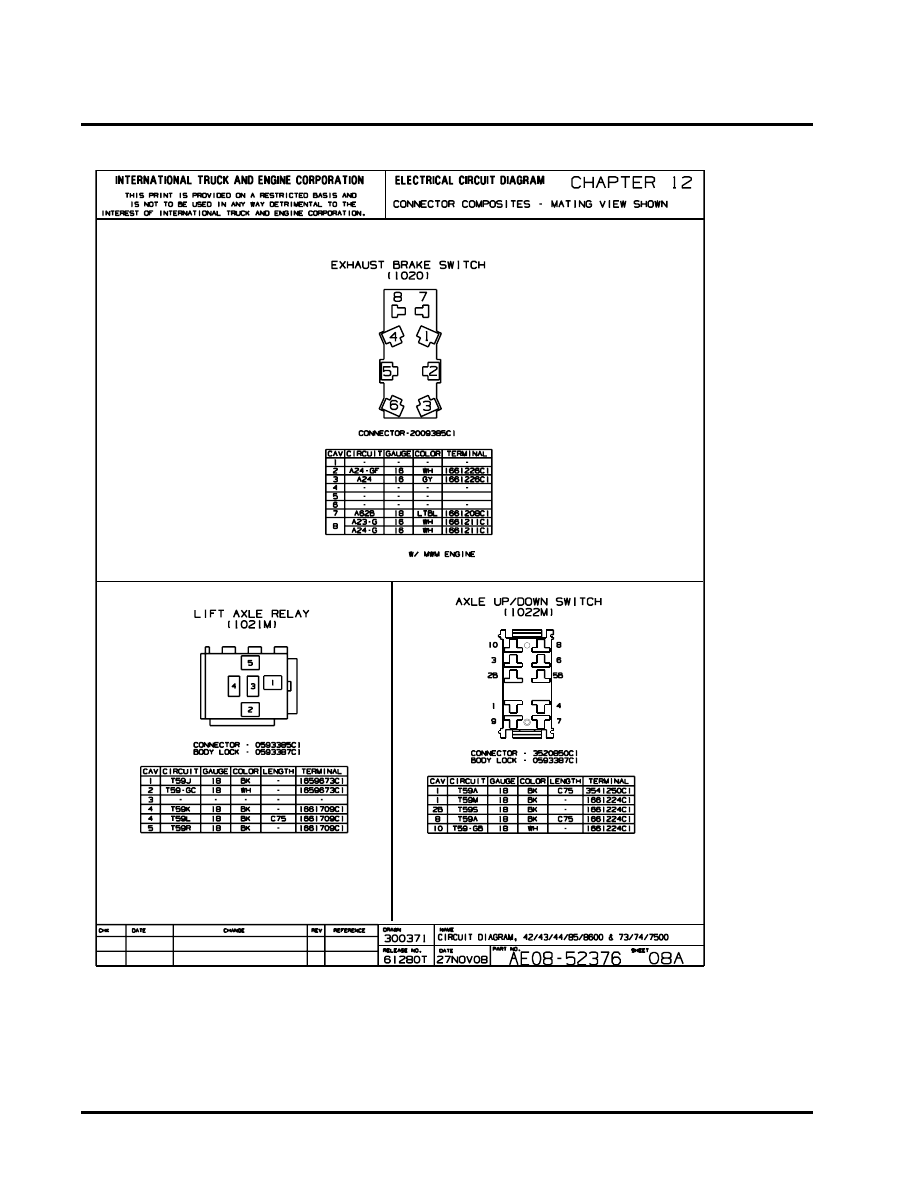

12.11. CONNECTOR COMPOSITES (1020), (1021M), (1022M), P. 8A

Figure 204

Connector Composites (1020), (1021M), (1022M)

S08315

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

205

12.12. CONNECTOR COMPOSITES (1027M, F), (1040), (1100), (1101A), (1101), (1102),
P. 9

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CONNECTOR COMPOSITES -

MATING VIEW SHOWN

CHAPTER 12

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00DAG9

31MAY00

P52778H

AE08052376

009

CNA1

31MAR09

ADDED CIRC A17 IN CONN

F

61817B

1100

CHASSIS CONN

(LIFT AXLE)

CONNECTOR - 1667305C1
BODY LOCK - 1661263C1

(1027M)

(1027F)

D C

A B

CONNECTOR - 0475081C1

C

A

F

CONNECTOR - 2031872C1

CONNECTOR - 3546518C1

F

E

B

BODY LOCK - 3546519C1

A

B

CONNECTOR - 2031871C1
BODY LOCK - 2031873C1

BODY LOCK - 1661264C1

BODY LOCK - 2031874C1

D

A

BODY LOCK - 1661263C1

KEY SWITCH (1100)

(LOCATED IN INSTRUMENT PANEL)

E

C

B

CONNECTOR - 1661259C1

SWITCH PACK (1101)

(LOCATED IN INSTRUMENT PANEL)

B

FUSE BLOCKS 3 & 4 IGN FEED (1102)

(LOCATED IN INSTRUMENT PANEL)

CONNECTOR - 1661260C1

A

B

C

SWITCH PACK (1101A)

(LOCATED IN INSTRUMENT PANEL)

D

D

A

A

OPTIONAL WARNING LIGHTS ADAPTOR (1040)

CONNECTOR - 2006789C1

C

G

E

F

D

B

A

* W/ MXT

CAV

CIR

GAUGE

COLOR

TERM

A

A15

18

RD

1661209C1

B

A17

18

PK

1661209C1

B*

A17

16

PK

1661209C1

C

A12AB

18

LTBL

1661209C1

C

A12

18

LTBL

1661209C1

D

A13DH

18

PK

1661209C1

D

A104EB

18

DKBL

1661209C1

D

A13DD

18

PK

1661209C1

CAV

CIR

GAUGE

COLOR

TERM

A

A11-GDB

18

WH

1661261C1

B

A12P

18

LTBL

1661261C1

C

A62C

18

DKBL

1661261C1

D

A3E(+)

20

DKBL

3544254C1

D

A3J(-)

18

GY

1661261C1

E

A3F(-)

20

GY

3544254C1

E

A3K(-)

18

GY

1661261C1

CAV

CIR

GAUGE

COLOR

TERM

A

A13K

16

PK

1661208C1

B

A49C

18

GY

1661208C1

C

A49E

18

GY

1661208C1

D

A42A

18

GY

1661208C1

CAV

CIR

GAUGE

COLOR

TERM

A

T59MB

18

BK

1661261C1

B

-

-

-

-

C

-

-

-

-

D

-

-

-

-

CAV

CIR

GAUGE

COLOR

TERM

A

A11-GJ

18

WH

166126C1

B

A12FC

18

LTBL

166126C1

C

A62S

18

DKBL

166126C1

CAV

CIR

GAUGE

COLOR

TERM

A

A13DB

18

PK

1661261C1

B

-

-

-

-

CAV

CIR

GAUGE

COLOR

TERM

A

T59M

18

BK

0241117R1

CAV

CIR

GAUGE

COLOR

TERM

A

A13DC

18

PK

1661261C1

B

-

-

-

-

Figure 205

Connector Composites (1027M, F), (1040), (1100), (1101A), (1101), (1102)

S08315

206

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

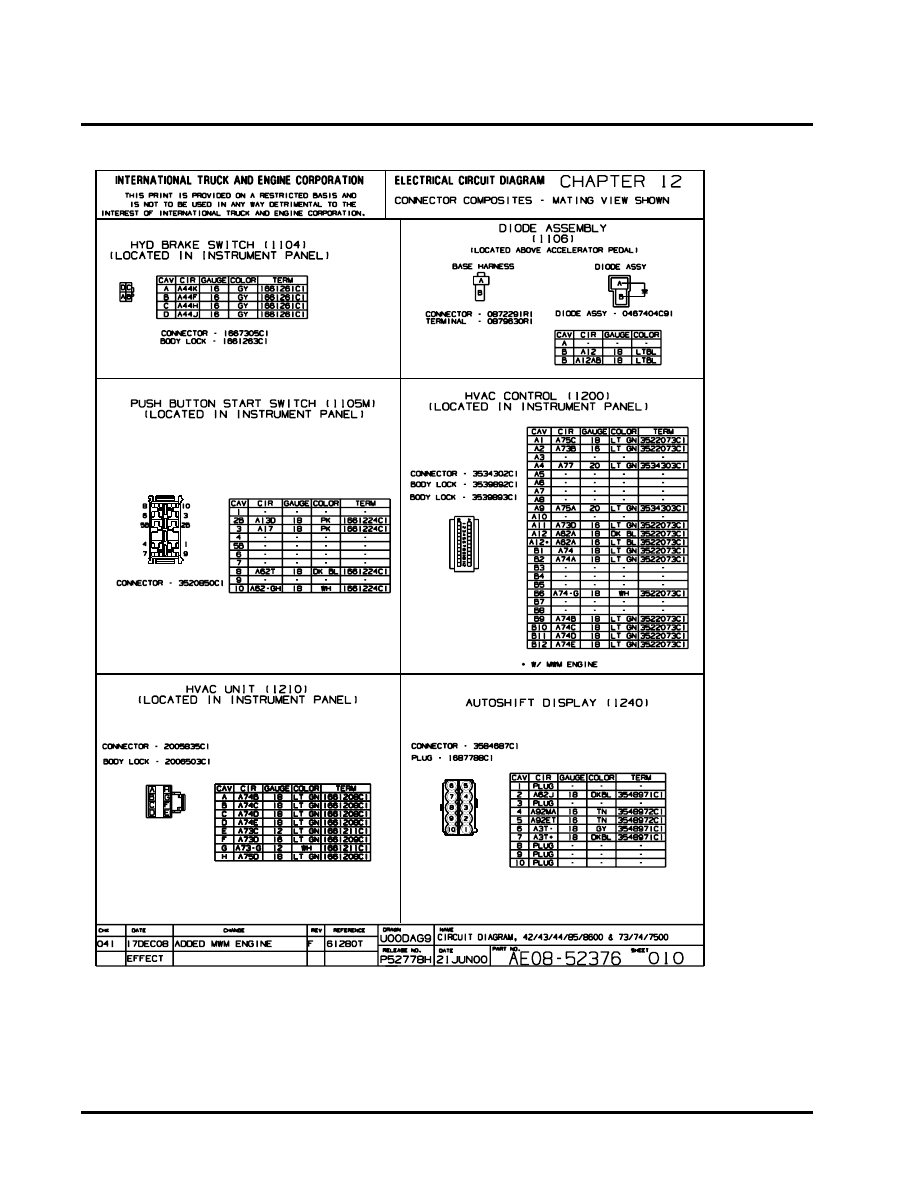

12.13. CONNECTOR COMPOSITES (1104), (1105M), (1106), (1200), (1210), (1240), P. 10

Figure 206

Connector Composites (1104), (1105M), (1106), (1200), (1210), (1240)

S08315

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

207

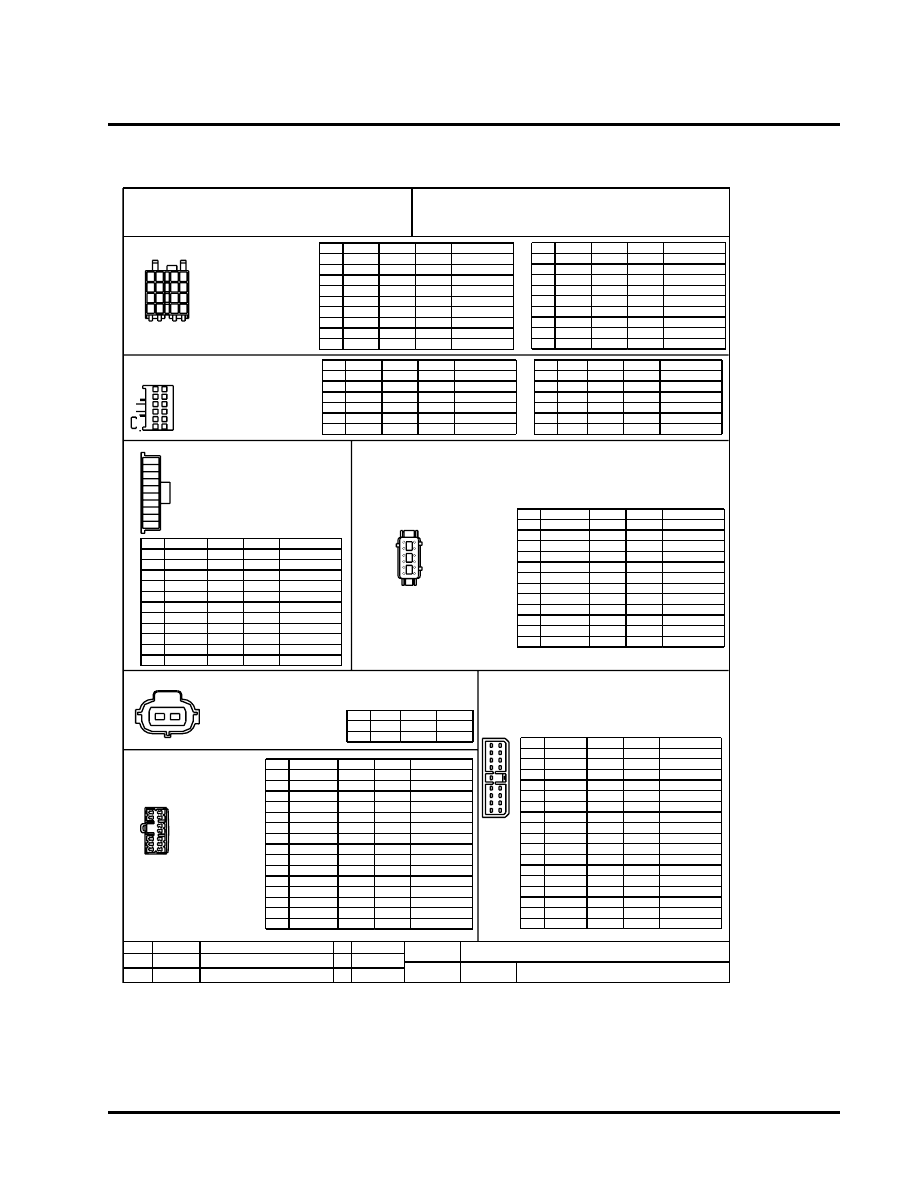

12.14. CONNECTOR COMPOSITES (1300), (1301), (1400), (1402), (1410), (1500), (1510),
P. 11

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00DAG9

31MAY00

P52778H

AE08052376

011

CHAPTER 12

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CNA1

31MAR09

ADDED MXT EFFECTS

H

61817B

6

9

11

D

CONNECTOR - 1654231C1

H

CONNECTOR - 3548792C1

12

STANDARD RADIO (1301)

(LOCATED IN INSTRUMENT PANEL)

BRAKE MONITOR MODULE

(1400)

(LOCATED IN

INSTRUMENT PANEL)

A

17

1

10

CONNECTOR - 3597143C1

E

5

CONNECTOR - 3580403C1

7

PREMIUM RADIO (1300)

(LOCATED IN INSTRUMENT PANEL)

B

CONNECTOR - 2018590C1

K

HYD PARK BRAKE CONTROL

(1402)

(LOCATED IN

INSTRUMENT PANEL)

10

1

3

CONNECTOR - 3553404C1
BODY LOCK - 3553460C1
PLUG      - 3527276C1

F

8

9

G

C

6

OPTIONAL GAUGE PACK (1510)

(LOCATED IN INSTRUMENT PANEL)

2

1

4

CLUSTER (1500)

(LOCATED IN

INSTRUMENT PANEL)

7

12

J

8

2

3

5

6

1

7

11

12

10

4

9

OIL TEMP SENSOR

(1410)

CONNECTOR - 3536864C1
TERMINAL  - 3536865C1
SEAL      - 3536867C1
SEAL      - 3536868C1

2

1

9

15

2

3

1

10

12

11

4

5

13

7

6

16

8

14

* W/ MWM ENGINE
# W/MXT

# W/ MXT

CAV

CIR

GAUGE

COLOR

TERM

7

A86K

20

LTGN

3580404C1

8

A86L

20

TLGN

3580404C1

9

A86D

20

LTGN

3580404C1

10

A86E

20

LTGN

3580404C1

11

-

-

-

-

12

A86A

20

LTGN

3580404C1

CAV

CIR

GAUGE

COLOR

TERM

1

-

-

-

-

2

-

-

-

-

3

A86M

18

LTGN

3597102C1

3#

A86M*

18

LTGN

3597102C1

4

A86

18

LTGN

3597102C1

4#

A86

20

LTGN

3597102C1

5

-

-

-

-

6

A62E

20

DKBL

3597102C1

7

A86A

20

LTGN

3597102C1

CAV

CIR

GAUGE

COLOR

1

K30A

16

TN

2

K30B

16

TN

CAV

CIR

GAUGE

COLOR

TERM

8

A86-G

20

WH

3597102C1

9

A86D

20

LTGN

3597102C1

10

A86E

20

LTGN

3597102C1

11

A86K

20

LTGN

3597102C1

12

A86L

20

LTGN

3597102C1

13

A86H

20

LTGN

3597102C1

14

A86J

20

LTGN

3597102C1

15

A86B

20

LTGN

3597102C1

16

A86C

20

LTGN

3597102C1

CAV

CIR

GAUGE

COLOR

TERM

1

A86H

20

LTGN

3580404C1

2

A86J

20

LTGN

3580404C1

3

A86B

20

LTGN

3580404C1

4

A86C

20

LTGN

3580404C1

5

A86-G

20

WH

3580404C1

6

A86

20

LTGN

3580404C1

CAV

CIR

GAUGE

COLOR

TERM

A

A90N

18

GY

3507202C1

B

PLUG

-

-

3535303C1

C

A90P

18

GY

3507202C1

D

A90-GA

18

WH

3507202C1

E

PLUG

-

-

3535303C1

F

A90M

18

GY

3507202C1

G

A90L

18

GY

3507202C1

H

A90L

18

GY

3507202C1

I

PLUG

-

-

3535303C1

J

PLUG

-

-

3535303C1

K

PLUG

-

-

3535303C1

CAV

CIR

GAUGE

COLOR

TERM

1

A62

18

DKBL

2018639C1

1*

A62

16

DKBL

2018639C1

2

A62-G

18

WH

2018639C1

3

A28

18

TN

2018639C1

3#

A28

16

TN

2018639C1

4

A5AL(+)

20

YL

2018639C1

4*#

A5AL(+)

18

YL

2018639C1

5

A5AM(-)

20

GN

2018639C1

5*#

A5AM(-)

18

GN

2018639C1

7

A28-G

18

WH

2018639C1

8

A28A

18

TN

2018639C1

9

A50

20

YL

2018639C1

10

-

-

-

-

11

-

-

-

-

12

-

-

-

-

CAV

CIR

GAUGE

COLOR

TERM

1

A14FF

18

RD

2018639C1

2

A12FC

18

LTBL

2018639C1

3

A11-GJ

18

WH

2018639C1

4

A62S

18

DKBL

2018639C1

5

PLUG

-

-

2018754C1

6

PLUG

-

-

2018754C1

7

PLUG

-

-

2018754C1

8

PLUG

-

-

2018754C1

9

PLUG

-

-

2018754C1

10

A5C(-)

20

GN

2018639C1

11

A5C(+)

20

YL

2018639C1

12

PLUG

-

-

2018754C1

13

PLUG

-

-

2018754C1

14

PLUG

-

-

2018754C1

15

PLUG

-

-

2018754C1

16

PLUG

-

-

2018754C1

17

PLUG

-

-

2018754C1

CAV

CIR

GAUGE

COLOR

TERM

1

A14HB

16

RD

3518963C1

2

A44K

16

GY

3518963C1

3

A44H

16

GY

3518963C1

4

A13HB

16

PK

3518963C1

5

A44J

16

GY

3518963C1

6

A11-GBC

16

WH

3518963C1

7

PLUG

-

-

3549254C1

8

PLUG

-

-

3549254C1

9

PLUG

-

-

3549254C1

10

PLUG

-

-

3549254C1

11

PLUG

-

-

3549254C1

12

PLUG

-

-

3549254C1

Figure 207

Connector Composites (1300), (1301), (1400), (1402), (1410), (1500), (1510)

S08315

208

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

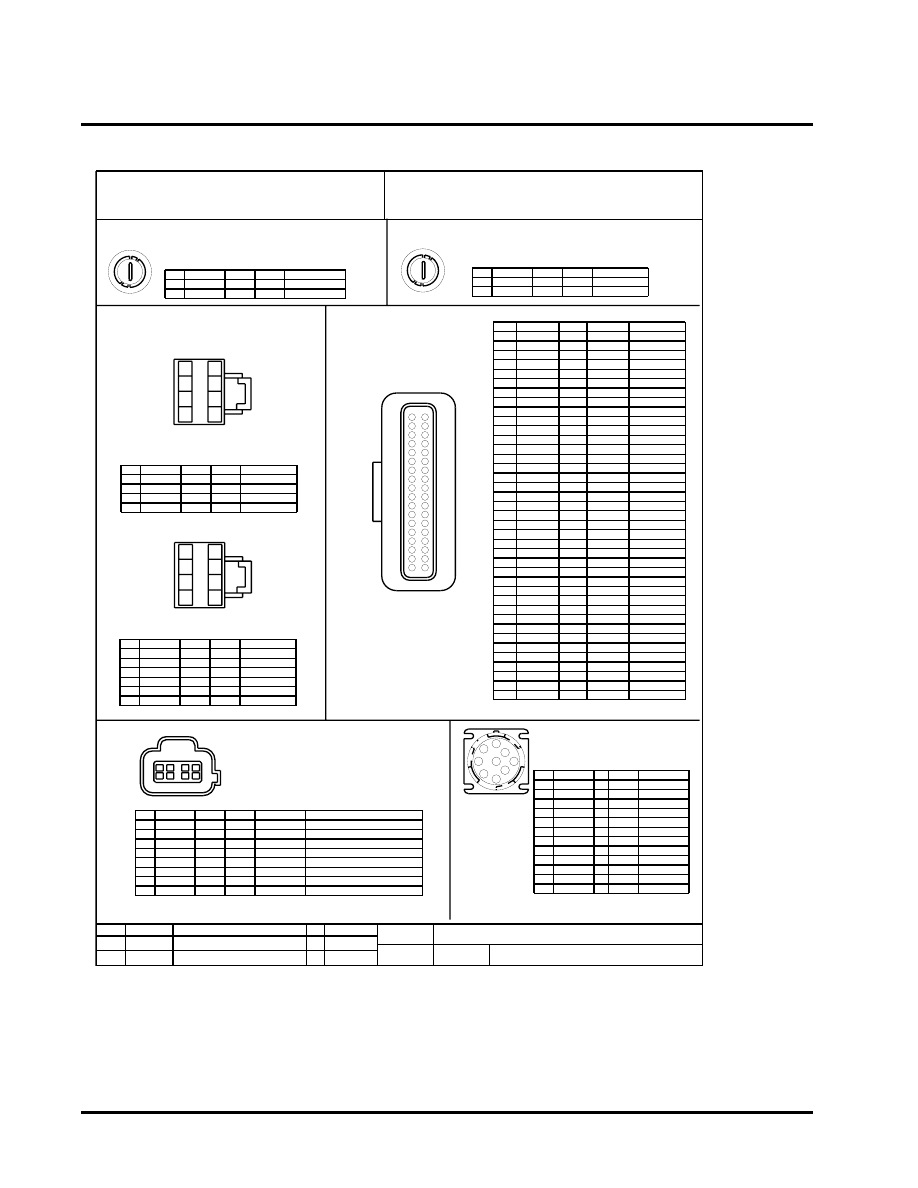

12.15. CONNECTOR COMPOSITES (1553), (1554F), (1555), (1600), (1601), (1650), P. 12

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CHAPTER 12

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00DLCK

21JUN00

P52778H

AE08052376

012

CNA1

31MAR09

ADDED MXT EFFECTS

M

61817B

F

C

ELECT SYSTEM CONTROLLER

(LOC. CAB)

(1601)

CONNECTOR:  2005835C1
BODY LOCK:  2006503C1

H

B

OPT. WARNING
LIGHT CONN

PASSENGER SIDE COURTESY LIGHT CONN.

(1554F)

H

E

C

E

F

D

A

B

DRIVERS SIDE COURTESY LIGHT (1553)

(LOCATED IN INSTRUMENT PANEL)

A

19

1

B

G

CONNECTOR: 3548934C1
BODY LOCK: 3548943C1
SEAL:      3535936C1 (18 AWG)
SEAL:      3535937C1 (14 AWG)

B

D

G

H

CONNECTOR:  2005835C1
BODY LOCK:  2006503C1

DIAGNOSTIC CONN

(1650)

C

G

D

E

WARNING LIGHT CONN

(1555)

CONNECTOR: 3544198C1
BODY LOCK: 3544199C1

F

C

E

D

CONNECTOR: 3538798C1

* W/ MWM ENGINE
# W/MXT

G

CONNECTOR ASSY:3533832C1
CONNECTOR:     3533834C1
RETAINER:      3533833C1
SEAL:          3533835C1
CPA:           3533836C1
STRAIN RELIEF: 3533832C1
PLUG:          3518314C1

F

18

36

CONNECTOR: 3544198C1
BODY LOCK: 3544199C1

H

A

A

J

* W/ COMMUNICATIONS SYSTEM, AWARE
# W/ MXT

SYSTEM CONTROLLER

INSIDE CAB

(1600)

# W/ MXT

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

A

A63N

18

DK BL

3544200C1

B

A11-GDW

18

WH

3544200C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

A

A63P

18

DK BL

3544200C1

B

A11-GDV

18

WH

3544200C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

B

A49E

18

GY

1661208C1

D

A49C

18

GY

1661208C1

E

A49D

18

GY

1661208C1

G

A49F

18

GY

1661208C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

A

A23F

18

TN

1661208C1

C

A28C

18

RD

1661208C1

C

A42

18

GY

1661208C1

F

A28B

18

WH

1661208C1

F

A42A

18

GY

1661208C1

H

A23M

18

TN

1661208C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

1

A11-GAB

20

WH

3533507C1

2

A12N

18

LT BL

3517243C1

3

A9H

20

GY

3533507C1

4

A44AA

18

GY

3517243C1

5

A85C

20

GY

3533507C1

6

A128D

18

YL

3517243C1

6

A58AE

20

BN

3533507C1

7

A77

20

LT GN

3533507C1

8

A75A

20

LT GN

3533507C1

9

A90P

18

GY

3517243C1

10

A96

20

VT

3533507C1

10#

A96

20

PL

3533507C1

11

A12LC

18

PK

3517243C1

11

A104A

18

DK BL

3517243C1

12

A13AF

18

PK

3517243C1

13

A85B

20

GY

3533507C1

14

A50

20

YL

3533507C1

15

A40

20

GY

3533507C1

16

A40A

20

GY

3533507C1

17

A96A

20

VT

3533507C1

17#

A96A

20

PL

3533507C1

18

A57A

20

OR

3533507C1

19

A56A

20

OR

3533507C1

20

A52A

20

YL

3533507C1

21

A102A

20

YL

3533507C1

22

A82

20

GY

3533507C1

23

A82A

20

GY

3533507C1

24

A82B

20

GY

3533507C1

25

A63A

18

DK BL

3517243C1

27

A6H

20

GY

3533507C1

28

A87A

20

GY

3533507C1

29

A3E(+)

20

DK BL

3533507C1

30

A3F(-)

20

GY

3533507C1

32

A44BB

20

GY

3533507C1

33

A70C

20

RD

3533507C1

34

A5AN(+)

20

YL

3533507C1

34*#

A5AN(+)

18

YL

3517243C1

35

A5AP(-)

20

GN

3533507C1

35*#

A5AP(-)

18

GN

3517243C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

NOTES

A

A103

18

LT GN

3535930C1

W/ AUX 40 AMP CIRCUIT

A

A59RA

18

GY

3535930C1

W/ REMOTE START / STOP

B

A11-GAH

14

WH

3535931C1

-

C

A63E

18

DK BL

3535930C1

-

G

A78

14

LT GN

3535931C1

-

H

A58L

18

BN

3535930C1

-

H

A58S

18

BN

3535930C1

-

H#

A58S

16

BN

3535930C1

CAV

CIRC

GA

COLOR

TERMINAL

A

A98-G

18

WH

1651968C1

B

A98-G

18

VT

1651968C1

C

A5AE(+)

20

YL

1651968C1

C#

A5AE(+)

18

YL

1651968C1

D

A5AF(-)

20

GN

1651968C1

D#

A5AF(-)

18

GN

1651968C1

F

A3S(+)

18

DK BL

1651968C1

F#

A3A(+)

16

DK BL

1651968C1

F*

A5AN(+)

18

YL

3517243C1

G#

A3A(-)

16

GY

1651968C1

G

A3S(-)

18

GY

1651968C1

G*

A5AN(-)

18

GN

3517243C1

Figure 208

Connector Composites (1553), (1554F), (1555), (1600), (1601), (1650)

S08315

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

209

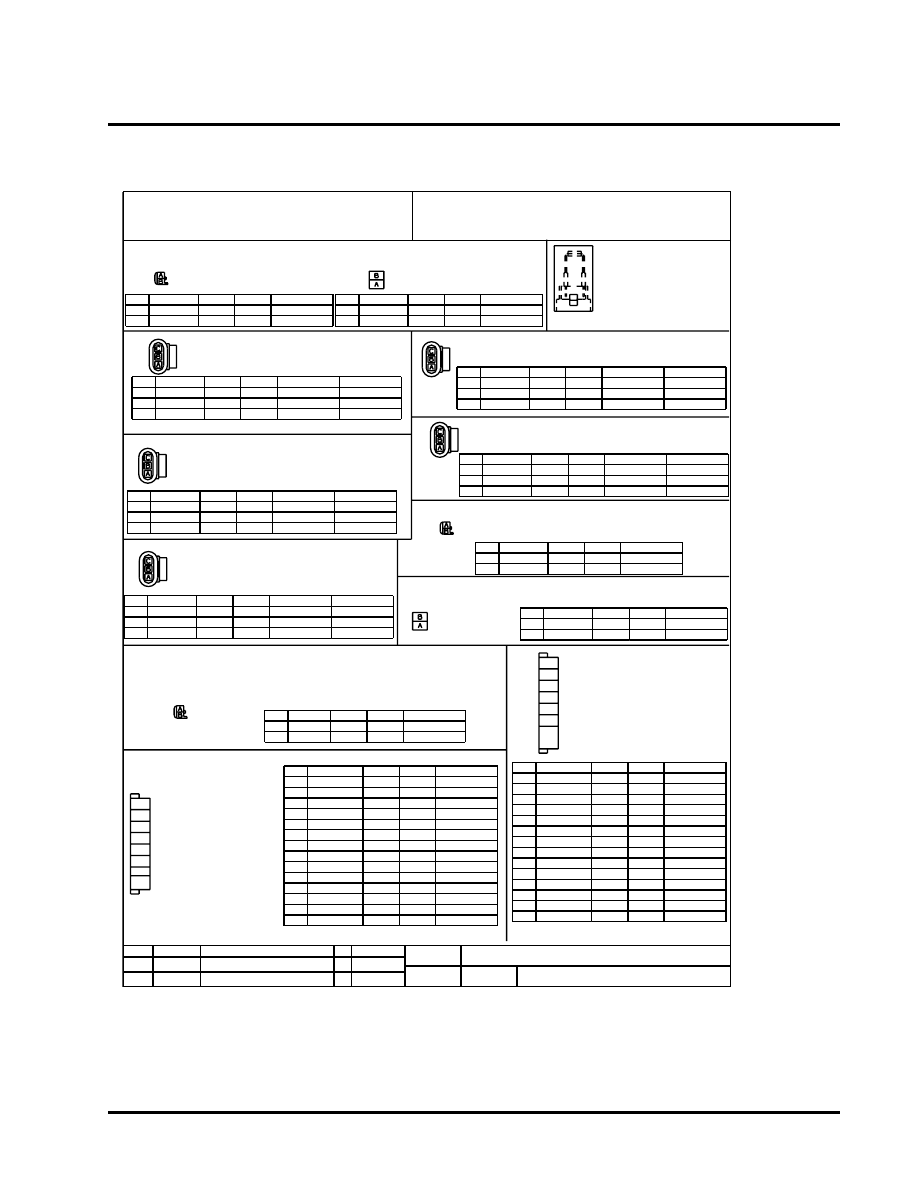

12.16. CONNECTOR COMPOSITES (1652), (1657), (1657M), (1657M2), (1657N), (1657Y),
(1658), (1659), (1660), (1661), P. 13

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CHAPTER 12

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/75000

U00DLCK

21JUN00

52778H

AE08052376

013

CNA1

31MAR09

ADDED J1939 CONNECTOR

J

61817B

CONNECTOR - 2006789C1
BODY LOCK - 2006792C1

J1708 PUBLIC (+) CONNECTOR

(1660)

F

G

D

C

A

E

B

J1708 PUBLIC (-) CONNECTOR

(1661)

CONNECTOR - 2006789C1
BODY LOCK - 2006792C1

G

F

D

C

A

E

B

* W/ COMMUNICATIONS SYSTEM, AWARE

* W/ COMMUNICATIONS SYSTEM, AWARE

CONNECTOR - 1661259C1
BODY LOCK - 1661263C1

DRIVETRAIN J1939 AUTO HVAC

(1658)

TELEMATICS J1939

(1657N)

CONNECTOR - 1667741C1
BODY LOCK - 1667771C1

TELEMATICS J1939

TERM RESISTOR

(1657)

RESISTOR - 3519178C91

GAUGE HARNESS

DRIVETRAIN J1939

OPT GAUGES

(1659)

CONNECTOR - 1661259C1
BODY LOCK - 1661263C1

IP HARNESS

CONNECTOR - 1661260C1
BODY LOCK - 1661264C1

TELEMATICS J1939 TRUNK

(1657Y)

CONNECTOR - 1667740C1
BODY LOCK - 1667771C1

DRIVETRAIN J1939

(1657M)

CONNECTOR - 1667741C1
BODY LOCK - 1667771C1

DRIVETRAIN J1939 EATON AUTOSHIFT

(1652)

IP HARNESS

CONNECTOR - 1661259C1
BODY LOCK - 1661263C1



CONNECTOR - 1661260C1
BODY LOCK - 1661264C1

SHIFTER HARNESS

J1939 PUBLIC TERMINATING

RESISTOR
(1657M2)

CONNECTOR - 1667741C1
BODY LOCK - 1667771C1

W/ MWM ENGINE

J1939 CONNECTOR

(1657)

W/ MXT

CONNECTOR - 1667741C1
BODY LOCK - 1667771C1

DRIVETRAIN J1939

OPT GAUGES

(1659)

CAV

CIR

GAUGE

COLOR

TERM

A

A5BE(+)

20

YL

3534481C1

B

A5C(-)

20

GN

3534481C1

CAV

CIR

GAUGE

COLOR

TERM

SEAL

A

HA5A(+)

18

YL

1661875C1

3568570C1

B

PLUG

-

-

2025431C1

-

C

HA5A(-)

18

GN

1661875C1

3568570C1

CAV

CIR

GAUGE

COLOR

TERM

A

A5AV(+)

20

YL

3534481C1

B

A5AV(-)

20

GN

3534481C1

CAV

CIR

GAUGE

COLOR

TERM

A

A3C(-)

18

GY

1661208C1

B

A3T(-)

18

GY

1661208C1

C

A3F(-)

20

GY

1661208C1

C

A3F(-)

18

GY

1661208C1

D

A3AB(-)

18

GY

1661208C1

D

A98SD-

18

BK

1661208C1

D

A3BH(-)

18

GY

1661208C1

D

A3CE(-)

18

GY

1661208C1

E

A3D(-)

16

GY

1661208C1

F

A98(-)

18

GY

1661208C1

F

A98EV-

16

BK

1661209C1

F*

A98B1(-)

18

BK

1661208C1

G

A3D(-)

18

GY

1661208C1

G*

A98B2(-)

18

BK

1661208C1

CAV

CIR

GAUGE

COLOR

TERM

SEAL

A

L5B(+)1

18

YL

1661875C1

1661872C1

B

-

-

-

-

-

C

L5B(-)1

18

GN

1661875C1

1661872C1

CAV

CIR

GAUGE

COLOR

TERM

SEAL

A

A5AG(+)

20

YL

1661875C1

1661872C1

B

PLUG

-

-

2025431C1

-

C

A5AH(-)

20

GN

1661875C1

1661872C1

CAV

CIR

GAUGE

COLOR

TERM

SEAL

A

A5AG(+)

18

YL

1661875C1

3568570C1

B

PLUG

-

-

2025431C1

-

C

A5AH(-)

18

GN

1661875C1

3568570C1

CAV

CIR

GAUGE

COLOR

TERM

SEAL

A

HA5B(+)

18

YL

1661875C1

3568570C1

B

PLUG

-

-

2025431C1

-

C

HA5B(-)

18

GN

1661875C1

3568570C1

CAV

CIR

GAUGE

COLOR

TERM

A

A5AV(+)

20

YL

3534481C1

B

A5AV(-)

20

GN

3534481C1

CAV

CIR

GAUGE

COLOR

TERM

A

A5B(+)

20

YL

3544254C1

B

A5B(-)

20

GN

3534481C1

CAV

CIR

GAUGE

COLOR

TERM

A

A3C(+)

18

DKBL

1661208C1

B

A3T(+)

18

DKBL

1661208C1

C

A3E(+)

18

GY

1661208C1

C

A3E(+)

20

GY

1661208C1

D

A98SC+

18

BK

1661208C1

D

A3BH(+)

18

DKBL

1661208C1

D

A3AB(+)

18

DKBL

1661208C1

D

A3CE(+)

18

DKBL

1661208C1

E

A3D(+)

16

DKBL

1661208C1

F

A98(+)

18

DKBL

1661208C1

F

A98EV+

16

BK

1661209C1

F*

A98B1(+)

18

BK

1661208C1

G

A3D(+)

18

DKBL

1661208C1

G*

A98B2(+)

18

BK

1661208C1

CAV

CIR

GAUGE

COLOR

TERM

A

A5BE(+)

20

YL

3544254C1

B

A5BF(-)

20

GN

3544254C1

Figure 209

Connector Composites (1652), (1657), (1657M), (1657M2), (1657N), (1657Y), (1658), (1659),

(1660), (1661)

S08315

210

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

12.17. CONNECTOR COMPOSITES (1650), (1701), P. 13A

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CONNECTOR COMPOSITES - MATING VIEW SHOWN



CHAPTER 12

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00L788

01DEC01

59756C

AE08052376

13A

CNA1

31MAR09

ADDED MXT EFFECTS

C

61817B

IP / DASH CONNECTOR

(1701)

@ W/ 5TH WHEEL OPTION
* W/MWM ENGINE
# W/ MXT

CONNECTOR ASSY - 3595625C1

       PLUGE -3598921C1

64

27

1

51

76

13

39

26

50

38

12

65

CONNECTOR- 3544066C1



DIAGNOSTIC CONNECTOR

(1650)

B

C

D

E

F

G

A

H

J

W/ MWM ENGINE

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

A

-

-

-

-

B

-

-

-

-

C

A5AE(+)

18

YL

1651968C1

D

A5AF(-)

18

GN

1651968C1

E

-

-

-

-

F

-

-

-

-

G

-

-

-

-

H

-

-

-

-

J

-

-

-

-

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

27

A23K

16

TN

3574285C1

27

A59M

16

BK

3574285C1

27

A59RA

16

GY

3574285C1

27

A67D

16

LT BL

3574285C1

28

A104H

16

DK BL

3574285C1

28

A23J

18

TN

2003343C1

28

A67C

16

LT BL

3574285C1

28

A71P

18

BK

2003343C1

29

A21E

16

TN

3574285C1

29

A92#135

18

TN

2003343C1

30

A87B

18

GY

2003343C1

31

A104EC

18

DK BL

2003343C1

31

A23L

18

TN

2003343C1

31

A59J

18

BK

2003343C1

31

A73M

16

LT BL

3574285C1

32

A22B

18

TN

2003343C1

32

A42

18

GY

2003343C1

32

A59K

18

BK

2003343C1

32

A73AF

16

LT BL

3574285C1

32

A9W

18

GY

2003343C1

32#

ETB-S

20

WH

2003343C1

33

A94AA

16

GY

3574285C1

34

A94AB

16

GY

3574285C1

35

A123

18

PK

2003343C1

35

A124

18

PK

2003343C1

35

A92D(S)

20

NONE

2003343C1

35*

A24

16

GY

3574285C1

36

A173

18

YL

2003343C1

36

A92#134

18

YL

2003343C1

36

A92D(+)

20

YL

2003343C1

36

A98YL4+

18

YL

2003343C1

37

A110

18

YL

2003343C1

37

A180

18

DK BL

2003343C1

37

A92D(-)

20

GN

2003343C1

37

A98GN4-

18

GN

2003343C1

38

A41

18

GY

2003343C1

39

A175

18

LT GN

2003343C1

39

A92AC

16

TN

3574285C1

39

A92AC

16

TN

3574285C1

40

A3A(+)

16

DK BL

3574285C1

40

A3B(+)

16

DK BL

3574285C1

41

A3A(-)

16

GY

3574285C1

41

A3B(-)

16

GY

3574285C1

42

A94AK

16

GY

3574285C1

43

A94AL

16

GY

3574285C1

44

-

-

-

-

45

A94ATR

16

GY

3574285C1

46

A89AR

18

PL

2003343C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

46

A92AJ

16

TN

3574285C1

46

A92C124

18

TN

2003343C1

46

A98(+)

18

BK

2003343C1

47

A89CE

18

VT

2003343C1

47

A92RC

18

TN

2003343C1

47

A98(-)

18

BK

2003343C1

48

A103

18

LT GN

2003343C1

48

A12LC

18

PK

2003343C1

48

A92#164

18

TN

2003343C1

48@

A59C

18

GY

2003343C1

49

A94AM

18

GY

2003343C1

50

A94AN

18

GY

2003343C1

51

A94AT

16

GY

3574288C1

52

A94AS

18

GY

2003343C1

52#

LPS

20

PL

2003343C1

53

A94AP

18

GY

2003343C1

53#

LPP

20

PL

2003343C1

54

A94AR

18

GY

2003343C1

54#

LPR

20

PL

2003343C1

55

A94AX

18

GY

2003343C1

55#

TR-C

18

OR

2003343C1

56

A94AW

18

GY

2003343C1

57

A94AV

18

GY

2003343C1

58

A94AH

18

GY

2003343C1

59

A94AF

18

GY

2003343C1

60

A44A

18

GY

2003343C1

60

A94AJ

18

GY

2003343C1

61

A94AE

18

GY

2003343C1

62

A94AD

18

GY

2003343C1

63

A94AC

18

GY

2003343C1

64

-

-

-

-

65

A94AU

16

GY

3574288C1

65#

MTRA

14

DKBL

3574288C1

66

A143D

18

GY

3574289C1

66

A17C

16

PK

3574288C1

66#

MTRB

14

DKBL

3574288C1

67

A41A

18

GY

3574289C1

68

A172

18

DK BL

3574289C1

68

A92ER

16

TN

3574288C1

68

A92Z

16

TN

3574288C1

68#

AIRCP

12

PK

3574288C1

69

A171

18

LT GN

3574289C1

69

A92AA

16

TN

3574288C1

70

A170

18

OR

3574289C1

70

A92AB

16

TN

3574288C1

70#

ETB

14

DKBL

3574288C1

71

A22A

18

TN

3574289C1

71

A28B

18

TN

3574289C1

71

A92AH

16

TN

3574288C1

72@

A72D

18

OR

3574289C1

73

A14HC

16

RD

3574288C1

73

A73J

16

LT BL

3574288C1

74

A94AY

12

GY

3574288C1

75

A94AYA

16

GY

3574288C1

76

-

-

-

-

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

1

A99V

16

VT

3574288C1

2

A97Y

16

VT

3574288C1

3

A99W

16

VT

3574288C1

4

A99U

16

VT

3574288C1

5

A97P

16

VT

3574288C1

6

A3D(+)

16

DK BL

3574288C1

6

A59R

16

BK

3574288C1

7

A97Q

16

VT

3574288C1

7

A99E

16

VT

3574288C1

8

A17

16

PK

3574288C1

8

A17C

16

PK

3574288C1

9

A174

18

TN

3574289C1

9

A92AD

16

TN

3574288C1

9

A92AF

18

TN

3574289C1

10

A136D

18

PK

3574289C1

10

A92AE

16

TN

3574288C1

10

A92AG

18

TN

3574289C1

10

A92EL

16

TN

3574288C1

11

A13C

18

PK

3574289C1

12

A12R

16

LT BL

3574288C1

12

A14HD

16

RD

3574288C1

12

A44

20

GY

3574289C1

12

A47T

18

GY

3574289C1

13

A12M

16

LT BL

3574288C1

14

A3D(-)

18

GY

2003343C1

14

A70NT

16

RD

3574285C1

15

A5B(+)

18

YL

2003343C1

15*

A5B(+)

18

YL

2003343C1

16

A44

20

GY

2003343C1

16

A5B(-)

18

GN

2003343C1

16*

A5B(-)

18

GN

2003343C1

17

A40F

18

GY

2003343C1

18

A17J

18

PK

2003343C1

18*

A17MA

16

PK

3574285C1

19

A49D

18

GY

2003343C1

20

A49F

18

GY

2003343C1

21

-

-

-

-

22

A74

18

LT GN

2003343C1

23

A74A

18

LT GN

2003343C1

24

A23F

18

TN

2003343C1

24

A50S

18

YL

2003343C1

24

A67A

16

LT BL

3574285C1

24

A92#125

18

TN

2003343C1

24*

A23A

16

TN

3574285C1

25

A23H

18

TN

2003343C1

25

A67B

16

LT BL

3574285C1

25

A92RA

18

TN

2003343C1

25*

A23B

16

TN

3574285C1

26

A11-GAP

16

WH

3574288C1

26

A73R

16

LT BL

3574288C1

27

A12W

18

LT BL

2003343C1

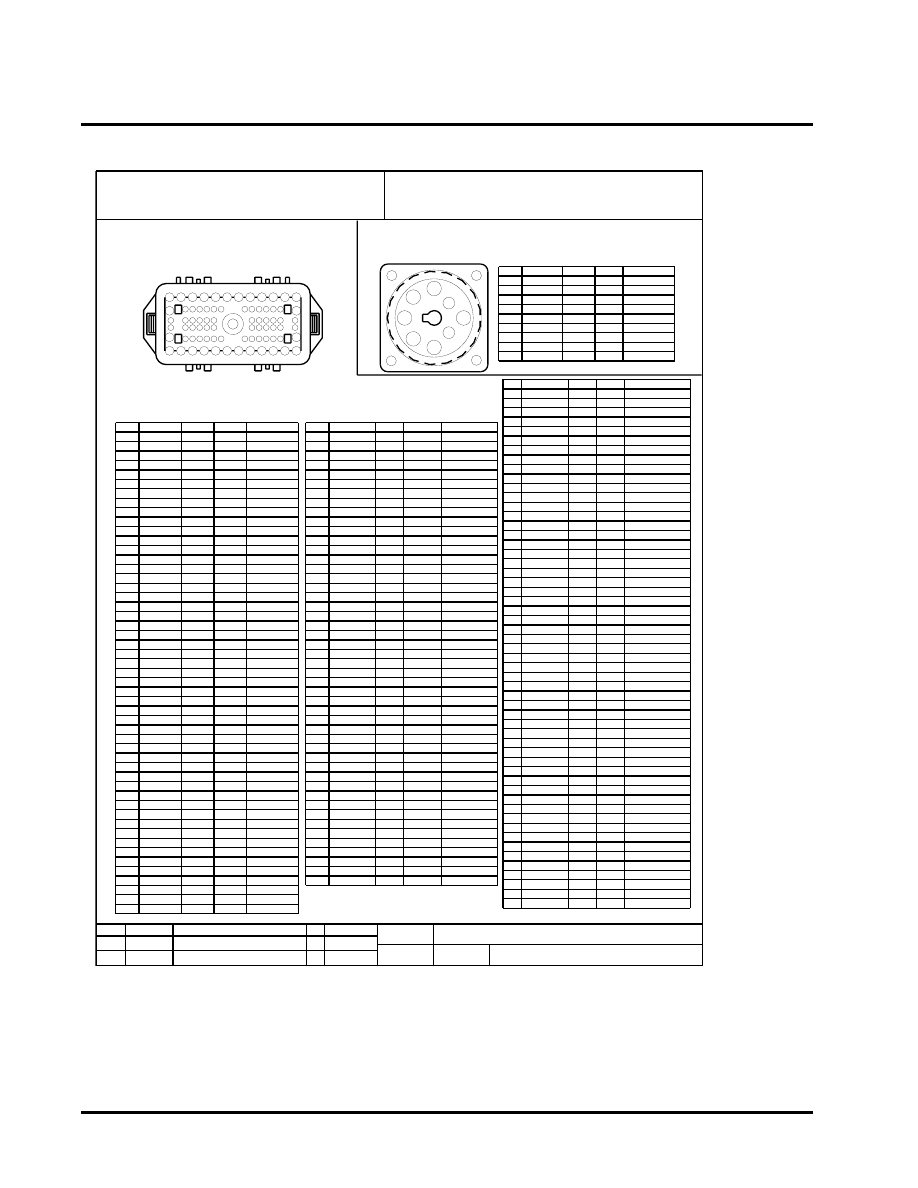

Figure 210

Connector Composites (1650), (1701)

S08315

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

211

12.18. CONNECTOR COMPOSITE (1701), P. 13B

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CHAPTER 12

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00L788

01DEC06

59756C

AE08052376

13B

CNA1

31MAR09

ADDED MXT EFFECTS

C

61817B

@ W/ 5TH WHEEL OPTION
* W/ MWM ENGINE
# W/ MXT

DASH PASS THRU

(1701)

CONNECTOR ASSY - 3595624C1

PLUG - 3598921C1

50

76

13

64

12

65

1

26

38

39

27

51

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

27

J59RA

16

GY

3549417C1

27

J67D

16

VT

3549417C1

28

J104B

16

DKBL

3549417C1

28

J23J

16

TN

3549417C1

28

J67C

16

VT

3549417C1

28

J71P

16

BK

3549417C1

29

J21E

18

TN

3549418C1

29

J92#135

18

TN

3549418C1

29

J92D158

18

LTGN

3549418C1

30

J87B

18

GY

3549418C1

30

J87BA

18

GY

3549418C1

30

J87BB

18

GY

3549418C1

31

J104D

18

DKBL

3549418C1

31

J23L

18

TN

3549418C1

31

J59J

18

BK

3549418C1

31

J73M

16

LTBL

3549417C1

32

J22B

18

TN

3549418C1

32

J42

18

GY

3549418C1

32

J59K

18

BK

3549418C1

32

J73AF

16

LTBL

3549417C1

32

J9W

18

GY

3549418C1

33

J94AA

18

OR

3549418C1

33

J94AA

18

GY

3549418C1

34

J94AB

18

GY

3549418C1

35

J5AX(S)

20

NONE

3549418C1

35

J92#110

16

TN

3549417C1

35

J92#124

16

TN

3549417C1

35

J92#142

18

WH

3549418C1

35

J92U(S)

20

NONE

3549418C1

35*

J24

16

GY

3549417C1

36

J5AX(+)

20

YL

3549418C1

36

J92#134

18

YL

3549418C1

36

J92#173

18

TN

3549418C1

36

J92S(+)

20

YL

3549418C1

36

J98YL4+

18

YL

3549418C1

37

J5AX(-)

20

GN

3549418C1

37

J92#103

18

TN

3549418C1

37

J92#128

18

TN

3549418C1

37

J92#180

18

TN

3549418C1

37

J92B128

18

TN

3549418C1

37

J92T(-)

20

GN

3549418C1

37

J98GN4-

18

GN

3549418C1

38

J41

18

GY

3549418C1

38

J92#110

18

TN

3549418C1

39

J92#175

16

TN

3549417C1

39

J92#175

18

TN

3549418C1

39

J92AC

16

TN

3549417C1

40

J3A(+)

18

DKBL

3549418C1

41

J3A(-)

18

GY

3549418C1

42

J94AK

18

YL

3549418C1

42

J94AK

18

GY

3549418C1

43

J94AL

18

DKBL

3549418C1

43

J94AL

18

GY

3549418C1

44

PLUG

-

-

3598921C1

45

J94ATR

18

GY

3549418C1

46

J89AR

18

PK

3549418C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

1

J99V

16

VT

3549416C1

2

J97Y

16

VT

3549416C1

3

J40FA

16

GY

3549416C1

3

J99W

16

VT

3549416C1

4

J99U

16

VT

3549416C1

5

J97P

16

VT

3549416C1

6

J1

16

LTBL

3549416C1

6

J3E(+)

16

DKBL

3549416C1

6

J59R

16

BK

3549416C1

7

J97Q

16

VT

3549416C1

7

J97QA

16

VT

3549416C1

7

J97QA

16

VT

3549416C1

8

J104K

16

DKBL

3549416C1

8

J104M

16

DKBL

3549416C1

8

J17

16

PK

3549416C1

9

J44L

16

GY

3549416C1

9

J92#174

16

TN

3549416C1

9

J92AD

16

TN

3549416C1

10

J92AE

16

TN

3549416C1

10

J92D136

16

TN

3549416C1

10

J92EL

16

TN

3549416C1

11

J13C

16

PK

3549416C1

12

J44

16

GY

3549416C1

12

J47

16

GY

3549416C1

12

J72B

16

OR

3549416C1

13

J12BA

16

LTBL

3549416C1

14

J3E(-)

18

GY

3549416C1

14

J70NT

16

RD

3549417C1

15

J5B(+)

18

YL

3549418C1

15

J5E(+)

18

YL

3549418C1

15*

J5B(+)

18

YL

3549418C1

16

J44

20

GY

3549418C1

16

J5B(-)

18

GN

3549418C1

16

J5E(-)

18

GN

3549418C1

16*

J5B(-)

18

GN

3549418C1

17

J40F

18

GY

3549418C1

18

J17J

18

PK

3549418C1

18

J17S

18

PK

3549418C1

18*

J17MA

16

PK

3549417C1

19

J49A

18

GY

3549418C1

19#

SPD SIG

-

-

-

20

J49B

18

GY

3549418C1

21

J94ATC

18

GY

3549418C1

22

J74

18

LTGN

3549418C1

23

J74A

18

LTGN

3549418C1

24

J23F

18

TN

3549418C1

24

J50S

16

YL

3549417C1

24

J67A

16

VT

3549417C1

24

J92#124

18

WH

3549418C1

24

J92#125

18

TN

3549418C1

24*

J23A

16

TN

3549417C1

25

J23H

18

TN

3549418C1

25

J67B

16

VT

3549417C1

25

J92#161

18

OR

3549418C1

25

J92#163

18

TN

3549418C1

25*

J23B

16

TN

3549417C1

26

J14-GD

16

WH

3549416C1

26

J73R

16

LTBL

3549416C1

27

J12W

18

LTBL

3549418C1

27

J23K

18

TN

3549418C1

27

J59M

18

BK

3549418C1

CAV

CIRCUIT

GAUGE

COLOR

TERMINAL

46

J92AJ

18

TN

3549418C1

46

J92B112

18

PK

3549418C1

46

J92C124

18

TN

3549418C1

46

J98(+)

18

BK

3549418C1

47

J89CE

18

VT

3549418C1

47

J92#103

18

YL

3549418C1

47

J92D161

18

TN

3549418C1

47

J98(-)

18

BK

3549418C1

48

J103A

18

LTGN

3549418C1

48

J12LC

18

PK

3549418C1

48

J92#156

18

YL

3549418C1

48

J92#164

18

TN

3549418C1

48@

J59C

18

GY

3549418C1

49

J94AM

18

GY

3549418C1

50

J94AN

18

GY

3549418C1

51

J94AT

16

GY

3549416C1

52

J94AS

18

GY

3549418C1

52#

JLPS

20

WH

3549418C1

53

J94AP

18

GY

3549418C1

53#

JLPP

20

WH

3549418C1

54

J94AR

18

GY

3549418C1

54#

JLPR

20

WH

3549418C1

55

J94AX

18

GY

3549418C1

55#

TR-C

-

-

-

56

J94AW

18

GY

3549418C1

57

J94AV

18

GY

3549418C1

58

J94AH

18

LTGN

3549418C1

58

J94AH

18

GY

3549418C1

59

J94AF

18

VT

3549418C1

59

J94AF

18

GY

3549418C1

60

J44A

16

GY

3549417C1

60

J94AJ

18

LTBL

3549418C1

60

J94AJ

18

GY

3549418C1

60#

J94D

-

-

-

61

J94AE

18

BN

3549418C1

61

J94AE

18

GY

3549418C1

62

J94AD

18

RD

3549418C1

62

J94AD

18

GY

3549418C1

63

J94AC

18

BK

3549418C1

63

J94AC

18

GY

3549418C1

64

PLUG

-

-

3598921C1

65

J94AU

16

GY

3549416C1

65#

JMTR-A

14

WH

3549416C1

66

J17C

16

PK

3549416C1

66

J92D143

16

TN

3549416C1

66#

JMTR-B

14

WH

3549416C1

67

J141A

16

GY

3549416C1

68

J92#172

16

TN

3549416C1

68

J92ER

16

TN

3549416C1

68

J92Z

16

TN

3549416C1

68#

JCMPR

14

WH

3549416C1

69

J92#171

16

TN

3549416C1

69

J92AA

16

TN

3549416C1

70

J92#170

16

TN

3549416C1

70

J92AB

16

TN

3549416C1

71

J22A

16

TN

3549416C1

71

J92AH

16

TN

3549416C1

71

J92APA

16

TN

3549416C1

72@

J72D

16

OR

3549416C1

72

J92APA

16

TN

3549416C1

73

J14HC

16

RD

3549416C1

73

J73J

16

LTBL

3549416C1

74

J94AY

12

GY

3549415C1

75

J94AYA

16

GY

3549416C1

76

PLUG

-

-

3598921C1

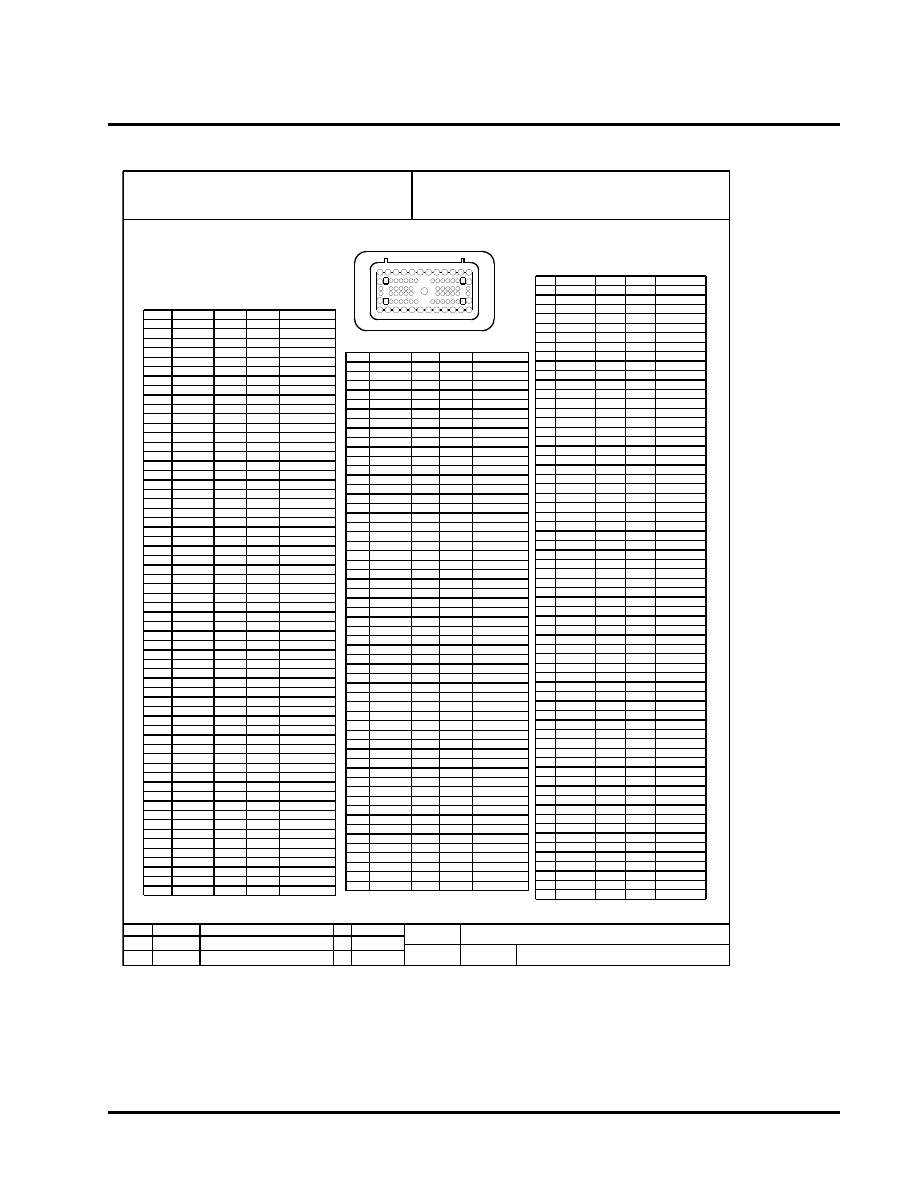

Figure 211

Connector Composite (1701)

S08315

212

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

12.19. CONNECTOR COMPOSITES (1703), (1800), (1804), (1807), (1808), (1809), (1810),
(1811), (1812), (1813), (1814), (1815), P. 14

INTERNATIONAL TRUCK AND ENGINE CORPORATION

DRAWN

DATE

ELECTRICAL CIRCUIT DIAGRAM

     THIS PRINT IS PROVIDED ON A RESTRICTED BASIS AND

      IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE

INTEREST OF INTERNATIONAL TRUCK AND ENGINE CORPORATION.

REV

CHK

CHANGE

DATE

NAME

REFERENCE

PART NO.

RELEASE NO.

SHEET

CHAPTER 12

CONNECTOR COMPOSITES - MATING VIEW SHOWN

CIRCUIT DIAGRAM, 42/43/44/85/8600 & 73/74/7500

U00DLCK

21JUN00

P52778H

AE08052376

014

CNA1

31MAR09

ADDED MXT EFFECTS

F

61817B

ACCELERATOR

PEDAL

(1804)

A

2

6

4

2

C

5

1

7

2

A

1

7

6

1

8

E

C

B

10

9

2

9

5

11

C

3

5

8

9

F

1

5

1

4

3

DCM HARNESS

3

5

11

3

3

11

8

4

C

8

8

7

C

6

6

4

12

A

9

B

D

C

CONNECTOR:  3539212C1
TERMINAL:   3539213C1
            (18 AWG)

1

D

2

1

7

D

D

CAB HARNESS

7

4

6

1

3

6

D

2

CONNECTOR:  2036584C1
TERMINAL:   2036586C1
            (18 AWG)

CAB/DCM

(1800)

C

2

6

8

8

4

1

A

11

BAP SENSOR

(1808)

3

7

2

C

3

12

3

2

8

D

3

10

D

CONNECTOR:  1661259C1
TERMINAL:   1661261C1
            (18 AWG)

1

B

B

B

CONNECTOR:            3553649C1
BODY LOCK:            3553650C1
150 SERIES TERMINAL:  3544883C1 (20 AWG)
                     #3544884C1 (16 AWG)
                      3544884C1 (18 AWG)
280 SERIES TERMINAL:  3544875C1 (20 AWG)
                      3544876C1 (18 AWG)

B

10

8

3

11

C

12

A

6

3

2

12

CONNECTOR:  1661777C1
BODY LOCK:  1661873C1
SEAL:       1661872C1
TERMINAL:   1661875C1
            (18 AWG)

5

A

B

1

B

6

A

B

8

PRIMARY

AIR TRANSDUCER

(1811)

3

12

B

7

B

7

9

2

12

C

6

6

STOP LIGHT

(1814)

B

A

A

11

2

CONNECTOR:  2016703C1
BODY LOCK:  2016704C1
TERMINAL:   2003343C1
            (18 AWG)

5

A

10

8

5

7

4

5

10

2

C

5

6

5

4

6

4

CONNECTOR:  3540757C1
BODY LOCK:  3540758C1
SEAL:       1661872C1
TERMINAL:   1667742C1
            (18 AWG)

8

2

3

10

2

CONNECTOR:  1678137C1
TERMINAL:   1651934C1
            (18 AWG)

A

TURN SIGNAL

SWITCH
(1810)

CLUTCH SWITCH

(1807)

B

11

7

7

1

* W/ COMMUNICATIONS SYSTEM, AWARE
# W/ MWM ENGINE

CLOCKSPRING

(1809)

A

B

1

1

CONNECTOR:  3547870C1
TERMINAL:   1661261C1
            (18 AWG)

7

7

4

6

2

1

B

12

CONNECTOR:  3553651C1
BODY LOCK:  3544872C1
CONN CLIP:  3545905C1
            (1805A)
TERMINAL:   3544886C1
            (18 AWG)

4

PARK BRAKE

(1813)

8

6

5

B

A

PARK BRAKE

(1815)

C

4

CONNECTOR:  1678137C1
TERMINAL:   1651934C1
            (18 AWG)

7

2

8

5

4

1

11

D

10

D

12

5

4

SECONDARY

AIR TRANSDUCER

(1812)

3

9

8

3

5

9

7

A

D

C

7

6

A

8

C

10

D

A

1

9

5

4

3

4

12

1

6

CONNECTOR: 1687790C1
TERMINAL:  1651943C1
           (18 AWG)

7

B

A

FAN AIR SOLENOID

(1703)

CONNECTOR - 1671610C1

W/ MWM ENGINE

* W/ COMMUNICATION SYSTEM, AWARE

# W/ MXT

CIR

GAUGE

COLOR

B56A

18

OR

B57A

18

OR

B52A

18

YL

B102A

18

YL

B82B

18

GY

B11-GAA

18

WH

B9S

18

GY

B82

18

GY

B82A

18

GY

B87A

18

GY

CAV

CIR

GAUGE

COLOR

C

B44BB

18

GY

D

B9VD

18

GY

CAV

CIR

GAUGE

COLOR

1

B97AE

18

VT

2

B97AH

18

VT

3

B97Q

18

VT

CAV

CIR

GAUGE

COLOR

A

B99V

18

VT

B

B97AD

18

VT

C

B97AF

18

VT

D

B99U

18

VT

E

B99W

18

VT

F

B99E

18

VT

CAV

CIR

GAUGE

COLOR

A

WHITE

18

WH

B

BLACK

18

BK

CAV

CIR

GAUGE

COLOR

A

B9VE

18

GY

B

B6HA

18

GY

C

B40A

18

GY

CAV

CIR

GAUGE

COLOR

A

B9VC

18

GY

B

B6HB

18

GY

C

B40

18

GY

CAV

CIR

GAUGE

COLOR

A

B70C

18

RD

B

B9VF

18

GY

CAV

CIR

GAUGE

COLOR

NOTES

A1

B56A

18

OR

A2

B57A

18

OR

A3

B11-GAA

18

WH

A4

B9V

18

GY

A5

B87A

18

GY

A7

B52A

18

YL

A8

B102A

18

YL

B1

B82B

18

GY

B10

B85B

18

GY

B11

B85C

18

GY

B12

B96

18

VT

B2

B40A

18

GY

B3

B6H

18

GY

B4

B97Y

18

VT

B5

B99U

18

VT

B6

B40G

18

GY

DCM W/HYD BRAKES

B6

B40G

18

GY

W/HYD BRAKES

B6

B99W

18

VT

DCM W/AIR BRAKES

B7

B44BB

18

GY

B9

B70C

18

RD

C1

B82A

18

GY

C10

B97Q

18

VT

C11

B96A

18

VT

C12

B40

18

GY

C2

B40F

18

GY

C4

B99V

18

VT

C5

B97P

18

VT

C6

B99E

18

VT

C9

B82

18

GY

D7

B17J

18

PK

D8

B17H

18

PK

D8

B17-GH

18

WH

CAV

CIR

GAUGE

COLOR

A

B17J

18

PK

B

B17H

18

PK

C

B96A

18

VT

D

B9VB

18

GY

CAV

CIR

GAUGE

COLOR

A

B9R

18

GY

B

B96

18

VT

C

B85C

18

GY

D

B85B

18

GY

CAV

CIR

GAUGE

COLOR

TERMINAL

SEAL/SLEEVE

A

K23

16

TN

2033819C1

1652325C1

B

K23-G

16

WH

2033819C1

1652325C1

CAV

CIR

GAUGE

COLOR

NOTES

A1

A56A

20

OR

A2

A57A

20

OR

A3

A11-GAA

18

WH

280 SERIES TERMINAL

A4

A9V

18

GY

280 SERIES TERMINAL

A4*

A74A2

18

GY

280 SERIES TERMINAL

A4*

A74A3

18

GY

280 SERIES TERMINAL

A5

A87C

20

GY

280 SERIES TERMINAL

A7

A52A

20

YL

A8

A102A

20

YL

B1

A82B

20

GY

B10

A85B

20

GY

B11

A85C

20

GY

B11

A85K

18

GY

B12

A96

20

VT

B12#

A96

20

PL

B2

A40A

20

GY

B3

A6H

20

GY

B4

A97Y

18

VT

B4#

A97Y

18

PL

B5

A99U

18

VT

B5#

A99U

18

PL

B6

A99W

18

VT

B6#

A99W

18

PL

B7

A44BB

20

GY

B7*

A74-GA2

18

WH

B9

A70C

20

RD

C1

A82A

20

GY

C10

A97Q

18

VT

C10#

A97Q

18

PL

C11

A96A

20

VT

C11#

A96A

20

PL

C12

A40

20

GY

C2

A40F

18

GY

C4

A99V

18

VT

C4#

A99V

18

PL

C5

A97P

18

VT

C5#

A97P

18

PL

C6

A99E

18

VT

C6#

A99E

18

PL

C9

A82

20

GY

D7

A17J

18

PK

D7#

A17M

16

PK

D8

A17H

18

PK

D8

A17-GH

18

WH

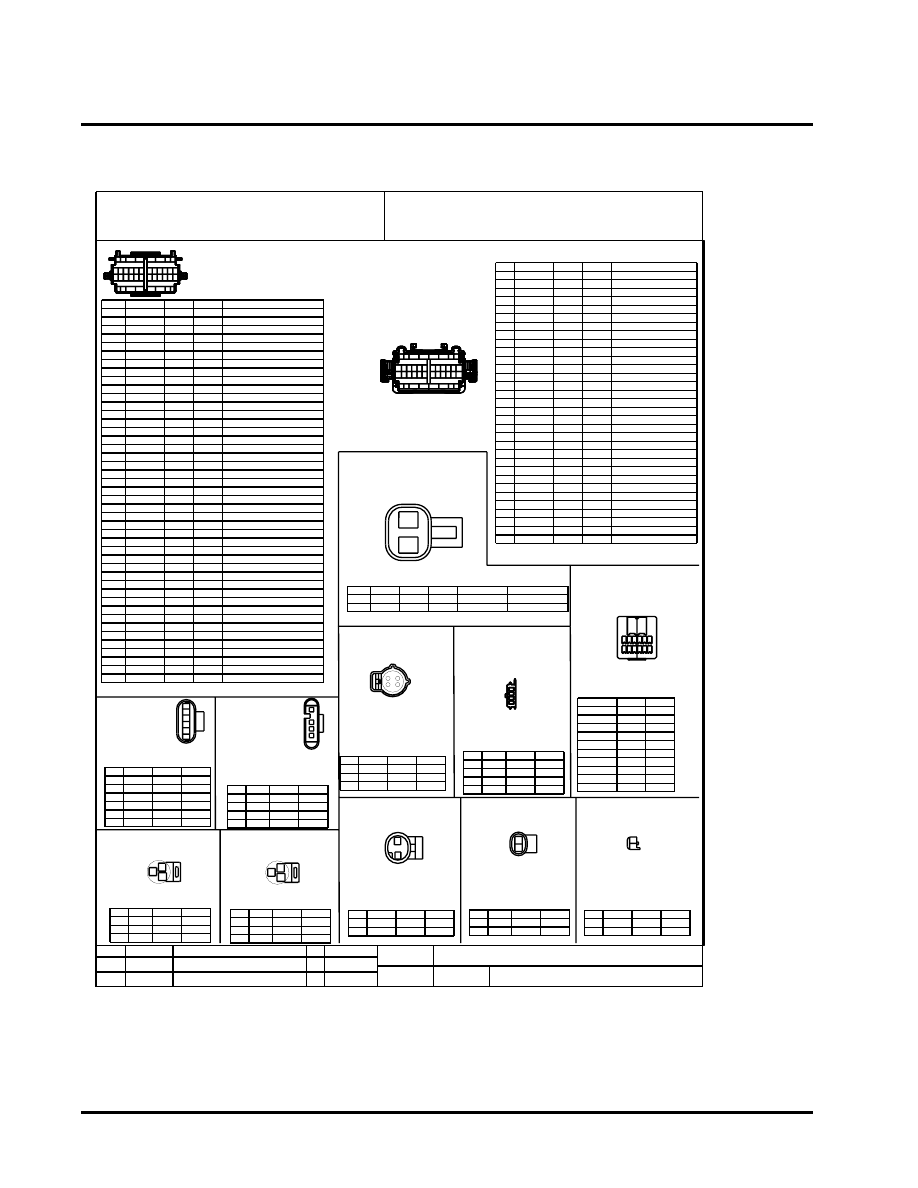

Figure 212

Connector Composites (1703), (1800), (1804), (1807), (1808), (1809), (1810), (1811), (1812),

(1813), (1814), (1815)

S08315

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

213

12.20. CONNECTOR COMPOSITES (1820), (1822), (1823), (1824), (1828), (1852), (1860),
P. 15

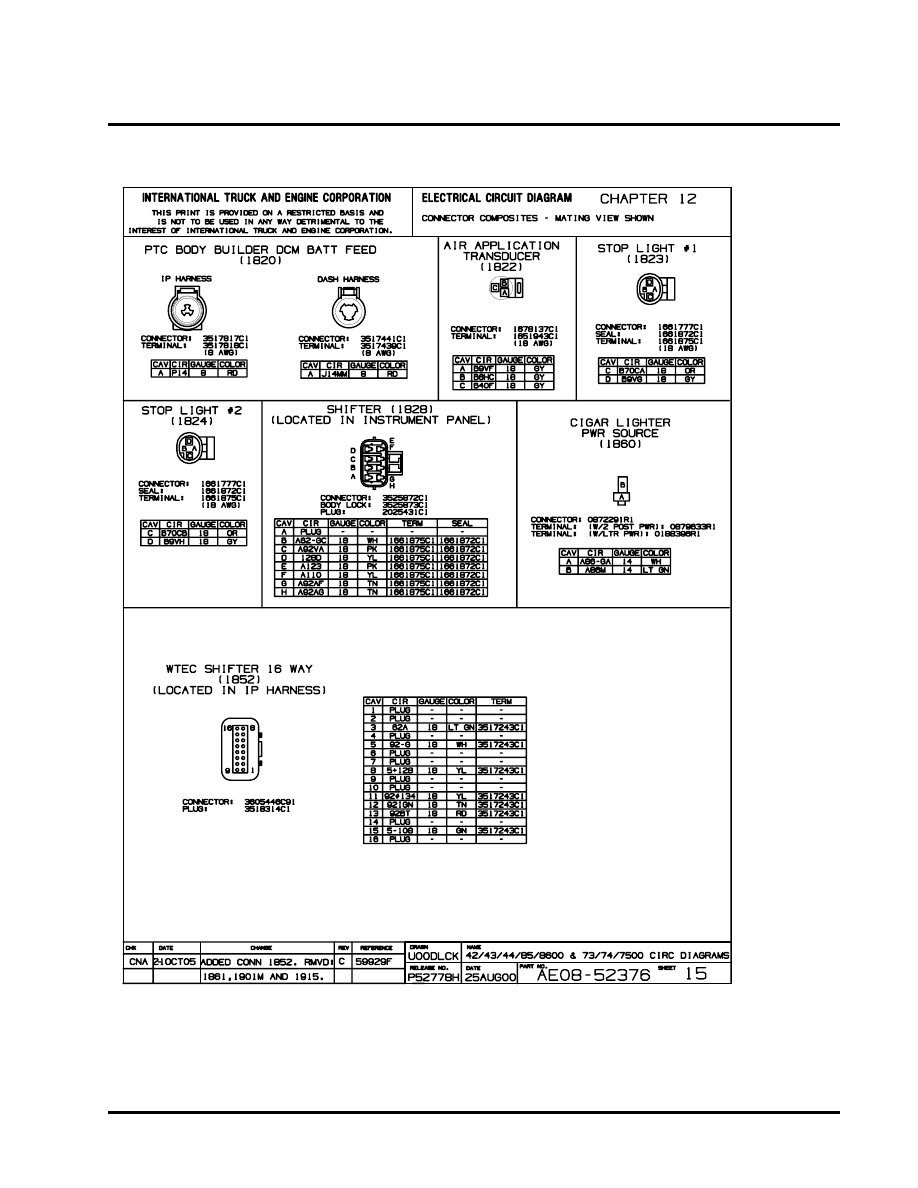

Figure 213

Connector Composites (1820), (1822), (1823), (1824), (1828), (1852), (1860)

S08315

214

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT

Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS

12.21. CONNECTOR COMPOSITES (1861), (1901M), (1905), (1906), (1915), P. 15A

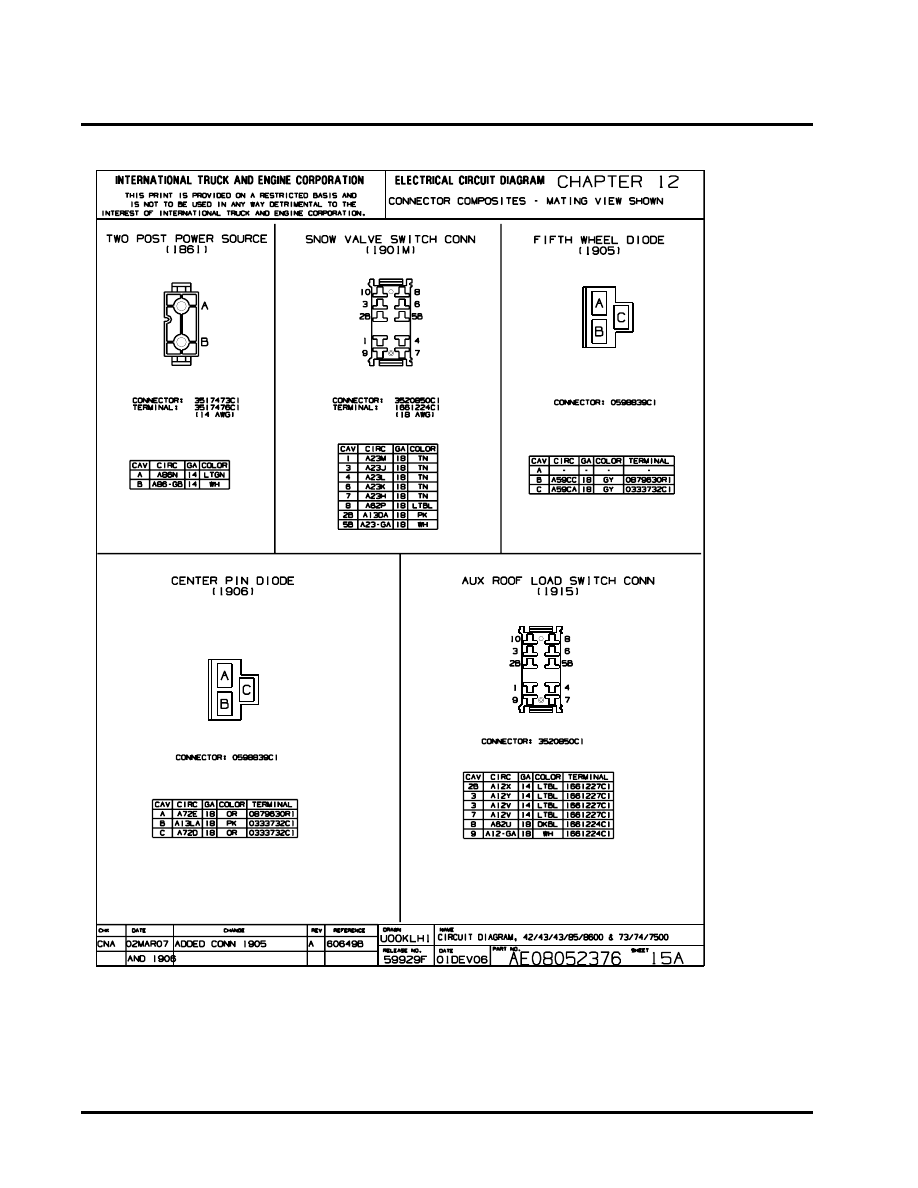

Figure 214

Connector Composites (1861), (1901M), (1905), (1906), (1915)

S08315
