13-22 BRAKES
Brake Panel Assemblies

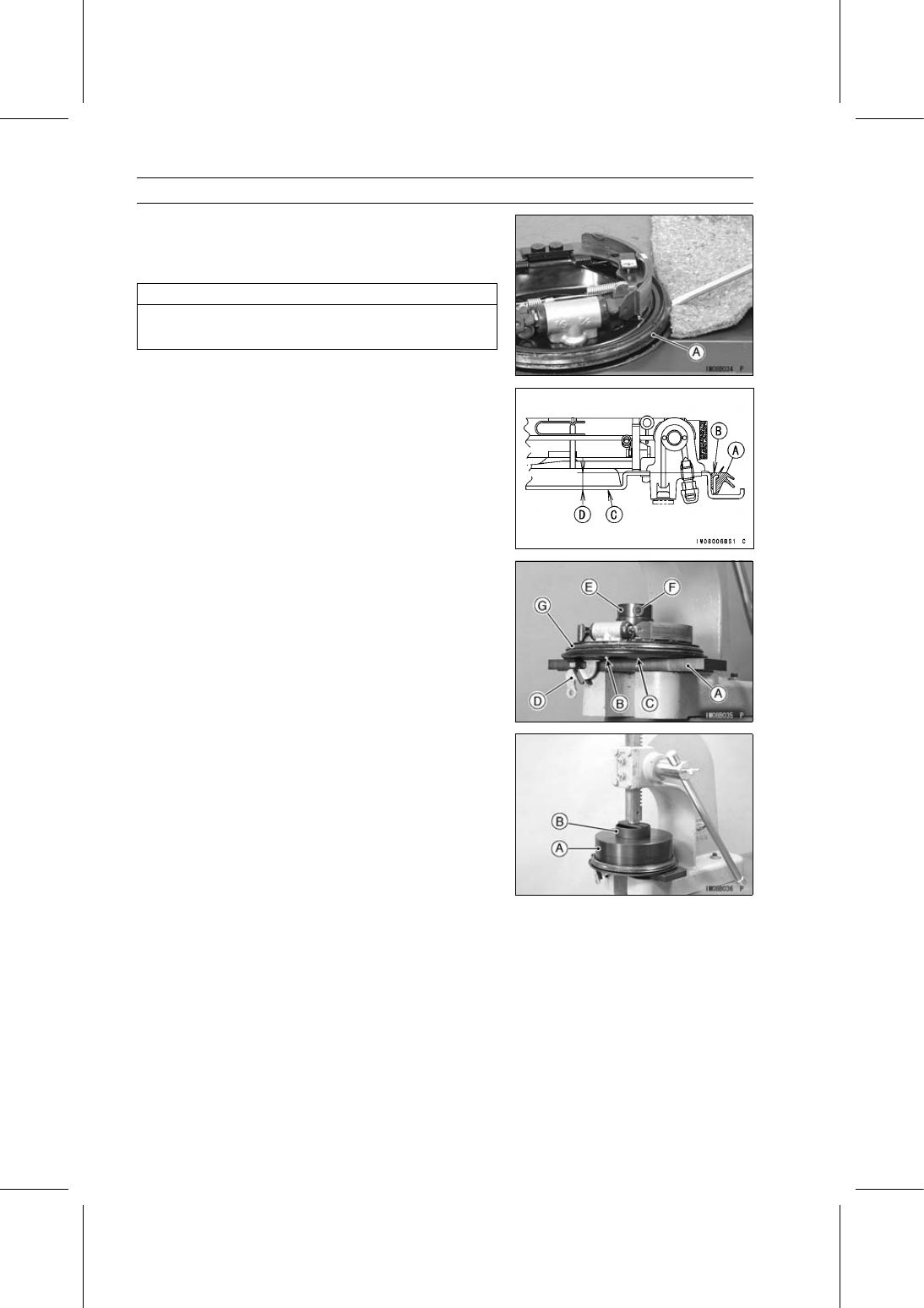

Grease Seal Replacement
•
Remove:
Brake Panel Assy (see Brake Panel Assy Removal)
Grease Seal [A]
NOTICE
Be careful not to damage the brake panel when re-
moving the grease seal.
•
Install the grease seal [A] to specified position as shown
in the figure.
Top Surface of Grease Seal [B]
Center Bottom of Brake Panel [C]
11.2
∼ 12.0 mm (0.44 ∼ 0.47 in.) [D]
NOTE
○
If the following special tool (Grease Seal Driver Set) is
used, the position will be secured.
•
Apply soapsuds to inside area of the new grease seal.
•
Put the brake panel on a suitable flat plate [A] so that the
bleed valve fitting [B], boss [C] and parking brake lever
linkage [D] (rear only) are not contact to the plate.
•
Put the guide [E] in the panel so that the UP mark [F] faces
upward.
Special Tool - Grease Seal Driver Set: 57001-1629
•
Put the grease seal [G] on the brake panel evenly.
•
Put the grease seal driver [A] on the grease seal evenly.
Special Tool - Grease Seal Driver Set: 57001-1629
•
Put the compressor [B] to center on the grease seal driver.
Special Tool - Clutch Spring Compressor: 57001-1162
•
Using a press install the grease seal.
•
Pack lithium grease (NLGI Grade No.2) to the grease seal
lips (see Brake Drum Installation).
