12-42 FINAL DRIVE
Drive Shaft and Axles
•

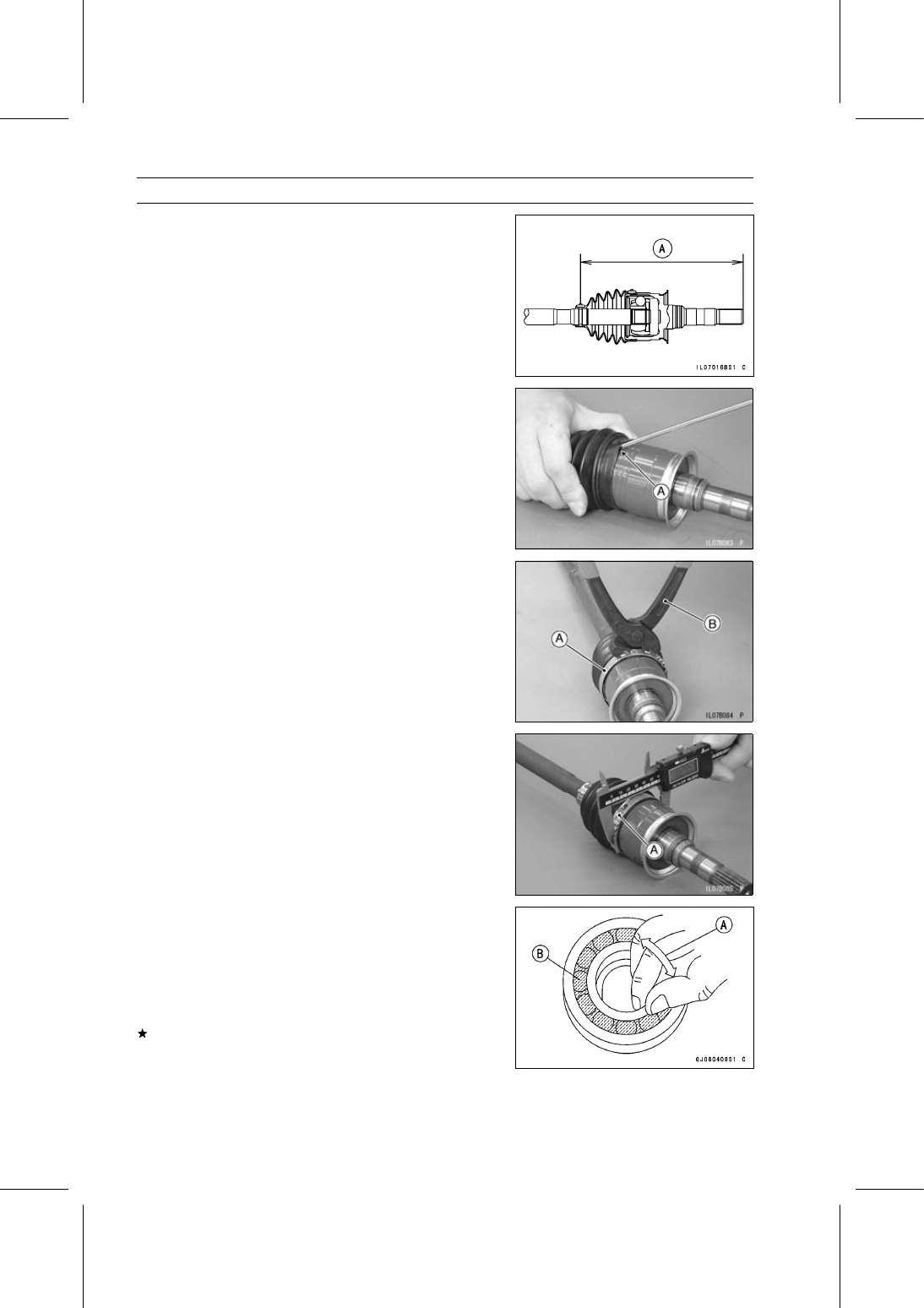

Compress the axle assembly to the specified length while
relieving the air pressure inside the boot.
•
Hold the axle at this setting.
Standard Length of Assembling:
Outboard
210..3 mm (8.280 in.) [A]
○
Slightly open [A] the larger diameter end of the joint boot
to equalize the air pressure inside the boot.
•
Pinch the boot bands [A] with a suitable tool [B] to install
them.
○
Compress the suitable tool with a vice, if necessary.
•
Be sure the outside diameter of the band [A] is less than
the maximum diameter.
Maximum Outside Diameter of Band: 68.9 mm (2.71 in.)
Ball Bearing Inspection
•
Since the ball bearings are made to extremely close toler-
ances, the wear must be judged by feel rather than mea-
surement. Clean each bearing in a high flash-point sol-
vent, dry it (do not spin the bearing while it is dry), and oil
it with engine oil.
•
Spin [A] the bearing by hand to check its condition.
If the bearing [B] is noisy, does not spin smoothly, or has
any rough spots, replace it.
