Siemens SITRANS T Temperature transmitters SITRANS TH/TR/TF. Compact Operating Instructions (2013)

A5E32520716-01, 06/2013

SITRANS T

Temperature transmitters

SITRANS TH/TR/TF

Compact Operating Instructions

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The

notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage

have no safety alert symbol. These notices shown below are graded according to the degree of danger.

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE
indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of

injury to persons with a safety alert symbol may also include a warning relating to property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by personnel qualified for the specific task in accordance with

the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their

training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products

and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage,

installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any

problems. The permissible ambient conditions must be complied with. The information in the relevant documentation must be observed.

Introduction

These instructions are a brief summary of important features, functions and safety information, and contain all information

required for safe use of the device. It is your responsibility to read the instructions carefully prior to installation and

commissioning. In order to use the device correctly, first review its principle of operation.
The instructions are aimed at persons who mechanically assemble the device, connect it electrically, and start it up.
To achieve optimum usage of the device, read the detailed version of the manual.
1.

Check the packaging and the device for visible damage caused by inappropriate handling during shipping.

Report any claims for damages immediately to the shipping company.

Retain damaged parts for clarification.

Check the scope of delivery by comparing your order to the shipping documents for correctness and completeness.

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

WARNING

Using a damaged or incomplete device
Danger of explosion in hazardous areas.

●

Do not use damaged or incomplete devices.

To guarantee sufficient protection during transport and storage, observe the following:

●

Keep the original packaging for subsequent transportation.

●

Devices/replacement parts should be returned in their original packaging.

●

If the original packaging is no longer available, ensure that all shipments are properly packaged to provide sufficient

protection during transport. Siemens cannot assume liability for any costs associated with transportation damages.

CAUTION

Insufficient protection during storage
The packaging only provides limited protection against moisture and infiltration.

●

Provide additional packaging as necessary.

Special conditions for storage and transportation of the device are listed in "Technical data" (Page 26).
The contents of this manual shall not become part of or modify any prior or existing agreement, commitment or legal

relationship. The sales contract contains all obligations on the part of Siemens as well as the complete and solely applicable

warranty conditions. Any statements regarding device versions described in the manual do not create new warranties or

modify the existing warranty.
The content reflects the technical status at the time of publishing. Siemens reserves the right to make technical changes in

the course of further development.

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

Symbol

Meaning

Pay attention to the operating instructions

Observe the test certification, provisions and laws applicable in your country during connection, assembly and operation.

These include, for example:

●

National Electrical Code (NEC - NFPA 70) (USA)

●

Canadian Electrical Code (CEC) (Canada)

Further provisions for hazardous area applications are for example:

●

IEC 60079-14 (international)

●

EN 60079-14 (EC)

The CE mark on the device is a sign of conformity with the following European directives:
Electromagnetic Compatibility EMC

2004/108/EC

Directive of the European Parliament and of the Council on the approximation of the

laws of the Member States relating to electromagnetic compatibility and repealing

Directive 89/336/EEC.

Atmosphère explosible ATEX

94/9/EC

Directive of the European Parliament and the Council on the approximation of the

laws of the Member States concerning equipment and protective systems intended

for use in potentially explosive atmospheres.

The directives applied can be found in the EC declaration of conformity for the associated device.

WARNING

Improper device modifications
Danger to personnel, system and environment can result from modifications to the device, particularly in hazardous areas.

●

Only carry out modifications that are described in the instructions for the device. Failure to observe this requirement

cancels the manufacturer's warranty and the product approvals.

Qualified personnel for hazardous area applications
Persons who install, connect, commission, operate, and service the device in a hazardous area must have the following

specific qualifications:

●

They are authorized, trained or instructed in operating and maintaining devices and systems according to the safety

regulations for electrical circuits, high pressures, aggressive, and hazardous media.

●

They are authorized, trained, or instructed in carrying out work on electrical circuits for hazardous systems.

●

They are trained or instructed in maintenance and use of appropriate safety equipment according to the pertinent safety

regulations.

WARNING

Unsuitable device for the hazardous area
Danger of explosion.

●

Only use equipment that is approved for use in the intended hazardous area and labelled accordingly.

WARNING

Loss of safety of device with type of protection "Intrinsic safety Ex i"
If the device has already been operated in non-intrinsically safe circuits or the electrical specifications have not been

observed, the safety of the device is no longer ensured for use in hazardous areas. There is a danger of explosion.

●

Connect the device with type of protection "Intrinsic safety" solely to an intrinsically safe circuit.

●

Observe the specifications for the electrical data on the certificate and in Chapter "Technical data (Page 26)".

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

Mounting

WARNING

Exceeded maximum ambient or process media temperature
Danger of explosion in hazardous areas.
Device damage.

●

Make sure that the maximum permissible ambient and process media temperatures of the device are not exceeded.

Refer to the information in Chapter "Technical data (Page 26)".

WARNING

Open cable inlet or incorrect cable gland
Danger of explosion in hazardous areas.

●

Close the cable inlets for the electrical connections. Only use cable glands or plugs which are approved for the relevant

type of protection.

WARNING

Incorrect conduit system
Danger of explosion in hazardous areas as result of open cable inlet or incorrect conduit system.

●

In the case of a conduit system, mount a spark barrier at a defined distance from the device input. Observe national

regulations and the requirements stated in the relevant approvals.

3.1

Mounting SITRANS TH/TR

3.1.1

Installation in the connection head

Note
The transmitter is only designed for installation in a type B connection head or larger.

The transmitter is either secured in the base of the connection head or in the raised cover of the connection head.
Included in the transmitter's scope of delivery are:

●

Springs

●

Fixing screws

●

Lock washers for installation on the round plate (TH200/TH300 only)

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

Securing the transmitter:
in the connection head cover

in the connection head base

①

Transmitter

②

Ceramic base of the measuring element

③

Connection head

Note
Using the lock washers (TH200/TH300 only)
The lock washers

④

included in the delivery are only required for securely fastening the transmitter when the transmitter

②

is directly installed on the round plate

③

for a temperature probe.

①

Fixing screw M4x35

②

Transmitter

③

Round plate

④

Lock washer DIN 6799 - 3.2 A2

3.1.2

SITRANS TH installation on DIN rail and G rail

Note
Fixing rings
The fixing rings included in the scope of delivery for the transmitter are not required for the installation on DIN rails or G rails.

You can either install the transmitter on a 35 mm DIN rail or on a 32 mm G rail. DIN EN 60715 applies to DIN rails and G

rails in this context. The DIN rail adapter required for installation can be ordered as an accessory under the Order No.

7NG3092-8KA.
Adhere to the ambient conditions specified in the technical data.

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

3.2

Mounting SITRANS TF

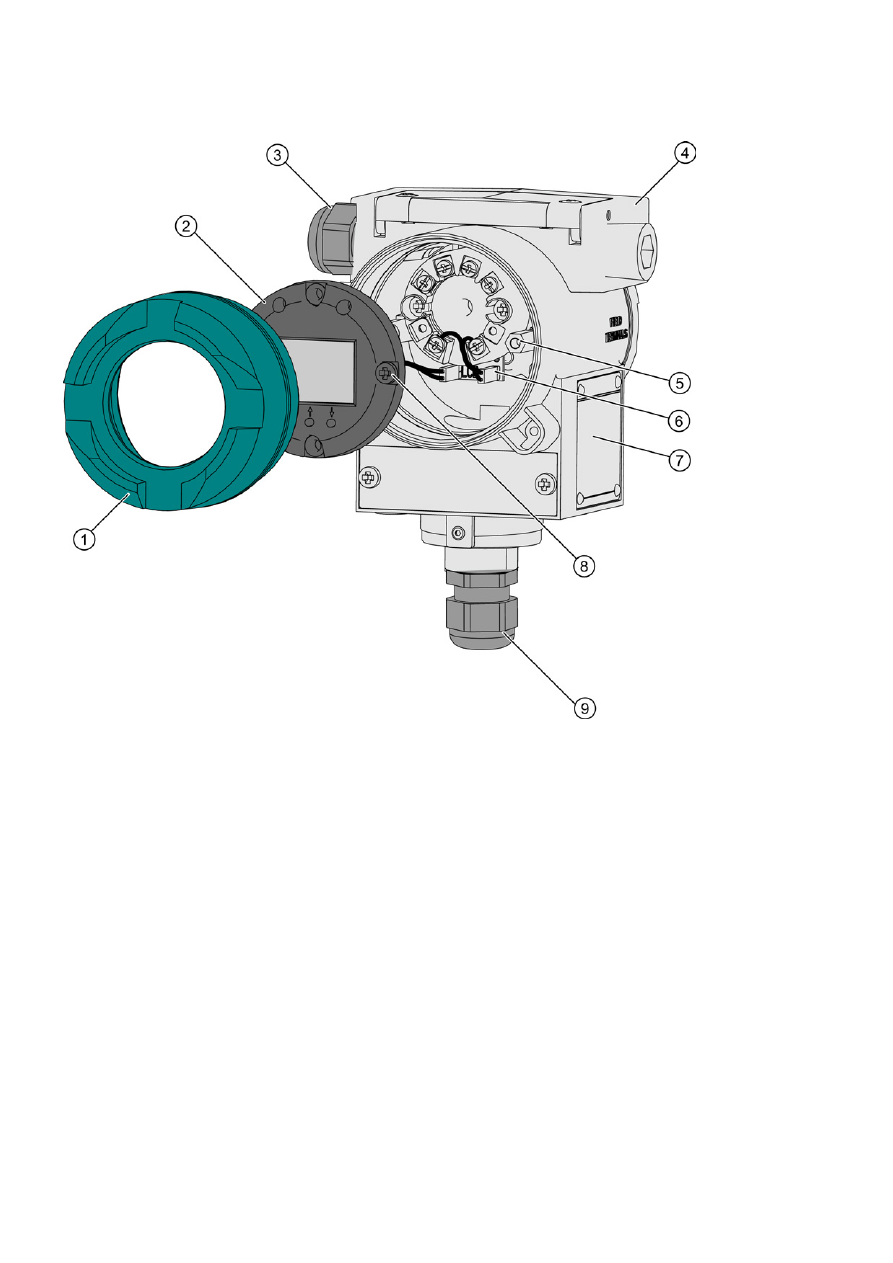

①

Cover with inspection window

⑥

Plug-in connector from SITRANS TH200 or TH300

②

Display module (digital display)

⑦

Ex nameplate

③

Cable gland for auxiliary power

supply/analog output

⑧

M4 screw

④

SITRANS TF field housing

⑨

Cable gland for sensor cable

⑤

Spacers

Figure 3-3

Design of SITRANS TF with display module (digital display)

Procedure
1.

Unscrew the front cover

①

Screw the two spacers

⑤

into the right and left threads. Torque approx. 3 Nm.

Remove the left-hand shorting bars on the PC board located under the transmitter.

Insert the plug-in connector from the display module. The plus side with the red wire must face upward.

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

Note
Reverse polarity protection
The display module has integrated reverse polarity protection. The display module will not function if the polarity is

reversed, but will not be damaged. Make sure the polarity is correct. If the display module does not function, reverse the

polarity of the plug-in connector.

Using the two M4 screws

⑧

supplied, attach the display module to the two spacers

⑤

in the electronics compartment of

the SITRANS TF field housing.
Torque approx. 2.5 Nm.

Use the three buttons to assign parameters to the display module

②

Screw the cover back into place. We recommend using a cover with an inspection window, e.g. 7MF4997-1BE.

To remove the display module, follow the reverse procedure.

Connection

WARNING

Unsuitable cables and/or cable glands
Danger of explosion in hazardous areas.

●

Only use suitable cables and cable glands complying with the requirements specified in Chapter "Technical data

(Page 26)".

●

Tighten the cable glands in accordance with the torques specified in Chapter "Technical data (Page 26)".

●

When replacing cable glands use only cable glands of the same type.

●

After installation check that the cables are seated firmly.

WARNING

Dangerous contact voltage
Danger of electric shock in case of incorrect connection.

●

For the electrical connection specifications, refer to the information in Chapter "Technical data (Page 26)".

●

At the mounting location of the device observe the applicable directives and laws for installation of electrical power

installations with rated voltages below 1000 V.

NOTICE
Ambient temperature too high
Damage to cable sheath.

●

At an ambient temperature ≥

60 °C (140 °F), use heat-resistant cables suitable for an ambient temperature at least 20

°C (68 °F) higher.

WARNING

Improper power supply
Danger of explosion in hazardous areas as result of incorrect power supply, e.g. using direct current instead of alternating

current.

●

Connect the device in accordance with the specified power supply and signal circuits. The relevant specifications can

be found in the certificates, in Chapter "Technical data (Page 26)" or on the nameplate.

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

WARNING

Improper laying of shielded cables
Danger of explosion through compensating currents between hazardous area and the non-hazardous area.

●

Only ground shielded cables that run into the hazardous area at one end.

●

If grounding is required at both ends, use an equipotential bonding conductor.

WARNING

Connecting device in energized state
Danger of explosion in hazardous areas.

●

Connect devices in hazardous areas only in a de-energized state.

Exceptions:

●

Circuits of limited energy may also be connected in the energized state in hazardous areas.

●

Exceptions for type of protection "Non-sparking nA" (Zone 2) are regulated in the relevant certificate

WARNING

Incorrect selection of type of protection
Danger of explosion in areas subject to explosion hazard.
This device is approved for several types of protection.
1.

Decide in favor of one type of protection.

Connect the device in accordance with the selected type of protection.

In order to avoid incorrect use at a later point, make the types of protection that are not used permanently

unrecognizable on the nameplate.

Note
Improvement of interference immunity

●

Lay signal cables separate from cables with voltages > 60 V.

●

Use cables with twisted wires.

●

Keep device and cables in distance to strong electromagnetic fields.

●

Use shielded cables to guarantee the full specification according to HART.

●

Refer to HART communication information in Chapter "Technical data (Page 26)".

Note
Limited range of use
If the device has been operated outside the ambient conditions specified for potentially explosive atmospheres, you may no

longer operate the device in potentially explosive atmospheres. Make sure to permanently mask all Ex markings on the

nameplate.

WARNING

Risk of explosion when using unsuitable HART device
Only intrinsically safe HART modems or HART communicators are allowed to be operated in the intrinsically safe area or

on intrinsically safe circuits.

Note
Electrical data and T

amb

Electrical data and T

amb

are dependent on Ex-protection class, see Certificates

(

http://www.siemens.com/processinstrumentation/certificates

)

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

4.1

Safety notes for connecting in hazardous areas TH100

Zone 0, 1, 2 in type of protection "ia/ib/ic" - intrinsic safety

●

Only connect the transmitter, in accordance with the certificate of compliance, to devices certified as intrinsically-safe.

●

If the connection head is made of aluminum, the requirements of EN 60079-26, section 4.3.3, must be observed for uses

where the device category 1 G is required.

●

The transmitter must be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to

EN60529

Maximum values of the auxiliary power supply and signal circuits:
U

= 30 V DC

= 100 mA

= 750 mW

= 106 μH

= 7.3 nF

Maximum values of the sensor circuit for Ex ia:
U

= 9.6 V DC:

= 7.6 mA

= 12.5 mW

[mH]

0,5

[nF]

560

700

940

1250

●

If the connection head is made of aluminum, the requirements of EN 60079-26, section 4.3.3, must be observed for uses

where the device category 1 G is required.

Zone 2 in type of protection "ic"

●

Only connect the transmitter to devices that have at least been approved as "ic" certified devices (intrinsically safe) of

Category 3.

●

Be sure to observe the respective values.

●

The transmitter must be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to

EN60529

Maximum values of the auxiliary power supply and signal circuits:
U

= 32 V DC

= 100 mA

= 750 mW

= 106

μH

= 7.3 nF

Maximum values of the sensor circuit
U

= 9.6 V DC:

= 7.6 mA

= 12.5 mW

[mH]

0,5

[nF]

560

700

940

1250

Zone 2 in type of protection "nA" - non-sparking resources

●

Install the transmitter in an enclosure meeting the degree of protection IP54 per EN 60529, e.g. in a type B connection

head per DIN 43729.

●

Adhere to the conditions for installers applicable to this type of protection.

●

The maximum approved input voltage is U

= 35 V DC.

●

Take measures to ensure that the supply voltage (including transients) does not rise above 140 % of the rated voltage.

Maximum values of the sensor circuit
U

= 9.6 V DC:

= 7.6 mA

= 12.5 mW

[mH]

0,5

[nF]

560

700

940

1250

Additional requirements for use in dust explosion protected areas
Install the transmitter in an enclosure suitable for the respective type of dust and corresponding Zone in accordance with the

inspection certificate valid in your country.

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

4.2

Safety notes for connecting in hazardous TH200/300

The 4 to 20 mA input and sensor circuits are electrically isolated and have been tested with a voltage of 1.5 kV DC/1 minute.
The sensor circuit is reliably galvanically isolated from the auxiliary power supply and signal circuit, up to a peak value of the

rated voltage of 60 V. Be sure to observe the construction directives valid at the construction location for electrical resources

in hazardous areas. In Europe, this is the standard EN 60079-14.

Zone 0, 1, 2 in type of protection "ia/ib/ic" - intrinsic safety

●

Only connect the transmitter, in accordance with the certificate of compliance, to devices certified as intrinsically-safe.

●

If the connection head is made of aluminum, the requirements of EN 60079-26, section 4.3.3, must be observed for uses

where the device category 1 G is required.

●

The transmitter must be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to

EN60529

Maximum values of the auxiliary power supply and signal circuits:
U

= 30 V DC

= 100 mA

= 750 mW

= 104

μH

= 11 nF

Maximum values of the sensor circuit for Ex ia:
U

= 6 V DC:

= 25 mA

= 37 mW

[mH]

0.1

[μF]

1.6

2.6

4.8

Zone 2 in type of protection "nA" - non-sparking resources

●

Install the transmitter in an enclosure meeting the degree of protection IP54 per EN 60529, e.g. in a type B connection

head per DIN 43729.

●

Adhere to the conditions for installers applicable to this type of protection.

●

The maximum approved input voltage is U

= 32 V DC.

●

Take measures to ensure that the supply voltage (including transients) does not rise above 140 % of the rated voltage.

Maximum values of the sensor circuit:
U

= 6 V DC:

= 25 mA

= 37 mW

[mH]

0.1

[

μF]

1.6

2.6

4.8

Additional requirements for use in dust explosion protected areas
Install the transmitter in an enclosure suitable for the respective type of dust and corresponding Zone in accordance with the

inspection certificate valid in your country.

4.3

Safety notes for connecting in hazardous TR200/300

rated voltage of 60 V. Be sure to observe the construction directives valid at the construction location for electrical resources

in hazardous areas. In Europe, this is the standard EN 60079-14.

Zone 0, 1, 2 in type of protection "ia/ib/ic" - intrinsic safety

●

Only connect the transmitter, in accordance with the certificate of compliance, to devices certified as intrinsically-safe.

Maximum values of the auxiliary power supply and signal circuits:
U

= 30 V DC

= 100 mA

= 750 mW

= 2

μH

= 13 nF

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

Maximum values of the sensor circuit for Ex ia:
U

= 6 V DC:

= 25 mA

= 37 mW

[mH]

0.1

[μF]

1.6

2.6

4.8

Zone 2 in type of protection "ic" - intrinsic safety

●

Only connect the transmitter, in accordance with the certificate of compliance, to devices certified as intrinsically-safe.

Maximum values of the auxiliary power supply and signal circuits:
U

= 30 V DC

= 100 mA

= 750 mW

= 2 μH

= 13 nF

Maximum values of the sensor circuit:
U

= 6 V DC:

= 25 mA

= 37 mW

[mH]

0.1

[μF]

1.6

2.6

4.8

Zone 2 in type of protection "nA" - non-sparking resources

●

Adhere to the conditions for installers applicable to this type of protection.

●

The maximum approved input voltage is U

= 32 V DC.

●

Take measures to ensure that the supply voltage (including transients) does not rise above 140 % of the rated voltage.

Additional requirements for use in dust explosion protected areas
Install the transmitter in an enclosure suitable for the respective type of dust and corresponding Zone in accordance with the

inspection certificate valid in your country.

4.4

Safety notes for connecting in hazardous TH400

The input circuit is thus electrically isolated from the sensor circuit. The isolation does not satisfy the requirements for

infallible electrical isolation in the sense of the intrinsic safety standard EN / IEC 60079-11, but does withstand a test voltage

of 500 V AC/1 minute.

Zone 0 in type of protection "ia" - intrinsic safety

●

Only connect the transmitter, in accordance with the certificate of compliance, to devices certified as intrinsically-safe.

●

If the connection head is made of aluminum, the requirements of EN 60079-26, section 4.3.3, must be observed for uses

where the device category 1 G is required.

●

The transmitter must be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to

EN60529

Table 4-1

For T

≤ 85

°C (T4); T

≤ 70

°C (T5); T

≤ 60

°C (T6)

Maximum values of the auxiliary power supply and signal circuits:
U

= 30 V DC

= 120 mA

= 840 mW

= 1 μH

= 2 nF

Table 4-2

For T

≤ 75

°C (T4); T

≤ 65

°C (T5); T

≤ 45

°C (T6)

Maximum values of the auxiliary power supply and signal circuits:
U

= 30 V DC

= 300 mA

= 1300 mW

= 1 μH

= 2 nF

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

Table 4-3

For T

≤ 85

°C (T4); T

≤ 60

°C (T5); T

≤ 45

°C (T6)

Maximum values of the auxiliary power supply and signal circuits in accordance with FISCO:
U

= 17.5 V DC

= 250 mA

= 2000 mW

= 1 μH

= 2 nF

Table 4-4

For T

≤ 85

°C (T4); T

≤ 60

°C (T5); T

≤ 45

°C (T6)

Maximum values of the auxiliary power supply and signal circuits in accordance with FISCO:
U

= 15 V DC

= any

= 1 μH

= 2 nF

Maximum values of the sensor circuit for Ex ia:
U

= 5.7 V DC:

= 8.4 mA

= 12 mW

[mH]

200

[μF]

Zone 1 in type of protection "ib" - intrinsic safety

●

Only connect the transmitter, in accordance with the certificate of compliance, to devices certified as intrinsically-safe.

●

The transmitter must be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to

EN60529

Table 4-5

For T

≤ 85

°C (T4); T

≤ 75

°C (T5); T

≤ 60

°C (T6)

Maximum values of the auxiliary power supply and signal circuits:
U

= 30 V DC

= 250 mA

= 5320 mW

= 1 μH

= 2 nF

Table 4-6

For T

≤ 85

°C (T4); T

≤ 75

°C (T5); T

≤ 60

°C (T6)

Maximum values of the auxiliary power supply and signal circuits in accordance with FISCO:
U

= 17.5 V DC

= any

= 1 μH

= 2 nF

Maximum values of the sensor circuit for Ex ia:
U

= 5.7 V DC:

= 8.4 mA

= 12 mW

[mH]

200

[μF]

Zone 2 in type of protection "nL/ic"

●

Install the transmitter in an enclosure meeting the degree of protection IP54 per EN 60529, e.g. in a type B connection

head per DIN 43729.

●

Only connect the transmitter to devices that have at least been approved as certified devices of Category 3.

●

Be sure to observe the respective values.

Table 4-7

For T

≤ 85

°C (T4); T

≤ 75

°C (T5); T

≤ 60

°C (T6)

Maximum values of the auxiliary power supply and signal circuits:
U

= 32 V DC

= any

= 1

μH

= 2 nF

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

Table 4-8

For T

≤ 85

°C (T4); T

≤ 75

°C (T5); T

≤ 60

°C (T6)

Maximum values of the auxiliary power supply and signal circuits in accordance with FNICO/FISCO:
U

= 17.5 V DC

= any

= 1 μH

= 2 nF

Maximum values of the sensor circuit:
U

= 5.7 V DC:

= 8.4 mA

= 12 mW

[mH]

200

[μF]

Zone 2 in type of protection "nA" - non-sparking resources

●

Install the transmitter in an enclosure meeting the degree of protection IP54 per EN 60529, e.g. in a type B connection

head per DIN 43729.

●

Adhere to the conditions for installers applicable to this type of protection.

●

The maximum approved input voltage is U

= 32 V DC.

Maximum values of the sensor circuit:
U

= 5.7 V DC:

= 8.4 mA

= 12 mW

[mH]

200

[

μF]

Additional requirements for use in dust explosion protected areas
Install the transmitter in an enclosure suitable for the respective type of dust and corresponding Zone in accordance with the

inspection certificate valid in your country. The surface temperature of the enclosure is euqal to T

plus 20 K for a dust layer

with a maximum thickness of 5 mm.

4.5

Safety notes for connecting in hazardous TF

WARNING

Risk of explosion due to electrostatic charge
To prevent an electrostatic charge in a hazardous area, close the key cover during operation and tighten the screws

securely.

Type of protection "Flameproof enclosure" and "Dust protection by enclosure"
Only open devices with type of protection "Flameproof enclosure" in hazardous areas when the power to the device is

turned off, otherwise there is a risk of explosion.

For SITRANS TF connection in hazardous areas
The SITRANS TF comes with a built-in transmitter: SITRANS TH200, TH300, or TH400. See Safety notes for connecting in

hazardous TH200/300 (Page 14).

4.6

Special safety consideration for connecting SITRANS TH300/TH400

●

Use shielded cables to ensure the full specification according to HART, PROFIBUS PA, or FOUNDATION Fieldbus

4.7

Test terminals for output signal

The "Test +" and "Test -" test terminals are used for checking the 4 to 20 mA current with an amperemeter. The voltage drop

across the amperemeter must not exceed 0.4 V for a 23 mA output current.

SITRANS TH/TR/TF

A5E32520716-01, 06/2013

4.8

SITRANS TH/TR connection

4.8.1

Connecting the auxiliary power supply

Procedure
Connect the wires for the auxiliary power supply to terminals "1"(+) and "2"(-). Ensure that the polarity is correct. The device

is reverse polarity protected.

4.8.2

Connection assignment

①

Test terminal

②

Fixing screw M4

③

LED (SITRANS TH200/TH300 only)

④

Internal diameter of center hole 6,3 mm (0.25")

⑤

Lock washer DIN 6799 - 3.2 A2 (SITRANS TH200/TH300 only)

SITRANS TH

connections:

1 (+) and 2 (-)

Auxiliary power supply U

aux

, output current I

out

3, 4, 5, and 6

Sensor connections (for TH100 Pt100 only)

SITRANS TR

connections:

1 (+) and 2 (-)

Test terminals (test) for measuring the output current using an

amperemeter

3 (+) and 4 (-)

Auxiliary power supply U

aux

, output current I

out

5, 6, 7 and 8

Connection of sensors, see terminal diagrams SITRANS TR200/TR300

Figure 4-1

Connection assignment SITRANS TH

Siemens SITRANS T Temperature transmitters SITRANS TH/TR/TF. Compact Operating Instructions (2013) - page 1
