Amtrak. Maintenance manual 6-79-6 supplement (1982) - page 1

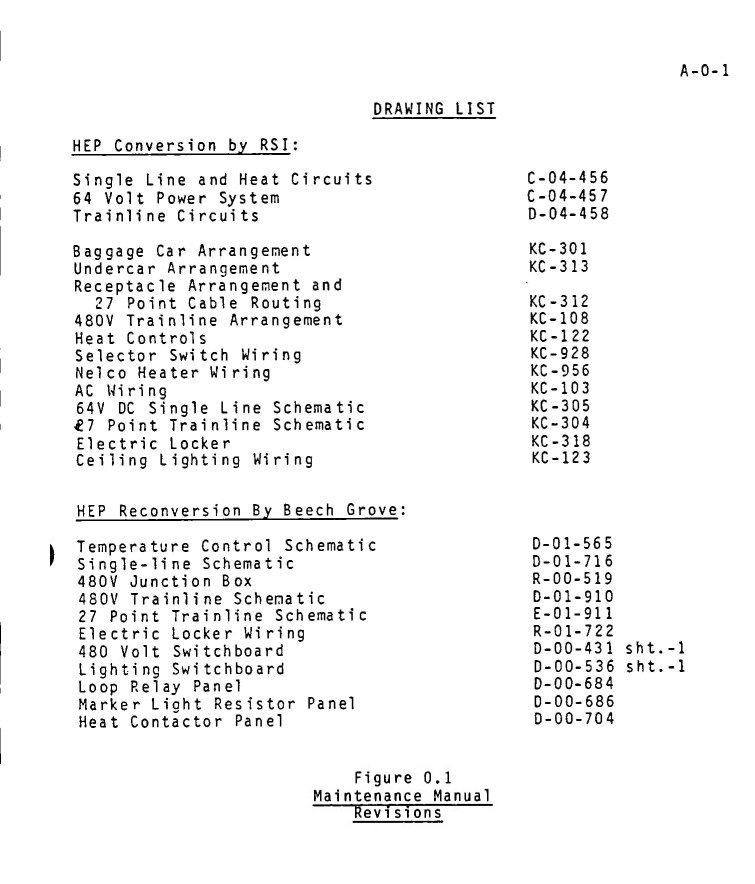

D RAW ING LIST
HEP Conversion by RSI:
Single Line and Heat Circuits C-04-456
64 Volt Power System C-04-457
Trainline Circuits D-04-458
Baggage Car Arrangement KC-301

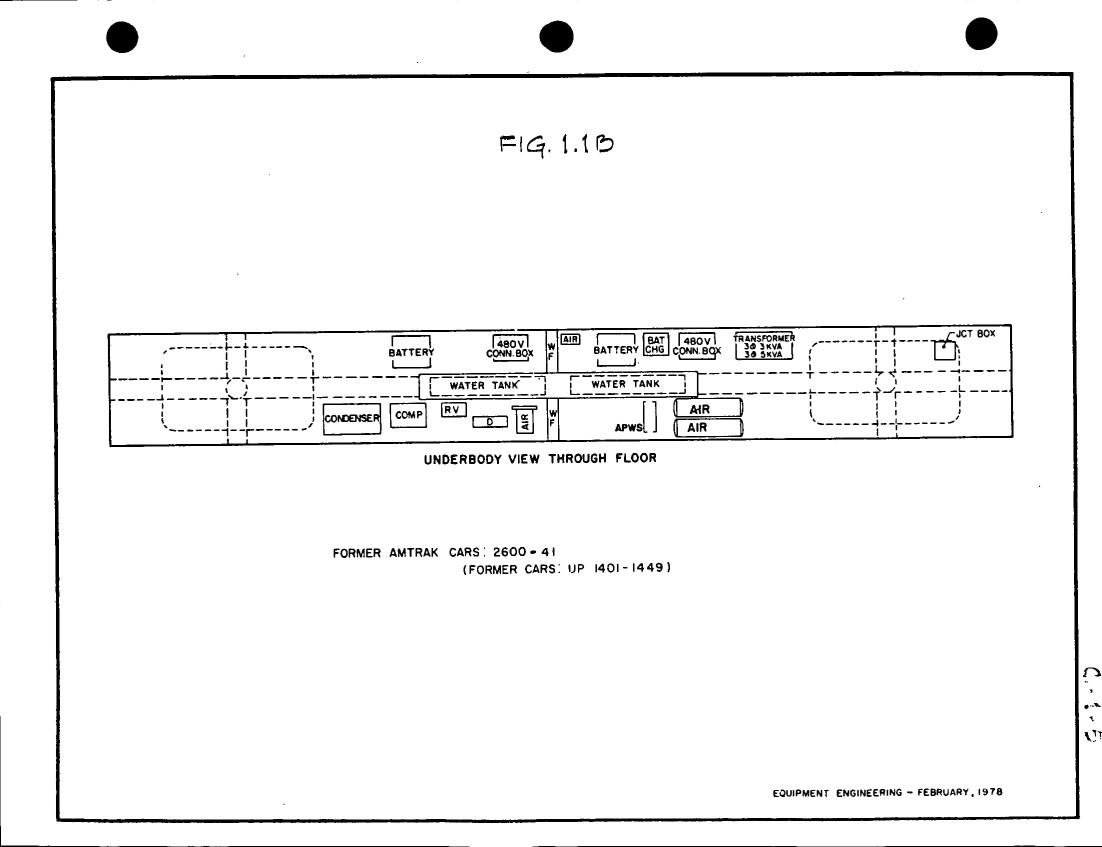

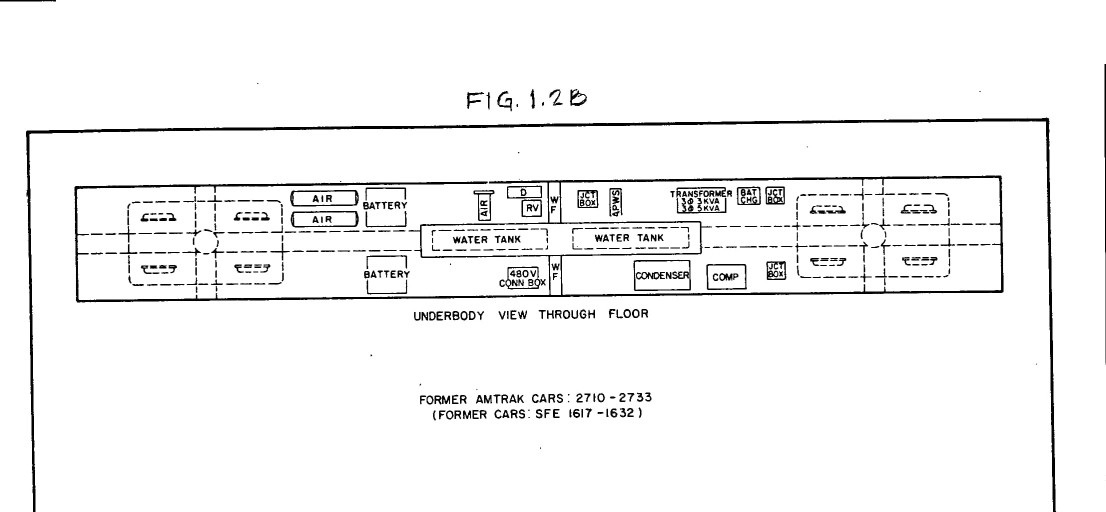

Undercar Arrangement КС-313
Receptacle Arrangement and
27 Point Cable Routing КС - 3 12
480V Trainline Arrangement КС-108
Heat Controls КС -12 2
Selector Switch Wiring КС-928
Nelco Heater Wiring КС-956
AC Wiring КС-103
64V DC Single Line Schematic КС-305
i.1 Point Trainline Schematic KC-304
Electric Locker KC-318
Ceiling Lighting Wiring КС-123
HEP Reconversion By Beech Grove:
Temperature Control Schematic D-01-565
Single-line Schematic D-01-716
480V Junction Box R-00-519
480V Trainline Schematic D-01-910
27 Point Trainline Schematic E-01-911
Electric Locker Wiring R-01-722
480 Volt Switchboard D-00-431
Lighting Switchboard D-00-536
Loop Relay Panel D-00-684
Marker Light Resistor Panel D-00-686
Heat Contactor Panel 0-00-704
