Lane Keeping Aid symbols and

messages

A number of symbols and messages related to
Lane Keeping Aid LKA

105

 may be displayed in

the instrument panel.

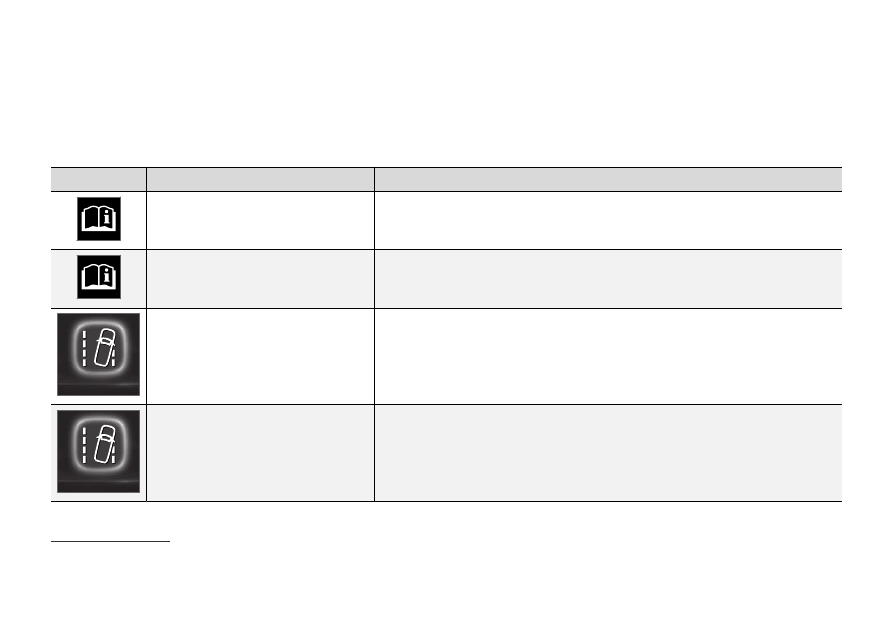

Some examples of symbols and messages are shown in the table below.

Symbol

Message

Meaning

Driver support system

Reduced functionality Service required

The system is not functioning as intended. Contact a workshop

‒ an authorized Volvo work-

shop is recommended.

Windscreen sensor

Sensor blocked, see Owner's manual

The camera's ability to detect the lane in front of the vehicle is reduced.

Lane Keeping Aid

Apply steering

LKA's steering assistance is disabled when the driver's hands are not on the wheel. Follow
the instructions and steer the vehicle.

Lane Keeping Aid

Apply steering

LKA will go into standby mode until the driver begins steering the vehicle again.

105

Lane Keeping Aid

||

DRIVER SUPPORT

370

A text message can be erased by briefly pressing
the

 button in the center of the right-side

steering wheel keypad.

If the message persists: Contact a workshop

‒ an

authorized Volvo workshop is recommended.

Related information

•

Lane Keeping Aid (p. 364)

DRIVER SUPPORT

371

Lane Keeping Aid symbols in the

instrument panel

Lane Keeping Aid (LKA

106

) uses symbols in the

instrument panel for various situations.

Some examples of symbols and
descriptions of the situations in
which they might appear are
provided below.

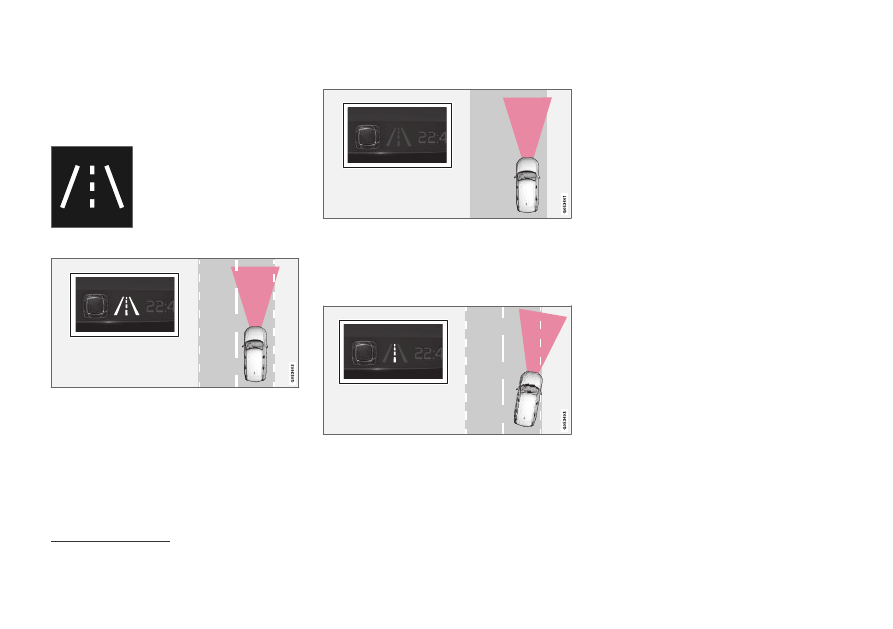

Available

Available

‒ the marker lines in the symbol are WHITE.

Lane Keeping Aid is able to detect one or both of
the traffic lane's side marker lines.

Unavailable

Unavailable

‒ the marker lines in the symbol are GRAY.

Lane Keeping Aid is unable to detect the lane
marker lines, the vehicle's speed is too low or the
road is too narrow.

Steering/warning indicator

Steering/warning

‒ the marker lines in the symbol are

COLORED.

Indicates that the Lane Keeping Aid system is
alerting the driver and/or attempting to steer the
vehicle back into the lane.

Related information

•

Lane Keeping Aid (p. 364)

106

Lane Keeping Aid

DRIVER SUPPORT

* Option/accessory.

372

Steering assistance at risk of

collision

The

Collision avoidance assistance

 function

is intended to help the driver reduce the risk of
the vehicle inadvertently veering from the traffic
lane and/or colliding with another vehicle or
obstacle by actively steering the vehicle back
into the lane and/or swerving out of the way.

Collision avoidance assistance

 consists of

three sub-functions:

•

Run-Off Mitigation with steering assistance

•

Steering assistance during collision risks
from oncoming traffic

•

Steering assistance during collision risks
from behind*

After the system has automatically intervened,
this text message will appear in the instrument
panel:

•

Collision avoidance assistance

 –

Automatic intervention

NOTE

It is always the driver who must decide how
much the vehicle should be in control – the
vehicle can never take command.

Related information

•

Activating/deactivating steering assistance
during collision risks (p. 372)

•

Symbols and messages for steering assis-
tance during collision risks (p. 381)

•

Run-Off Mitigation with steering assistance
(p. 373)

•

Run-Off Mitigation with steering assistance
levels (p. 373)

•

Activating/deactivating Run-Off Mitigation
with steering assistance (p. 374)

•

Limitations of Run-Off Mitigation with steer-
ing assistance (p. 375)

•

Steering assistance during collision risks
from oncoming traffic (p. 375)

•

Activating/deactivating Steering assistance
during collision risks with oncoming vehicles
(p. 376)

•

Limitations of steering assistance during col-
lision risks from oncoming traffic (p. 377)

•

Steering assistance during collision risks
from behind* (p. 378)

•

Activating/deactivating Steering assistance
during collision risks from behind* (p. 379)

•

Limitations of steering assistance during col-
lision risks from behind (p. 379)

Activating/deactivating steering

assistance during collision risks

The driver can choose to have this function On
or Off.

Use this button in the center
display's Function view to turn
the function On and Off.

NOTE

When the

Collision avoidance assistance

function is deactivated, all subfunctions of the
following are deactivated:

•

Steering assistance at risk of run-off

•

Steering assistance at risk of head-on
collision

•

Steering assistance during collision risks
from behind*

Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

Related information

•

Steering assistance at risk of collision
(p. 372)

DRIVER SUPPORT

}}

373

Run-Off Mitigation with steering

assistance

This sub-function is intended to help reduce the
risk of the vehicle inadvertently running off the
road by actively steering the vehicle back onto
the road.

The function is active at speeds between
65-140 km/h (40-87 mph) on roads with clearly
visible traffic lane markings/lines.

The system uses a camera to monitor the edges
of the road and the painted side marker lines. If
the vehicle is about to cross the edge of the road,
the function will attempt to steer the vehicle back
onto the road. If this is not sufficient to keep the
vehicle on the road, the brakes will also be
applied.

However, the function will not provide either
steering assistance or braking if the turn signal is
used. The function will also not be activated if it
detects that the driver is actively operating the
vehicle.

After the system has automatically intervened,
this text message will appear in the instrument
panel:

•

Collision avoidance assistance

 –

Automatic intervention

WARNING

•

The "Steering assistance at risk of run-
off" subfunction is supplementary driver
support intended to help improve driving
safety – it cannot handle all situations in
all traffic, weather and road conditions.

•

The function cannot detect barriers, rails
or similar obstacles at the side of the
road.

•

"Steering assistance at risk of run-off" is
not a substitute for the driver's attention
and judgment. The driver is always
responsible for ensuring the vehicle is
driven in a safe manner, at the appropri-
ate speed, with an appropriate distance to
other vehicles, and in accordance with
current traffic rules and regulations.

Related information

•

Steering assistance at risk of collision
(p. 372)

Run-Off Mitigation with steering

assistance levels

This function has two activation levels for inter-
vention:

•

Steering assistance only

•

Steering assistance with braking

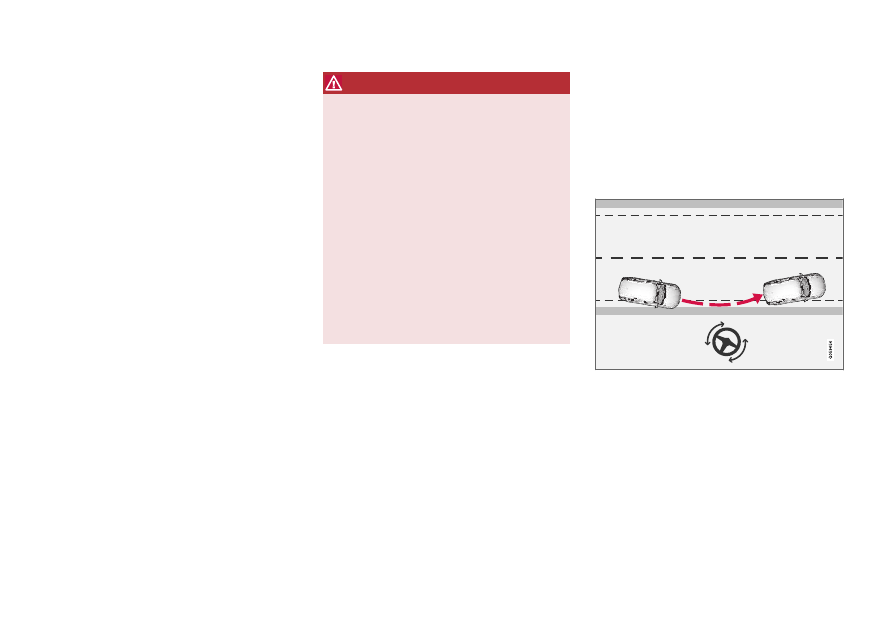

Steering assistance only

Intervention with steering assistance.

||

DRIVER SUPPORT

* Option/accessory.

374

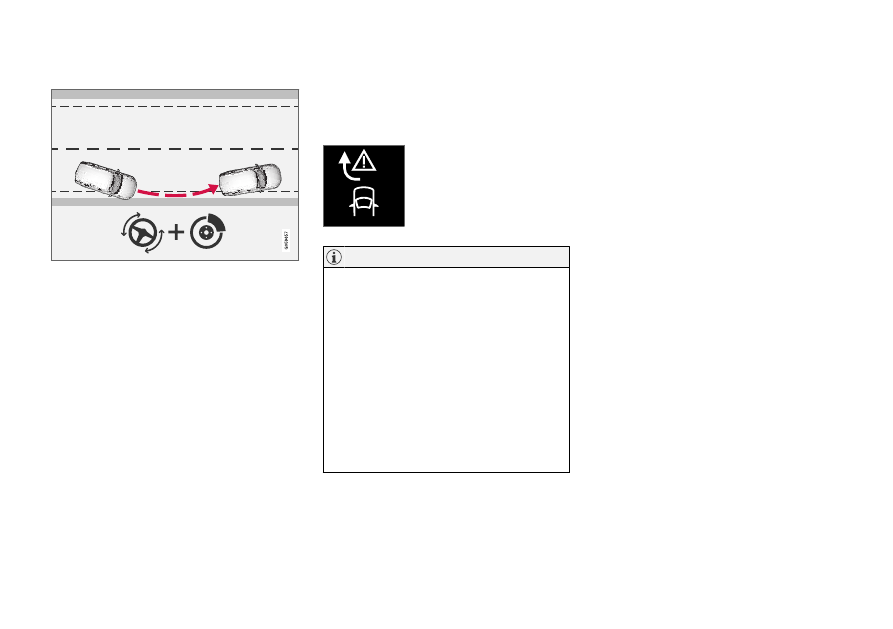

Steering assistance with braking

Intervention with steering assistance and braking.

Braking intervention assists in situations where
steering assistance alone is not sufficient. Brak-
ing force is automatically adapted according to
the situation at the moment the vehicle begins to
run off the road.

Related information

•

Steering assistance at risk of collision
(p. 372)

Activating/deactivating Run-Off

Mitigation with steering assistance

The driver can choose to have this function On
or Off.

Use this button in the center
display's Function view to turn
the function On and Off.

NOTE

When the

Collision avoidance assistance

function is deactivated, all subfunctions of the
following are deactivated:

•

Steering assistance at risk of run-off

•

Steering assistance at risk of head-on
collision

•

Steering assistance during collision risks
from behind*

Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Run-Off Mitigation with steering assistance
(p. 373)

DRIVER SUPPORT

}}

375

Limitations of Run-Off Mitigation

with steering assistance

In certain demanding driving conditions, the
function may not be able to properly assist the
driver. In these situations, it is recommended
that it is turned off.

Examples of such situations include:

•

road work

•

winter driving conditions

•

narrow roads

•

poor road surfaces

•

a very sporty driving style

•

bad weather with reduced visibility

•

roads with indistinct or no lane markings

•

sharp edges or lines other than the lane's
side markings

•

when the power steering works at reduced
power, e.g. during cooling due to overheating
(see section “Speed-dependent steering
force”).

NOTE

The function uses the vehicle's combined
camera and radar unit, which has certain gen-
eral limitations; see sections "Camera limita-
tions" and "Radar sensor limitations".

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Speed-dependent steering wheel resistance
(p. 270)

•

Camera limitations (p. 330)

•

Radar sensor limitations (p. 325)

Steering assistance during collision

risks from oncoming traffic

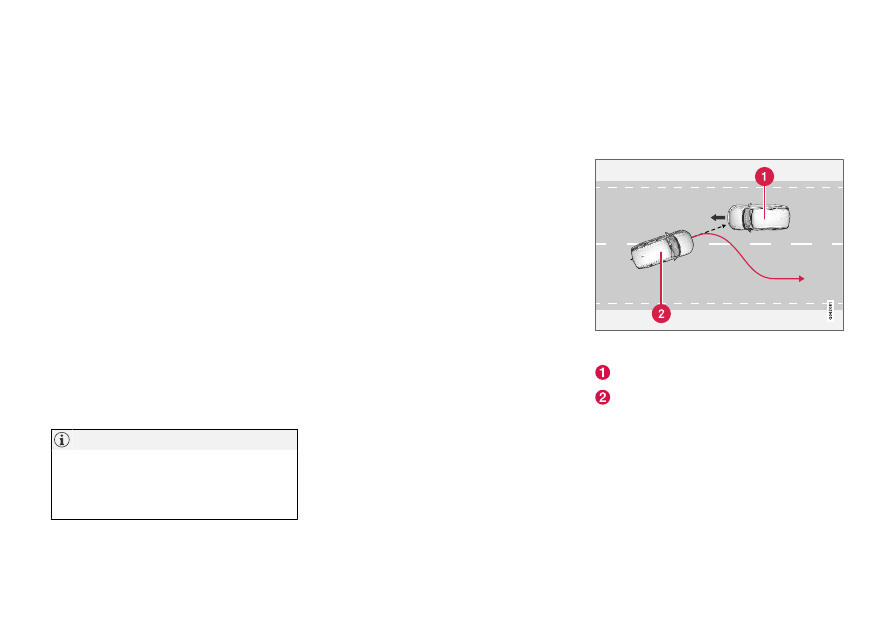

This sub-function can help assist a distracted
driver who has not noticed that the vehicle is
veering into oncoming traffic.

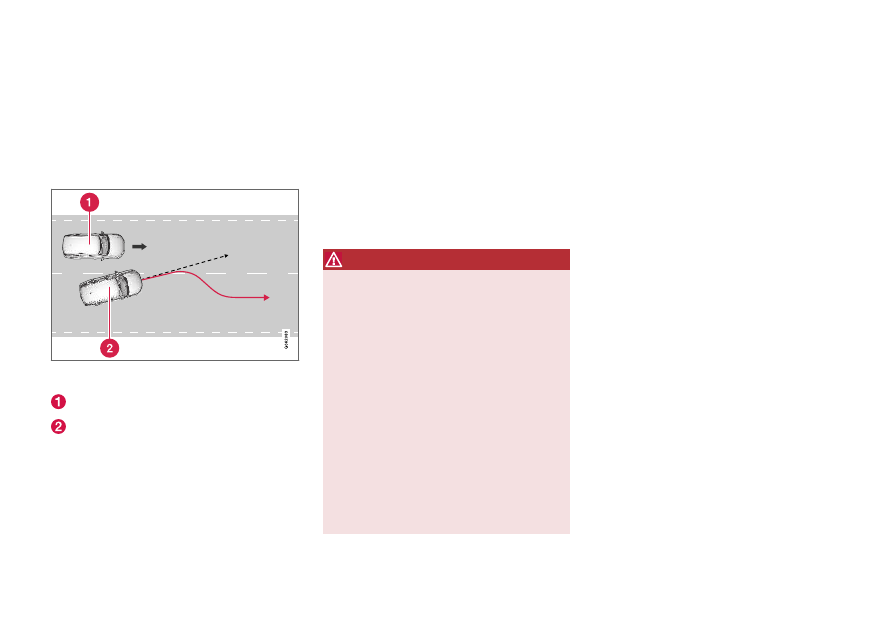

The function provides assistance by swerving your vehi-
cle back into your own lane.

Oncoming vehicles

Own vehicle

The function is active at speeds between
60-140 km/h (37-87 mph) on roads with clearly
visible traffic lane markings/lines.

If your vehicle is starting to veer from your own
lane and a vehicle is approaching from the oppo-
site direction, this function can help the driver
steer the vehicle back into its own lane.

||

DRIVER SUPPORT

* Option/accessory.

376

However, the function will not provide steering
assistance if the turn signal is used. The function
will also not be activated if it detects that the
driver is actively operating the vehicle.

After the system has automatically intervened,
this text message will appear in the instrument
panel:

•

Collision avoidance assistance

 –

Automatic intervention

WARNING

•

The "Steering assistance at risk of head-
on collision" subfunction is supplemen-
tary driver support intended to improve
driving safety – it cannot handle all situa-
tions in all traffic, weather and road condi-
tions.

•

Pilot Assist is only activated if there is a
high risk of collision – you must therefore
never wait for the function to intervene.

•

The function is not a substitute for the
driver's attention and judgment. The driver
is always responsible for ensuring the
vehicle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Activating/deactivating Steering assistance
during collision risks with oncoming vehicles
(p. 376)

•

Limitations of steering assistance during col-
lision risks from oncoming traffic (p. 377)

Activating/deactivating Steering

assistance during collision risks

with oncoming vehicles

The driver can choose to have this function On
or Off.

Use this button in the center
display's Function view to turn
the function On and Off.

NOTE

When the

Collision avoidance assistance

function is deactivated, all subfunctions of the
following are deactivated:

•

Steering assistance at risk of run-off

•

Steering assistance at risk of head-on
collision

•

Steering assistance during collision risks
from behind*

Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

DRIVER SUPPORT

377

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Steering assistance during collision risks
from oncoming traffic (p. 375)

Limitations of steering assistance

during collision risks from

oncoming traffic

The function may have limited functionality in
certain situations and not intervene, e.g.:

•

for smaller vehicles such as motorcycles

•

on roads that do not have clear lane mark-
ings

•

if more than half of your vehicle has moved
into the adjacent lane

•

outside the speed range 60-140 km/h
(37-87 mph)

•

when the power steering works at reduced
power - e.g. during cooling due to overheat-
ing (see section "Speed-dependent steering
force").

Functionality may also be reduced in other situa-
tions, such as:

•

road work

•

winter driving conditions

•

narrow roads

•

poor road surfaces

•

a very sporty driving style

•

bad weather with reduced visibility.

In these demanding driving conditions, the func-
tion may not be able to properly assist the driver.

In these situations, it is recommended that it is
turned off.

NOTE

The function uses the vehicle's combined
camera and radar unit, which has certain gen-
eral limitations; see sections "Camera limita-
tions" and "Radar sensor limitations".

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Steering assistance during collision risks
from oncoming traffic (p. 375)

•

Speed-dependent steering wheel resistance
(p. 270)

•

Camera limitations (p. 330)

•

Radar sensor limitations (p. 325)

DRIVER SUPPORT

* Option/accessory.

378

Steering assistance during collision

risks from behind*

If you become distracted and do not notice your
vehicle starting to veer out of the lane while
another vehicle is approaching from behind or is
in your vehicle's blind spot, this sub-function can
help provide assistance.

The function provides assistance by steering your vehi-
cle back into your own lane.

Another vehicle in blind spot zone

Own vehicle

If your vehicle is beginning to veer out of your
lane while another vehicle is in your blind spot or
another vehicle is rapidly approaching in the next
lane, this function can help the driver steer the
vehicle back into its own lane.

Even if the driver intentionally changes lanes
using a turn signal without noticing another vehi-

cle approaching, the function can provide assis-
tance.

The function is active at speeds between
60-140 km/h (37-87 mph) on roads with clearly
visible traffic lane markings/lines.

After the system has automatically intervened,
this text message will appear in the instrument
panel:

•

Collision avoidance assistance

 –

Automatic intervention

WARNING

•

The "Steering assistance at risk of rear-
end collision" subfunction is supplemen-
tary driver support intended to improve
driving safety – it cannot handle all situa-
tions in all traffic, weather and road condi-
tions.

•

Pilot Assist is only activated if there is a
high risk of collision – you must therefore
never wait for the function to intervene.

•

The function is not a substitute for the
driver's attention and judgment. The driver
is always responsible for ensuring the
vehicle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Activating/deactivating Steering assistance
during collision risks from behind* (p. 379)

•

Limitations of steering assistance during col-
lision risks from behind (p. 379)

DRIVER SUPPORT

}}

* Option/accessory.

379

Activating/deactivating Steering

assistance during collision risks

from behind*

The driver can choose to have this function On
or Off.

Use this button in the center
display's Function view to turn
the function On and Off.

NOTE

When the

Collision avoidance assistance

function is deactivated, all subfunctions of the
following are deactivated:

•

Steering assistance at risk of run-off

•

Steering assistance at risk of head-on
collision

•

Steering assistance during collision risks
from behind*

Although it is possible to deactivate the func-
tion, the driver is advised to keep it activated
since it can help improve driving safety in
most cases.

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Steering assistance during collision risks
from behind* (p. 378)

Limitations of steering assistance

during collision risks from behind

The function may have limited functionality in
certain situations and not intervene, e.g.:

•

for smaller vehicles such as motorcycles

•

if more than half of your vehicle has moved
into the adjacent lane

•

on roads/lanes with indistinct or no side lane
markings

•

outside the speed range 60-140 km/h
(37-87 mph)

•

when the power steering works at reduced
power - e.g. during cooling due to overheat-
ing (see section "Speed-dependent steering
force").

Functionality may also be reduced in other situa-
tions, such as:

•

road work

•

winter driving conditions

•

narrow roads

•

poor road surfaces

•

a very sporty driving style

•

bad weather with reduced visibility.

In these demanding driving conditions, the func-
tion may not be able to properly assist the driver.
In these situations, it is recommended that it is
turned off.

||

DRIVER SUPPORT

* Option/accessory.

380

NOTE

The function uses the vehicle's combined
camera and radar unit, which has certain gen-
eral limitations; see sections "Camera limita-
tions" and "Radar sensor limitations".

In addition to the camera and radar sensor, the
function also uses the vehicle's rearward-facing
radar, which has certain general limitations the
driver should be aware of. See additional informa-
tion in the section "BLIS limitations".

Related information

•

Steering assistance at risk of collision
(p. 372)

•

Steering assistance during collision risks
from behind* (p. 378)

•

Speed-dependent steering wheel resistance
(p. 270)

•

Camera limitations (p. 330)

•

Radar sensor limitations (p. 325)

•

BLIS limitations (p. 349)

DRIVER SUPPORT

381

Symbols and messages for steering

assistance during collision risks

A number of symbols and messages related to
the function may be displayed in the instrument
panel.

Some examples of symbols and messages are shown in the table below.

Symbol

Message

Meaning

Collision avoidance assistance

Automatic intervention

When the function is activated, a message will appear to alert the driver.

Windscreen sensor

Sensor blocked, see Owner's manual

The camera's ability to detect the lane in front of the vehicle is reduced.

A text message can be erased by briefly pressing
the

 button in the center of the right-side

steering wheel keypad.

If the message persists: Contact a workshop

‒ an

authorized Volvo workshop is recommended.

Related information

•

Steering assistance at risk of collision
(p. 372)

DRIVER SUPPORT

* Option/accessory.

382

Park Assist*

The Park Assist function can help the driver
when maneuvering in tight spaces by indicating
distances to obstacles using audible signals and
graphics in the center display.

Display view showing obstacle zones and sensor sec-
tors.

The center display shows an overview of the vehi-
cle in relation to objects that have been detected.

The marked sector indicates where the obstacle
is located. The closer the vehicle symbol is to a
marked sector forward/rearward, the closer the
detected obstacle is to your vehicle.

The side sectors change color as the distance
between the vehicle and an object decreases.

The audible signals will also speed up the closer
the obstacle is to the vehicle. The volume of the
audio system will be automatically lowered.

Audible signals for obstacles in front and to the
sides of the vehicle are active when the vehicle is
moving but will cease after the vehicle has been
stationary for approx. 2 seconds. Audible signals
for obstacles behind the vehicle will remain active
even when the vehicle is stationary.

If a detected obstacle is within approx. 30 cm
(1 ft) from the front or rear of the vehicle, the
tone will become constant and the active sen-
sor's field closest to the vehicle symbol will be
filled in.

At distances within approx. 25 cm (0.8 ft) from an
obstacle to the sides of the vehicle, an rapid puls-
ing signal will be given and the active sector
fields will change color from ORANGE to RED.

The volume of the Park Assist audible signals
can be adjusted while the signal is being given
using the >II knob or in the center display's Top
view under

Settings

.

NOTE

•

Besides in the sector closest to the vehi-
cle symbol, audible warnings are only pro-
vided for objects located directly in the
vehicle's path.

WARNING

•

The Parking Assist function is supple-
mentary driver support intended to facili-
tate driving and help make it safer – it
cannot handle all situations in all traffic,
weather and road conditions.

•

The parking sensors have dead/blind
spots where objects cannot be detected.

•

Pay particular attention to people and
animals near the vehicle.

•

Parking Assist is not a substitute for the
driver's attention and judgment. The driver
is always responsible for ensuring the
vehicle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.

Related information

•

Park Assist front, rear and sides (p. 383)

•

Activating/deactivating Park Assist (p. 384)

•

Park Assist limitations (p. 385)

•

Recommended maintenance for Park Assist
(p. 386)

•

Park Assist symbols and messages (p. 387)

DRIVER SUPPORT

}}

383

Park Assist front, rear and sides

Park Assist has different parameters depending
on which part of the vehicle is approaching an
obstacle.

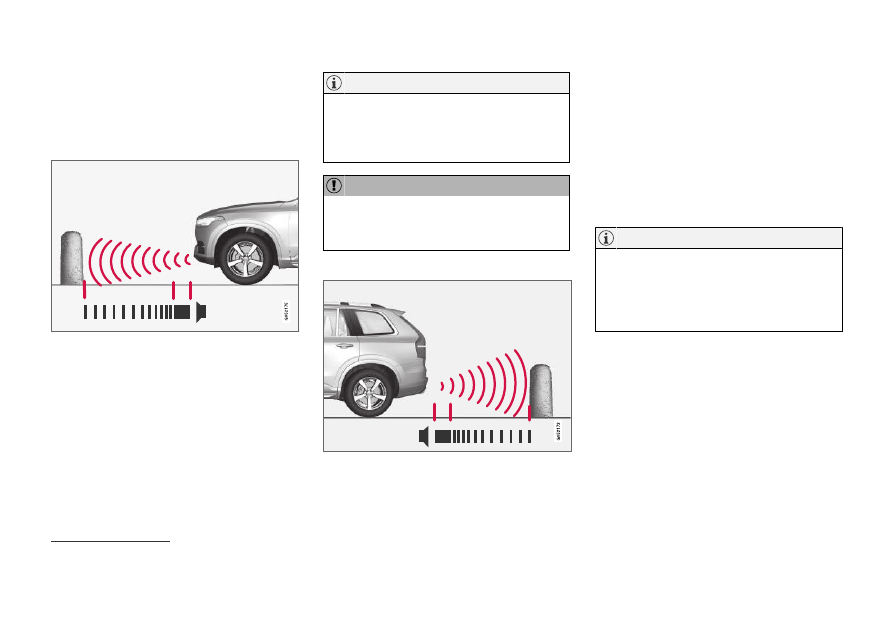

Front camera

Continuous tone warning signal when the obstacle is
less than approx. 30 cm (1 ft) from the vehicle

107

.

Park Assist's front sensors are automatically acti-
vated when the engine is started. They are active
at speeds below 10 km/h (6 mph).

The distance monitored extends approx. 80 cm
(2.5 ft) in front of the vehicle.

NOTE

The Parking Assist system is deactivated
when the parking brake is applied or when P
is selected on vehicles with automatic trans-
mission.

CAUTION

When installing auxiliary lights: Make sure
these do not obscure the sensors – the auxili-
ary lights could be perceived as an obstacle.

Back

Continuous tone warning signal when the obstacle is
less than approx. 30 cm (1 ft) from the vehicle

107

The rear sensors will be activated if the vehicle
begins rolling backward or if reverse gear is
engaged.

The distance monitored extends
approx. 1.5 meters (5 ft) behind the vehicle.

The Parking Assist system's rear sensors will be
automatically deactivated if the vehicle is backing
up with a trailer connected to the vehicle's elec-
trical system.

NOTE

When reversing with e.g. a trailer or bike car-
rier on the trailer hitch – without Volvo original
trailer cables – the Parking Assist system may
have to be turned off manually to prevent the
sensors from reacting to these.

107

The illustration is generic - details may vary according to vehicle model.

||

DRIVER SUPPORT

* Option/accessory.

384

Side sensors

Rapid pulsing warning signal when the obstacle is less
than approx. 25 cm (0.8 ft) from the vehicle

107

.

Park Assist's side sensors are automatically acti-
vated when the engine is started. They are active
at speeds below 10 km/h (6 mph).

The distance monitored is approx. 25 cm (0.8 ft)
out from the sides.

The detection area increases significantly when
the steering angle of the front wheels increases
and depending on the steering wheel position,
obstacles up to approx. 90 cm (3 ft) directly
behind or in front of the vehicle can be detected
(also see “Side sensor fields” in the section “Sen-
sor field from Park Assist for Park Assist Cam-
era”).

Related information

•

Park Assist* (p. 382)

•

Sensor field from Park Assist for Park Assist
Camera (p. 393)

Activating/deactivating Park Assist

The Park Assist Pilot function can be activated/
deactivated.

On/Off

Park Assist's front and side sensors are automat-
ically activated when the engine is started. The
rear sensors are activated if the vehicle is moving
backward or reverse gear is engaged.

The function can be activated/
deactivated in the center dis-
play's Function view.

–

Tap the

Park Assist

 button in Function view.

> The Park Assist Pilot indicator light shows

the status of the function: GREEN (on) or
GRAY (off).

In vehicles equipped with Park Assist Camera,
Park Assist can also be activated/deactivated
from the relevant camera view.

Related information

•

Park Assist* (p. 382)

107

The illustration is generic - details may vary according to vehicle model.
