01 Safety

Occupant Weight Sensor (OWS)

Disabling the passenger's side front
airbag

G018346

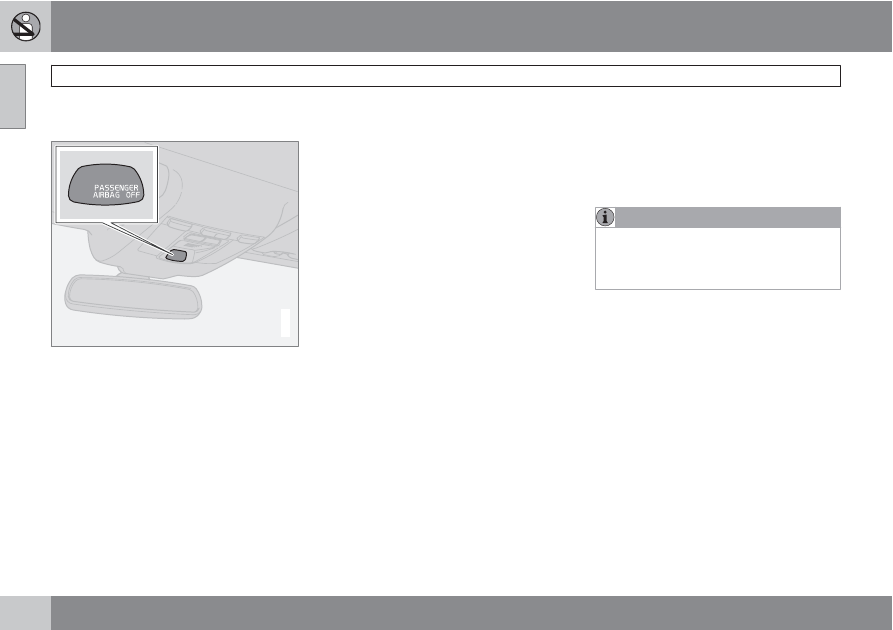

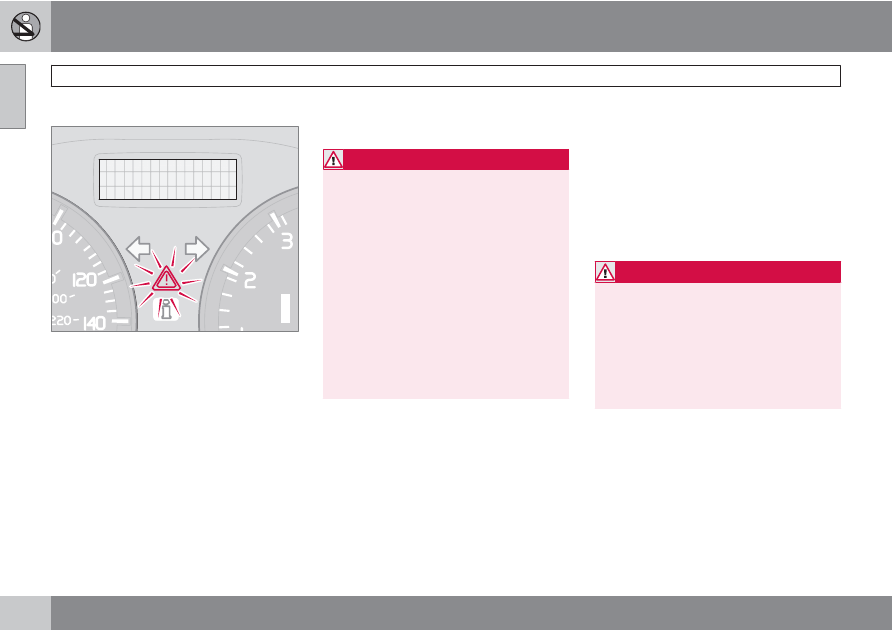

Occupant Weight Sensor (OWS) indicator light

Volvo recommends that ALL occupants (adults
and children) shorter than 4 feet 7 inches
(140 cm) be seated in the rear seat of any vehi-
cle with a passenger's side front airbag, and be
properly restrained. Children should always be
seated in child restraints appropriate for their
size and weight. See also the child safety rec-
ommendations on page 33.

The Occupant Weight Sensor (OWS) is
designed to meet the regulatory requirements
of Federal Motor Vehicle Safety Standard
(FMVSS) 208 and is designed to disable (will

not inflate) the passenger's side front airbag
under certain conditions.

The OWS works with sensors that are part of
the front passenger's seat and seat belt. The
sensors are designed to detect the presence of
a properly seated occupant and determine if
the passenger's side front airbag should be
enabled (may inflate) or disabled (will not
inflate).

The OWS will disable (will not inflate) the pas-
senger's side front airbag when:

•

the front passenger's seat is unoccupied,
or has small/medium objects in the front
seat,

•

the system determines that an infant is
present in a rear-facing infant seat that is
installed according to the manufacturer's
instructions,

•

the system determines that a small child is
present in a forward-facing child restraint
that is installed according to the manufac-
turer's instructions,

•

the system determines that a small child is
present in a booster seat,

•

a front passenger takes his/her weight off
of the seat for a period of time,

•

a child or a small person occupies the front
passenger's seat.

The OWS uses a PASSENGER AIRBAG OFF
indicator lamp which will illuminate and stay on
to remind you that the passenger's side front
airbag is disabled. The PASSENGER AIRBAG
OFF indicator lamp is located in the overhead
console, near the base of the rearview mirror.

NOTE

When the ignition is switched on, the OWS
indicator light will go on for up to 10 seconds
while the system performs a self-diagnostic
test.

However, if a fault is detected in the system:

•

The OWS indicator light will stay on

•

The SRS warning light (see page 21) will
come on and stay on

The message

PASS. AIRBAG OFF SERVICE

URGENT

will be displayed in the information

display.

01 Safety

Occupant Weight Sensor (OWS)

WARNING

If a fault in the system is detected and indi-
cated as explained on the preceding page,
be aware that the passenger's side front air-
bag will not deploy in the event of a collision.
In this case, the SRS system and Occupant
Weight Sensor should be inspected by a
trained and qualified Volvo service techni-
cian as soon as possible.

WARNING

•

Never try to open, remove, or repair any
components in the OWS system. This
could result in system malfunction.
Maintenance or repairs should only be
carried out by an a trained and qualified
Volvo service technician.

•

The front passenger's seat should not
be modified in any way. This could
reduce pressure on the seat cushion,
which might interfere with the OWS sys-
tem's function.

The OWS is designed to disable (will not inflate)
the passenger's side front airbag when a rear
facing infant seat, a forward-facing child
restraint, or a booster seat is detected. The
PASSENGER AIRBAG OFF indicator lamp will
illuminate and stay on to remind you that the

passenger's side front airbag is disabled (see
the following table).

Passenger's
seat occu-
pancy status

OWS indica-
tor light sta-
tus

Passenger's
side front
airbag sta-
tus

Seat unoc-
cupied

OWS indica-
tor light

lights

Passenger's
side front
airbag disa-
bled

Seat occu-
pied by low
weight
occupant/
object

OWS indica-
tor light

lights

Passenger's
side front
airbag disa-
bled

Seat occu-
pied by
heavy occu-
pant/object

OWS indica-
tor light

is not

lit

Passenger's
side front
airbag ena-
bled

Volvo recommends that children always be properly
restrained in appropriate child restraints in the rear seats. Do
not assume that the passenger's side front airbag is disabled
unless the PASSENGER AIRBAG OFF indicator lamp is lit.
Make sure the child restraint is properly installed. If there is
any doubt as to the status of the passenger's side front air-
bag, move the child restraint to the rear seat.

The OWS is designed to enable (may inflate)
the passenger's side front airbag anytime the
system senses that a person of adult size is

sitting properly in the front passenger's seat.
The PASSENGER AIRBAG OFF indicator
lamp will be off and remain off.

If a person of adult size is sitting in the front
passenger's seat, but the PASSENGER
AIRBAG OFF indicator lamp is on, it is possible
that the person isn't sitting properly in the seat.
If this happens:

Turn the vehicle off and ask the person to
place the seatback in an upright position.

Have the person sit upright in the seat,
centered on the seat cushion, with the per-
son's legs comfortably extended.

Restart the vehicle and have the person
remain in this position for about two
minutes. This will allow the system to
detect that person and enable the pas-
senger's frontal airbag.

If the PASSENGER AIRBAG OFF indicator
lamp remains on even after this, the person
should be advised to ride in the rear seat.

This condition reflects limitations of the OWS
classification capability. It does not indicate
OWS malfunction.

Modifications

If you are considering modifying your vehicle in
any way to accommodate a disability, for
example by altering or adapting the driver's or

01 Safety

Occupant Weight Sensor (OWS)

front passenger's seat(s) and/or airbag sys-
tems, please contact Volvo at:

In the USA

Volvo Cars of North America, LLC

Customer Care Center

1 Volvo Drive

P.O. Box 914

Rockleigh, New Jersey 07647

1-800-458-1552

In Canada

Volvo Cars of Canada Corp.

National Customer Service

175 Gordon Baker Road North York, Ontario
M2H 2N7

1-800-663-8255

WARNING

•

No objects that add to the total weight
on the seat should be placed on the
front passenger's seat. If a child is
seated in the front passenger's seat
with any additional weight, this extra
weight could cause the OWS system to
enable the airbag, which might cause it
to deploy in the event of a collision,
thereby injuring the child.

•

The seat belt should never be wrapped
around an object on the front passeng-
er's seat. This could interfere with the
OWS system's function.

•

The front passenger's seat belt should
never be used in a way that exerts more
pressure on the passenger than normal.
This could increase the pressure exer-
ted on the weight sensor by a child, and
could result in the airbag being enabled,
which might cause it to deploy in the
event of a collision, thereby injuring the
child.

WARNING

Keep the following points in mind with
respect to the OWS system. Failure to follow
these instructions could adversely affect the
system's function and result in serious injury
to the occupant of the front passenger's
seat:

•

The full weight of the front seat passen-
ger should always be on the seat cush-
ion. The passenger should never lift
him/herself off the seat cushion using
the armrest in the door or the center
console, by pressing the feet on the
floor, by sitting on the edge of the seat
cushion, or by pressing against the
backrest in a way that reduces pressure
on the seat cushion. This could cause
OWS to disable the passenger's side
front airbag.

•

Do not place any type of object on the
front passenger's seat in such a way
that jamming, pressing, or squeezing
occurs between the object and the front
seat, other than as a direct result of the
correct use of the Automatic Locking
Retractor/Emergency Locking Retrac-
tor (ALR/ELR) seat belt, see page 34.

•

No objects should be placed under the
front passenger's seat. This could inter-
fere with the OWS system's function.

01 Safety

Side impact protection airbags

Side impact airbags – front seats only

G0201

Location of the side impact (SIPS) airbag

As an enhancement to the structural side
impact protection built into your car, the car is
also equipped with Side Impact Protection
System (SIPS) airbags.

The SIPS airbag system is designed to help
increase occupant protection in the event of
certain side impact collisions. The SIPS air-
bags are designed to deploy only during cer-
tain side-impact collisions, depending on the
crash severity, angle, speed and point of
impact.

G025315

SIPS airbag deployment

NOTE

SIPS airbag deployment (one airbag) occurs
only on the side of the vehicle affected by
the impact. The airbags are not designed to
deploy in all side impact situations.

Components in the SIPS airbag system

This SIPS airbag system consists of gas gen-
erators and side airbag modules built into the
outboard sides of both front seat backrests.

WARNING

•

The SIPS airbag system is a supple-
ment to the structural Side Impact Pro-
tection System and the three-point seat
belt system. It is not designed to deploy
during collisions from the front or rear of
the car or in rollover situations.

•

The use of seat covers on the front seats
may impede SIPS airbag deployment.

•

No objects, accessory equipment or
stickers may be placed on, attached to
or installed near the SIPS airbag system
or in the area affected by SIPS airbag
deployment.

•

Never try to open or repair any compo-
nents of the SIPS airbag system. This
should be done only by a trained and
qualified Volvo service technician.

•

In order for the SIPS airbag to provide
its best protection, both front seat
occupants should sit in an upright posi-
tion with the seat belt properly fastened.

•

Failure to follow these instructions can
result in injury to the occupants of the
vehicle in the event of an accident.

01 Safety

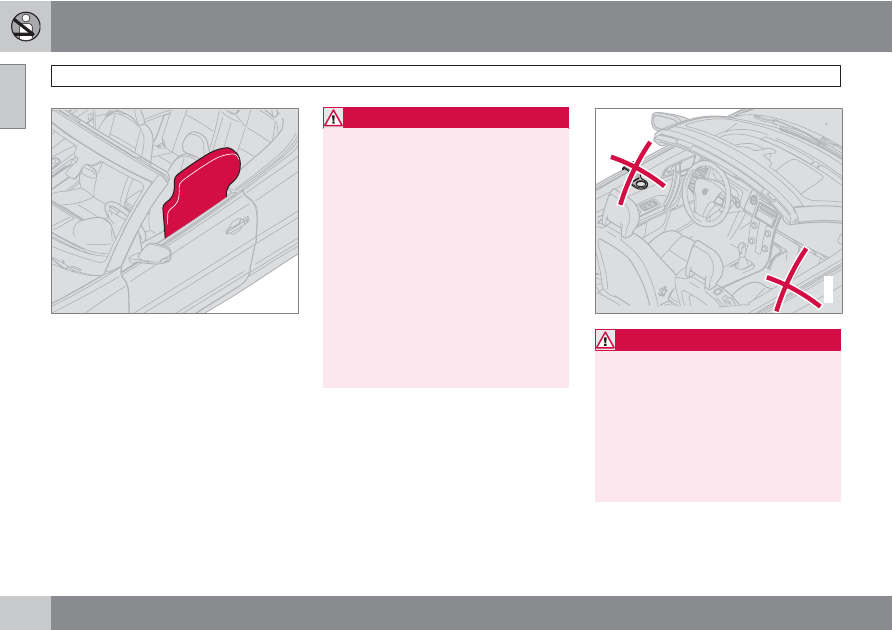

Door Mounted Inflatable Curtain system (DMIC)

G025425

The DMIC is a supplement to the structural side
impact protection. These inflatable curtains are
concealed in the upper section of both doors.

•

The Inflatable Curtain (DMIC) and the Side
Impact Airbag System (SIPS airbag) will
both deploy in certain side impacts.

•

DMIC deployment can occur regardless of
whether the power retractable hard top is
up or down.

•

If the inflatable curtain deploys, it remains
inflated for approximately 5 seconds.

WARNING

•

The DMIC system is a supplement to
the Side Impact Protection System. It is
not designed to deploy during collisions
from the front or rear of the vehicle. It
only provides protection for the occu-
pants of the front seats.

•

There is a risk of injury if the driver or
front seat passenger leans on or against
the door panel when the DMIC deploys.

•

Never install or mount any equipment
on the insides of the doors, door pillars,
or side panels. This could impede the
function of the DMIC system.

•

Never try to open or repair any compo-
nents of the DMIC system. This should
be done only by a trained and qualified
Volvo service technician.

G025424

WARNING

In order for the DMIC to provide its best
protection, both front seat occupants
should sit in an upright position with the seat
belt properly fastened; adults using the seat
belt and children using the proper child
restraint system. Only adults should sit in
the front seats. Children must never be
allowed in the front passenger seat. See
page 34 for guidelines. Failure to follow
these instructions can result in injury to the
vehicle occupants in an accident.

01 Safety

Roll-over Protection system (ROPS)

Introduction

G020797

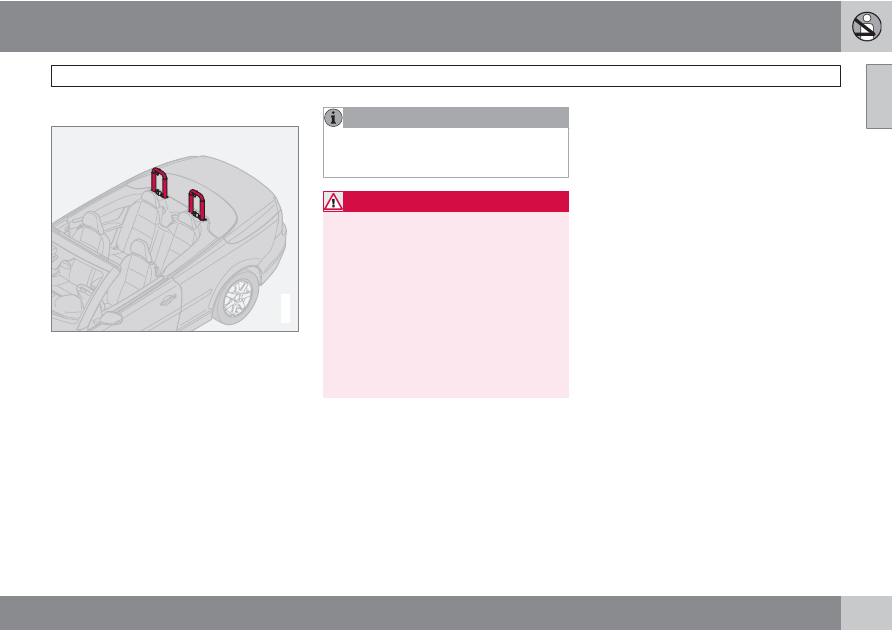

Deployed ROPS roll bars

The ROPS system consists of two roll bars
located behind the rear seat head restraints,
and a sensor that monitors the roll or pitch
angle of the vehicle.

If the vehicle rolls or pitches beyond a preset
angle, or in the event of a rear-end collision of
sufficient force, the roll bars are automatically
deployed (raised).

The ROPS system is designed to function
regardless of whether the power retractable
hard top is up or down. By design, the tops of
the roll bars are equipped with a point in order
to pierce the rear window if the top is up.

NOTE

If ROPS has deployed, the system should
be inspected by a trained and qualified
Volvo service technician.

WARNING

•

The rear seat of the Volvo C70 is
intended for two occupants, and only
two rear seat belts are provided. The
center section of the seat should never
be used to seat a passenger.

•

No objects should be placed over the
roll bars or behind the rear seat head
restraints.

•

All repairs or maintenance to the ROPS
system should only be performed by a
trained and qualified Volvo service tech-
nician.

01 Safety

Crash mode

Driving after a collision

G026363

If the vehicle has been involved in a collision,
the text

CRASH MODE SEE MANUAL

may

appear in the information display. This indi-
cates that the vehicle's functionality has been
reduced.

This text can only be shown if the display is
undamaged and the vehicle's electrical system
is intact.

CRASH MODE is a feature that is triggered if
one or more of the safety systems (for example,
front or side airbags, an inflatable curtain, or
one or more of the seat belt pretensioners) has
deployed. The collision may have damaged an
important function in the vehicle, such as the

fuel lines, sensors for one of the safety sys-
tems, the brake system, etc.

WARNING

•

Never attempt to repair the vehicle
yourself or to reset the electrical system
after the vehicle has displayed

CRASH

MODE SEE MANUAL

. This could

result in injury or improper system func-
tion.

•

Restoring the vehicle to normal operat-
ing mode should only be done by a
trained and qualified Volvo service tech-
nician.

•

After

CRASH MODE SEE MANUAL

has been displayed, if you detect the
odor of fuel vapor, or see any signs of
fuel leakage, do not attempt to start the
vehicle. Leave the vehicle immediately.

Attempting to start the vehicle

If damage to the vehicle is minor and there is
no fuel leakage, you may attempt to start the
vehicle. To do so:

Remove the ignition key or optional keyless
drive start control, see page 145.

Reinsert the key or start control in the igni-
tion switch. The vehicle will then attempt to
reset CRASH MODE to normal mode.

Try to start the vehicle.

Moving the vehicle

If the electrical system is able to reset system
status to normal (

CRASH MODE SEE

MANUAL

will no longer be displayed), the

vehicle may be moved carefully from its pres-
ent position, if for example, it is blocking traffic.
It should, however, not be moved farther than
is absolutely necessary.

WARNING

Even if the vehicle appears to be drivable
after CRASH MODE has been set, it should
not be driven or towed (pulled by another
vehicle). There may be concealed damage
that could make it difficult or impossible to
control. The vehicle should be transported
on a flatbed tow truck to a trained and quali-
fied Volvo service technician for inspection/
repairs.

01 Safety

Child safety

Children should be seated safely

Volvo recommends the proper use of restraint
systems for all occupants including children.
Remember that, regardless of age and size, a
child should always be properly restrained in a
car.

Your car is also equipped with ISOFIX/LATCH
attachments, which make it more convenient
to install child seats.

Some restraint systems for children are
designed to be secured in the vehicle by lap
belts or the lap portion of a lap-shoulder belt.
Such child restraint systems can help protect
children in cars in the event of an accident only
if they are used properly. However, children
could be endangered in a crash if the child
restraints are not properly secured in the vehi-
cle. Failure to follow the installation instructions
for your child restraint can result in your child
striking the vehicle's interior in a sudden stop.

Holding a child in your arms is NOT a suitable
substitute for a child restraint system. In an
accident, a child held in a person's arms can
be crushed between the vehicle's interior and
an unrestrained person. The child could also be
injured by striking the interior, or by being ejec-
ted from the vehicle during a sudden maneuver
or impact. The same can also happen if the
infant or child rides unrestrained on the seat.
Other occupants should also be properly

restrained to help reduce the chance of injuring
or increasing the injury of a child.

All states and provinces have legislation gov-
erning how and where children should be car-
ried in a car. Find out the regulations existing
in your state or province. Recent accident sta-
tistics have shown that children are safer in rear
seating positions than front seating positions
when properly restrained. A child restraint sys-
tem can help protect a child in a vehicle. Here's
what to look for when selecting a child restraint
system:

•

It should have a label certifying that it
meets applicable Federal Motor Vehicle
Safety Standards (FMVSS 213) – or in Can-
ada, CMVSS 213.

•

Make sure the child restraint system is
approved for the child's height, weight and
development – the label required by the
standard or regulation, or instructions for
infant restraints, typically provide this infor-
mation.

•

In using any child restraint system, we urge
you to carefully look over the instructions
that are provided with the restraint. Be sure
you understand them and can use the
device properly and safely in this vehicle.
A misused child restraint system can result
in increased injuries for both the infant or
child and other occupants in the vehicle.

When a child has outgrown the child safety
seat, you should use the rear seat with the
standard seat belt fastened. The best way to
help protect the child here is to place the child
on a cushion so that the seat belt is properly
located on the hips (see the illustration on page
41). Legislation in your state or province may
mandate the use of a child seat or cushion in
combination with the seat belt, depending on
the child's age and/or size. Please check local
regulations.

A specially designed and tested booster cush-
ion can be obtained from your Volvo retailer.

USA: for children weighing 33–80 lbs. (15–
36 kg) and 38–54 inches (97–137 cm) in height

Canada: for children weighing 40–80 lbs. (18–
36 kg) and 40–54 inches (102–137 cm) in height

WARNING

Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend that
children under 4 feet 7 inches (140 cm) in
height who have outgrown these devices sit
in the rear seat with the seat belt fastened.

01 Safety

Child safety

Automatic Locking Retractor/
Emergency Locking Retractor (ALR/
ELR)

To make child seat installation easier, each
seat belt (except for the driver's belt) is equip-
ped with a locking mechanism to help keep the
seat belt taut.

When attaching the seat belt to a child
seat:

Attach the seat belt to the child seat
according to the child seat manufacturer's
instructions.

Pull the seat belt out as far as possible.

Insert the seat belt latch plate into the
buckle (lock) in the usual way.

Release the seat belt and pull it taut around
the child seat.

A sound from the seat belt retractor will be
audible at this time and is normal. The belt will
now be locked in place. This function is auto-
matically disabled when the seat belt is
unlocked and the belt is fully retracted.

WARNING

Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend that
children who have outgrown these devices
sit in the rear seat with the seat belt properly
fastened.

Volvo's recommendations

Why does Volvo believe that no child should sit
in the front seat of a car? It's quite simple really.
A front airbag is a very powerful device
designed, by law, to help protect an adult.

Because of the size of the airbag and its speed
of inflation, a child should never be placed in
the front seat, even if he or she is properly bel-
ted or strapped into a child safety seat. Volvo
has been an innovator in safety for over sev-
enty-five years, and we'll continue to do our
part. But we need your help. Please remember
to put your children in the back seat, and
buckle them up.

Volvo has some very specific
recommendations:

•

Always wear your seat belt.

•

Airbags are a SUPPLEMENTAL safety
device which, when used with a three-
point seat belt can help reduce serious
injuries during certain types of accidents.

Volvo recommends that you do not dis-
connect the airbag system in your vehicle.

•

Volvo strongly recommends that everyone
in the vehicle be properly restrained.

•

Volvo recommends that ALL occupants
(adults and children) shorter than 4 feet
7 inches (140 cm) be seated in the back
seat of any vehicle with a front passenger
side airbag.

•

Drive safely!

01 Safety

Child restraint systems

Child restraints

G008170

Infant seat

There are three main types of child restraint
systems: infant seats, convertible seats, and
booster cushions. They are classified accord-
ing to the child's age and size.

The following section provides general infor-
mation on securing a child restraint using a
three-point seat belt. Refer to page 42 for
information on securing a child restraint using
ISOFIX lower anchors.

G026518

Convertible seat

WARNING

A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the

Passenger airbag off

symbol near the

rear-view mirror is illuminated (on vehicles
equipped with Occupant Weight Sensor). If
the severity of an accident were to cause the
airbag to inflate, this could lead to serious
injury or death to a child seated in this posi-
tion.

G026513

Booster cushion

WARNING

Always refer to the child restraint manufac-
turer's instructions for detailed information
on securing the restraint.

01 Safety

Child restraint systems

WARNING

•

When not in use, keep the child restraint
system secured or remove it from the
passenger compartment to help pre-
vent it from injuring passengers in the
event of a sudden stop or collision.

•

A small child's head represents a con-
siderable part of its total weight and its
neck is still very weak. Volvo recom-
mends that children up to age 4 travel,
properly restrained, facing rearward. In
addition, Volvo recommends that chil-
dren should ride rearward facing, prop-
erly restrained, as long as possible.

•

The following text is mandated by
Canadian legislation: The Volvo C70 is
not equipped with top tether anchors.
Child restraints or booster cushions
requiring anchors of this kind cannot be
properly fastened and should not be
used in this vehicle.

01 Safety

Infant seats

Securing an infant seat with a seat belt

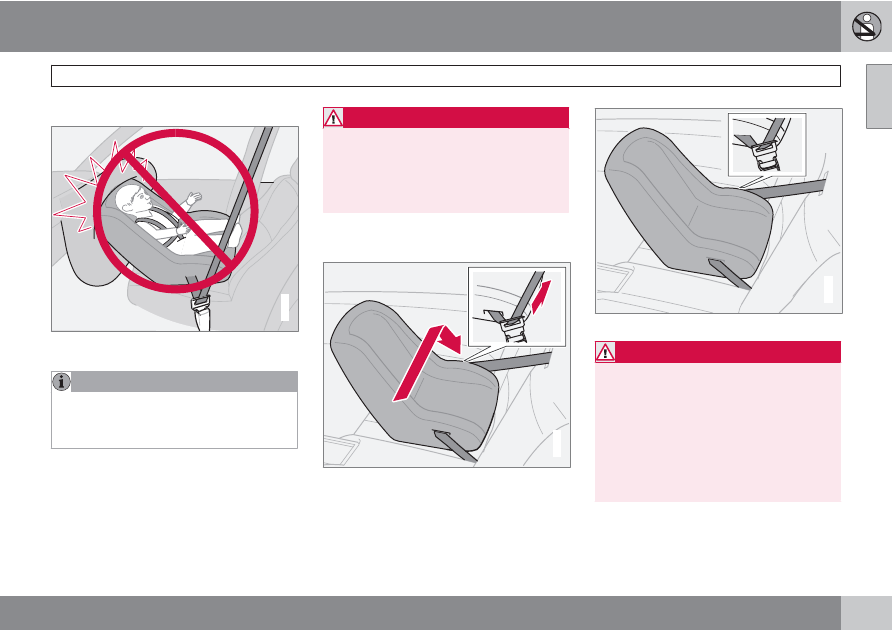

G026417

Do not place the infant seat in the front passeng-
er's seat

NOTE

Refer to page 42 for information on secur-
ing a child restraint using ISOFIX lower
anchors.

WARNING

•

An infant seat must be in the rear-facing
position only.

•

The infant seat should not be positioned
behind the driver's seat unless there is
adequate space for safe installation.

Place the infant seat in the rear seat of the
vehicle.

G026526

Positioning the seat belt through the infant seat

Attach the seat belt to the infant seat
according to the manufacturer's instruc-
tions.

G026523

Fasten the seat belt

WARNING

A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the
"Passenger airbag off" symbol near the
rear-view mirror is illuminated (on vehicles
equipped with Occupant Weight Sensor). If
the severity of an accident were to cause the
airbag to inflate, this could lead to serious
injury or death to a child seated in this posi-
tion.

Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.

01 Safety

Infant seats

G026512

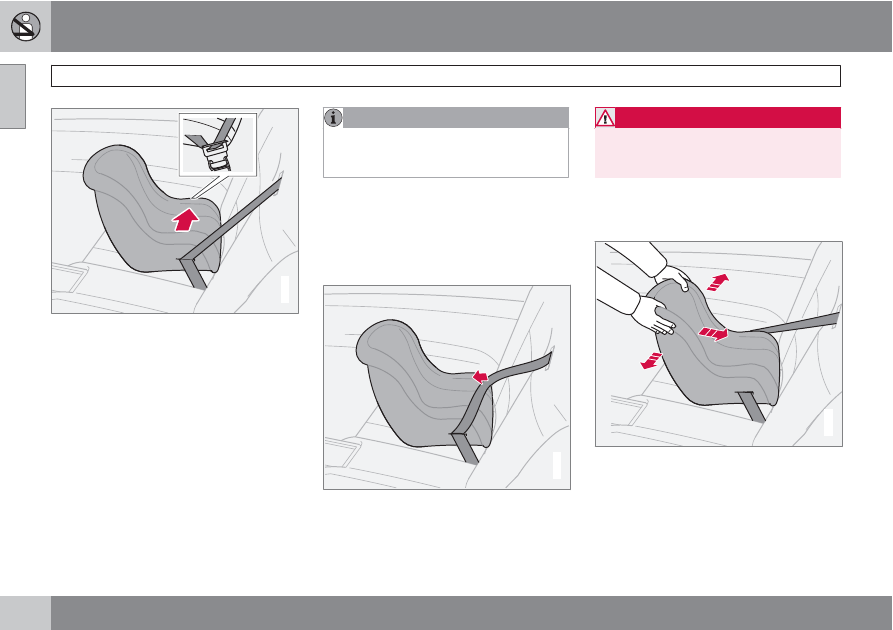

Pull out the shoulder section of the seat belt

Pull the shoulder section of the seat belt
out as far as possible to activate the belt's
automatic locking function.

NOTE

The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

Press the infant seat firmly in place, let the
seat belt retract and pull it taut. A sound
from the seat belt retractor's automatic
locking function will be audible at this time

and is normal. The seat belt should now be
locked in place.

G026516

Ensure that the seat is securely in place

WARNING

It should not be possible to move the child
restraint more than 1 in. (2.5 cm) in any
direction.

Push and pull the infant seat to ensure that
it is held securely in place by the seat belt.

The infant seat can be removed by unbuck-
ling the seat belt and letting it retract com-
pletely.

01 Safety

Convertible seats

Securing a convertible seat with a seat
belt

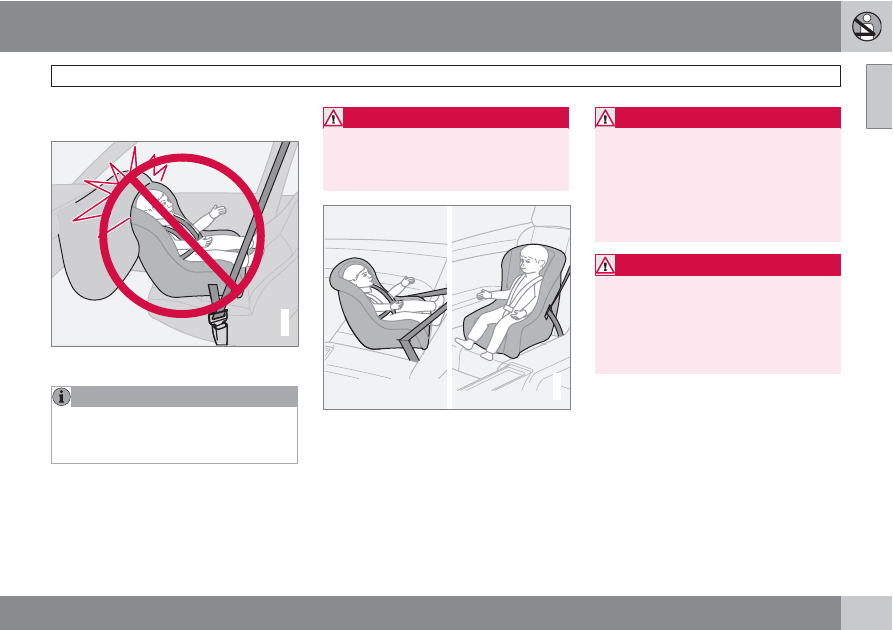

G026420

Do not place the convertible seat in the front pas-
senger's seat

NOTE

Refer to page 42 for information on secur-
ing a child restraint using ISOFIX lower
anchors.

Convertible seats can be used in either a for-
ward or rearward-facing position, depending
on the age and size of the child.

WARNING

Always use a convertible seat that is suita-
ble for the child's age and size. See the con-
vertible seat manufacturer's recommenda-
tions.

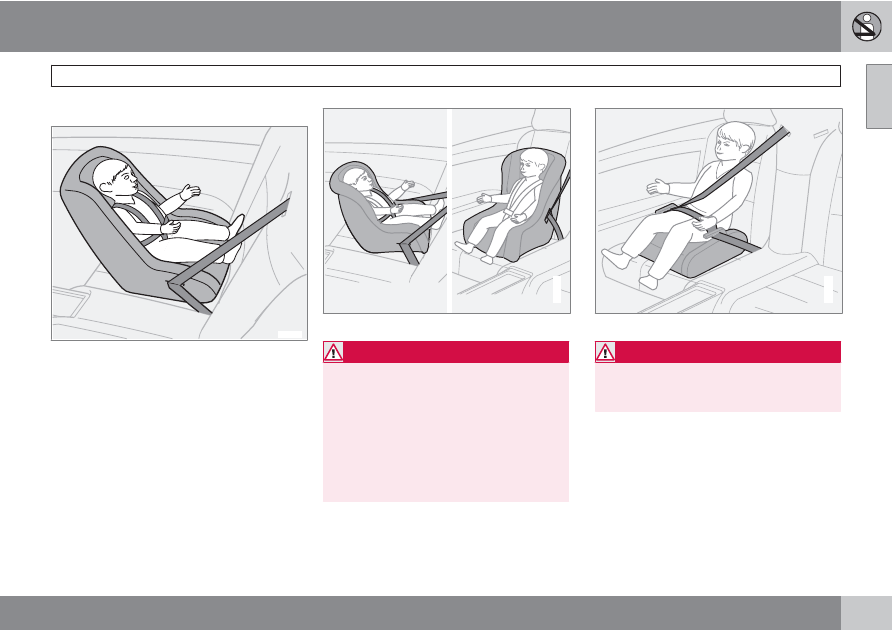

G026518

Route the seat belt through the convertible seat

WARNING

A small child's head represents a consider-
able part of its total weight and its neck is
still very weak. Volvo recommends that chil-
dren up to age 4 travel, properly restrained,
facing rearward. In addition, Volvo recom-
mends that children should ride rearward
facing, properly restrained, as long as pos-
sible.

WARNING

•

Convertible child seats should be instal-
led in the rear seat only.

•

A rear-facing convertible seat should not
be positioned behind the driver's seat
unless there is adequate space for safe
installation.

Place the convertible seat in the rear seat
of the vehicle.

01 Safety

Convertible seats

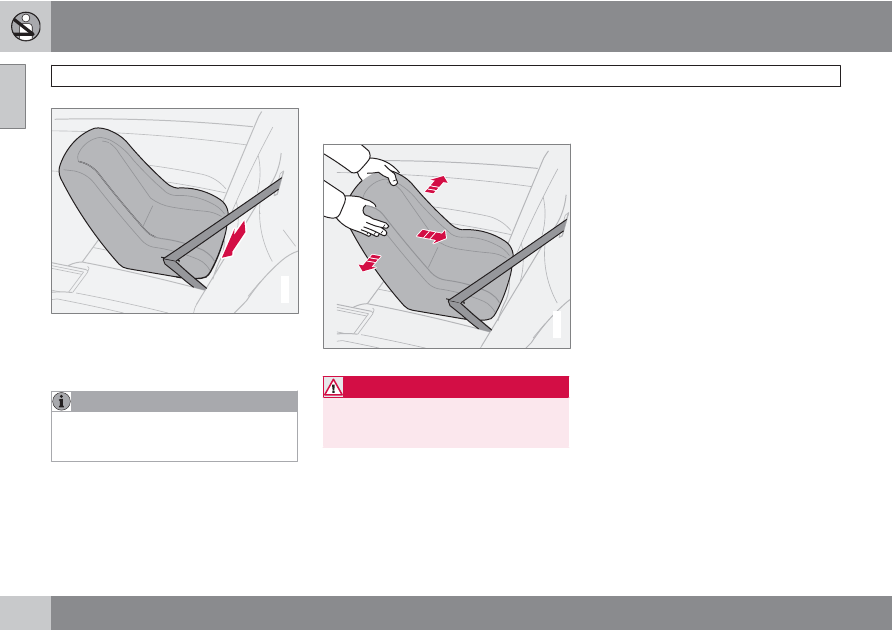

G026514

Fasten the seat belt

Attach the seat belt to the convertible seat
according to the manufacturer's instruc-
tions.

Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.

Pull the shoulder section of the seat belt
out as far as possible to activate the belt's
automatic locking function.

NOTE

The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

Press the convertible seat firmly in place,
let the seat belt retract and pull it taut. A
sound from the seat belt retractor's auto-
matic locking function will be audible at this
time and is normal. The seat belt should
now be locked in place.

G026537

Pull out the shoulder section of the seat belt

Push and pull the convertible seat to
ensure that it is held securely in place by
the seat belt.

WARNING

It should not be possible to move the child
restraint more than 1 in. (2.5 cm) in any
direction.

The convertible seat can be removed by
unbuckling the seat belt and letting it retract
completely.

G026524

Ensure that the seat is securely in place

01 Safety

Booster cushions

Securing a booster cushion

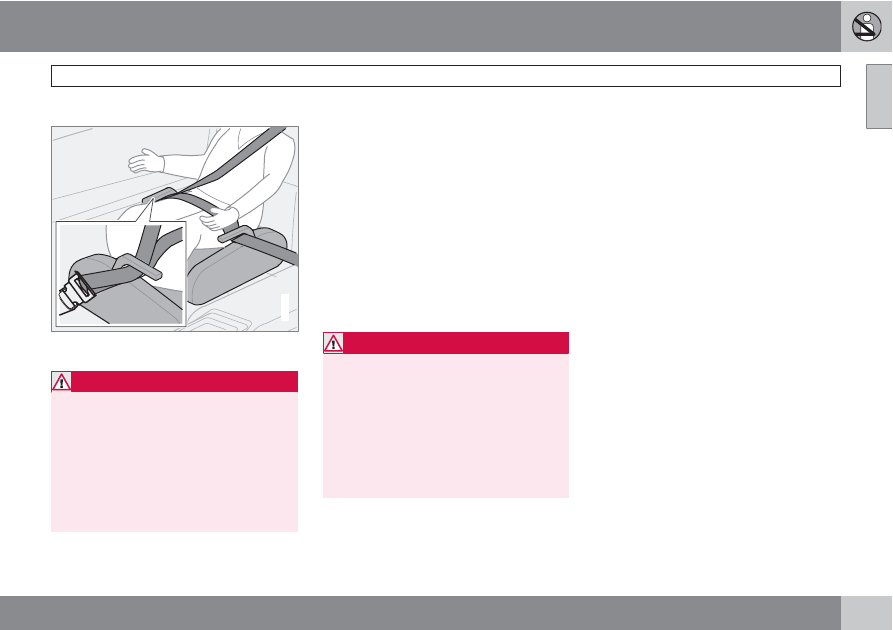

G026517

Position the child correctly on the booster cushion
and fasten the seat belt

WARNING

A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the

Passenger airbag off

symbol near the

Booster cushions are recommended for chil-
dren who have outgrown convertible seats.

Place the booster cushion in the rear seat
of the vehicle.

With the child properly seated on the
booster cushion, attach the seat belt to or
around the cushion according to the man-
ufacturer's instructions.

Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.

Ensure that the seat belt is pulled taut and
fits snugly around the child.

WARNING

•

The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.

•

The shoulder section of the three-point
seat belt should be positioned across
the chest and shoulder.

•

The shoulder belt must never be placed
behind the child's back or under the
arm.

Content .. 1 2 3 ..
