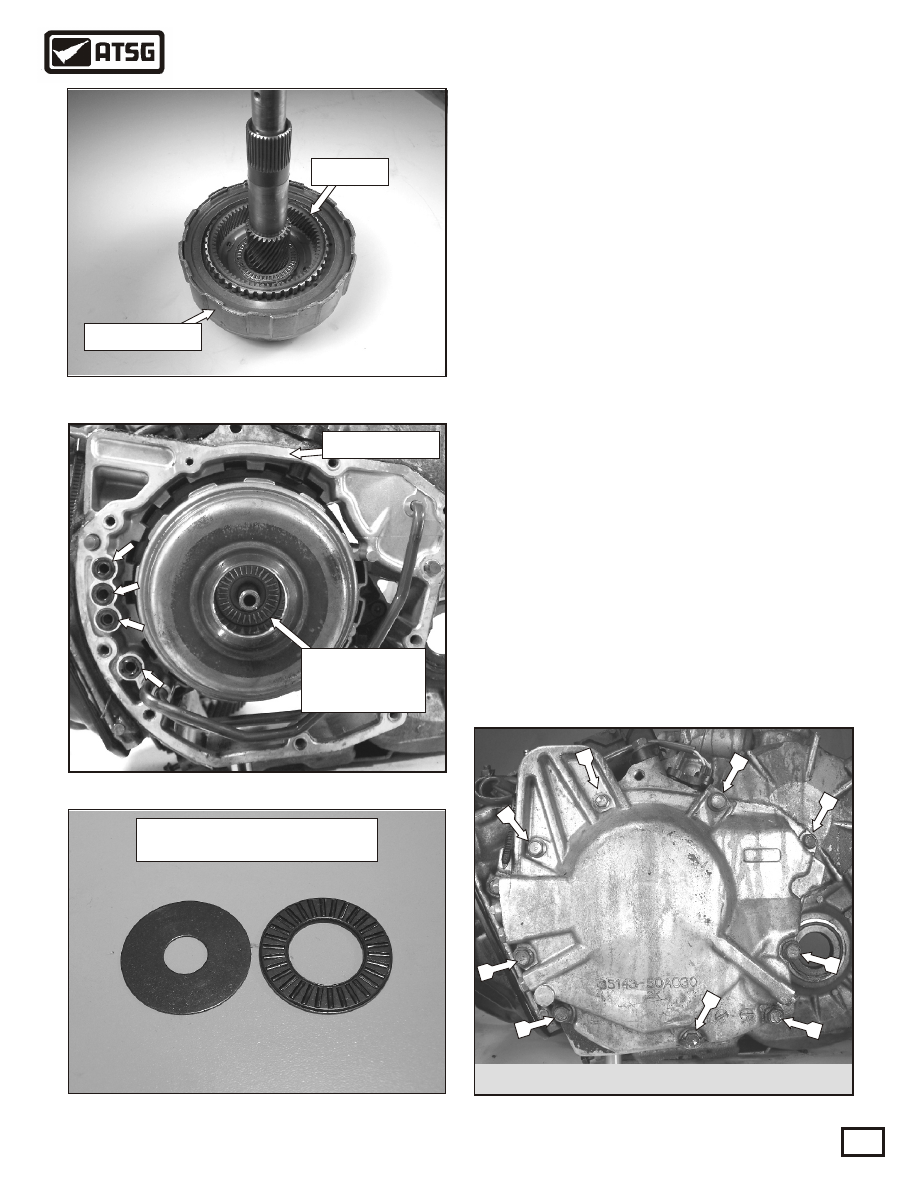

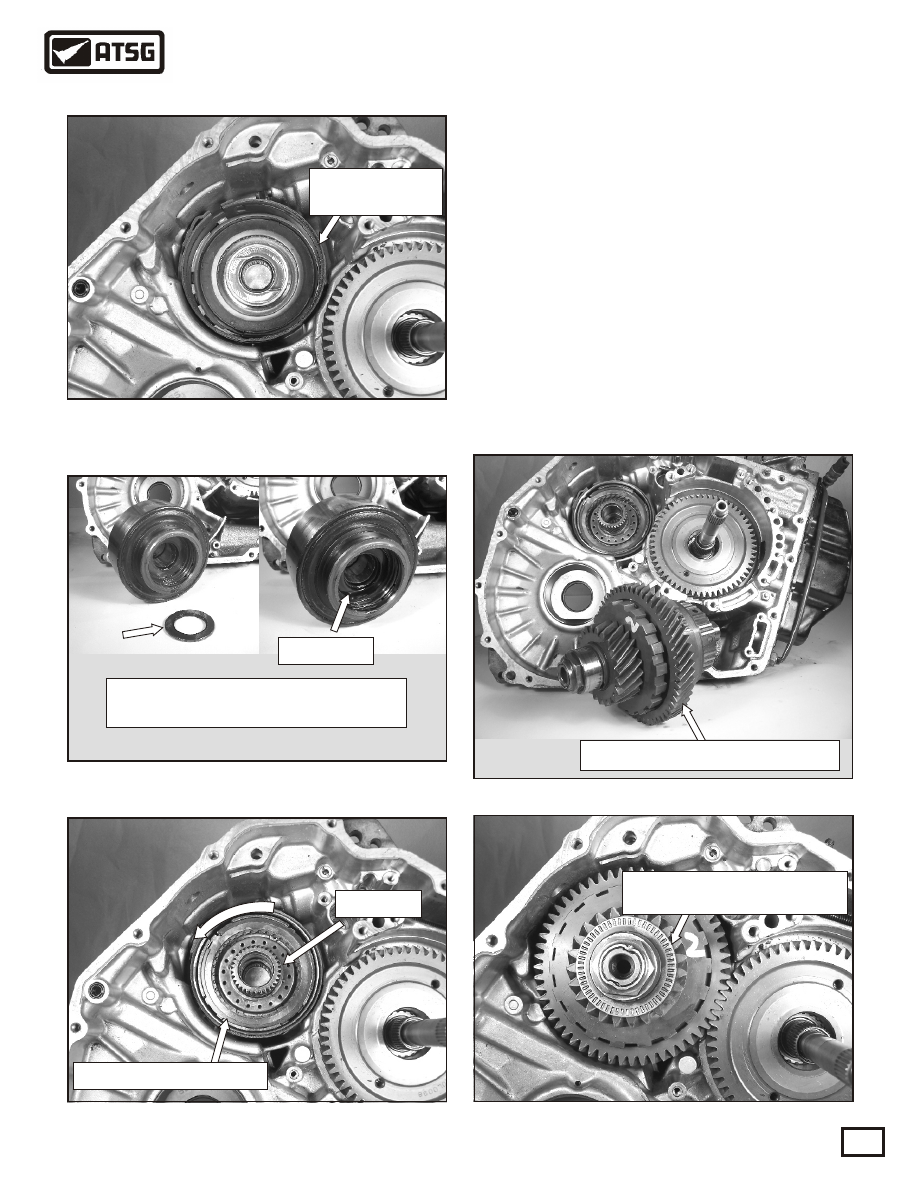

175. Index the C1 hub into the C1 clutches shown
in Figure 247.
176. Carefully, take the C1/C2 drum and slide it
into the planetary assembly turning it slightly.
Note: Do this with the case half standing up
on the bench. Install the C1/C2 thrust washer
and bearing into the rear of the drum.
Apply a thin coat of sealant to the surface
where the rear cover mating surface is. Replace
the four rubber seals in the case half. See
Figure 248.
177. Refer to Figure 249 for a close up view of the
C1/C2 thrust bearing and race.
178. Assemble the rear cover onto the case half and
install and torque the bolts into the correct
locations using the chart listed below. See
Figure 250.
A= 16mm long. Torque to 70-100 in.lb.
B= 25mm long. Torque to 15-22 ft.lb.
C= 48mm long. Torque to 15-22ft.lb.
D= 45mm long. Torque to 15-22 ft.lb.
TRANSMISSION REASSEMBLY
CONTINUED
Figure 248
C1-C2 Drum
Thrust bearing
and washer
C1-C2 Drum Thrust bearing
and washer removed
Figure 250
Figure
A
A
B
B
C
D
C
D
D
Figure 247
Figure 249
Copyright © 2004 ATSG
Apply sealant
Continued on Page 96
