Volkswagen New Beetle. Manual - part 997

z

Turn crankshaft back slightly.

z

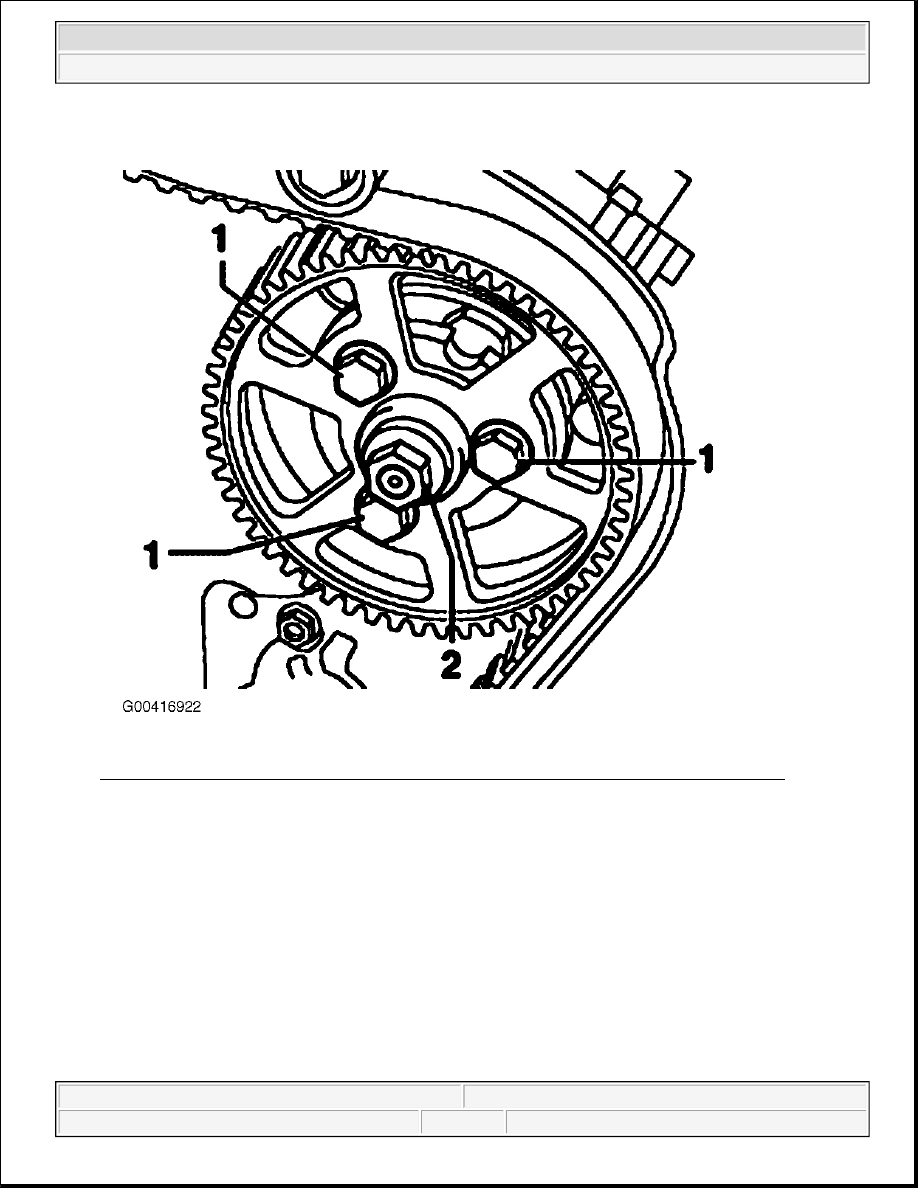

Remove camshaft sprocket hub. See CAMSHAFT, REMOVING AND INSTALLING .

z

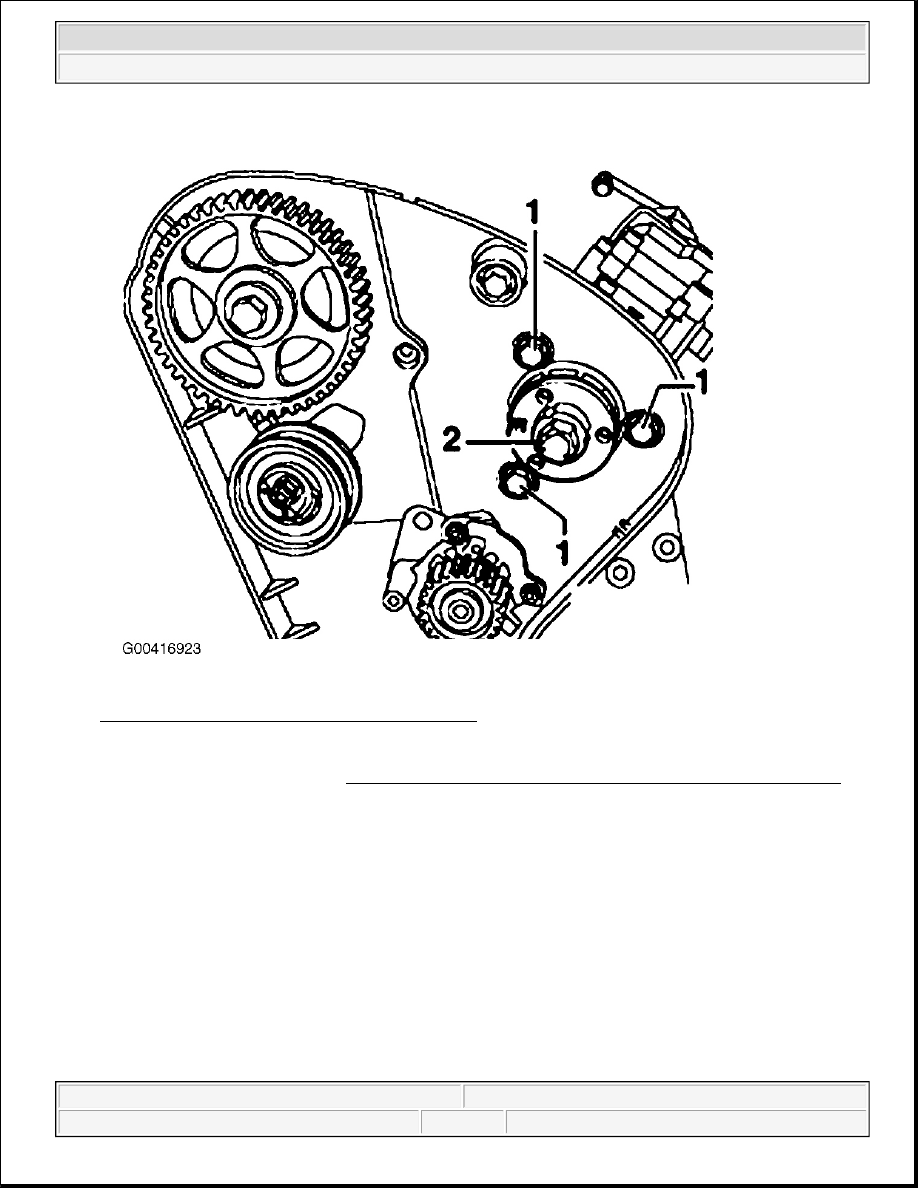

Remove toothed belt tensioning roller.

z

Remove coolant pump and idler roller.

z

Remove Camshaft Position (CMP) sensor.

z

Remove rear toothed belt guard.

z

Bolt bracket T10014 in forward threaded hole of removed engine bracket in area of water pump in
cylinder block, as shown.

Fig. 97: Attaching Engine Support Assembly
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Fig. 98: Bolting Bracket T10014 In Forward Threaded Hole Of Removed Engine Bracket
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Use second spindle -A- and supplementary hook 10-222 A/2, lift engine slightly until spindle -B- is not
under tension.

z

Unhook spindle -B- from lifting eye -1- and slide to side.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Fig. 99: Unhooking Spindle -B- From Lifting Eye
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove cylinder head cover. See CYLINDER HEAD COVER, REMOVING AND INSTALLING .

z

Maintain sequence when loosening and tightening cylinder head bolts.

z

Lift cylinder head out with the aid of an assistant.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)



Fig. 100: Identifying Cylinder Head Bolt Loosening Sequence
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

NOTE:

z

Always replace cylinder head bolts.

z

In cases of repair carefully remove gasket remains from cylinder head and
cylinder block. Make sure that no long grooves or scratches are created.
When using abrasive paper do not use a grade less than 100.

z

Carefully remove emery and abrasive materials.

z

Blow forcibly into the threaded holes for the cylinder head bolts. Place a
cloth onto the respective hole for protection against oil splashes.

z

Only unpack new cylinder head gasket and sealant immediately prior to
installation.

z

Handle the new gasket with extreme care. Damages to the silicone film
and in the depression area will result in leaks.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 1.9L 4-Cyl. (Engine Code BEW)
