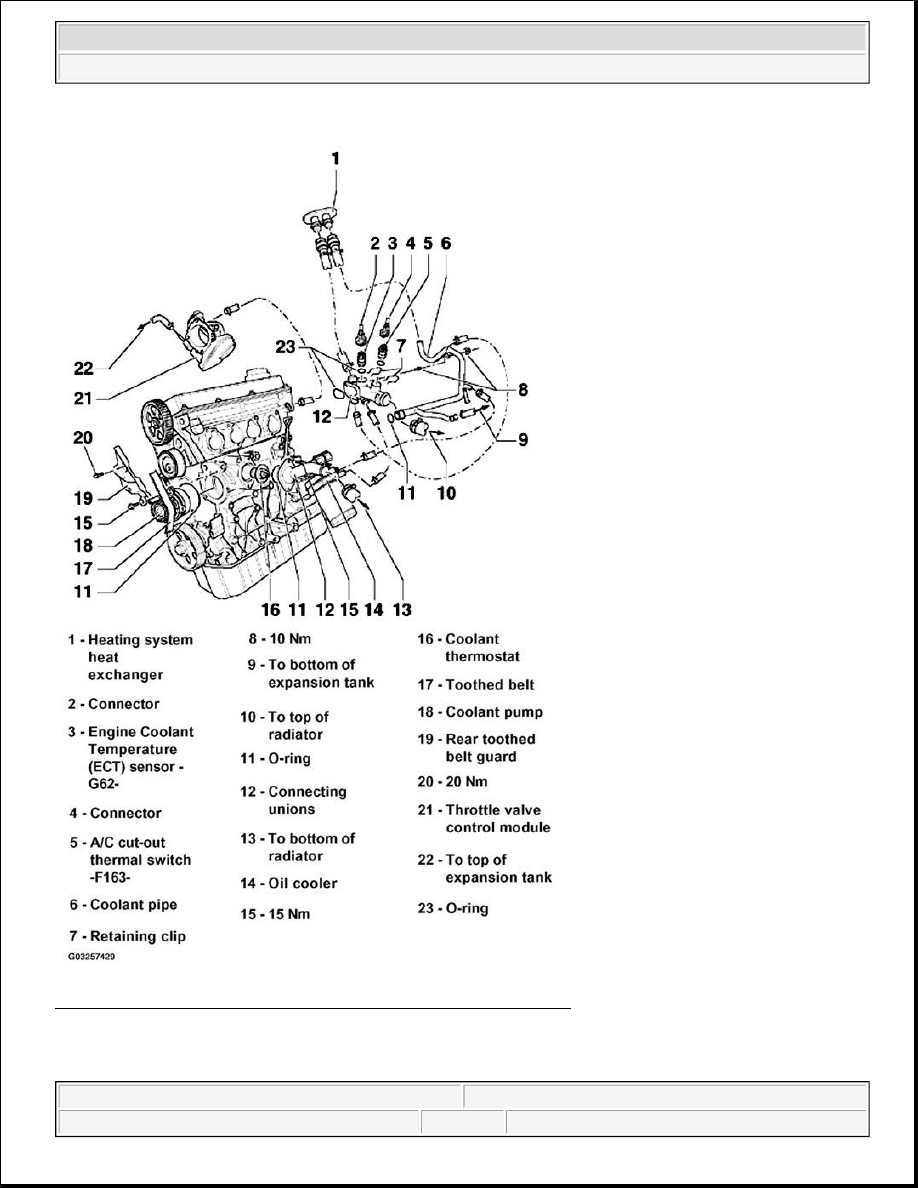

Fig. 3: Exploded View Of Engine Side Cooling System Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

COOLANT HOSE CONNECTION DIAGRAM



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)



Engine code AEG (up to Model Year 1998)

1. Radiator

2. Oil cooler

3. Coolant pump/coolant thermostat

4. Cylinder head/cylinder block

5. Expansion tank

6. Intake manifold

7. Throttle valve control module

8. Union

9. Heating system heat exchanger

10. Coolant pipe

11. ATF cooler

z

Only models with an automatic transmission

NOTE:

Engine codes AEG (from Model Year 1999), AVH, AZG, BDC, BEV, BGD, see
ENGINE CODES AEG (FROM MODEL YEAR 1999), AVH, AZG, BDC, BEV, BGD .

NOTE:

The following list refers to items in Fig. 4 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 2.0L (AEG, AVH, AXG, BDC BEV & BGD)

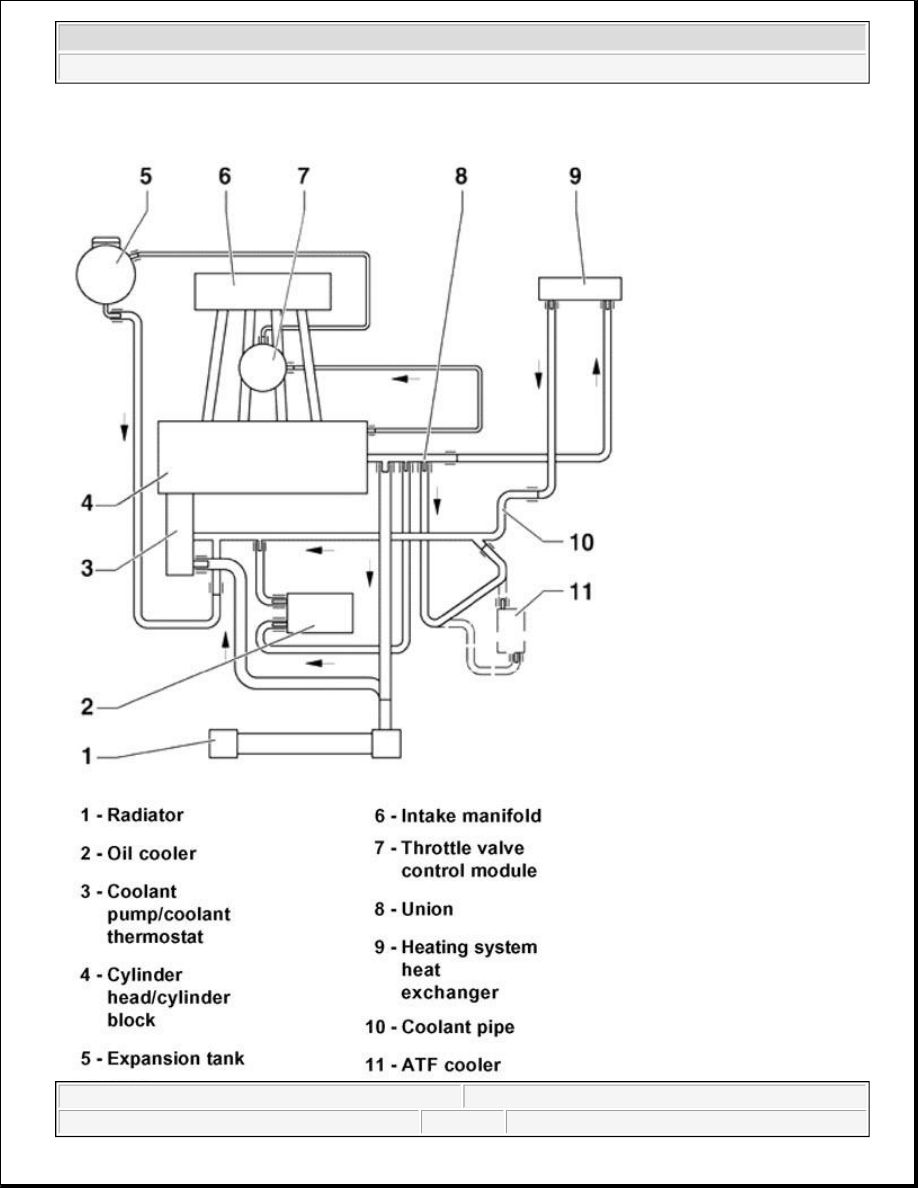

Fig. 4: Coolant Hose Connection Diagram (Engine Code AEG Up To Model Year 1998)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine codes AEG (from Model Year 1999), AVH, AZG, BDC, BEV, BGD

1. Radiator

2. Oil cooler

3. Coolant pump/coolant thermostat

4. Cylinder head/cylinder block

5. Expansion tank

6. Intake manifold

7. Throttle valve control module

8. Connecting unions

9. Heating system heat exchanger

10. Quick-action coupling

11. Coolant pipe

12. ATF cooler

z

Only models with an automatic transmission

NOTE:

The following list refers to items in Fig. 5 .
