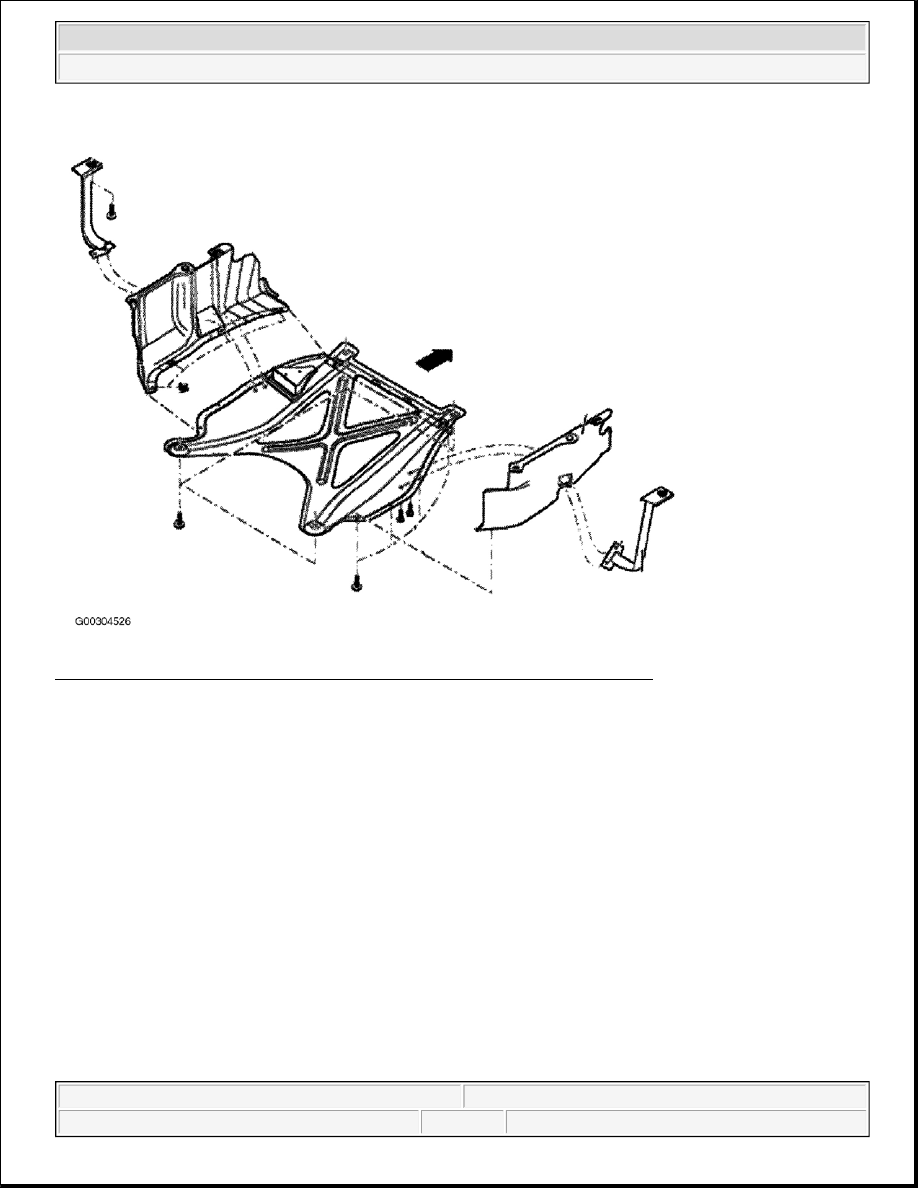

Fig. 9: Identifying Noise Insulation Mounting Points (New Beetle Convertible)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.8L Turbo (Except Passat)

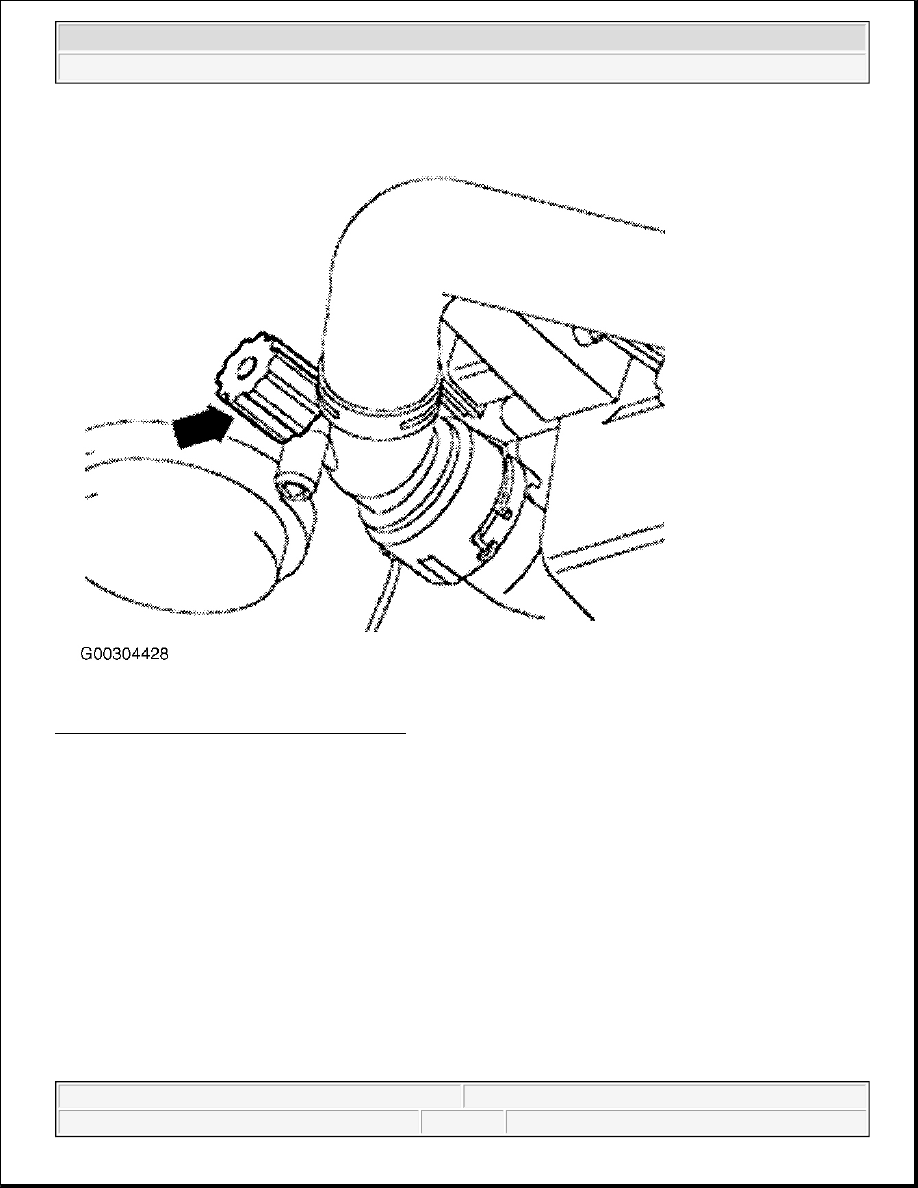

Fig. 10: Identifying Drain Screw On Radiator
Courtesy of AUDI OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.8L Turbo (Except Passat)

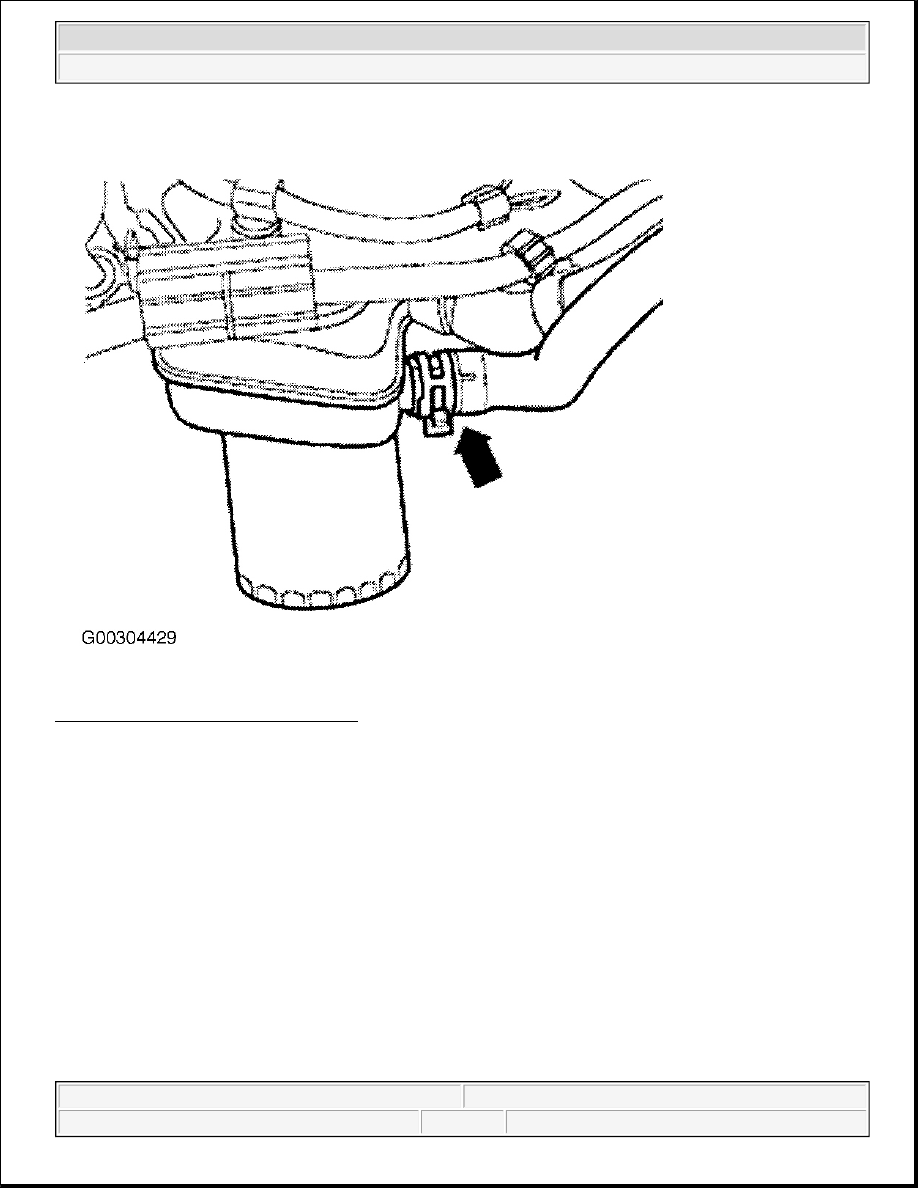

Fig. 11: Removing Lower Coolant Hose
Courtesy of AUDI OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

2002-04 ENGINE COOLING Specifications & Drive Belt Routing - 1.8L Turbo (Except Passat)

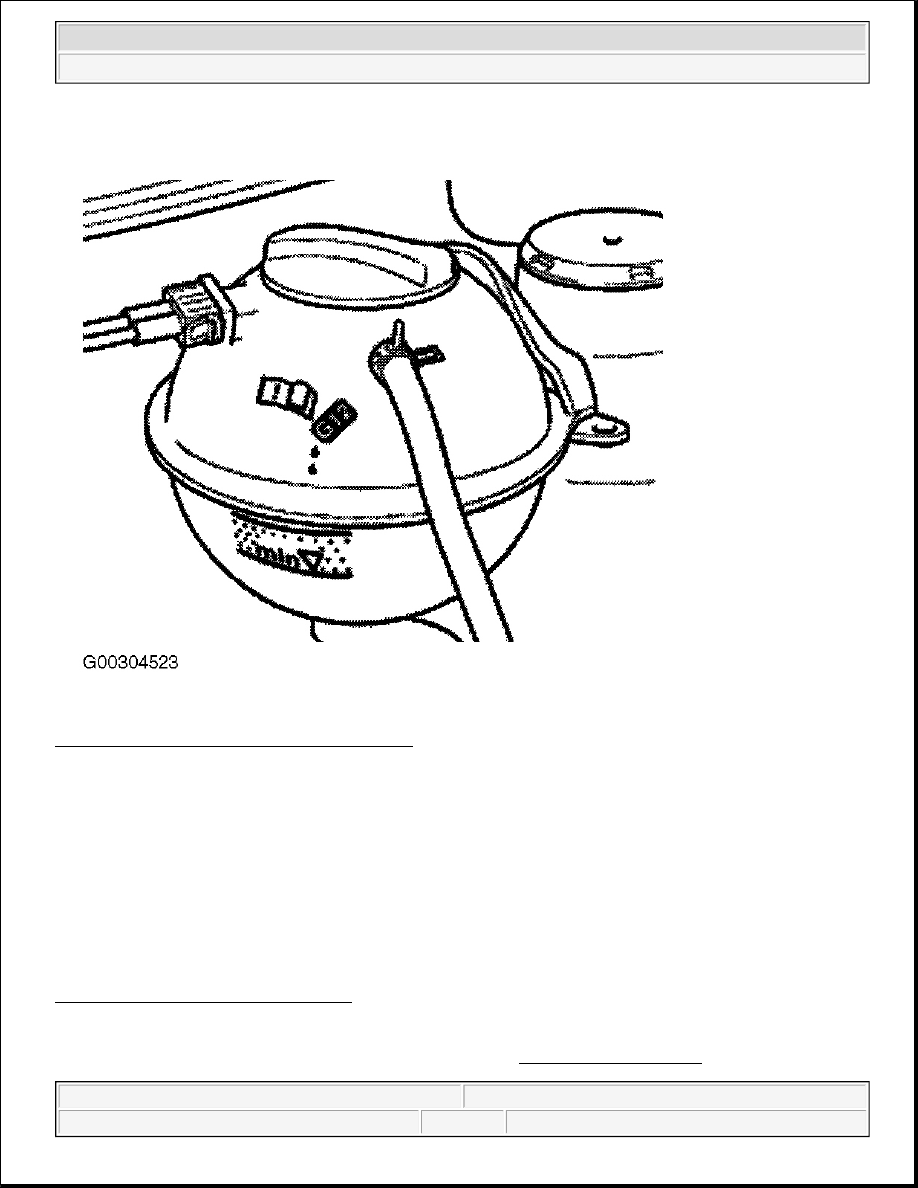

Fig. 12: Identifying Expansion Tank Markings
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SERVICING

Coolant does not usually need replacing. In case of larger repairs when coolant needs to be drained, new coolant
must be used because, old has been exposed to oxidation and dirt. Flush cooling system when replacing coolant.
To flush, fill system with clear water, and run engine for approximately 2 minutes. Drain cooling system. See
DRAINING, FILLING & BLEEDING . Flushing system should remove most coolant residue.

Coolant to water ratio must not exceed 60%. Frost protection and cooling efficiency will decrease if the
percentage of coolant is too high. For coolant to water ratio, see COOLANT MIXTURE
RECOMMENDATIONS table under COOLING SYSTEM SPECIFICATIONS.

WARNING:

Cooling system is pressurized, when engine is at operating temperature.
Wear gloves, and other appropriate protection. Slowly and carefully
release system pressure, before performing any repairs.
