Volkswagen New Beetle. Manual - part 901

1. 15 N.m

2. Toothed belt

z

Mark direction of rotation before removing

z

Check for wear

z

Do not kink

z

Removing, installing and tensioning. See TOOTHED BELT, REMOVING, INSTALLING
AND TENSIONING .

3. Coolant pump

z

Check for ease of movement

z

If damaged or leaking replace complete

z

Removing and installing. See COOLANT PUMP, REMOVING AND INSTALLING

4. O-ring

z

Replace

5. Coolant thermostat

z

Checking: heat-up thermostat in water

z

Opening commences approx. 87 °C

z

Ends approx. 102 °C

z

Opening lift min. 7 mm

6. O-ring

z

Replace

7. Connection

8. Hose to heat exchanger

z

Coolant hose connection diagram. See COOLANT HOSE CONNECTION DIAGRAM

9. Connector

z

4 pin

z

Up to MY 1999: Wiring chamber 1 and wiring chamber 3 for -G62-

z

From MY 2000: Wiring chamber 3 and wiring chamber 4 for -G62-

z

Gold plated terminals

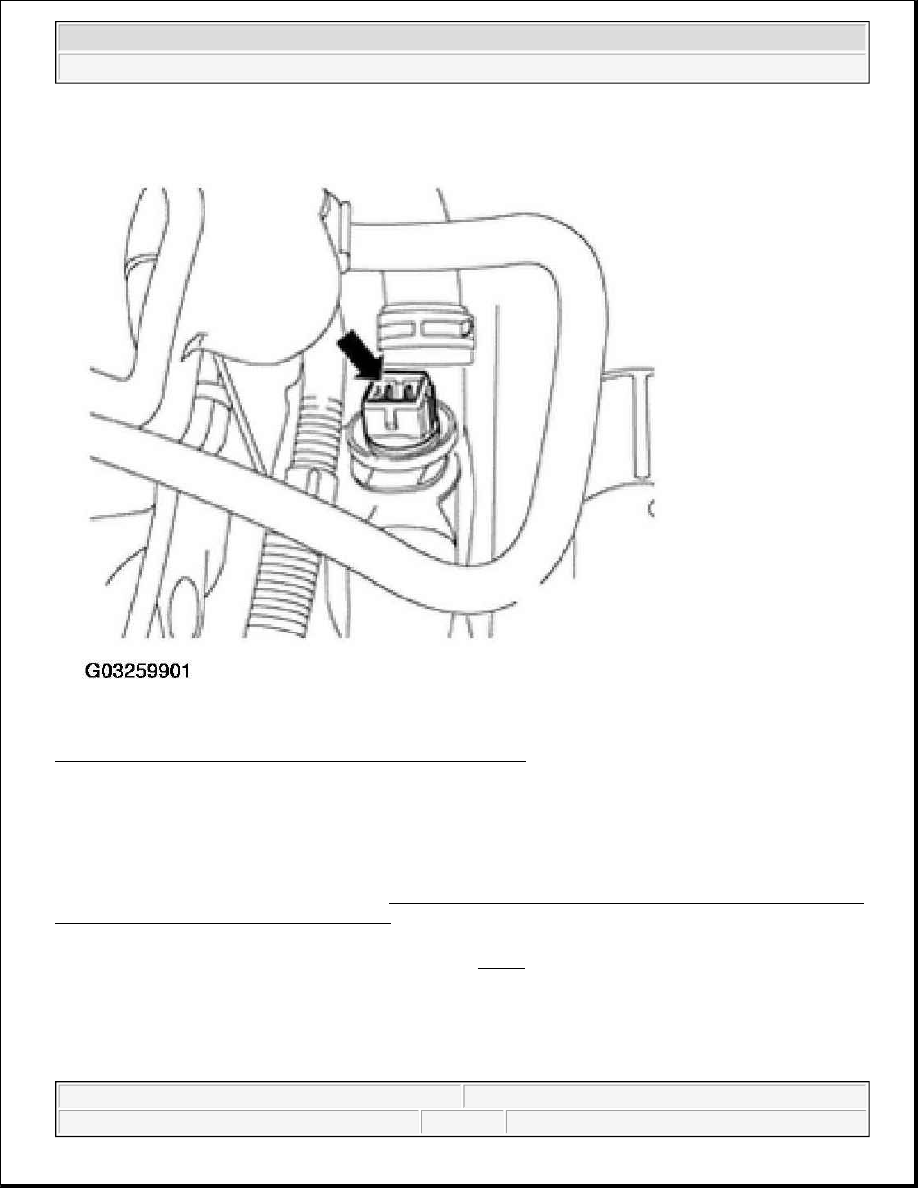

10. Engine Coolant Temperature (ECT) sensor -G62-

z

With ECT sensor -G2-

z

For Engine Control Module

z

If necessary, release pressure in cooling system before removing

z

Checking:

See Engine Coolant Temperature (ECT) Sensor, Checking

NOTE:

The following list refers to items in Fig. 2 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 1.8L (APH, AWV & AWP)



z

Checking and erasing DTC memory:

See Diagnostic Trouble Code (DTC) memory, checking and erasing

11. O-ring

z

Replace

12. Retaining clip

z

Check seated securely

13. Connection

14. Upper coolant hose of radiator

z

Secured to radiator with retaining clip

z

Check securely seated

z

Coolant hose connection diagram. See COOLANT HOSE CONNECTION DIAGRAM

15. Lower coolant hose

z

Secured to radiator with retaining clip

z

Check securely seated

z

Coolant hose connection diagram. See COOLANT HOSE CONNECTION DIAGRAM

16. Upper coolant pipe

z

Secured to intake manifold

z

Coolant hose connection diagram. See COOLANT HOSE CONNECTION DIAGRAM

17. Cap

z

Check with cooling system tester VAG 1274 and adapter VAG 1274/9

z

Test pressure 1.4 to 1.6 bar

18. O-ring

z

Replace if damaged

19. Expansion tank

z

Perform leak test of cooling system with cooling system tester VAG 1274 and adapter VAG 1274/8

20. 10 N.m

21. Coolant pipe

z

Secured to oil filter bracket

z

Coolant hose connection diagram. See COOLANT HOSE CONNECTION DIAGRAM

22. Oil cooler

z

Removing and installing. See PART II , item 22

23. 15 N.m



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 2: Identifying Cooling System Components - Engine Side
Courtesy of VOLKSWAGEN OF AMERICA, INC.

COOLANT HOSE CONNECTION DIAGRAM

Only vehicles with engine code APH

Vehicles with engine codes AWP, AWV: See Vehicles with engine codes: AWP (only manual transmission),
AWV (manual and automatic transmission) .

1. Expansion tank

2. Turbocharger

3. Intake manifold

NOTE:

The following list refers to items in Fig. 3 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Cooling System - New Beetle, 1.8L (APH, AWV & AWP)



4. Cylinder head/cylinder block

5. Heating system heat exchanger

6. Coolant pipe

7. ATF cooler

z

Only on vehicles with automatic transmission

8. Oil cooler

9. Upper coolant hose

10. Cooler

11. Lower coolant hose

12. After-run coolant pump -V51-

13. Coolant pump/coolant thermostat

Fig. 3: Coolant Hose Connection Diagram - Engine Code APH
