Volkswagen New Beetle. Manual - part 888



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:42 AM

Page 122

© 2004 Mitchell Repair Information Company, LLC.

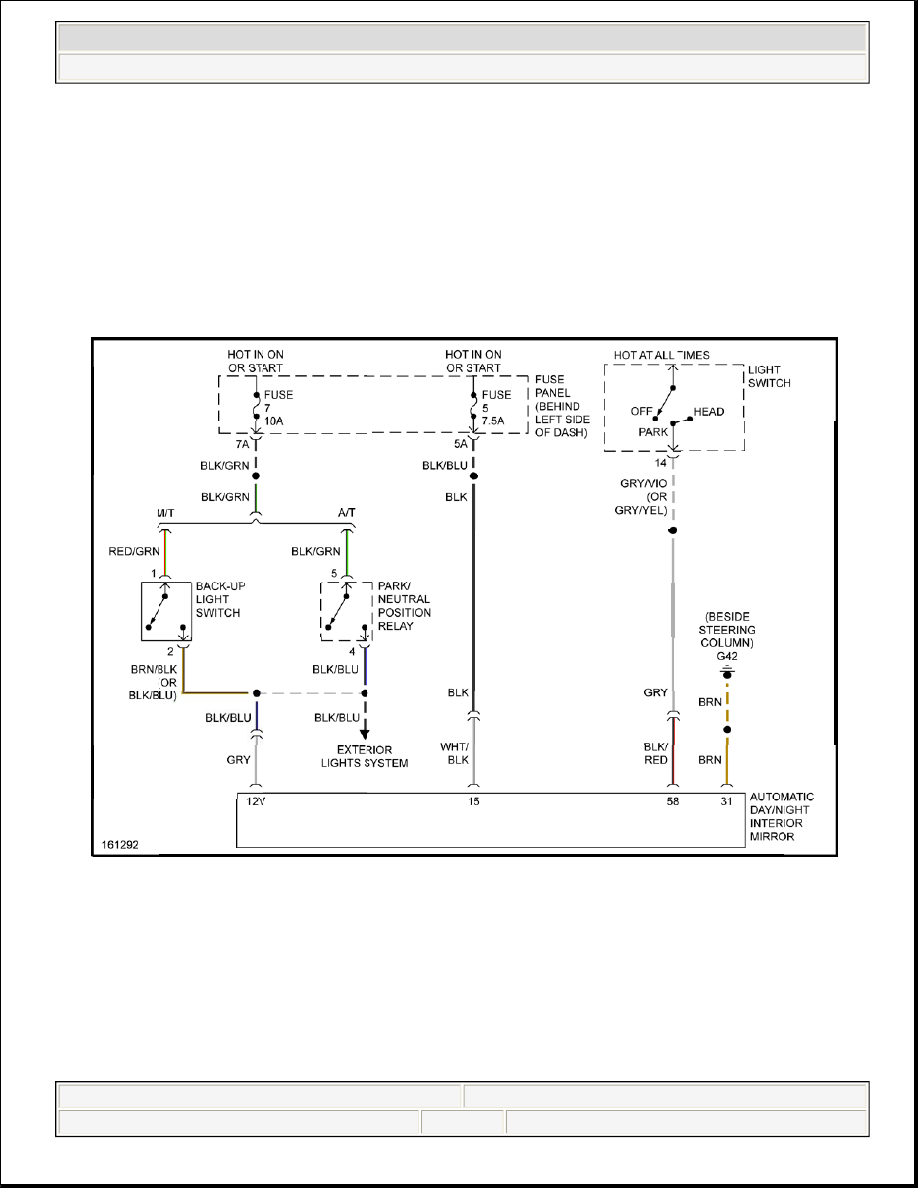

Fig. 61: Automatic Day/Night Mirror Circuit



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:42 AM

Page 123

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:42 AM

Page 124

© 2004 Mitchell Repair Information Company, LLC.

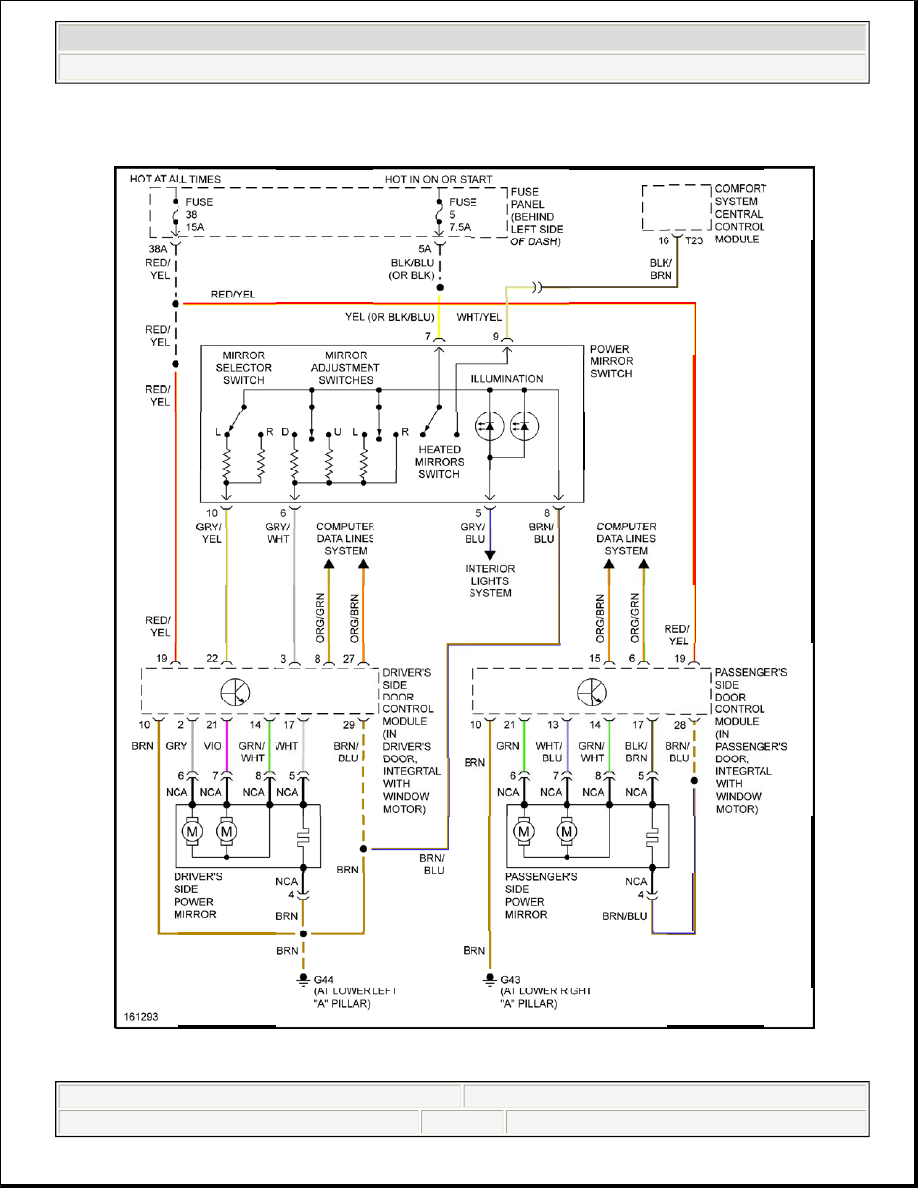

Fig. 62: Power Mirrors Circuit, W/ Power Windows

POWER SEATS



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:43 AM

Page 125

© 2004 Mitchell Repair Information Company, LLC.
