Volkswagen New Beetle. Manual - part 883



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:41 AM

Page 102

© 2004 Mitchell Repair Information Company, LLC.

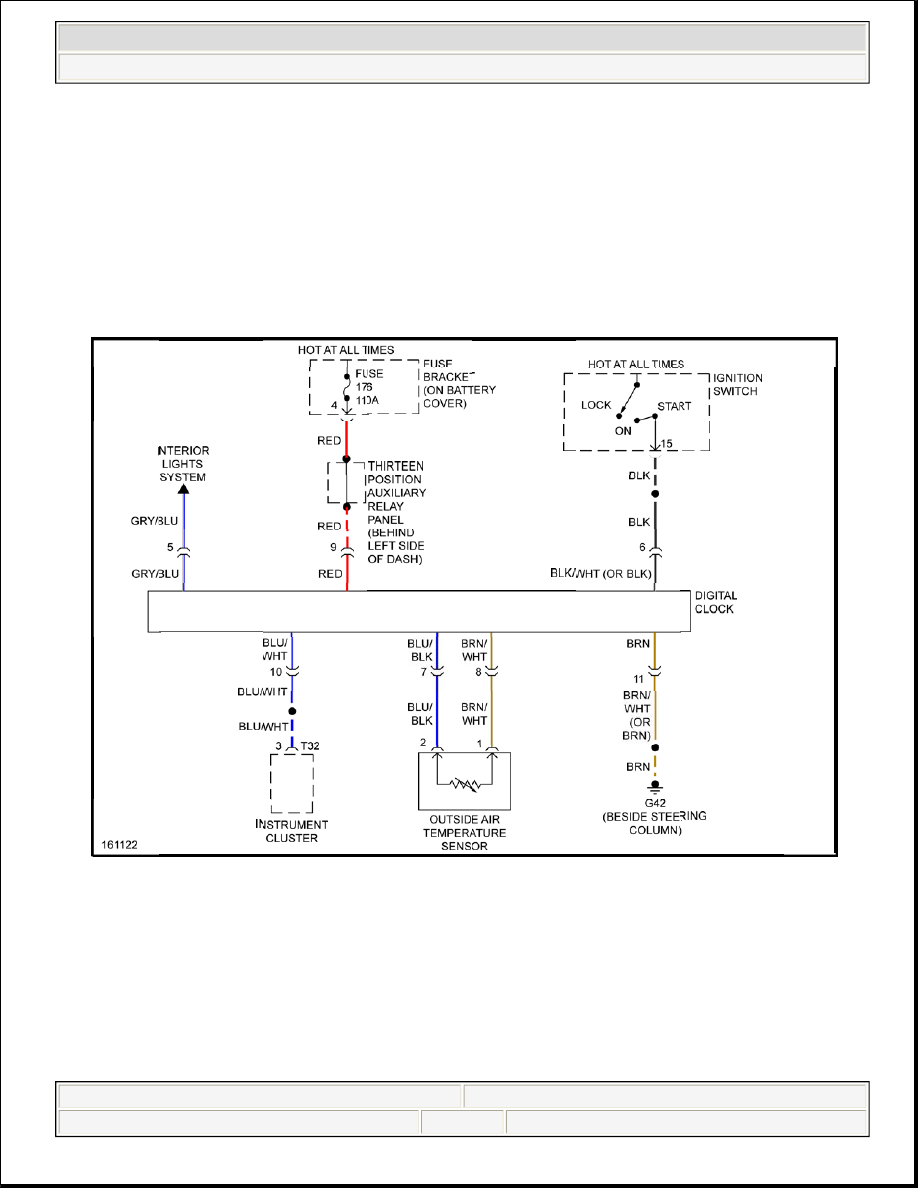

Fig. 51: Digital Clock Circuit



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:41 AM

Page 103

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:41 AM

Page 104

© 2004 Mitchell Repair Information Company, LLC.

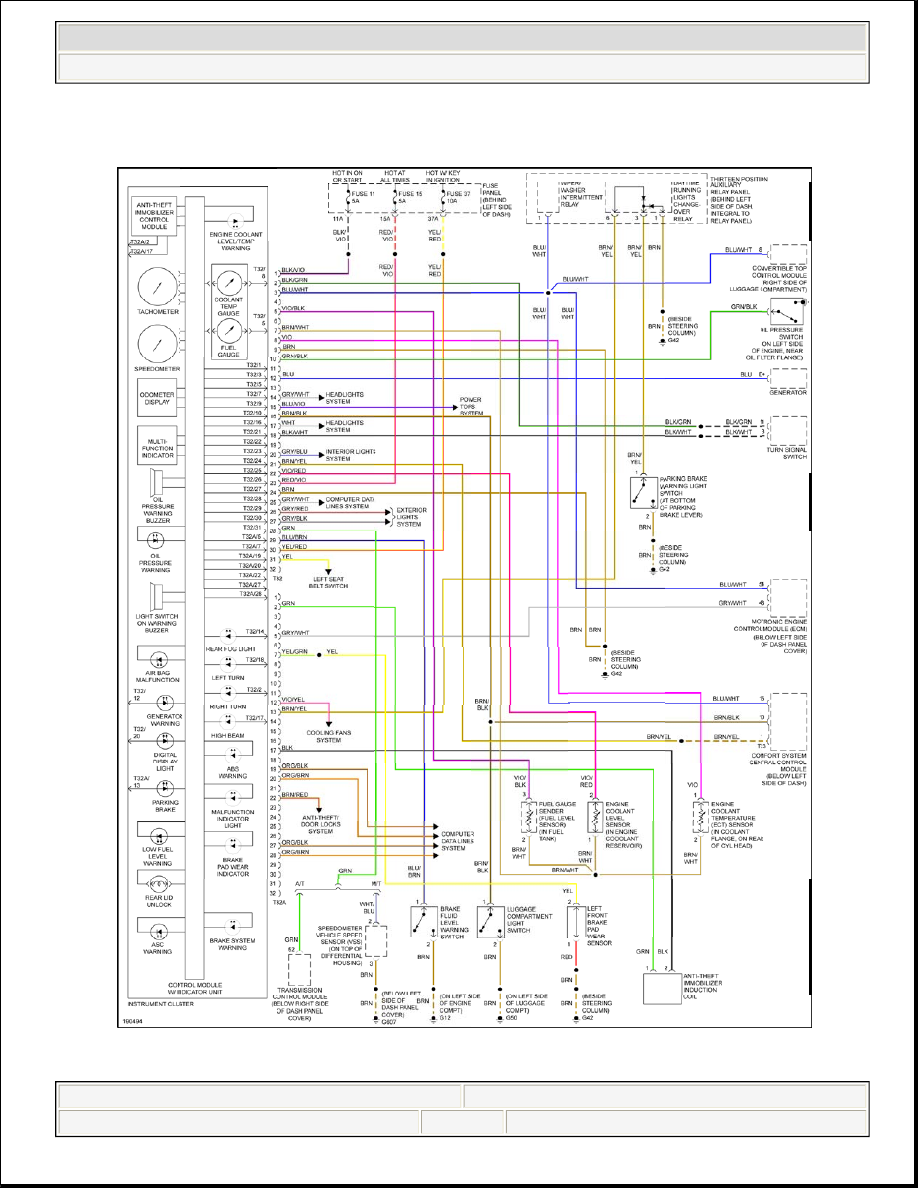

Fig. 52: Gauges And Indicators Circuit, Convertible



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:41 AM

Page 105

© 2004 Mitchell Repair Information Company, LLC.
