2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:37 AM

Page 50

© 2004 Mitchell Repair Information Company, LLC.

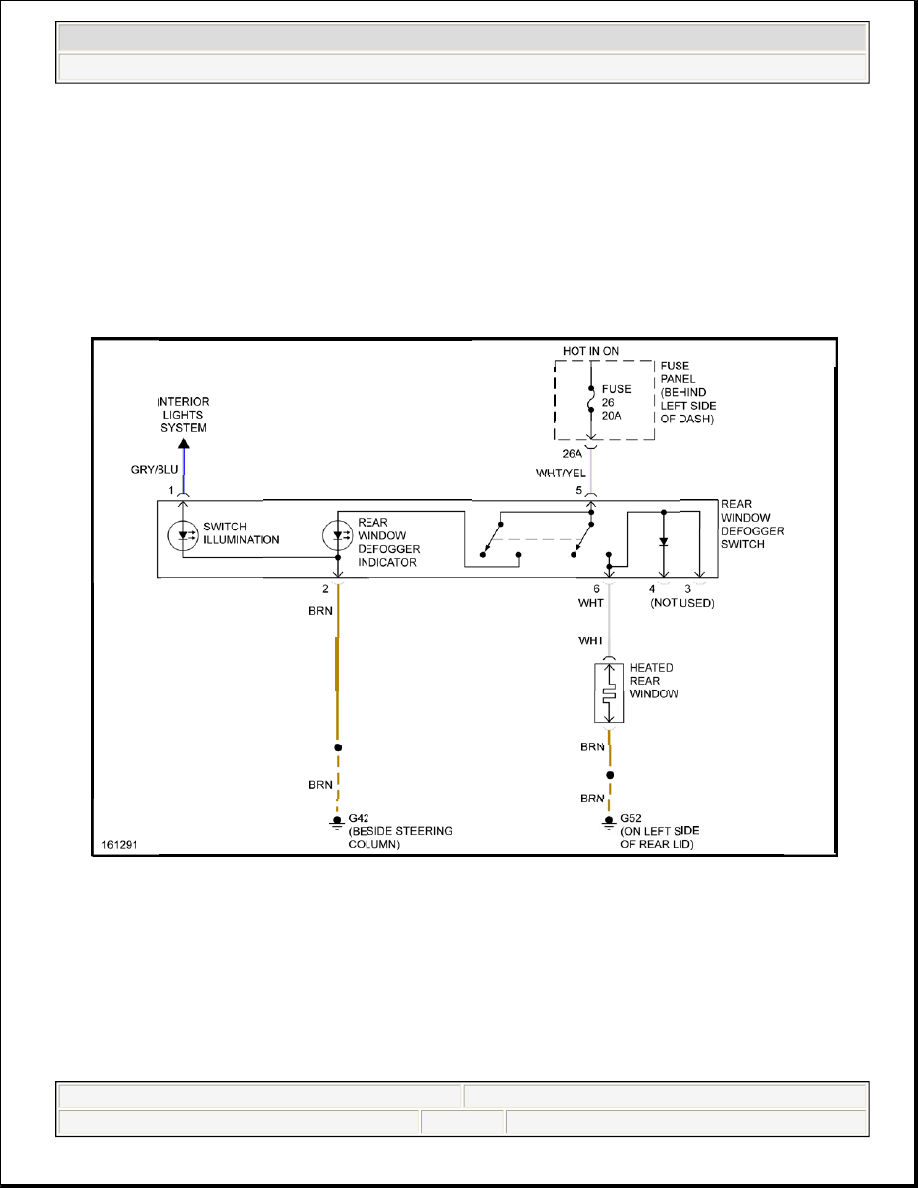

Fig. 25: Rear Defogger Circuit

ENGINE PERFORMANCE

1.8L TURBO



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:37 AM

Page 51

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:37 AM

Page 52

© 2004 Mitchell Repair Information Company, LLC.

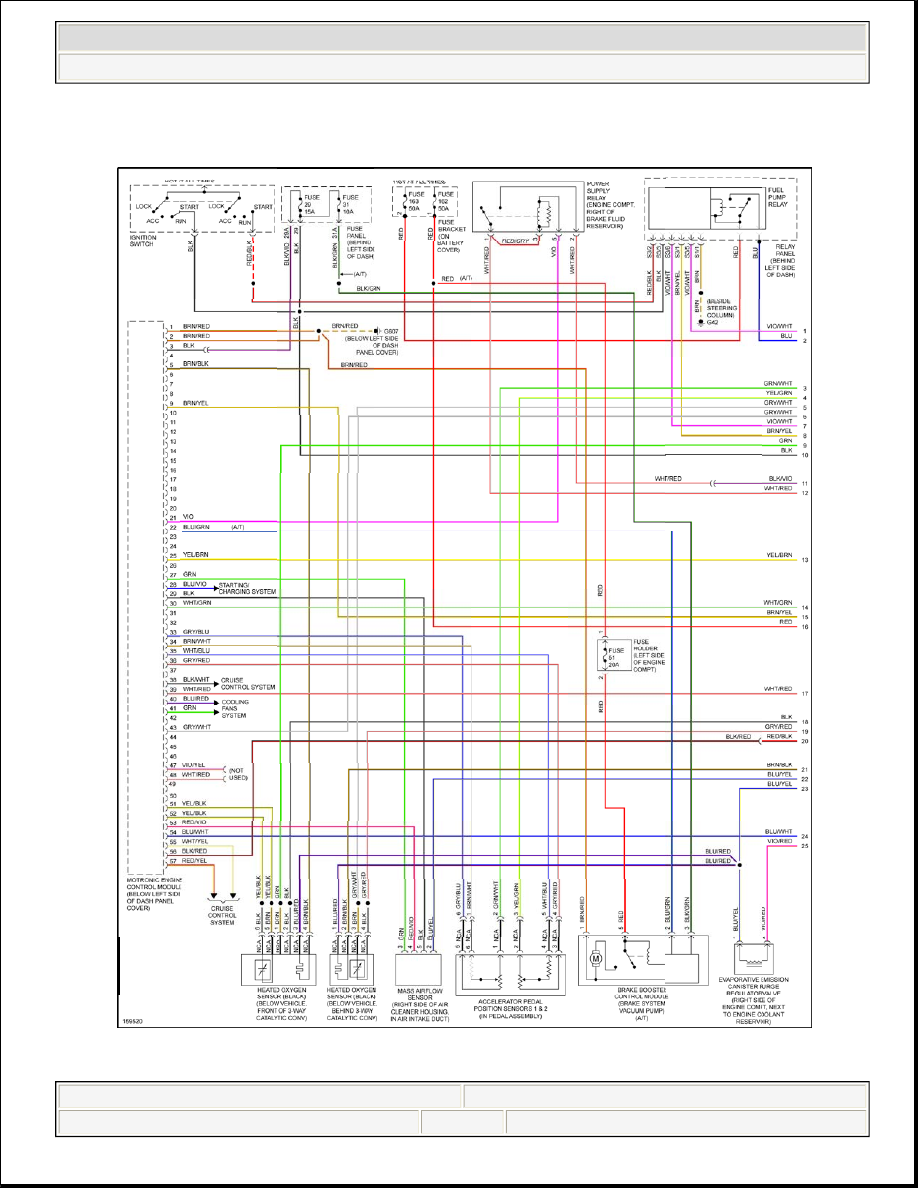

Fig. 26: 1.8L Turbo, Engine Performance Circuit (1 of 3)



2003 Volkswagen New Beetle GLS

SYSTEM WIRING DIAGRAMS Volkswagen - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:07:37 AM

Page 53

© 2004 Mitchell Repair Information Company, LLC.
