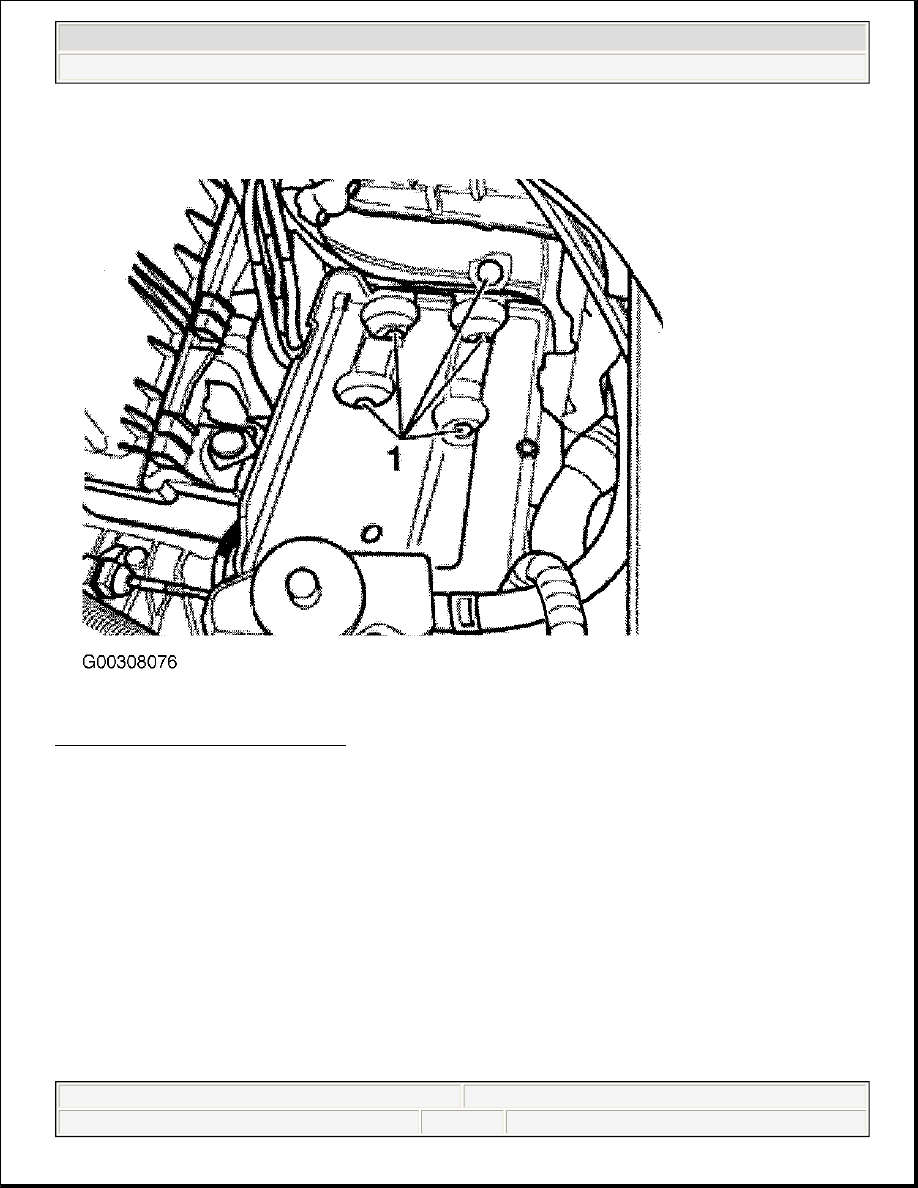

Fig. 9: Locating Battery Carrier Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CHARGING SYSTEMS Generators & Regulators - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:02:43 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

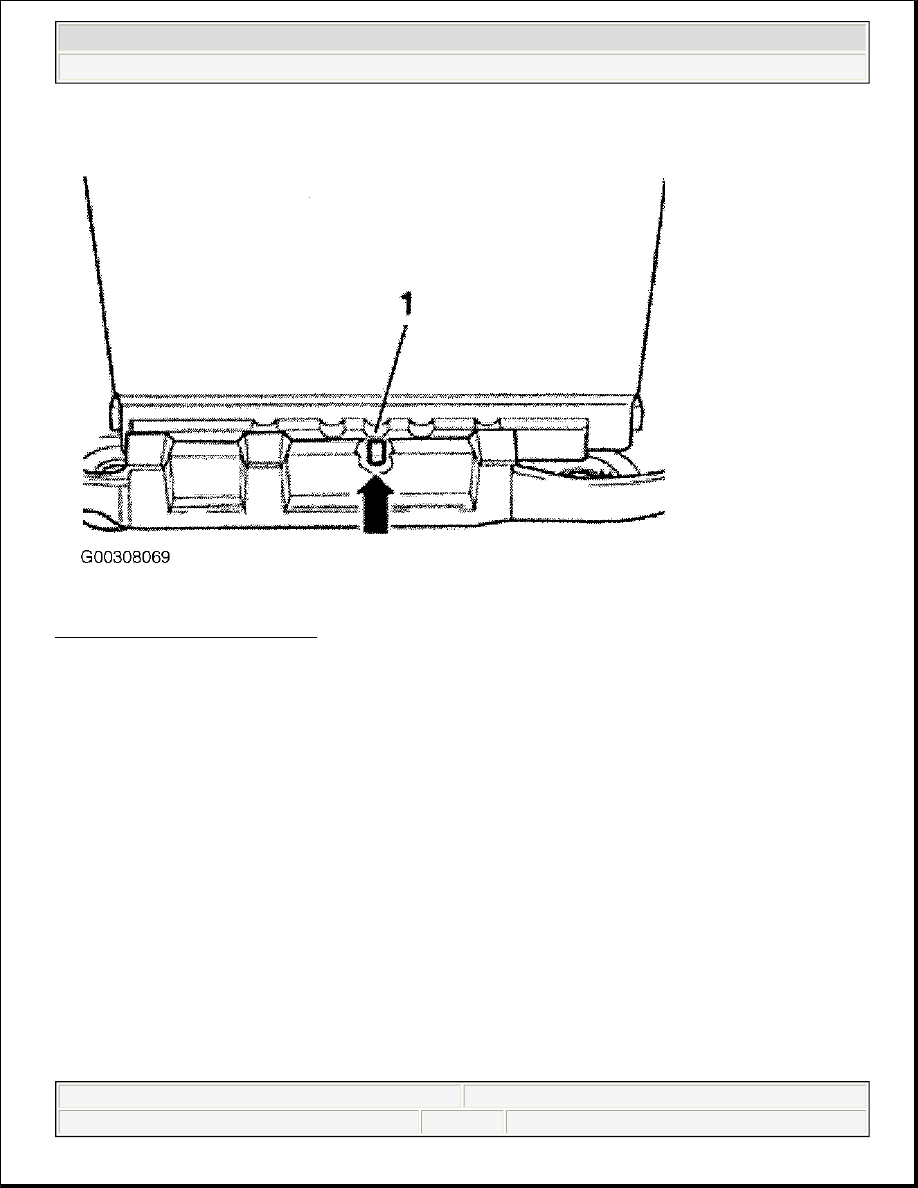

Fig. 10: Installing Battery (1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 CHARGING SYSTEMS Generators & Regulators - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:02:43 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.

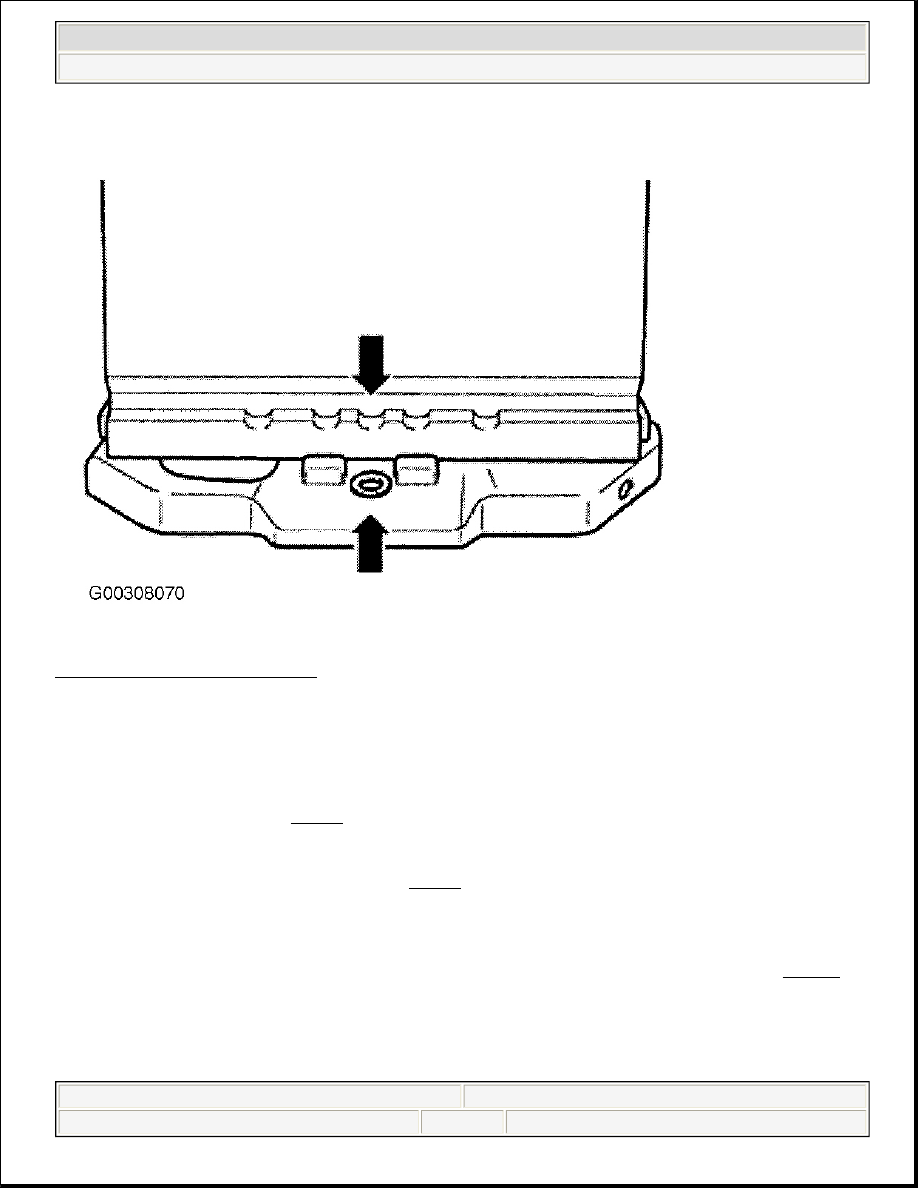

Fig. 11: Installing Battery (2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (Sedan - Up To May 1999)

1. Disconnect battery terminals. Where applicable, the battery insulation enclosure can only be opened and

removed after loosening positive clamp, and removing battery positive terminal.

2. Remove bolt (arrow). See Fig. 12 . Remove battery hold-down. Carefully slide battery to left, and lift

from battery tray.

3. To install, only use batteries with a 10.5 mm battery foot strip. Install battery so lug of battery carrier

(arrow) engages in battery groove (1). See Fig. 10 . Ensure battery can not move left or right when in
position.

4.

On batteries with hose for central venting, ensure venting hose is not kinked. Battery cannot vent freely
unless free of kinks. On batteries without hose for central venting, ensure opening on upper side of
battery cover is not blocked.

NOTE:

The battery is correctly installed when the center groove in the battery foot
strip aligns with threaded hole in the battery carrier (arrows). See Fig. 11 .



2003 Volkswagen New Beetle GLS

1998-2004 CHARGING SYSTEMS Generators & Regulators - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:02:43 AM

Page 16

© 2004 Mitchell Repair Information Company, LLC.

5. Install battery hold-down and bolt (arrow). See Fig. 12 . Tighten bolt to specification. See TORQUE

SPECIFICATIONS . Reconnect battery terminals.

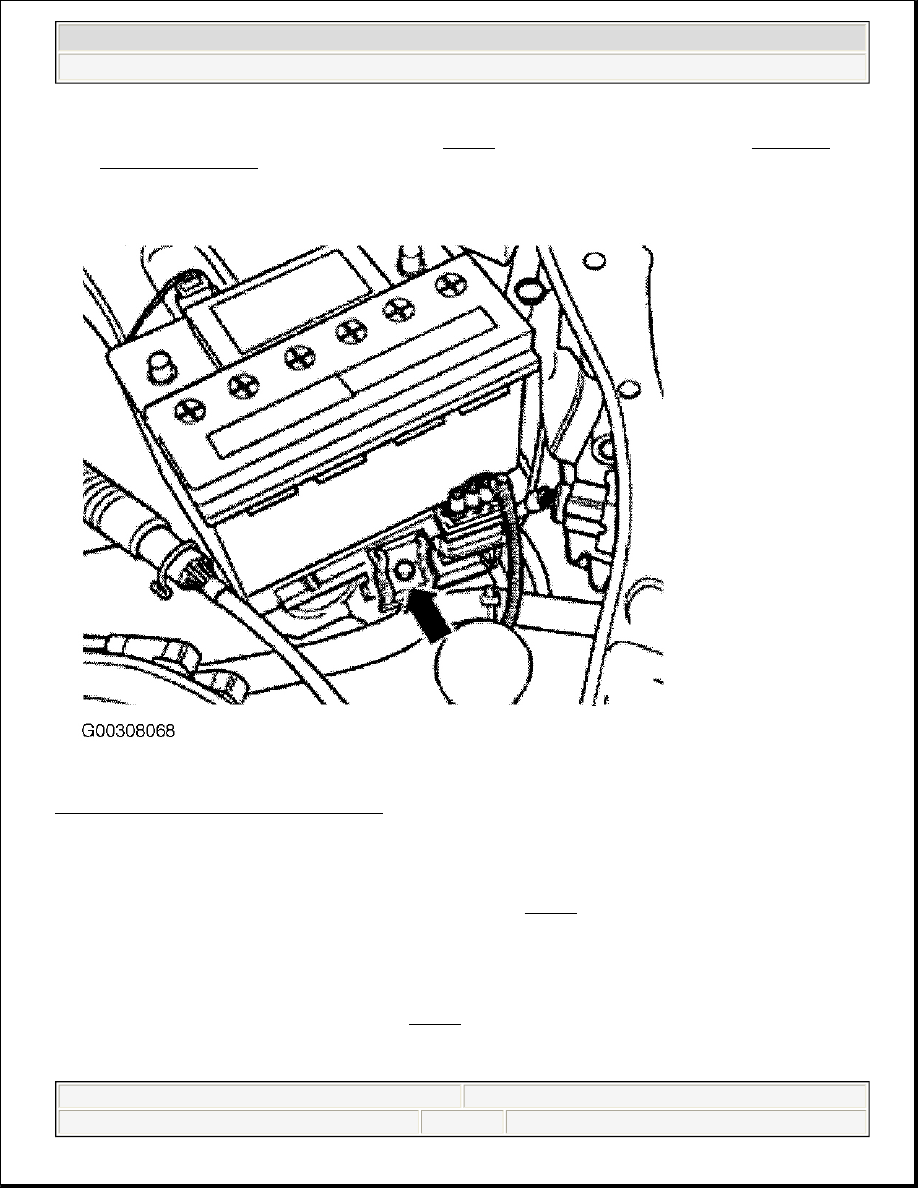

Fig. 12: Installing Battery Hold-Down Bolt
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal & Installation (Sedan From May 1999-Nov. 2002)

1. Disconnect battery terminals. Remove bolts (1 and 2). See Fig. 13 . Without disconnecting lines, move

power steering fluid reservoir to side

2. Remove bolt (3) and battery hold-down. Carefully slide battery with insulation enclosure (A) to left, and

lift from battery tray.

3. To install, only use batteries with a 10.5 mm battery foot strip. Install battery so lug of battery carrier

(arrow) engages in battery groove (1). See Fig. 10 . Ensure battery can not move left or right when in
position.

4.
