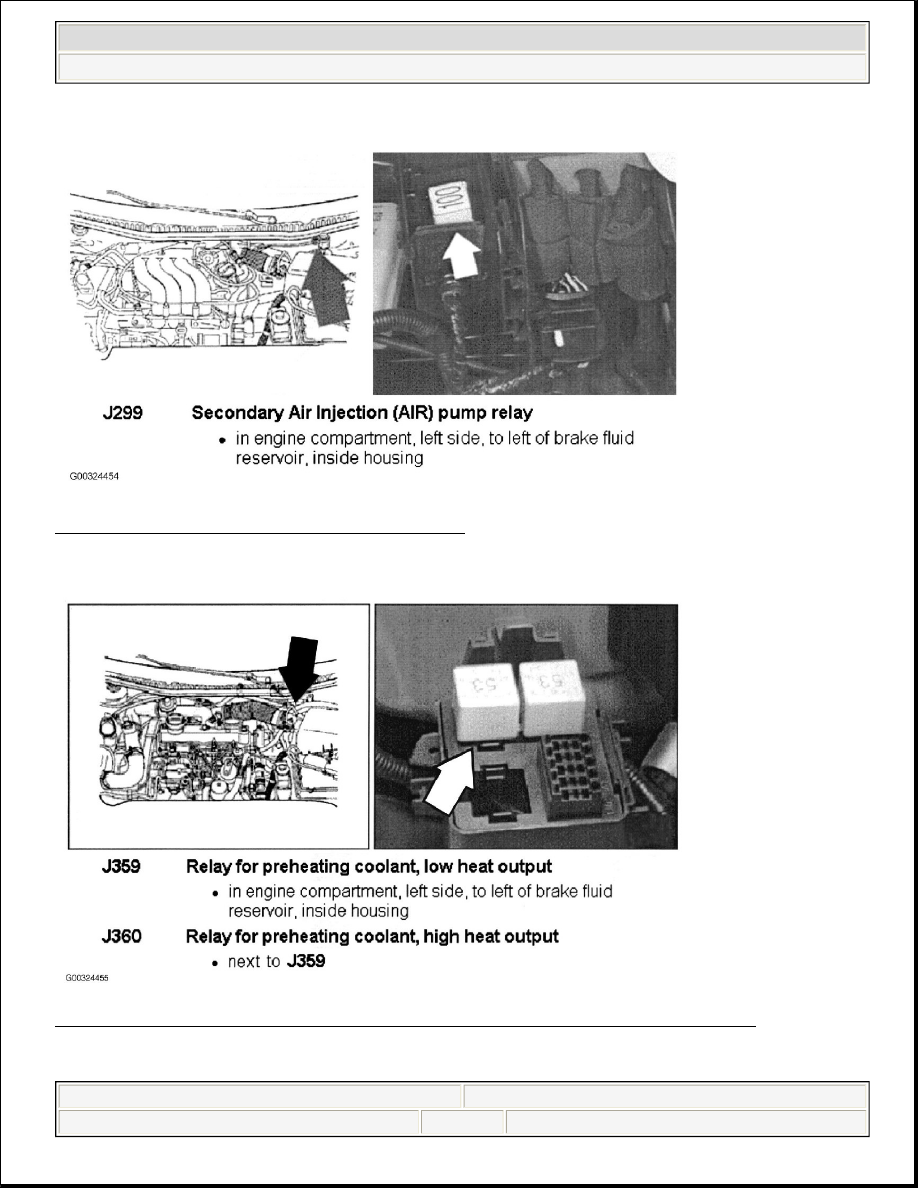

Fig. 8: Locating Secondary Air Injection Pump Relay
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 9: Locating Relay For Preheating Coolant (High & Low Heat Output - 1.9L TDI ALH)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:46 AM

Page 11

© 2004 Mitchell Repair Information Company, LLC.

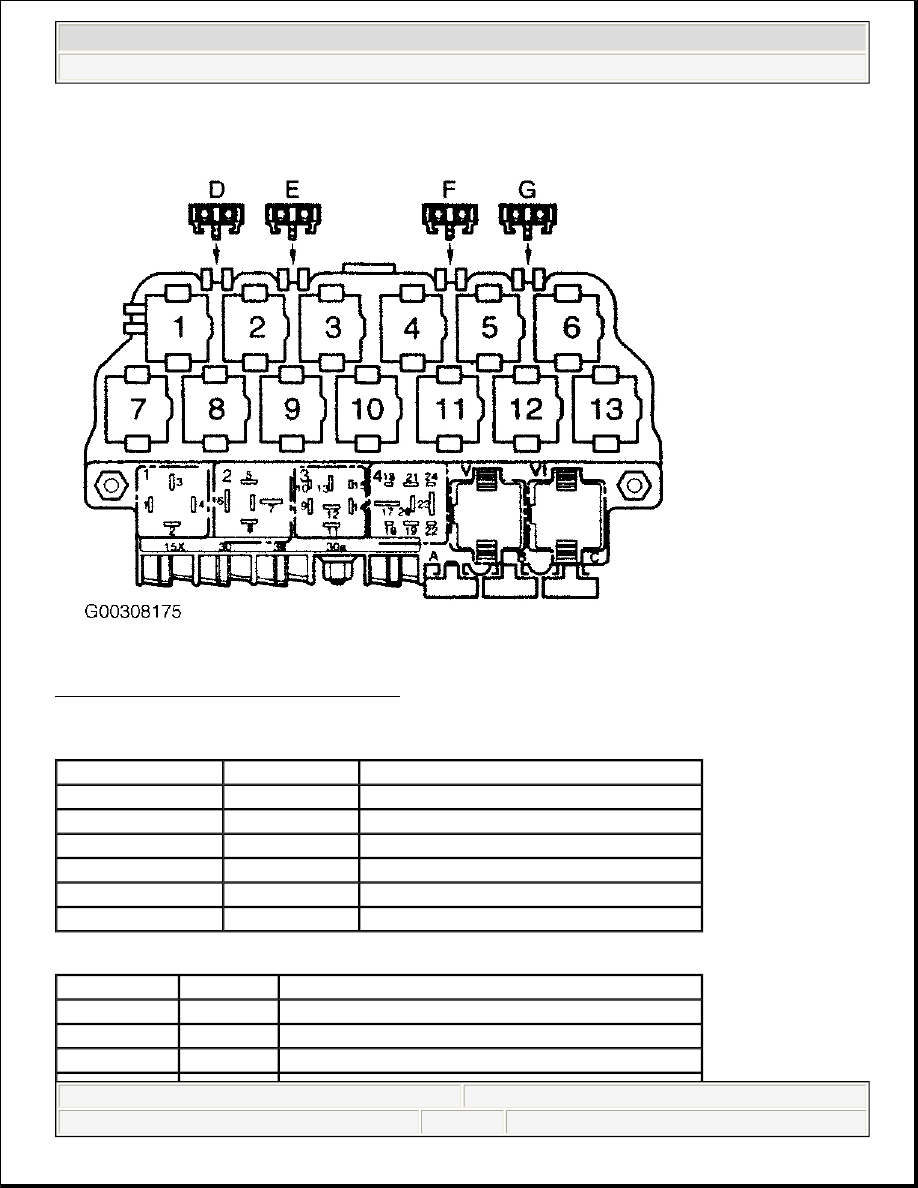

Fig. 10: Identifying Relay Panel Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.

RELAY IDENTIFICATION (RELAY PANEL)

RELAY IDENTIFICATION (THIRTEENFOLD AUXILIARY RELAY PANEL)

Position No.

Relay No.

Circuit Protected

1

J4

Dual Horn

2

J59

Load Reduction

3

N/A

Not Used

4

J17

Fuel Pump

V

J31

Wiper/Washer Intermittent

VI

J31

Wiper/Washer Intermittent

Position No.

Relay No.

Circuit Protected

1

N/A

Not Used

2

N/A

Not Used

3

N/A

Not Used



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:46 AM

Page 12

© 2004 Mitchell Repair Information Company, LLC.

FUSE IDENTIFICATION (THIRTEENFOLD AUXILIARY RELAY PANEL)

4

J434

Lock Relay For Starter (Clutch Pedal Switch)

5

N/A

Not Used

6

N/A

Not Used

7

J89

Daytime Running Light Change-Over

8

J99

(1)

Heated Exterior Mirror

9

N/A

Not Used

10

J52

(2)

Glow Plug

J135

(3)

Third Speed Coolant Fan Control

11

J226

Park/Neutral Position

12

J317

(2)

Power Supply (Terminal 30, B+)

13

N/A

Not Used

(1)

On models equipped with manual windows.

(2)

Applies to vehicles equipped with 1.9L (ALH) only.

(3)

On 1.8L (AWV) only.

NOTE:

Fuse panel is located above thirteenfold auxiliary relay panel. For positions on
thirteenfold auxiliary relay panel, see Fig. 10 .

Position No.

(1)

Fuse No.  Amp Rating

Circuit Protected

B

(2)

S283

15

Brake Vacuum Pump

E

S43

30

Power Window Circuit Breaker

F

S111

15

Alarm System & Anti-Theft

G

S144

15

Central Locking/Anti-Theft Warning System

(1)

Manufacturer does not specify position of fuse. Available position is "A", "C" and
"D".

(2)

On convertible models only.



2003 Volkswagen New Beetle GLS

2003 ELECTRICAL Fuses & Circuit Breakers - New Beetle & New Beetle Convertible



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:04:46 AM

Page 13

© 2004 Mitchell Repair Information Company, LLC.

1998-2004 CHARGING SYSTEMS

Generators & Regulators - New Beetle

DESCRIPTION

Bosch alternators are conventional 3-phase, self-rectifying type alternators. Bosch voltage regulators are
transistorized and integral with alternator. Voltage regulators are serviceable.

ADJUSTMENTS

BELT TENSION

Serpentine belt tension is automatically adjusted by tensioner.

DRIVE BELT ROUTING

NOTE:

Serpentine belt is self-adjusting. For drive belt routing, see Fig. 1 or Fig. 2 .
