Volkswagen New Beetle. Manual - part 838
GROUNDS
GROUNDS LOCATION

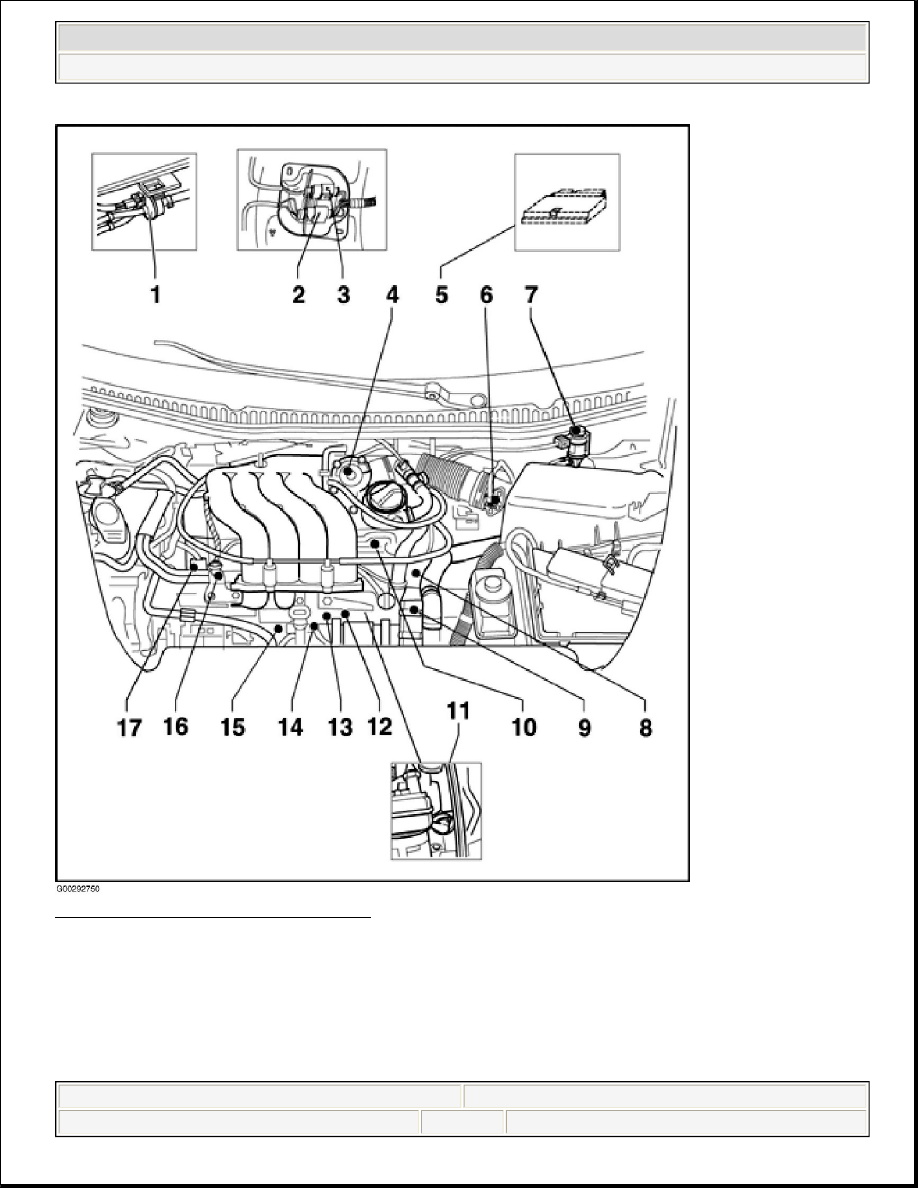

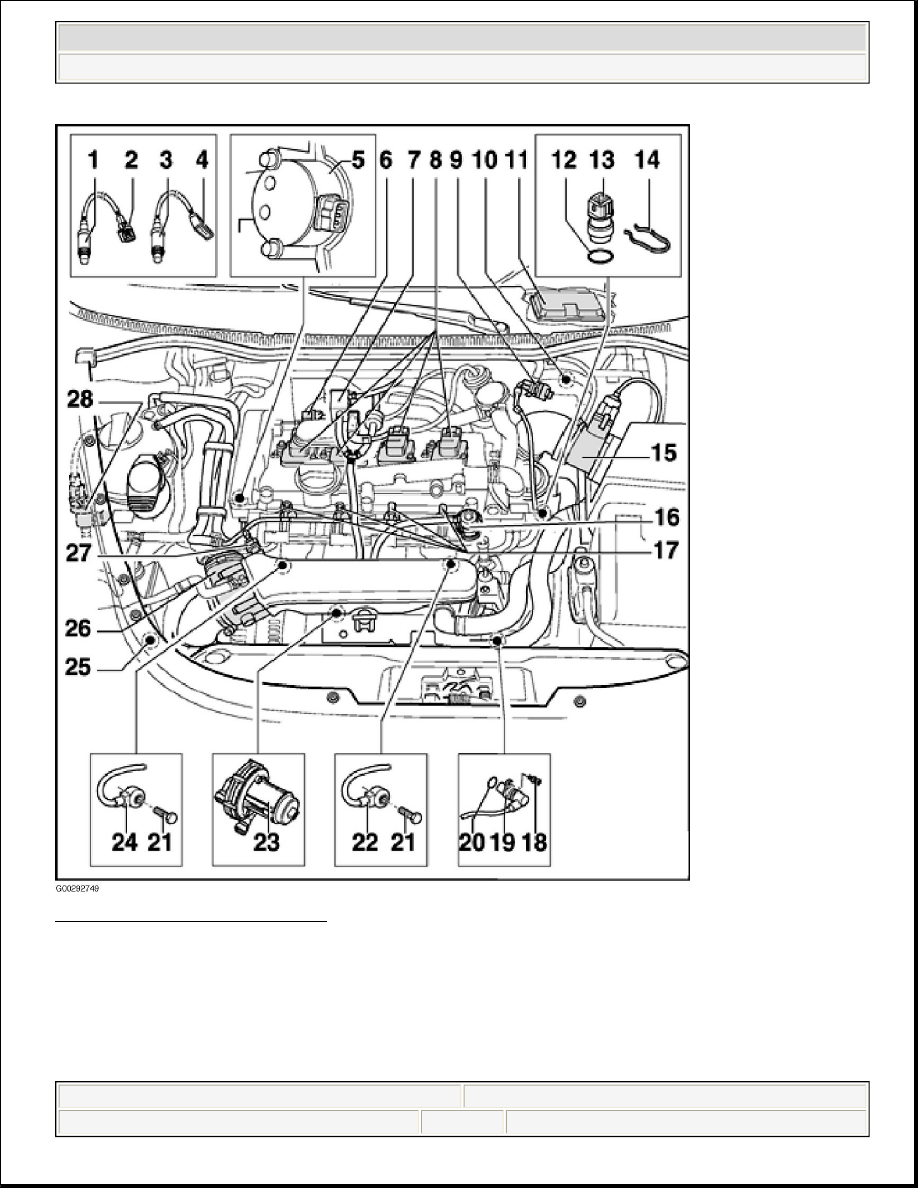

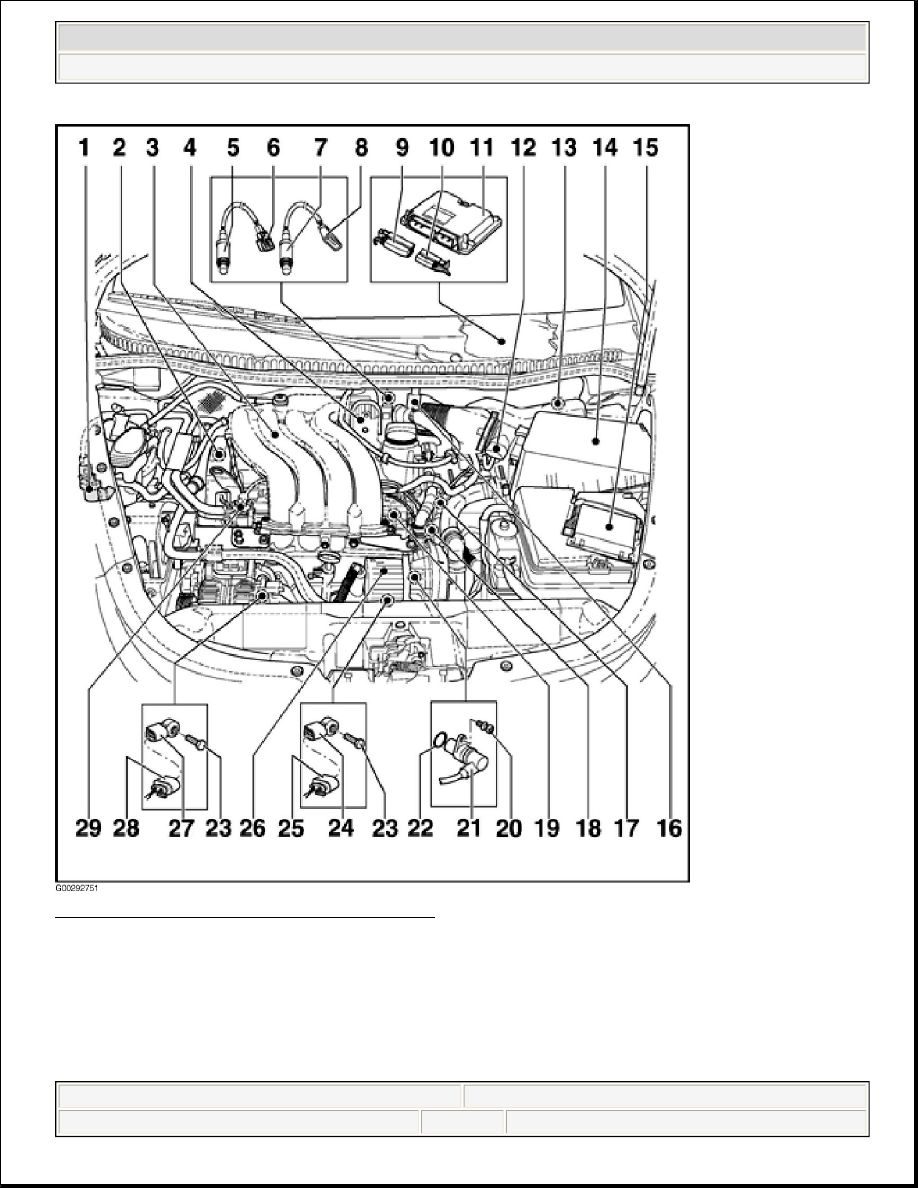

COMPONENT LOCATION GRAPHICS
T10K (Black, 10 Pin)
Behind left kick panel.
T10L (Black, 10 Pin)
Behind right kick panel.
T10P (Blue, 10 Pin)
Behind left kick panel.
T10S (10 Pin)
Near steering column.
T10 (White, 10 Pin)
Below left side of dash panel cover, on connector station.
T12 (12 Pin)
Near steering column.
T14 (14 Pin)
Below center of dash panel cover.
Component
Location
G1
Below battery.
G2
On top of transaxle.
G12
On left side of engine compartment, behind headlight.
G15
On cylinder head.
G42
Beside steering column.
G43
At lower right "A" pillar.
G44
At left kick panel.
G45
Behind left center of dash.
G50
On left side of luggage compartment.
G57
On left rear pillar, above wheelwell.
G607
Below left side of dash panel cover.
G608
Below center of dash panel cover.
G609
Below right side of dash panel cover.
NOTE:
Figures may show multiple component locations. Refer to appropriate table for
proper figure references.
