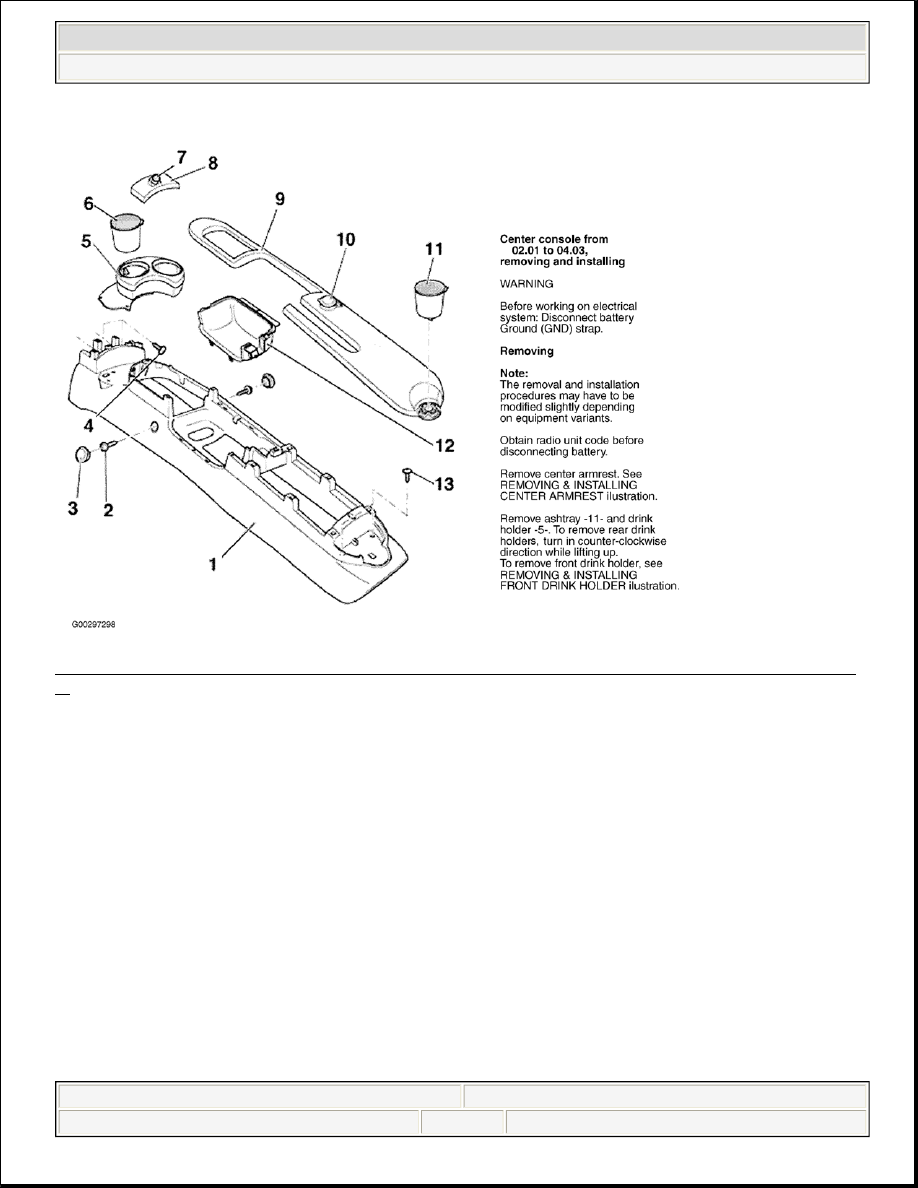

Fig. 29: Removing & Installing Center Console Models Built Between February 2001 & April 2003 (1 Of
3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:18 AM

Page 32

© 2004 Mitchell Repair Information Company, LLC.

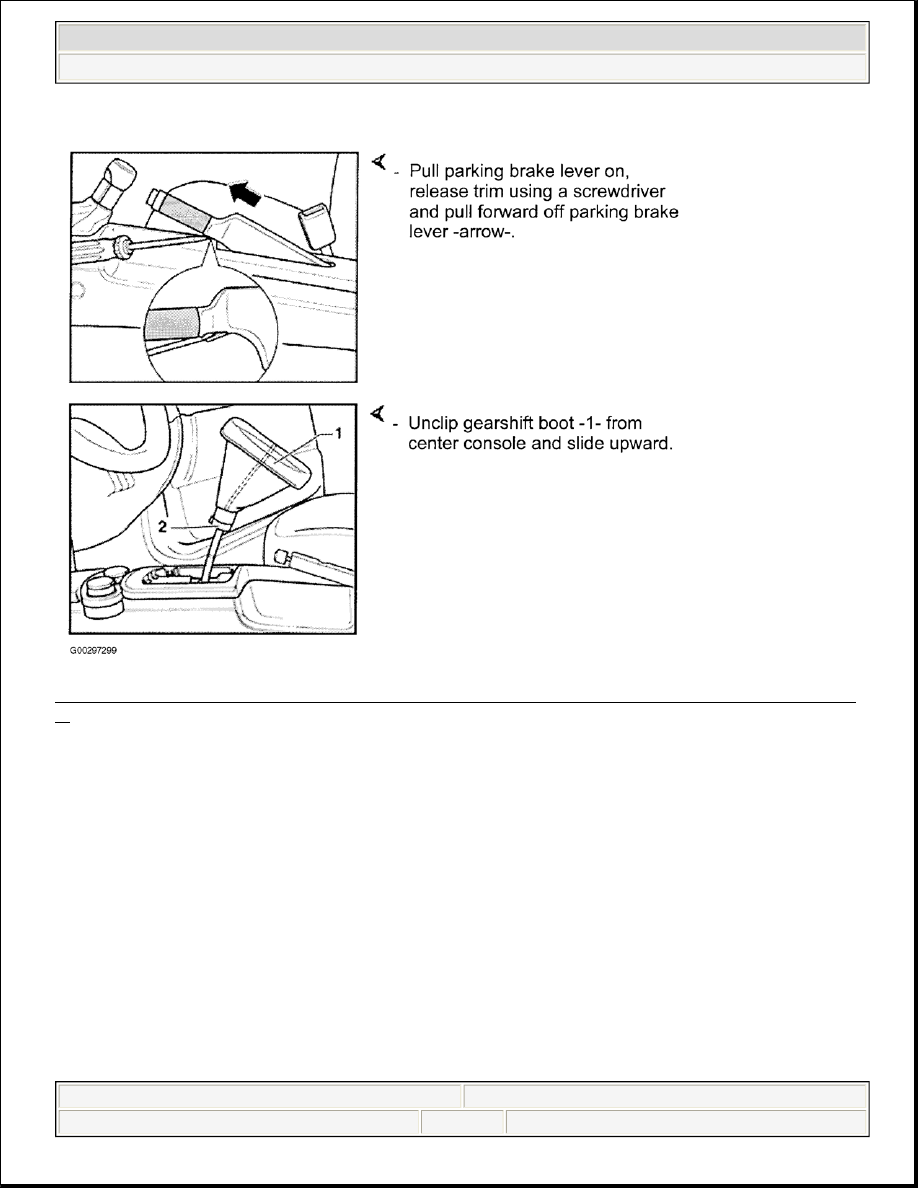

Fig. 30: Removing & Installing Center Console Models Built Between February 2001 & April 2003 (2 Of
3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:18 AM

Page 33

© 2004 Mitchell Repair Information Company, LLC.

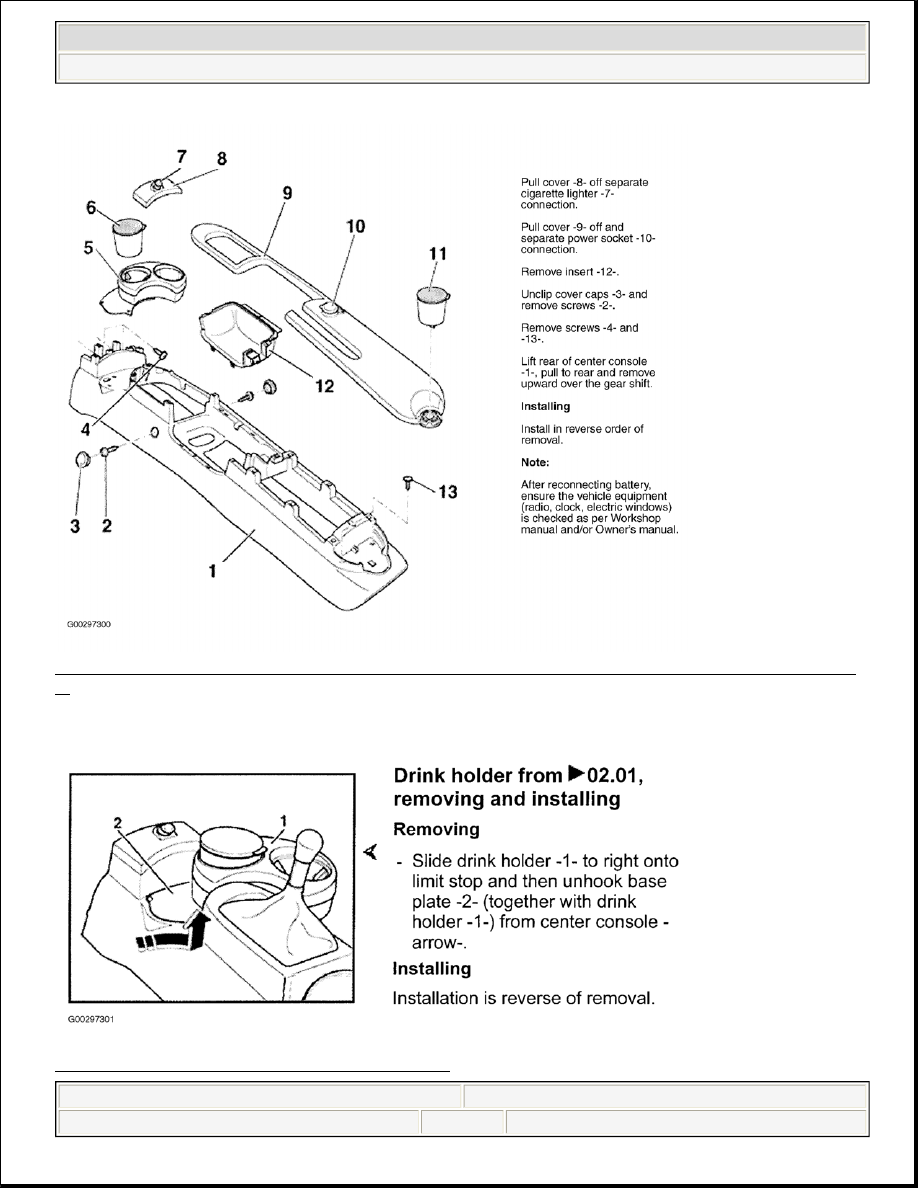

Fig. 31: Removing & Installing Center Console Models Built Between February 2001 & April 2003 (3 Of
3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 32: Removing & Installing Front Drink Holder



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Disc - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:59:18 AM

Page 34

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Models Built After May 2003

For models built after May 2003, see Fig. 32 -Fig. 35 .
