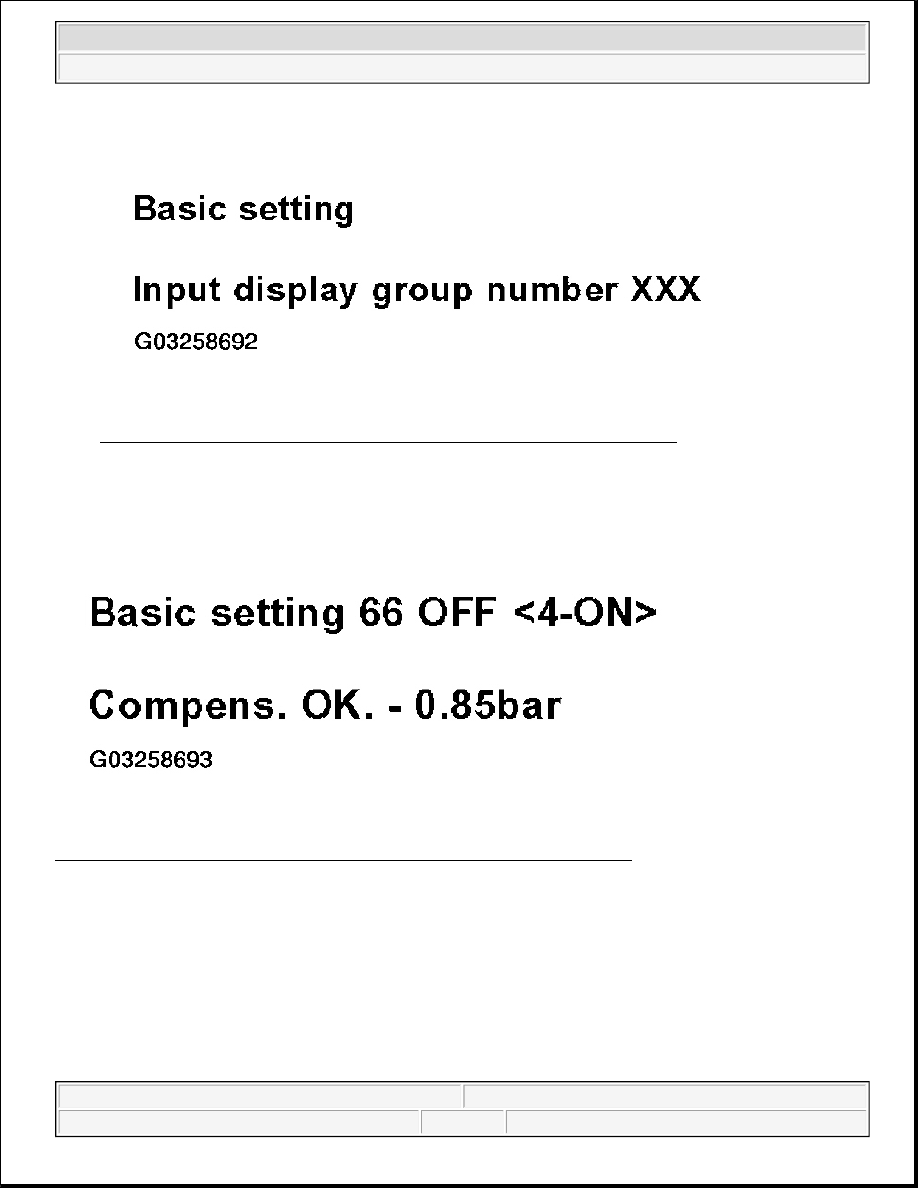

Fig. 269: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (30 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

And then the display shows e.g.:

Fig. 270: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (31 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If this display appears the login procedure has not been performed successfully.

z

or:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

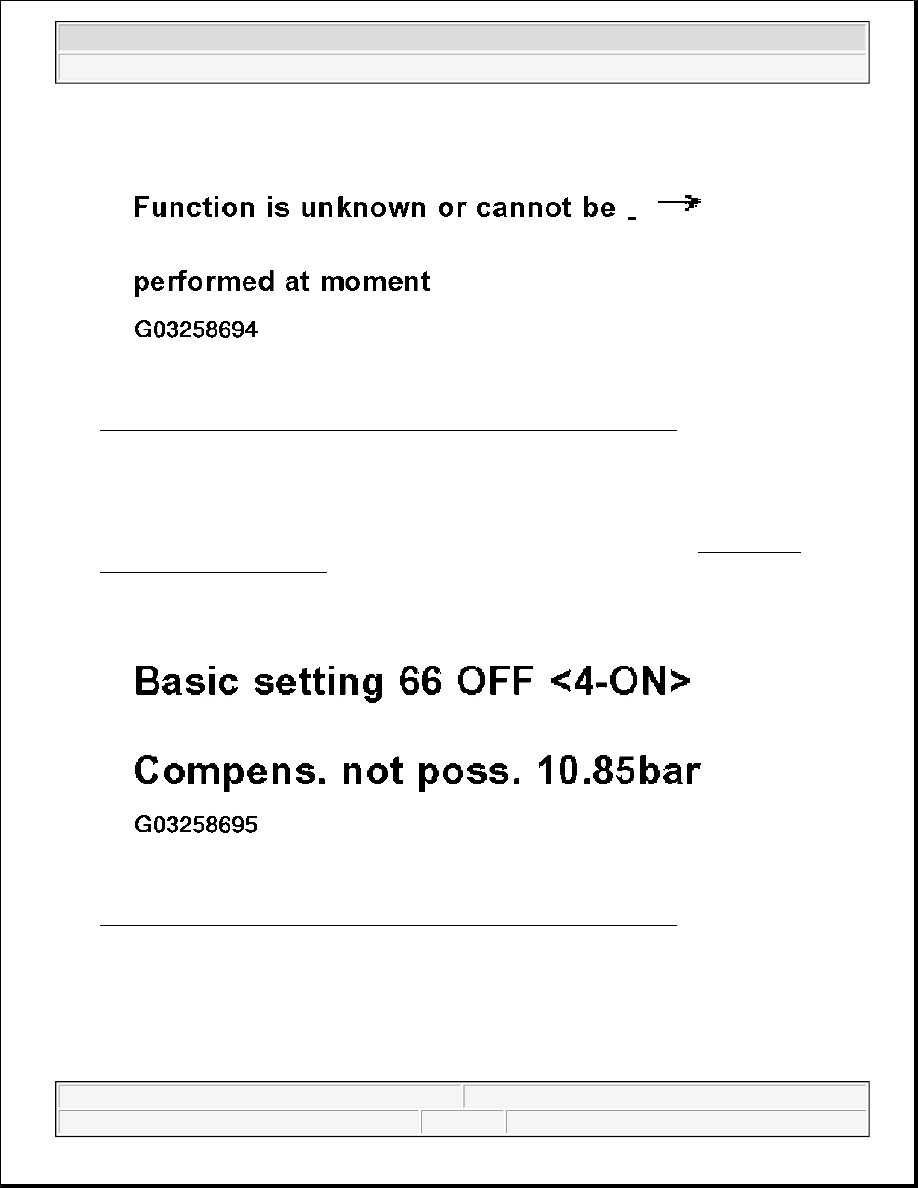

Fig. 271: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (32 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If this appears in the display the measured values for the zero compensation are not within the allowed
tolerances.

z

Check measured values with help of function 08 "Read measured value block" see MEASURED
VALUE BLOCK, READING , Display group number 005.

Fig. 272: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (33 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Check DTC memory (Function 02)

2. Erase DTC memory (Function 05)

3. End output (Function 06)

4. Switch off ignition.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



5. Switch on ignition.

6. Perform zero compensation again.

z

Press --> key.

Indicated on display:

z

Press keys 0 and 6, this ends the output.

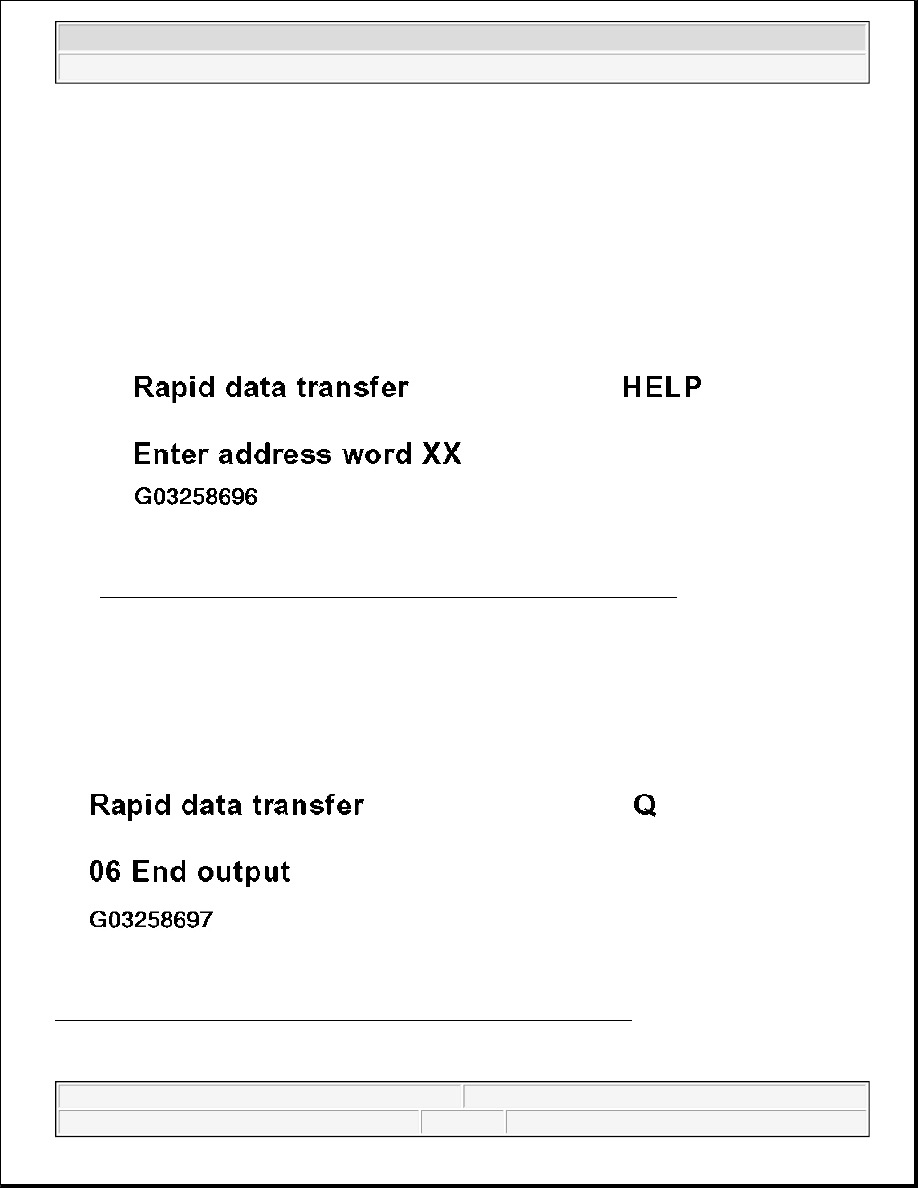

Fig. 273: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (34 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

ABS and ESP warning lights light up for approx. 2 seconds.

Fig. 274: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (35 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display group number 93: activation of ESP driving test



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



The ESP driving test is used to check the plausibility of the signals from steering angle sensor -G85-, sensor for
transverse acceleration -G200-, sender for rotation rate -G202- and sender 1 for brake booster -G201-.

The ESP driving test should be performed each time parts of the ESP system are removed or exchanged.

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

Indicated on display:

z

Press keys 0 and 4. (The function "Initiating basic setting" is selected with 04).

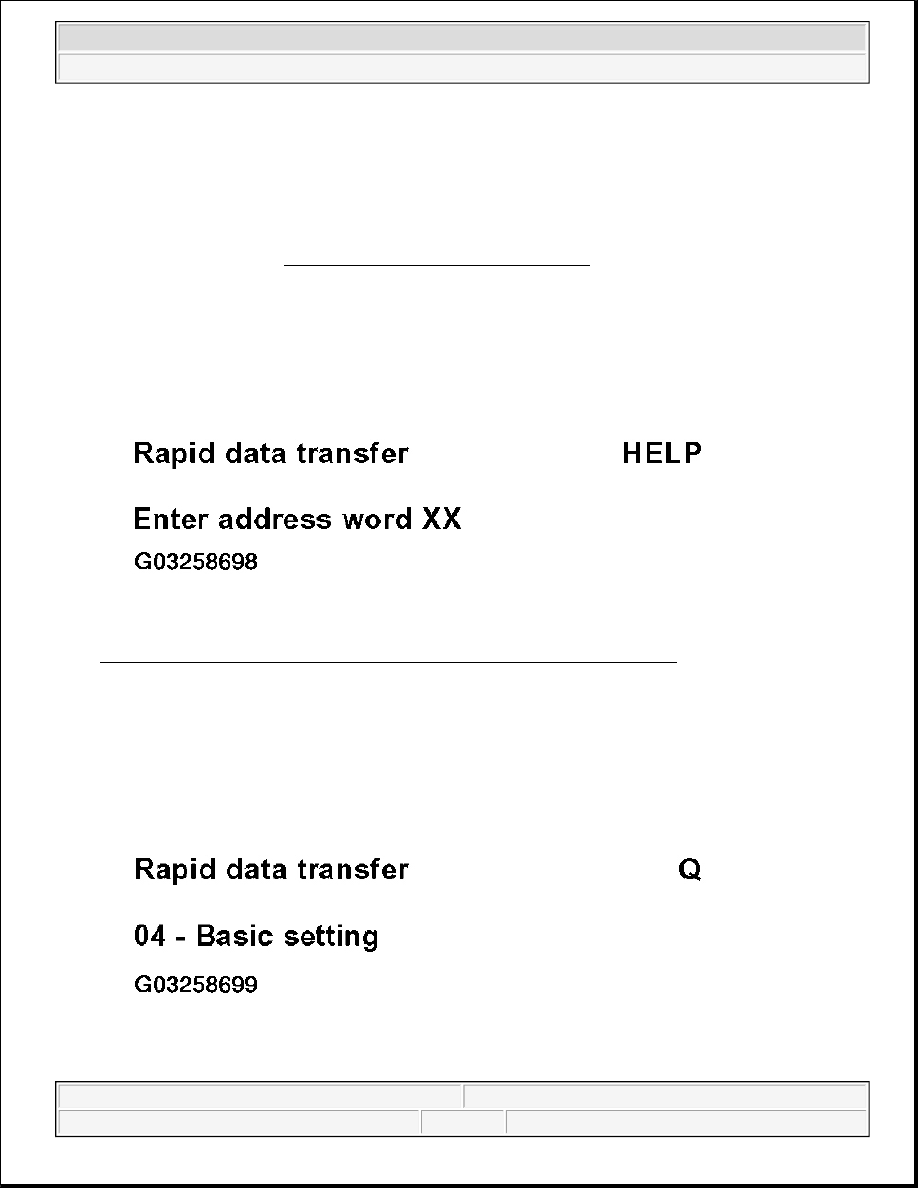

Fig. 275: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (36 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.
