Fig. 223: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (20 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

Indicated on display

z

Press --> key.

ABS hydraulic pump -V64- must run.

Brake pedal must not give

If the brake pedal gives, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced.

See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

NOTE:

If the wheel does not lock, there is a possibility that there is a malfunction
in the mechanical/hydraulic part of the brake system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

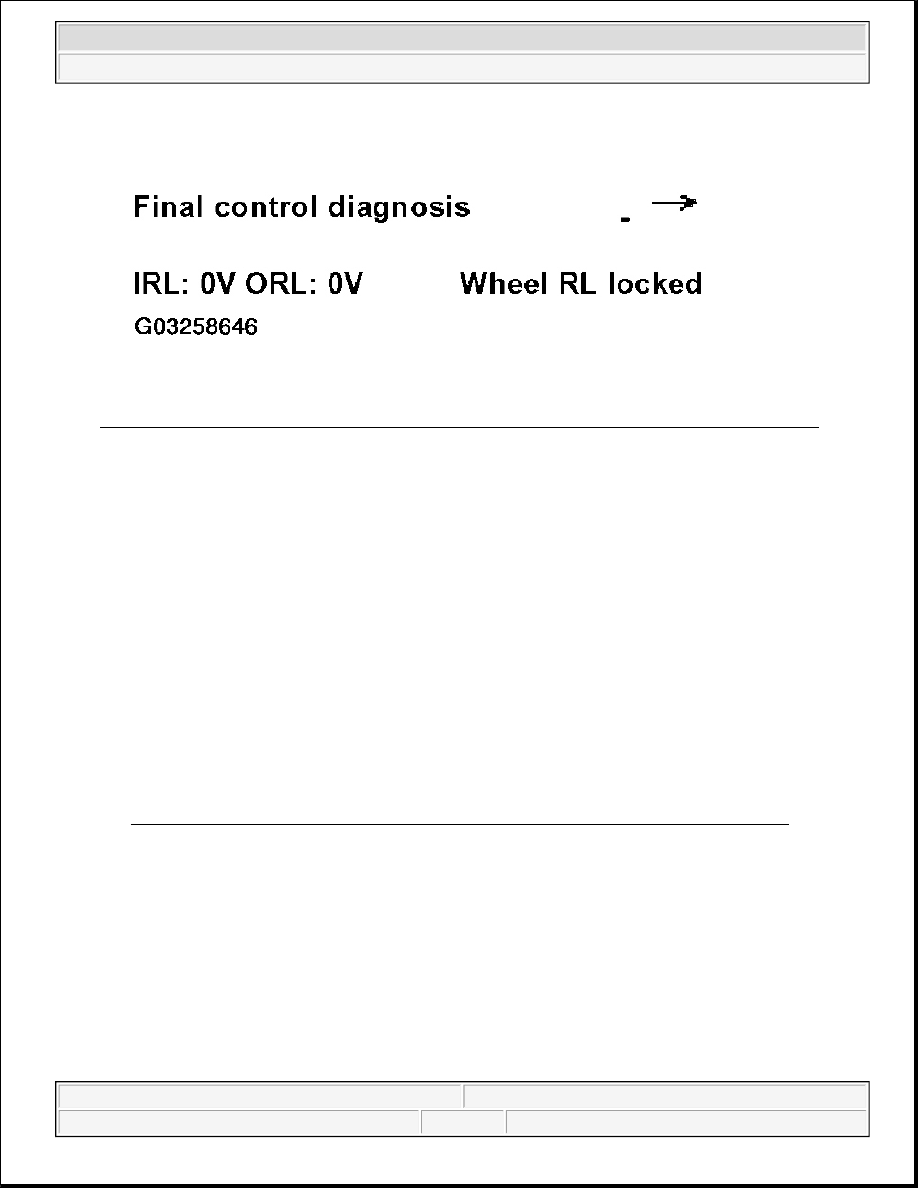

Fig. 224: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (21 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.

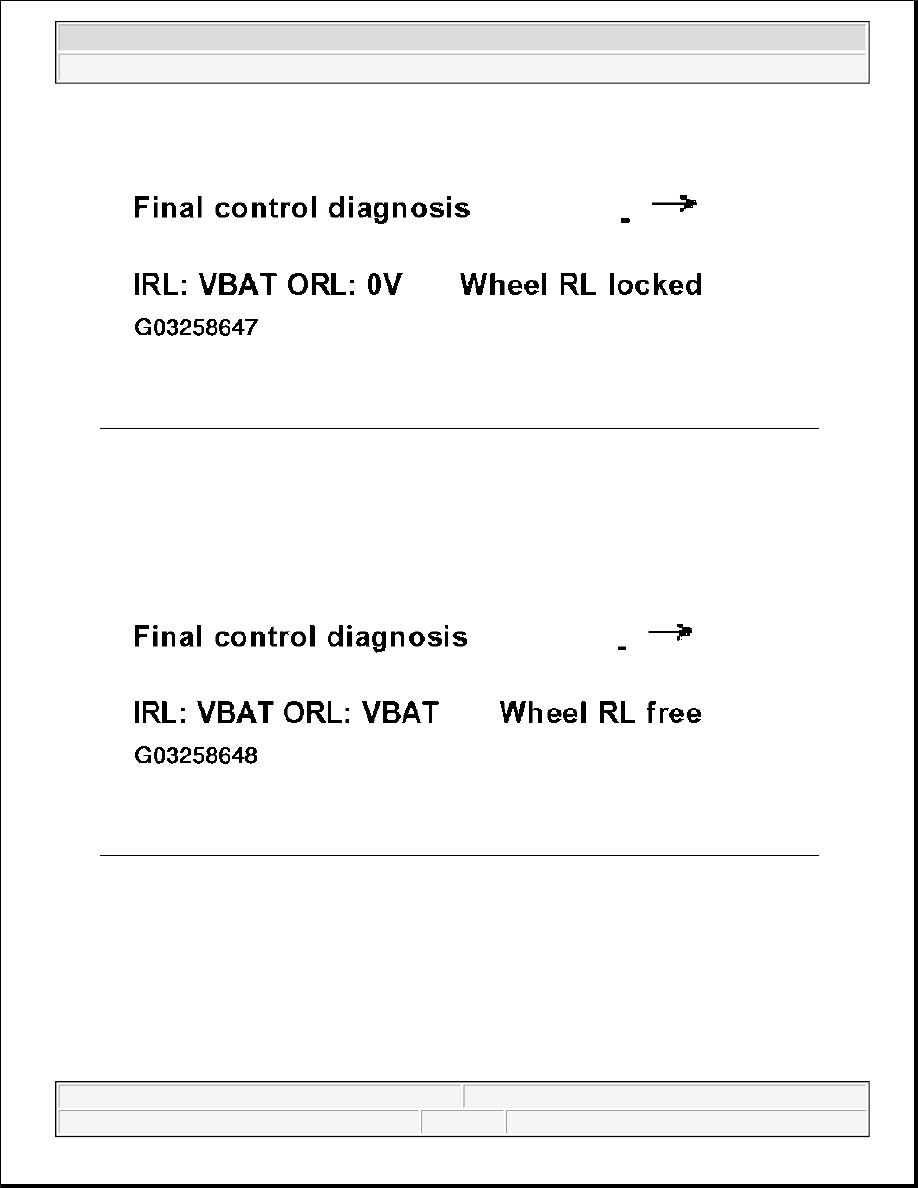

Fig. 225: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (22 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

ABS hydraulic pump -V64- no longer runs.

Indicated on display

NOTE:

If the wheel locks there is a possibility that the brake lines to the wheel
calipers/cylinders have been interchanged.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Press --> key.

Brake pedal must give perceptibly

If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit
must be replaced.

See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

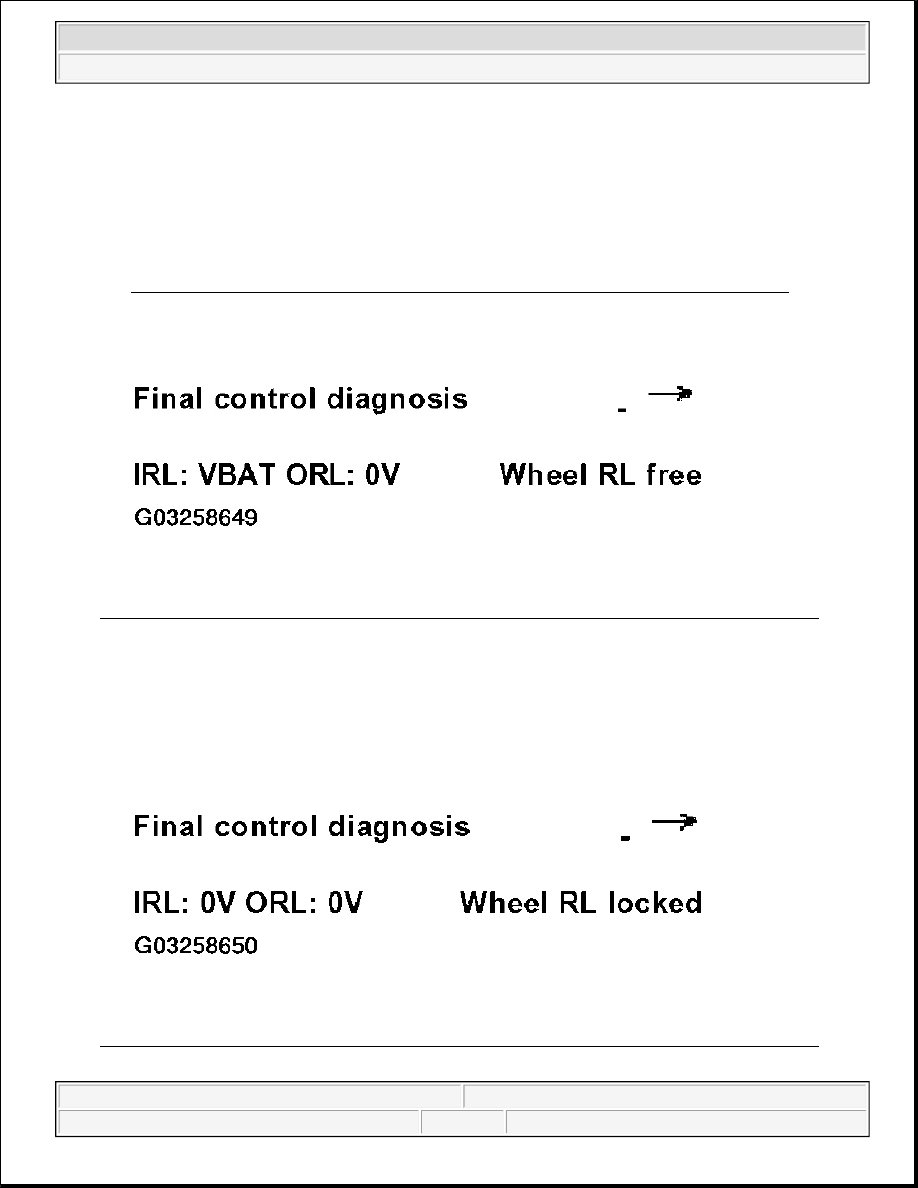

Fig. 226: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (23 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.

Fig. 227: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (24 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Press --> key.

Indicated on display

z

Remove foot from brake pedal.

z

Press --> key.

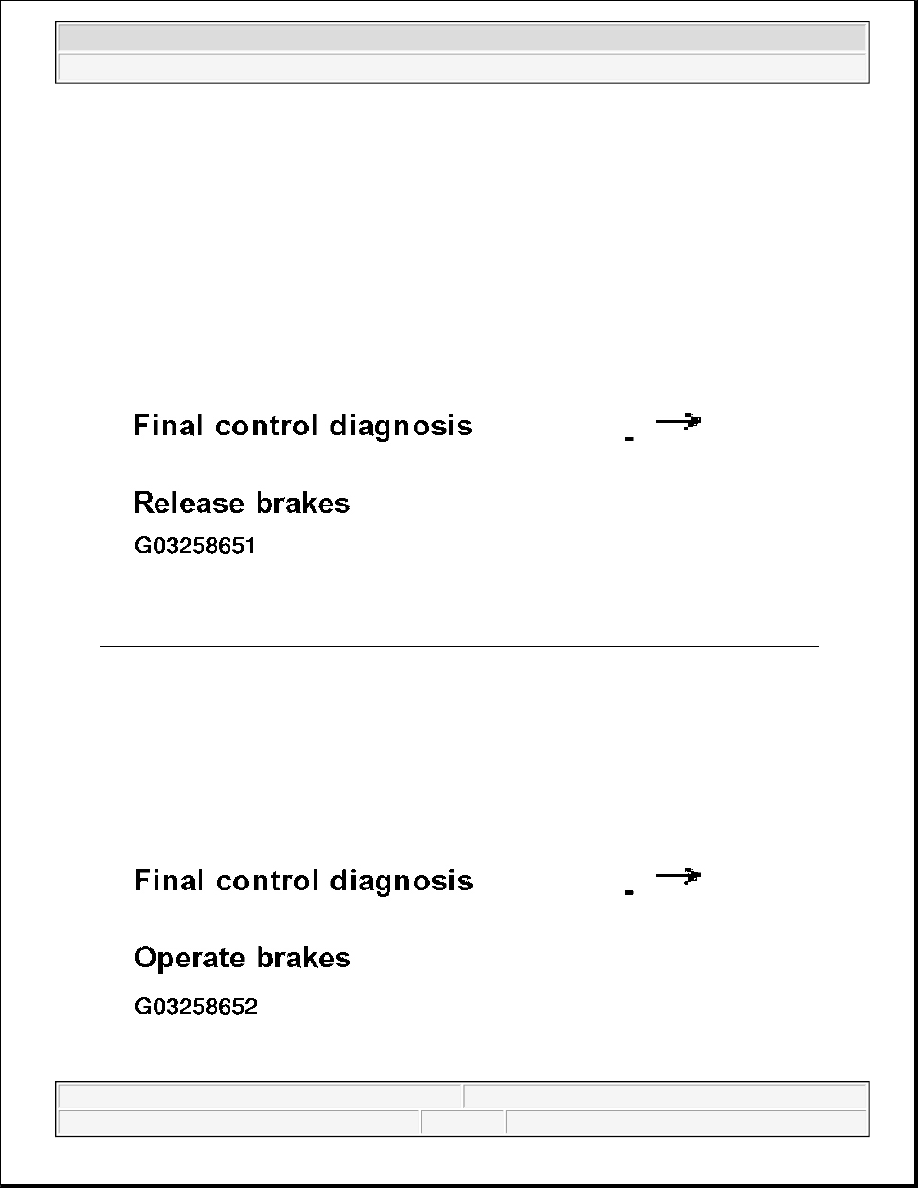

Fig. 228: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (25 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Operate brake pedal.

z

Press --> key.

NOTE:

If the wheel does not lock, there is a possibility that there is a malfunction
in the mechanical/hydraulic part of the brake system.
