Vehicles with ABS/EDL/ASR/ESP: Perform a zero compensation for sender 1 for brake booster -G201-,
see DISPLAY GROUP NUMBER 66: ZERO COMPENSATION FOR BRAKE PRESSURE
SENDER 1 -G201- .

Fig. 250: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (11 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display group number 60: zero compensation of steering angle sensor -G85-

All functions which could previously be performed with V.A.G 1551 can now also be carried out with the tester
VAS 5051.

z

Connect V.A.G 1551 scan tool and select (address word 03) brake electronics control module with
ignition switched on; see LIST OF SELECTABLE FUNCTIONS .

z

Start engine.

z

Carry out a short test drive over a flat and level surface. Drive straight-ahead and not faster then 20 km/h
(12.5 mph) and observe the following points:

z

If the steering wheel is not in the straight-ahead position when driving during a test drive, then correct the
steering wheel position within the frame work of an alignment test and make sure the steering wheel is in
the straight-ahead position.

See SPECIFICATIONS & PROCEDURES .

z

Steering wheel straight during test drive, but vehicle moves off-line when moving straight-ahead.

z

Check specifications with help of function 08 "Read measured value block" see MEASURED VALUE
BLOCK, READING , Display group number 004.

z

First perform function 11 "Login procedure" successfully using V.A.G 1551 scan tool, see LOGIN
PROCEDURE .

NOTE:

Make sure steering wheel does not moved. Do not turn ignition switch off!



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Indicated on display:

z

Press keys 0 and 4. (The function "Initiating basic setting" is selected with 04).

Fig. 251: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (12 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Confirm entry with key Q.

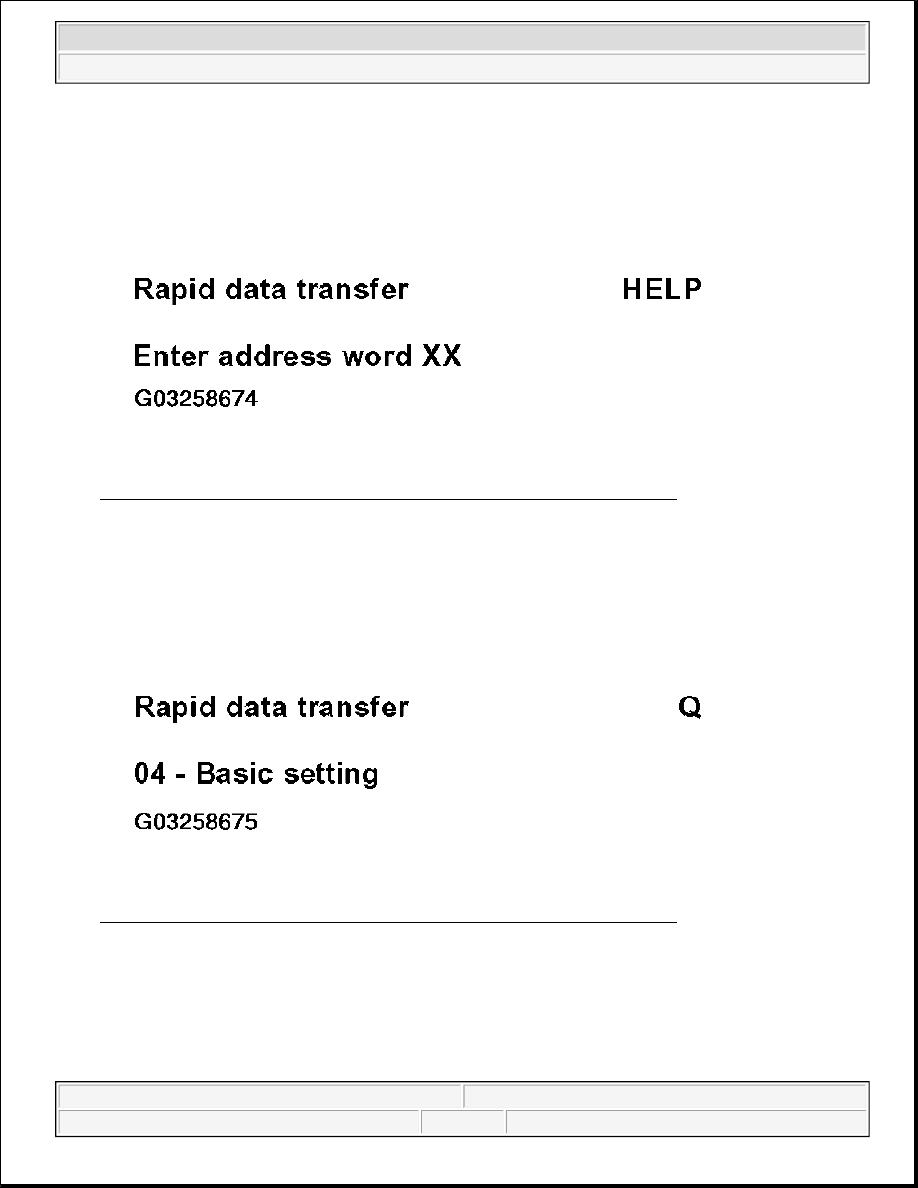

Fig. 252: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (13 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display:

z

Press keys 0, 6 and 0

z

Confirm entry with key Q.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

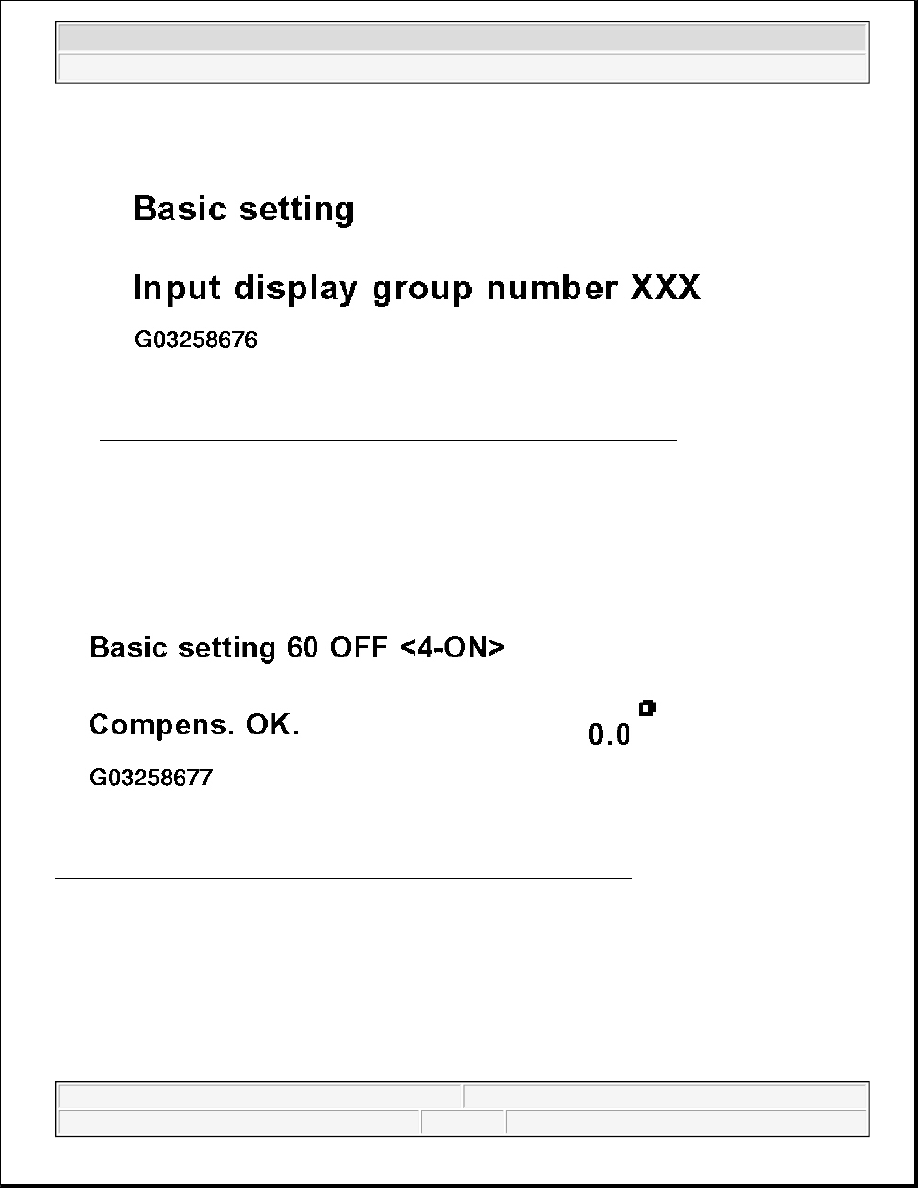

Fig. 253: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (14 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

ABS warning light flashes.

And then the display shows e.g.:

Fig. 254: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (15 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If this display appears the login procedure has not been performed successfully.

z

or:



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle

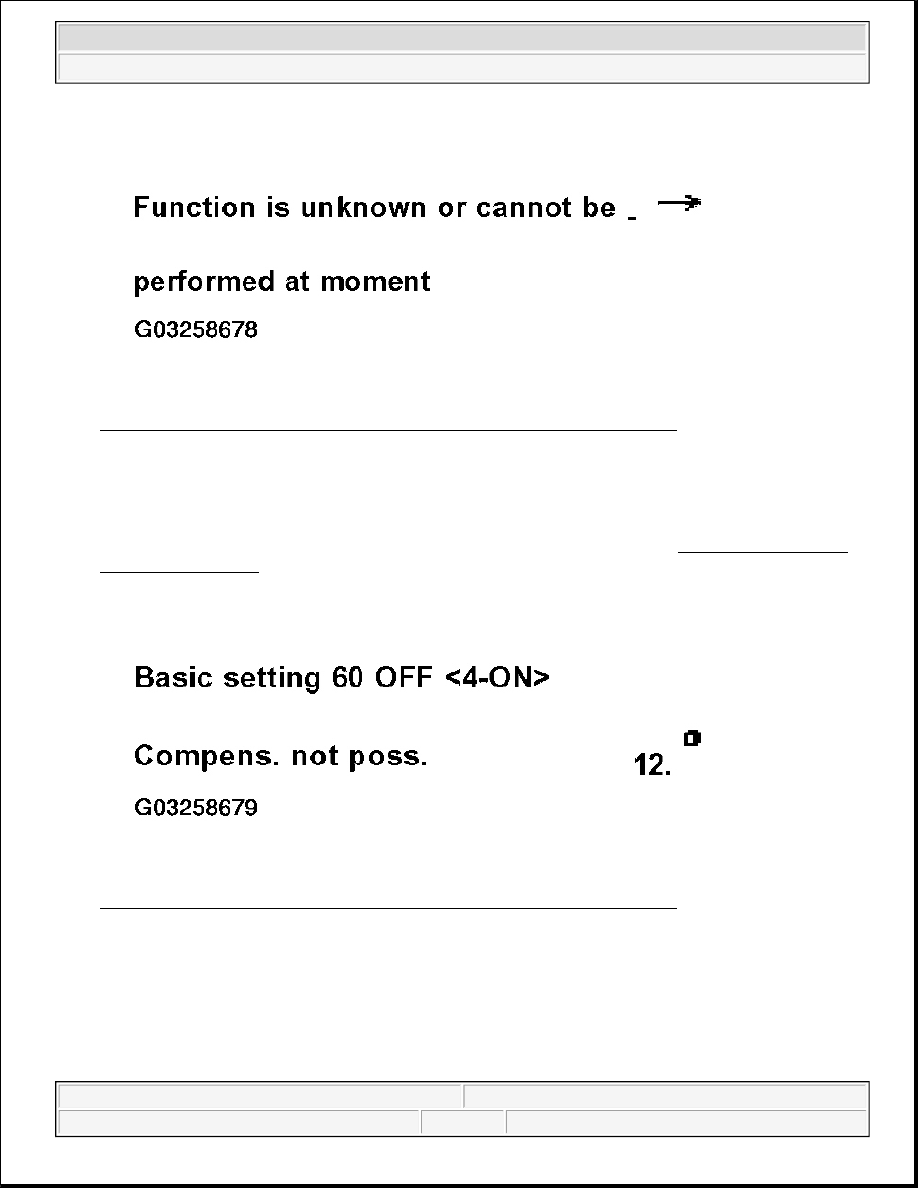

Fig. 255: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (16 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If this appears in the display, the measured values for the zero compensation are not within the allowed
tolerance.

z

Check specifications with help of function 08 "Read measured value block" see MEASURED VALUE
BLOCK, READING , Display group number 004.

Fig. 256: V.A.G 1551 Scan Tool Display - Initiating Basic Setting (17 Of 40)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Check DTC memory (Function 02)

2. Erase DTC memory (Function 05)

3. End output (Function 06)

4. Switch off ignition.

5. Switch on ignition.
