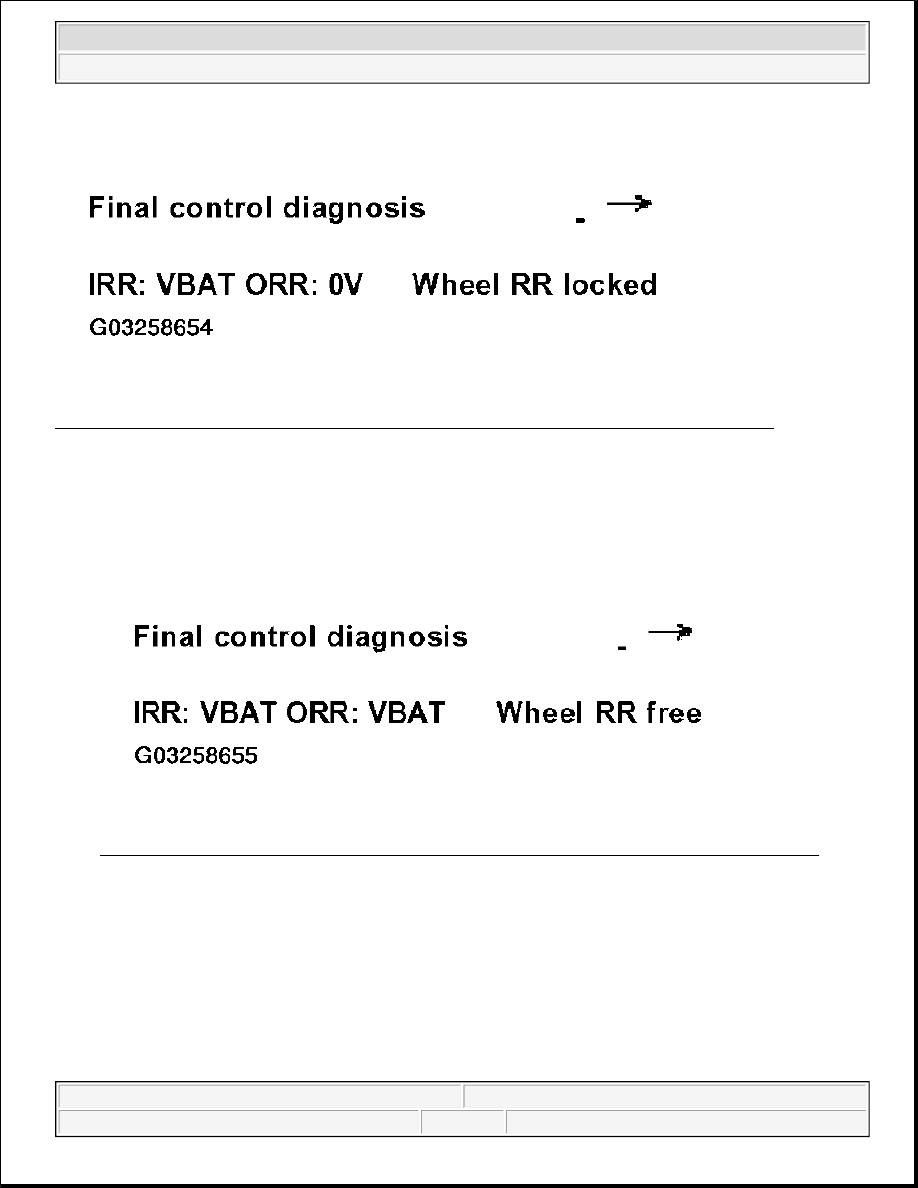

Fig. 231: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (28 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.

Fig. 232: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (29 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

ABS hydraulic pump -V64- no longer runs.

Indicated on display

NOTE:

If the wheel locks there is a possibility that the brake lines to the wheel
calipers/cylinders have been interchanged.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Press --> key.

Brake pedal must give perceptibly

If the brake pedal does not give, there is a malfunction in the hydraulic unit. In this case the hydraulic unit must
be replaced.

See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

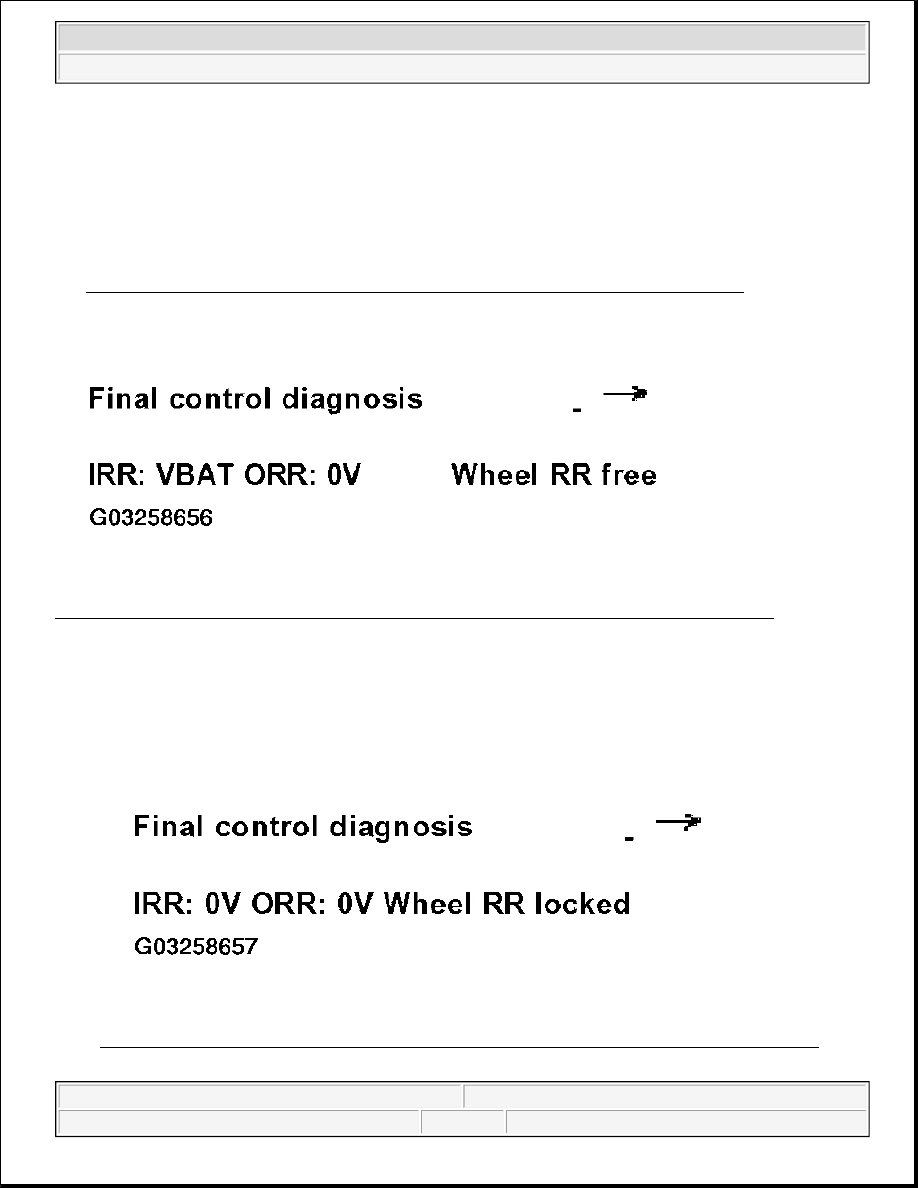

Fig. 233: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (30 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

Indicate to 2nd mechanic which wheel requires turning by hand.

Fig. 234: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (31 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Press --> key.

Indicated on display

z

Remove foot from brake pedal.

z

Press --> key.

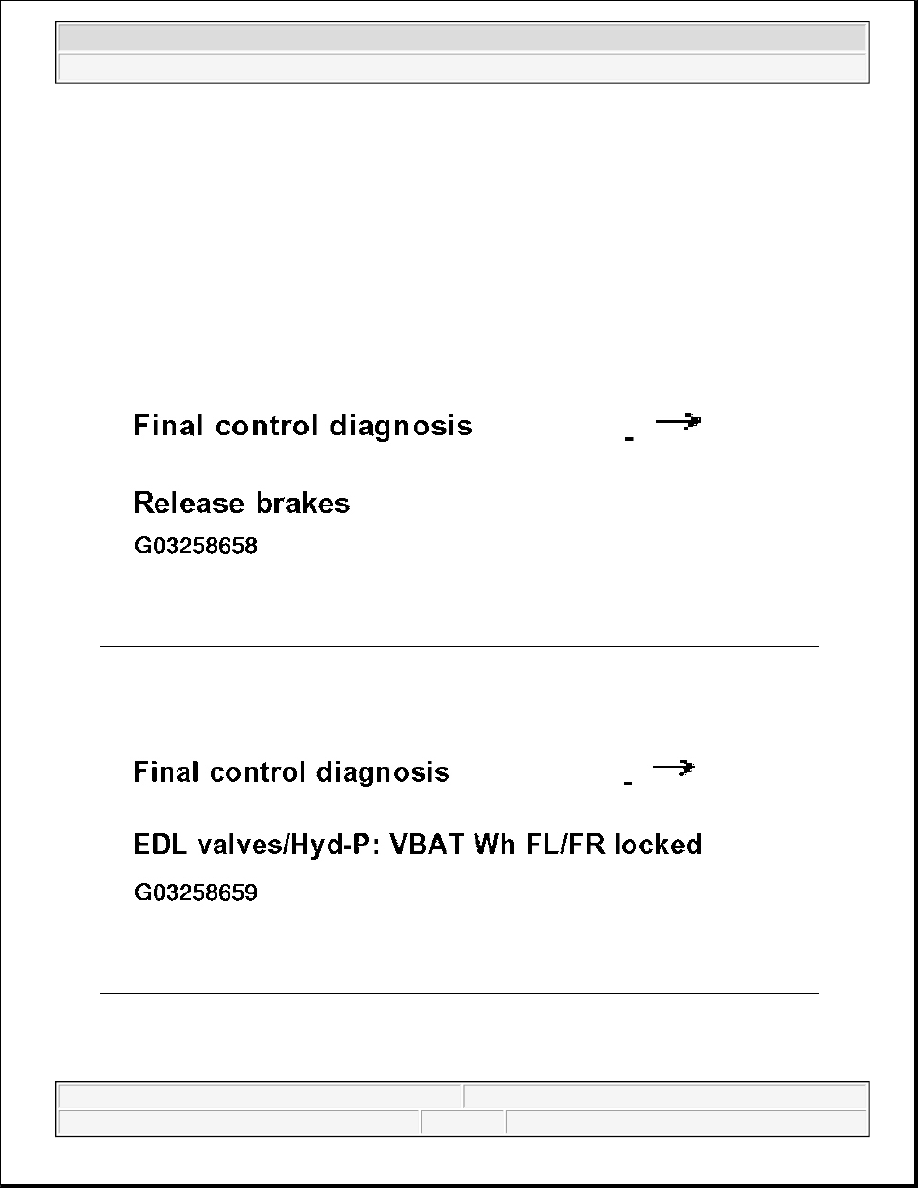

Fig. 235: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (32 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Fig. 236: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (33 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

A 2nd mechanic is required to rotate the respective wheel by hand.

NOTE:

If the wheel does not lock, there is a possibility that there is a malfunction
in the mechanical/hydraulic part of the brake system.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



If the wheels do not lock, there is a malfunction in the hydraulic part of the ABS system. In this case the
hydraulic unit must be replaced.

See CONTROL MODULE AND HYDRAULIC UNIT, REMOVING AND INSTALLING .

z

Press --> key.

The ABS warning light -K47- goes out.

Indicated on display

The final control diagnosis is completed

z

Press --> key.

Fig. 237: V.A.G 1551 Scan Tool Display - Initiating On Board Diagnosis Test Mode (34 Of 35)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display

z

There is a malfunction in the system if the ABS warning light -K47- does not go out.

z

Adhere exactly to test sequence: First check DTC memory, then erase.

z

End output (Function 06), see DIAGNOSTIC TROUBLE CODE (DTC) ERASING MEMORY,
ENDING OUTPUT .
