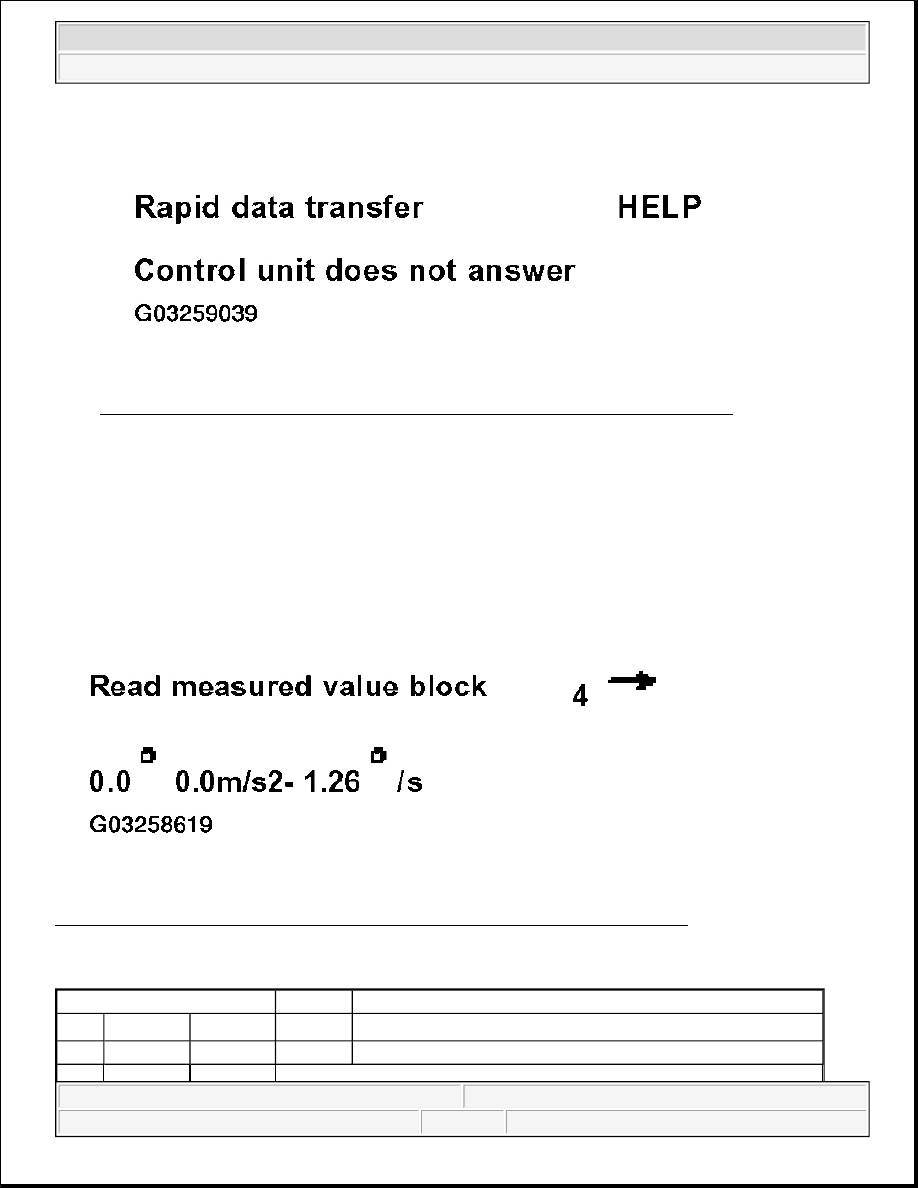

Fig. 195: V.A.G 1551 Scan Tool Display - Checking Steering Angle Sender (1 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: e.g. (vehicle stationary)

Press C key for the next display group number entry.

If the --> key is pressed, keys 0 and 8 for work sequence "Read measured value block" must be pressed again
afterwards to regain entry.

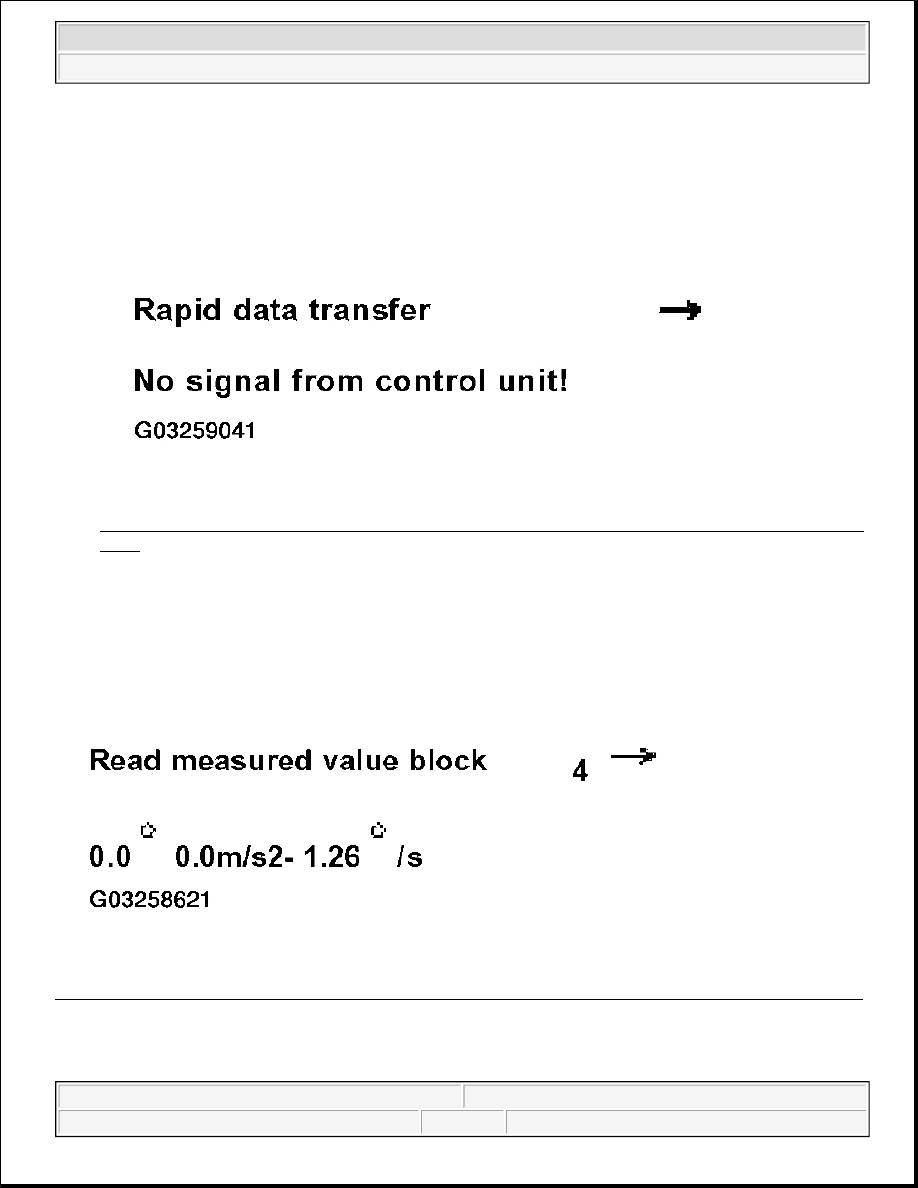

Fig. 196: V.A.G 1551 Scan Tool Display - Checking Steering Angle Sender (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

DISPLAY GROUP NUMBER: 004

Read measured value block

4 -->

Display group number: 004

0.0°

0.0m/s

2-

1.26° /s



<- - Indicated on display (example)









Vacant



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



Checking sensor for transverse acceleration -G200- 1)

z

Remove sensor for transverse acceleration -G200-. Do not pull connector off sensor for transverse
acceleration -G200- when doing this.

See ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .

z

Connect scan tool V.A.G 1551.

The sensor for transverse acceleration -G200- can be checked with the help of function "Read measured







Sender for rotation rate:

z

Specification when vehicle is stationary:+/- 2.5° /s

z

Perform electrical check from, see ELECTRICAL TEST OF
MARK 60, VEHICLES FROM M.Y. 10.00





Sensor for transverse acceleration:

z

Specification when vehicle stationary:+/- 1.5m/s

2





z

Specification at full lock and travelling at 20 km/h (12.5 mph) in a left-hand
curve: the measure values increase steadily.

z

Specification at full lock and travelling at 20 km/h (12.5 mph) in a right-hand
curve: the measure values increase steadily with a negative (-) prefix.

z

Checking lateral acceleration sender -G200-, see CHECKING SENSOR FOR
TRANSVERSE ACCELERATION -G200- 1)

z

Perform electrical test, see from, see ELECTRICAL TEST OF MARK 60,
VEHICLES FROM M.Y. 10.00



Steering angle sensor:

z

If the steering angle sensor -G85- is tested during straight-ahead travel, then zero
compensation must also be performed.

(1)



z

Specification at straight ahead +/-4.5°

z

Perform electrical checks from, see ELECTRICAL TEST OF MARK 60, VEHICLES
FROM M.Y. 10.00

{

Initiate basic setting, see INITIATING BASIC SETTING Display group number
060

(1)

During a test drive with the V.A.G 1551 scan tool or tester VAS 5051 connected and in "Diagnosis"
or "Measured value block", there is no ABS or ESP regulation. The ABS or ESP warning lights will
flash. The OBD of ABS control module (w/EDL) -J104- is terminated when a speed of 20 km/h (13
mph) is exceeded.

NOTE:

All functions that have so far been carried out with V.A.G 1551 can now
also be carried out with the tester VAS 5051.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



value block", display group number 005.

z

In read measured value block there are 3 display zones -arrows-. The values for the sensor for transverse
acceleration -G200- are displayed in display zone 2.

Fig. 197: V.A.G 1551 Scan Tool Display - Checking Sensor For Transverse Acceleration -G200- 1 (1
Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display: e.g. (vehicle stationary)

1) With ABS/EDL/ASR/ESP only.

Fig. 198: V.A.G 1551 Scan Tool Display - Checking Sensor For Transverse Acceleration -G200- 1 (2 Of 2)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Turn 90° to right of installation position (see illustration).



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES On Board Diagnostic (OBD) - New Beetle



z

Shown on display in display zone 2 (when vehicle stationary) e.g. -9.8 +/-1 m/s

2



A negative result equates to the forces during a right-hand turn.

z

Turn it 90° to left relative to installation position (see illustration).

z

Shown on display in display zone 2 (when vehicle stationary) e.g. 9.8 +/-1 m/s

2

 .

A positive result equates to the forces during a left-hand turn.

Fig. 199: Turning 90° To Right Of Installation Position (Sensor For Transverse Acceleration)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Checking brake pressure sensor

This test is for models with ABS/EDL/ASR/ESP only.

Display group number 005

z

Press keys 0, 0 and 5

z

Confirm entry with key Q.

z

There are always 4 display zones -arrows- in the measured value block. Decoding the individual values in
display zones 1 to 4 can be read-off from the following tables.
