Volkswagen New Beetle. Manual - part 679

Fig. 84: Removing Upper Steering Column Switch Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

The steering angle sensor -G85- is installed in a housing -1- together with the coil connector.

Fig. 85: Installing In A Housing Together With Coil Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull off connectors -1- and -2-.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



Fig. 86: Pulling Off Steering Column Connectors
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Lift hooks -arrows- carefully and remove steering angle sensor -G85-.

Fig. 87: Removing Steering Angle Sensor -G85-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing

The steering angle sensor -G85- must be set to it's centered position before installing.

z

Position steering angle sensor -G85- and push down until the lugs engage.

z

Remove transportation protection.

z

A yellow mark must be visible in hole-arrow 1-.



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



Fig. 88: A Yellow Mark Must Be Visible In Hole -Arrow 1-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

The marks -arrows- must also align.

Make sure it does not move from center position.

Further installation in reverse order

z

Installing airbag module and steering column.

See DRIVER-SIDE AIR BAG MODULE and STEERING WHEEL .

z

Perform steering angle sensor -G85- basic settings.

See INITIATING BASIC SETTING .



2003 Volkswagen New Beetle GLS

1998-2004 BRAKES Anti-Lock Brake System - New Beetle



1998-2004 BRAKES

On Board Diagnostic (OBD) - New Beetle

ITT MARK 20 IE ON BOARD DIAGNOSTIC (OBD), GENERAL INFORMATION

FUNCTION

Since the control modules are interconnected with a Controller Area Network bus (CAN-bus), always start
troubleshooting by pressing buttons -0- and -0- to insert "Automatic Test Sequence" address word 00. This
checks DTC memory for all control modules in the vehicle, including those that may influence the ABS system
in case of malfunction.

On Board Diagnostic (OBD) relates to the electrical and electronic components of the ABS; in other words,
only malfunctions pertaining to the electrical connections to the control module are recognized (e.g. wheel
speed sensor, open circuit).

The 25-pin ABS Control Module (w/EDL) -J104- and the ABS hydraulic unit together form a compact module.
The control module is equipped with DTC memory, and is located on the left side of the engine compartment.
The Data Link Connector (DLC) is located left of the steering column under the instrument panel. Only early
production cars DLC is in the center console below the heating and air conditioning controls.

The control module recognizes malfunctions during vehicle operation and stores them as Diagnostic Trouble
Codes (DTC) in permanent memory. The DTCs remain in memory if the voltage from the battery is interrupted.

Sporadic malfunctions will also be recognized and stored. If these do not occur again within the next 50 vehicle
starts and driving cycles DTC memory will be erased (with the exception of "Control Module Malfunctioning").

Sporadic malfunctions are identified as such by "/SP" appearing on the VAG1551 Scan Tool (ST) display.

After switching the ignition on and/or starting the engine, ABS warning light -K47- and brake system warning
lamp -K118- (red) lights up for approx. 2 seconds. During this period a test sequence (self-test) is run in the
control module, checking the following:

z

Voltage supply (at least 10.0 volts)

z

Control module, including valve windings

z

Wheel speed sensor; electrical check fully completed at 20 km/h (approx. 13 mph)

z

Control module coding

z

If after driving off and exceeding a speed of approx. 20 km/h (approx. 13 MPH) the speed signal is not
OK. The ABS warning light -K47- will light up again.

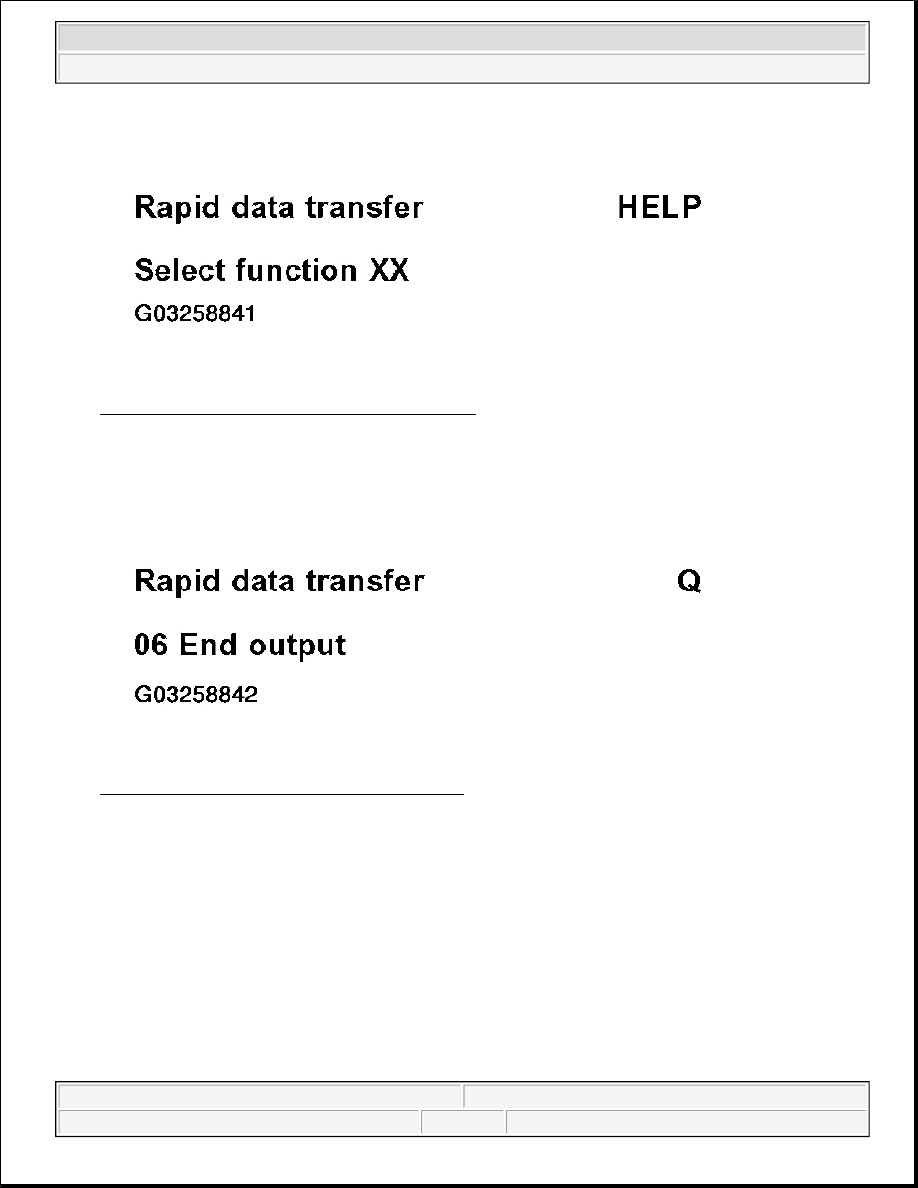

VAG1551 Scan Tool (ST) or tester VAS 5051

The On Board Diagnostic (OBD) program must be initiated at the start of troubleshooting. Electrical
malfunctions which influence braking characteristics will be stored, and can only be checked with the
