Volkswagen New Beetle. Manual - part 653

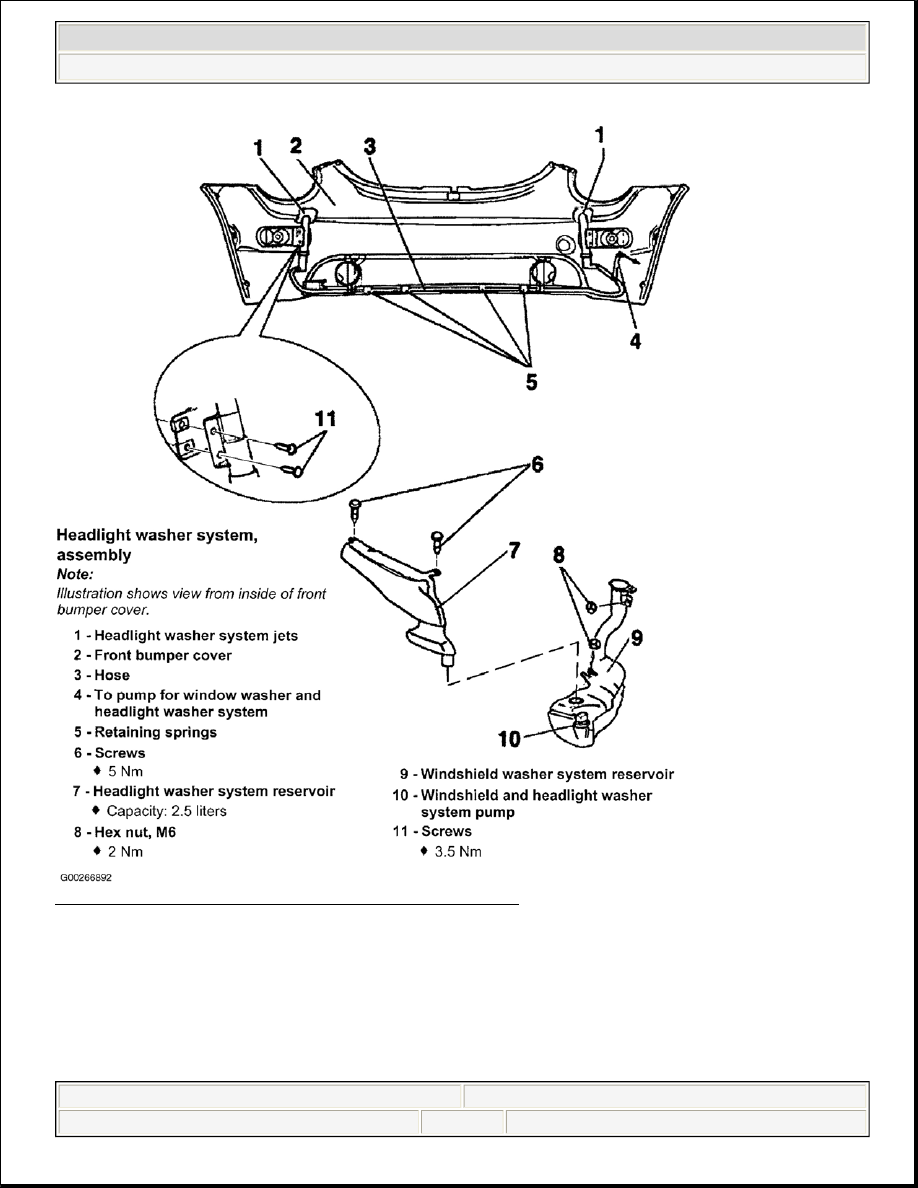

Fig. 2: Identifying Headlight Washer Assembly Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:44 AM

Page 4

© 2004 Mitchell Repair Information Company, LLC.

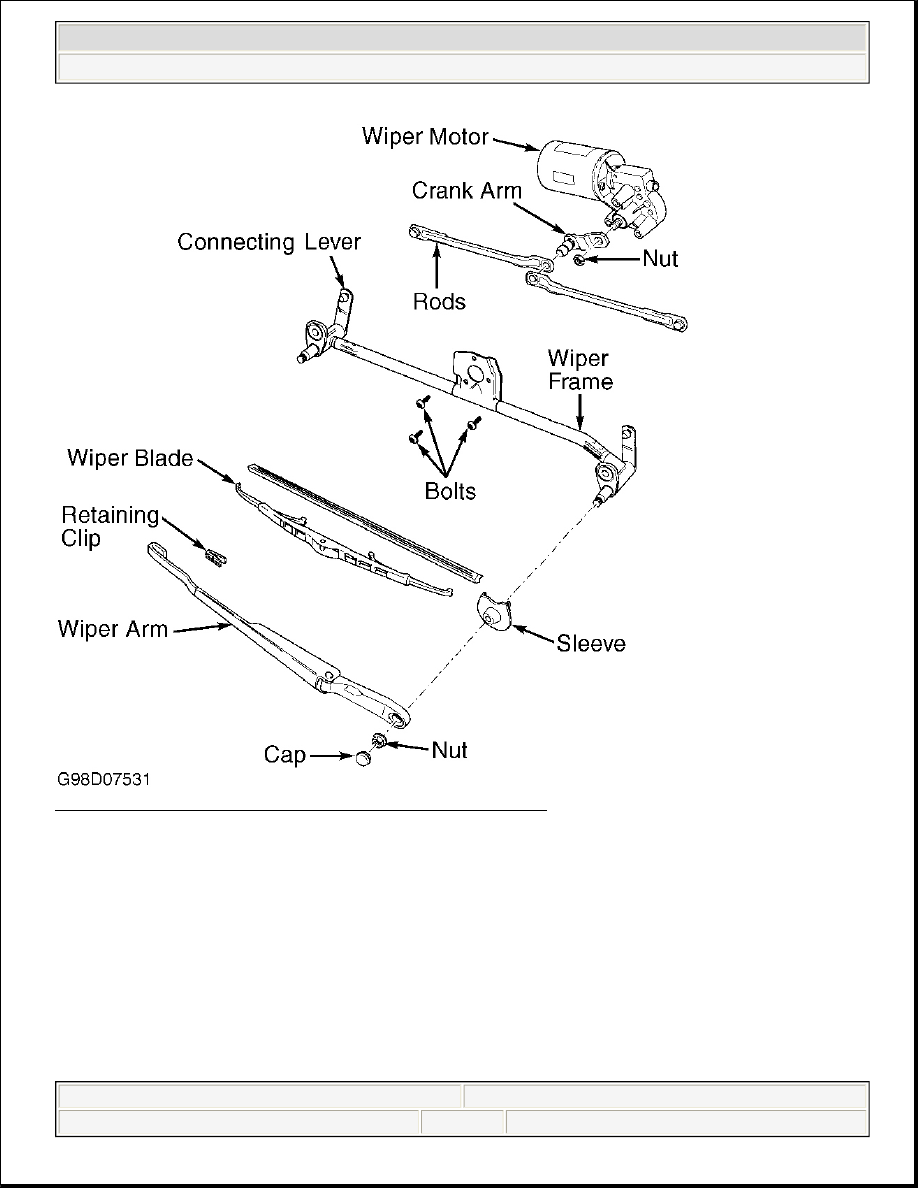

Fig. 3: Exploded View Of Front Wiper Motor Assembly (Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Relay panel is behind lower instrument panel trim on driver's side.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:44 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Wiper/Washer Systems - New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 7:57:45 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

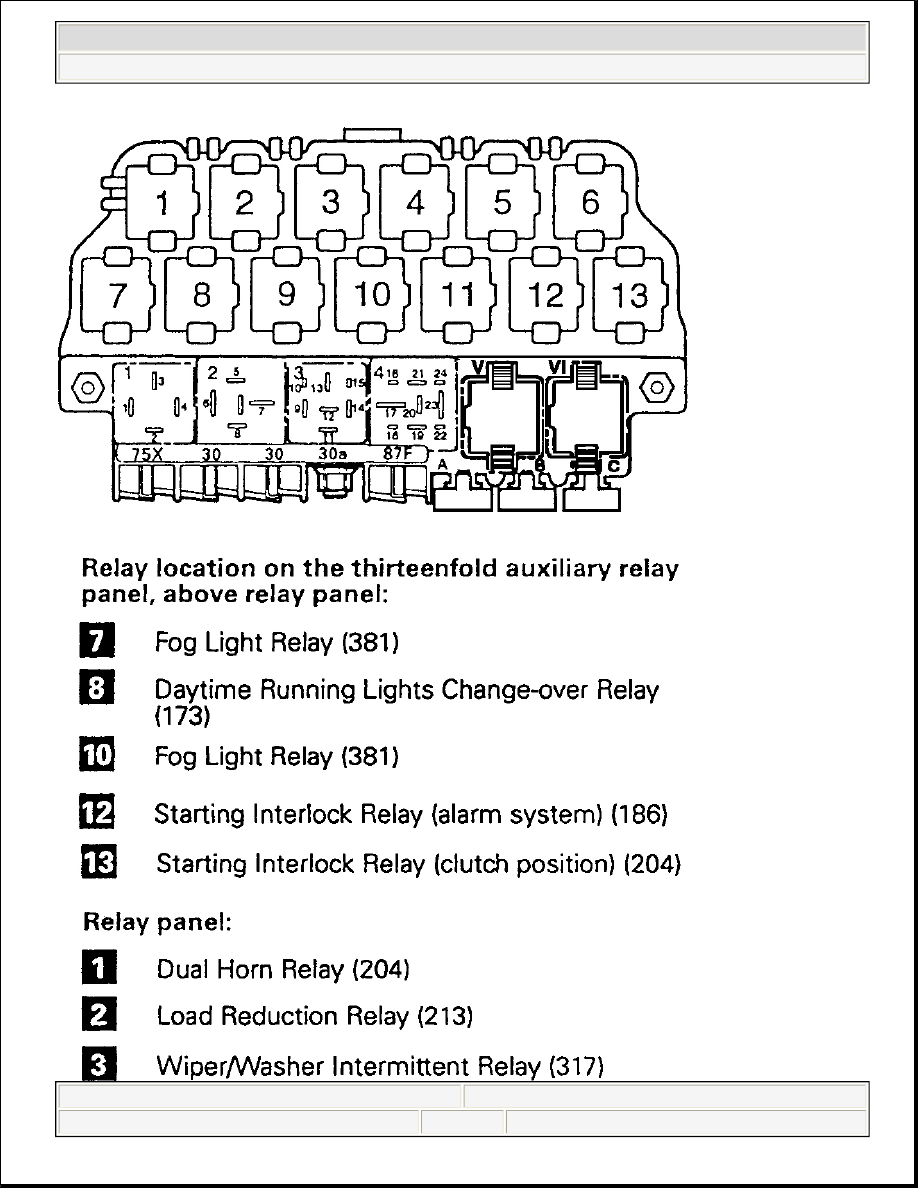

Fig. 4: Locating Wiper/Washer Intermittent Relay
Courtesy of VOLKSWAGEN UNITED STATES, INC.

ADJUSTMENTS

WIPER BLADE PARK POSITION

To adjust wiper blade park position, ensure wiper motor is at park position. Position wiper blade(s) above lower
edge of windshield as specified. See WIPER BLADE PARK POSITION SPECIFICATIONS table. Tighten
wiper arm nut to 15 ft. lbs. (20 N.m).

WIPER BLADE PARK POSITION SPECIFICATIONS

WIPER BLADE CONTACT ANGLE

Checking & Adjusting

1. Bring wiper arm to park position.

2. Remove wiper blade.

3. Insert wiper arms Setting Device (3358B) into wiper arm and secure with lock screw. See Fig. 5 .

4. Check contact angle. Contact angle should be as follows:

z

Driver's side - -3°

z

Passenger's side - -3°

z

Tolerance - +/-2°

5. To adjust contact angle, place 24 mm open end wrench on setting device and adjust wiper arm to

specifications (arrows).

6. Release wiper arm from setting device and then re-secure with lock screw.

7. Compare adjustment readout with specification. If necessary repeat adjustment.

8. Remove setting device and install wiper blade.

9. Check that wiper system operates without skipping.

Application

In. (mm)

Beetle

(1)

0.79 (20)

(1)

Specification is measured from each end of both wiper blades. Distance between
wiper blades at middle of windshield is approximately 0.75-1.20" (20-30 mm).

NOTE:

Check wiper blade contact angle on conventional blades, only if wiper blades
skip, shudder, or make noise.
