Fig. 90: Removing Steering Wheel Bolt
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Make one center punch mark on multi-point socket-head bolt -1-.

z

Position steering wheel -2- in center position (wheels straight ahead).

z

Remove steering wheel -2- off steering column.

z

Remove two Phillips-head screws (arrows).

NOTE:

Multi-point socket-head bolts that already have five center punch marks
must be replaced.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

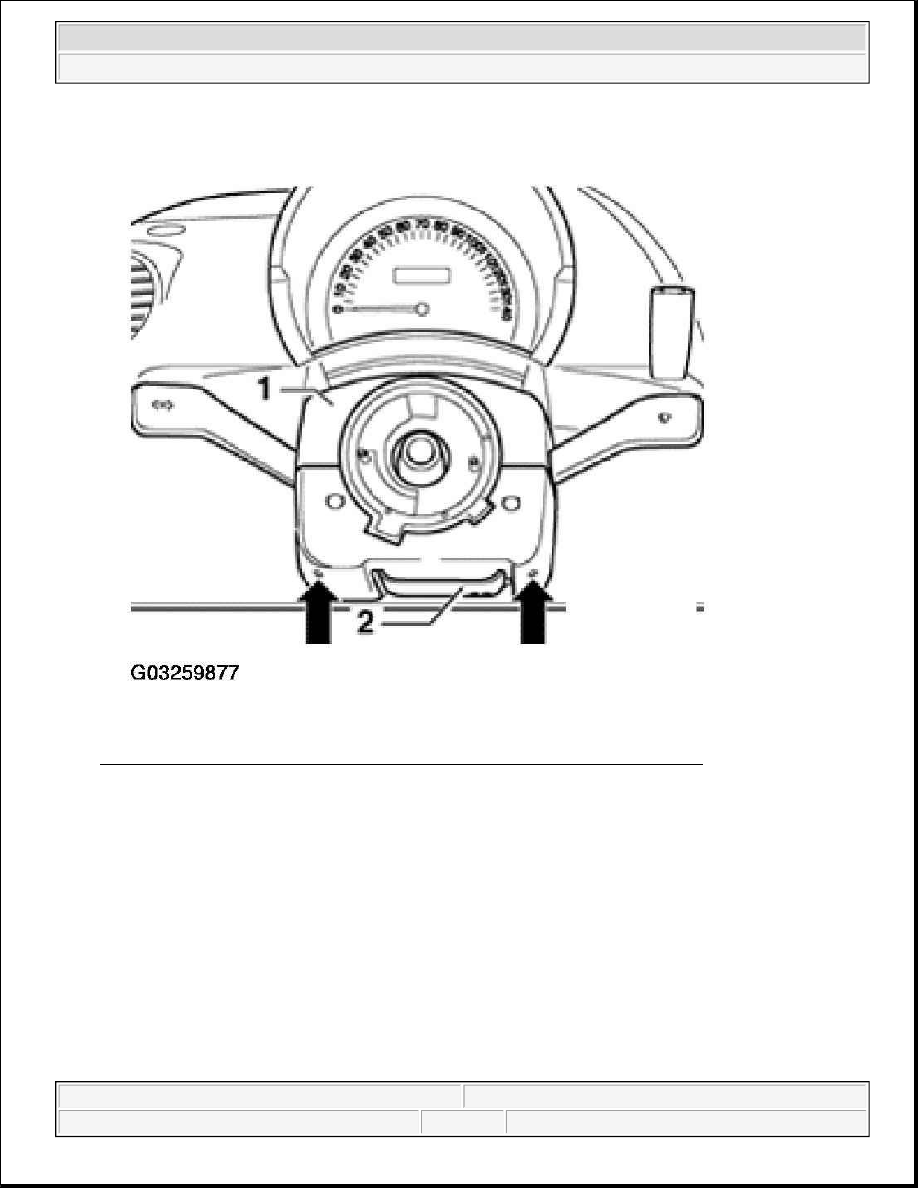

Fig. 91: Removing Two Phillips-Head Screws & Steering Column Switch Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove upper steering column switch trim -1-.

z

Remove four Phillips-head screws (arrows).



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

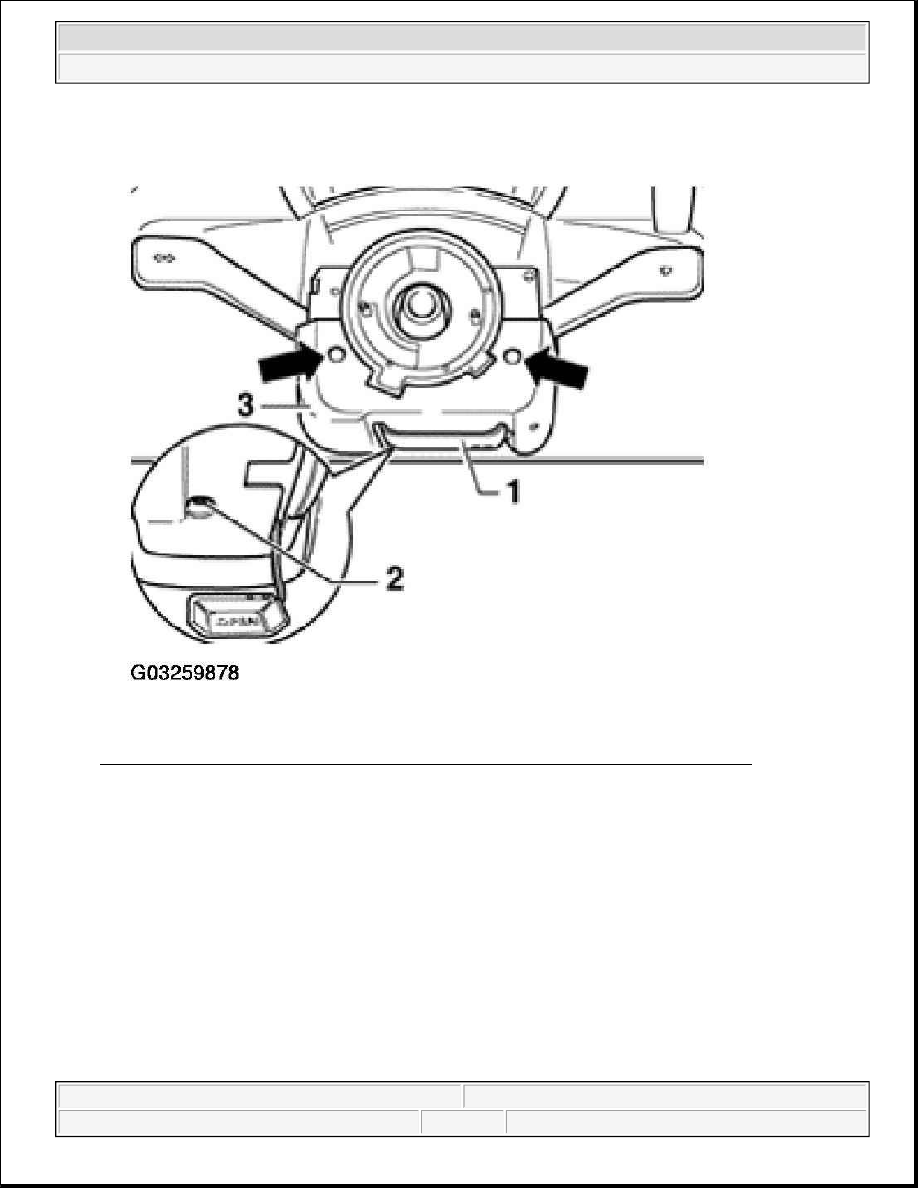

Fig. 92: Removing Four Phillips-Head Screws - Lower Steering Column Switch Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove socket head hex bolts -1-.

z

Release steering wheel height adjustment -2-.

z

Remove lower steering column switch trim -3-.

z

Remove socket head bolt -1-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

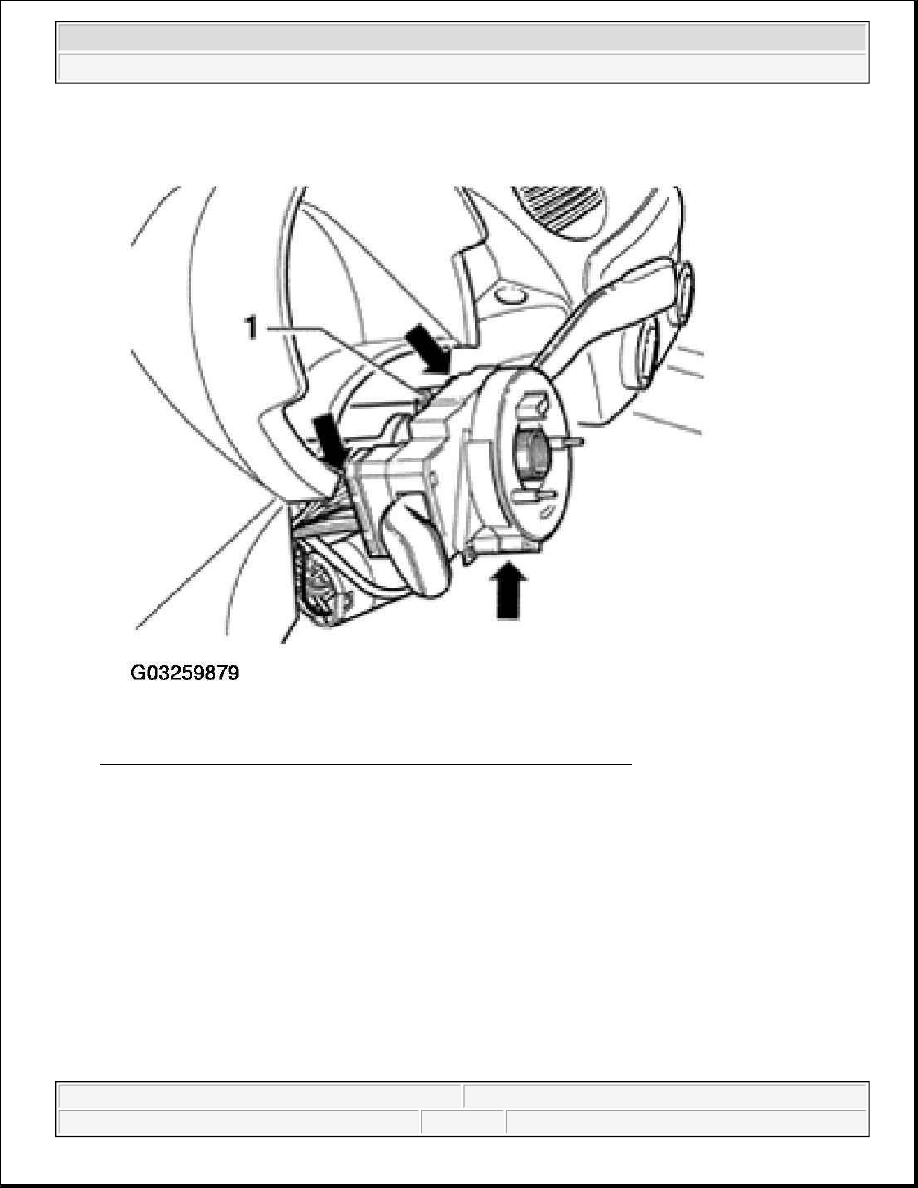

Fig. 93: Removing Socket Head Bolt From Steering Column Switches
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect electrical connectors (arrows) from steering column switches.

z

Remove steering column switches.

Installing

z

Install in reverse order of removal.

STEERING COLUMN SWITCHES, CONNECTOR ASSIGNMENTS

Switches for windshield wiper and washer system

A - 6-pin connector
