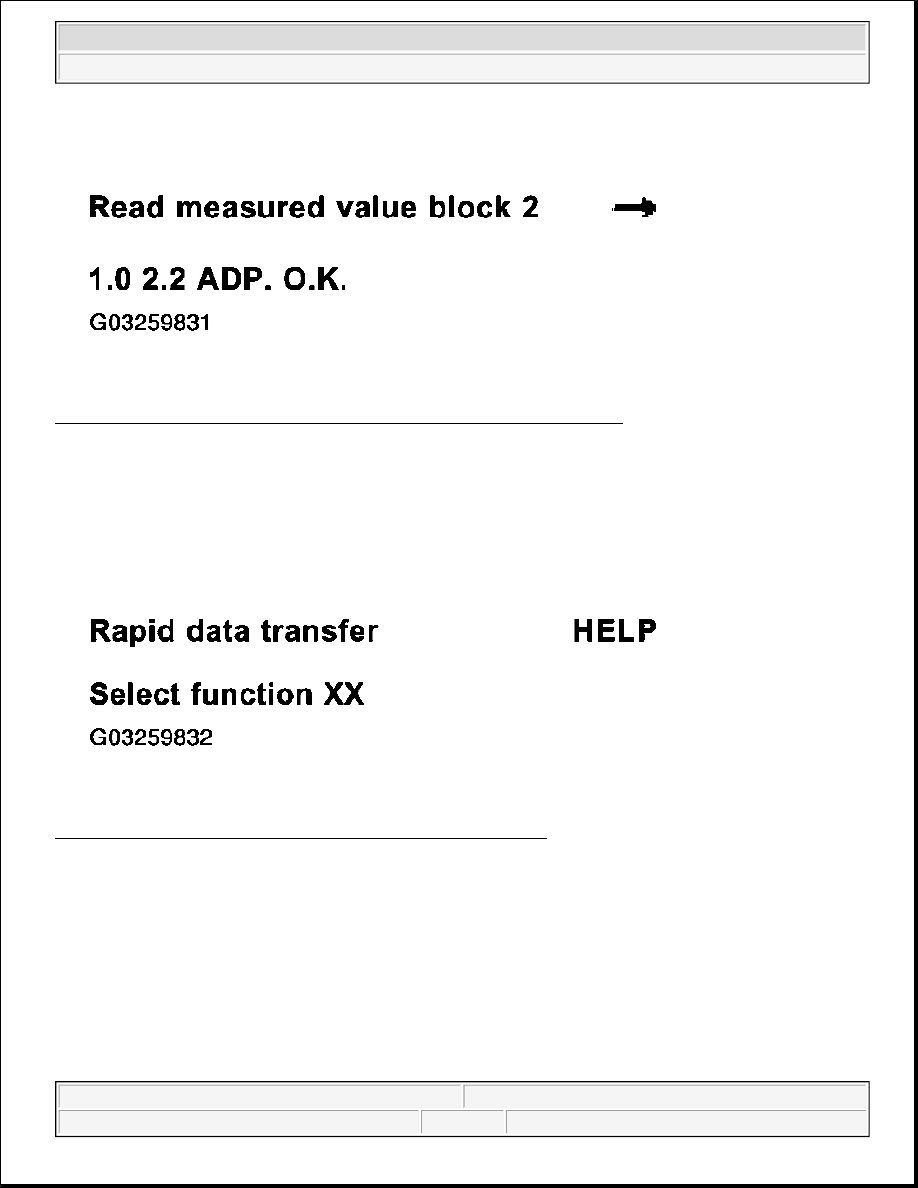

Fig. 45: VAG 1551/1552 Scan Tool Display - Read Measuring Value Block
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> key.

Indicated on display.

Fig. 46: VAG 1551/1552 Scan Tool Display - Select Function XX
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys 0 and 6 to select "End output" function 06.

Indicated on display.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



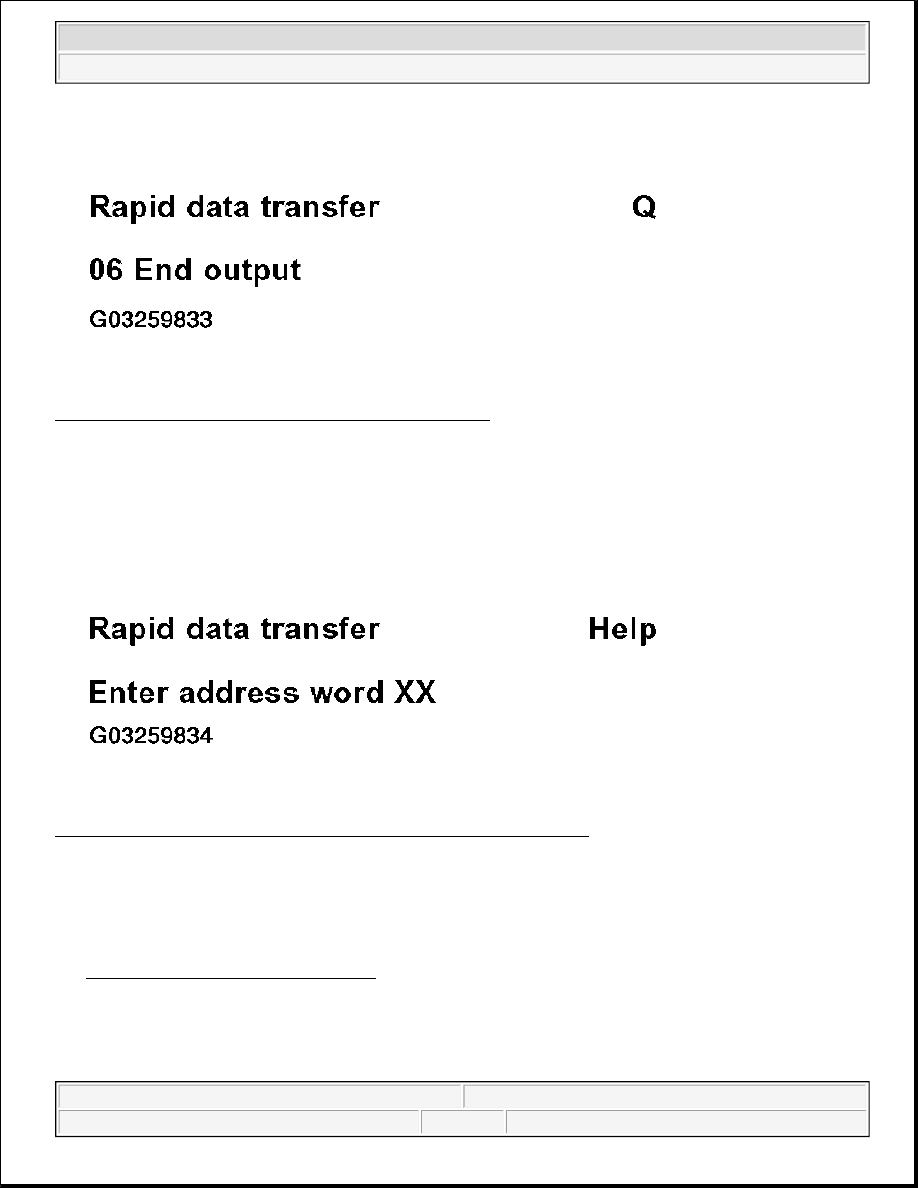

Fig. 47: VAG 1551/1552 Scan Tool Display - End Output
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to confirm input.

Indicated on display.

Fig. 48: VAG 1551/1552 Scan Tool Display - Enter Address Word XX
Courtesy of VOLKSWAGEN OF AMERICA, INC.

After completing the mechanical adjustment of coupling rod, the related electrical components must adjusted to
the revised settings. Perform basic settings of the automatic headlight range control to adjust to the revised
settings.

See On Board Diagnostic (OBD), function .

LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-, REMOVING AND INSTALLING

Removing



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Remove nuts -arrows-.

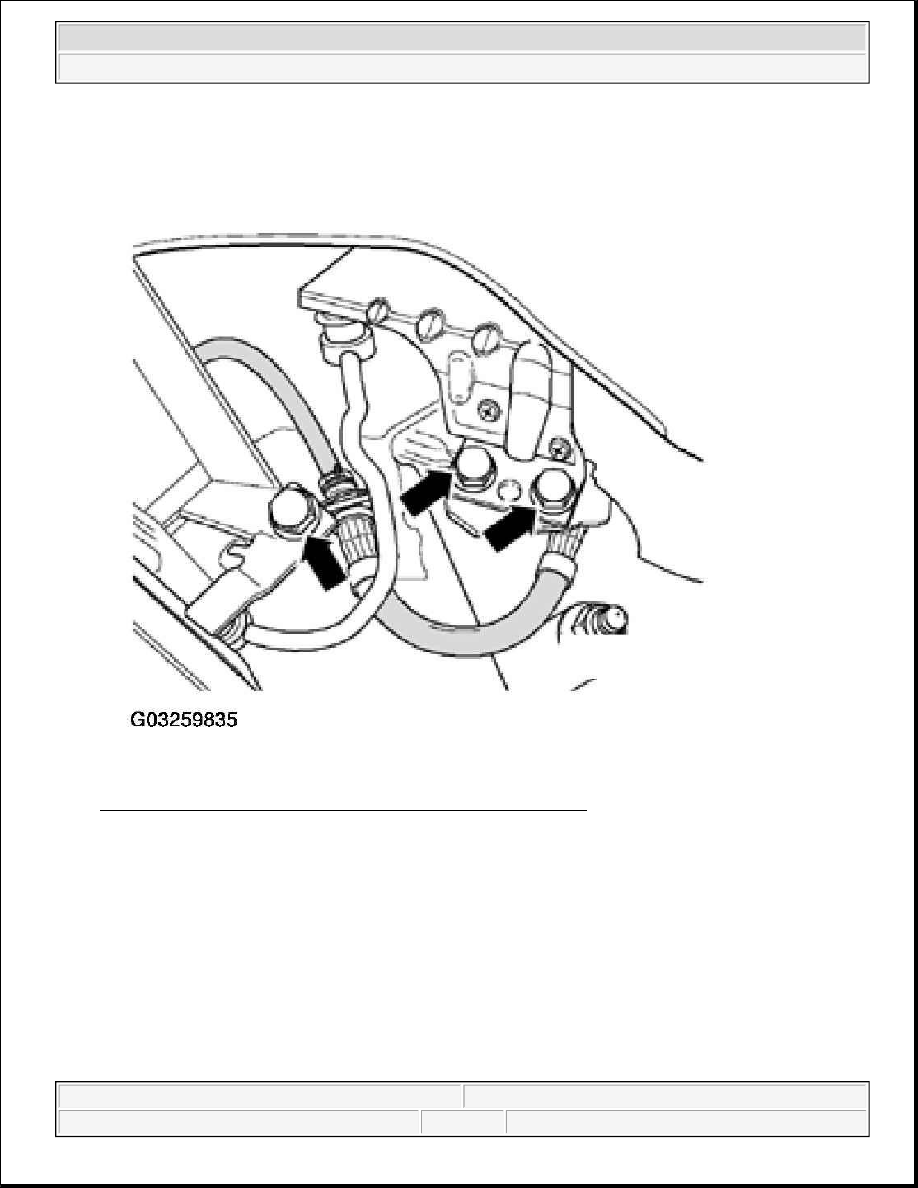

Fig. 49: Removing Left Rear Level Control System Sensor Nuts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove sensor with retainer.

z

Disconnect electrical connections.

Installing

Installation in reverse sequence of removal.

When installing, ensure coupling rod angle bracket on rear axle is seated correctly.

NOTE:

The rear level control system sensor is not externally adjustable. However, it



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Check rear level sensor adjustment, See LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-,
CHECKING .

LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76-, CHECKING

Special tool, testers, and auxiliary items needed

z

VAG 1551/1552 Scan Tool (ST) or VAS 5051 Vehicle Diagnostic Testing and Information System tester.

z

VAG 1551/3B Adapter Cable

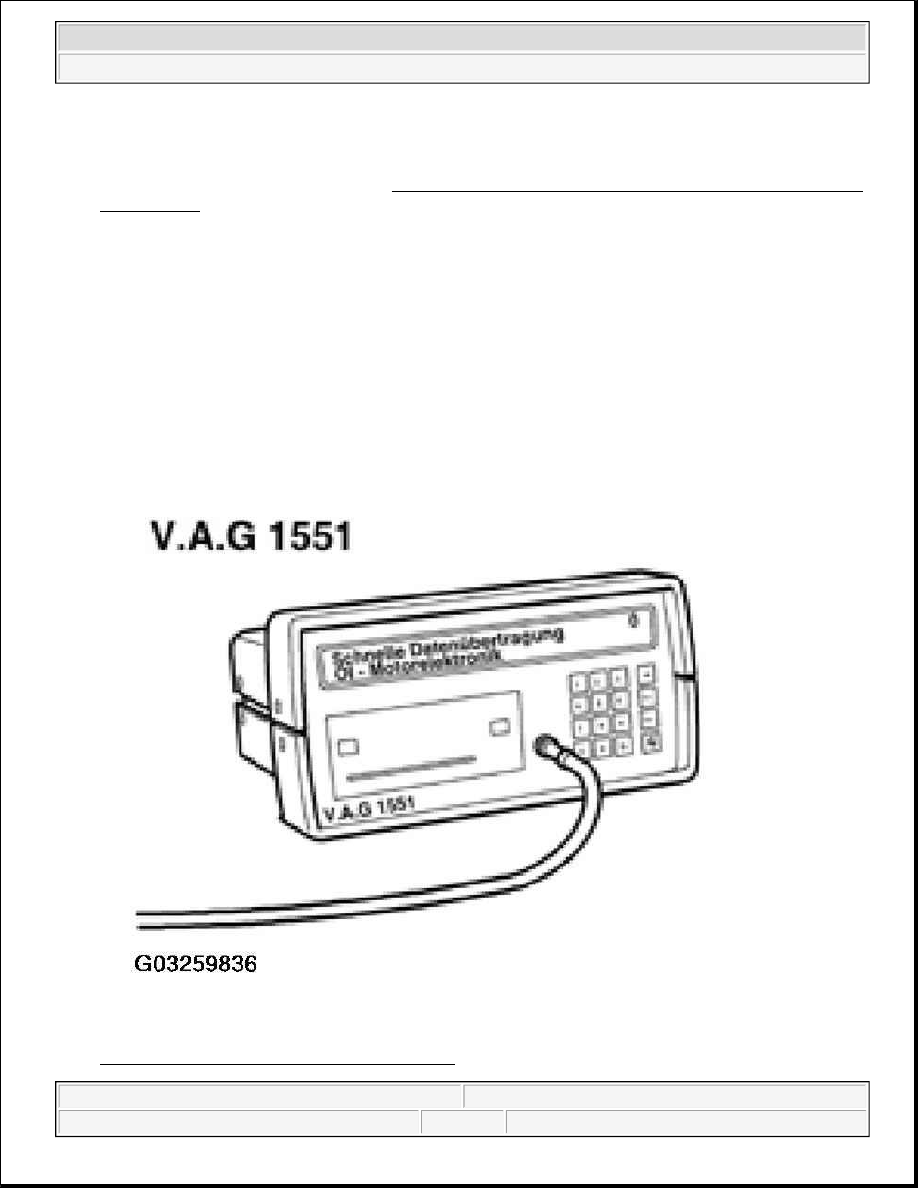

Fig. 50: Identifying VAG 1551/1552 Scan Tool

must be checked after installation is complete.
