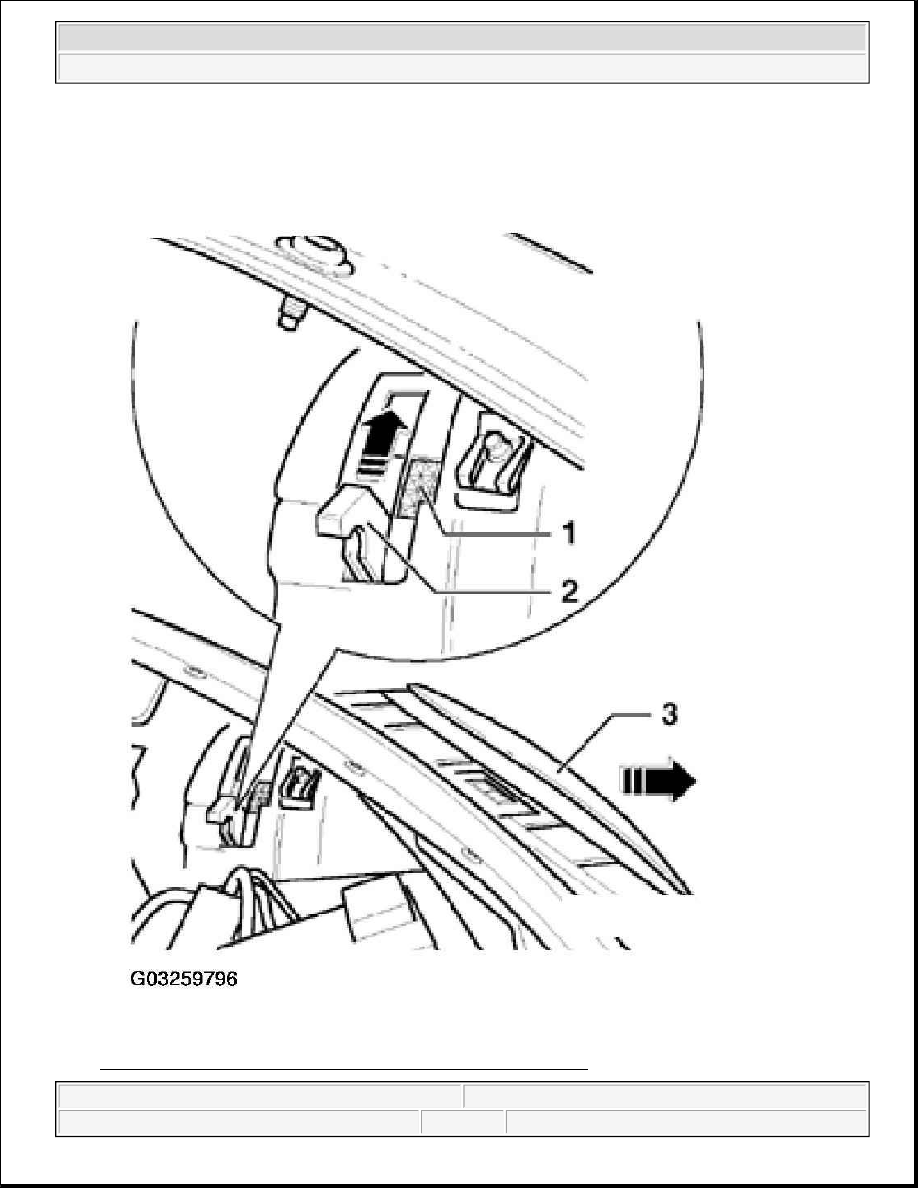

Press release button -1- and push up lever -2-.

Fig. 10: Pressing Release Button And Pushing Up Lever (Right)



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull headlight housing -3- slightly forward.

z

Disconnect electrical connectors from headlight.

z

Remove headlight housing -3-.

Right headlight, installing

z

Connect electrical connectors to headlight.

z

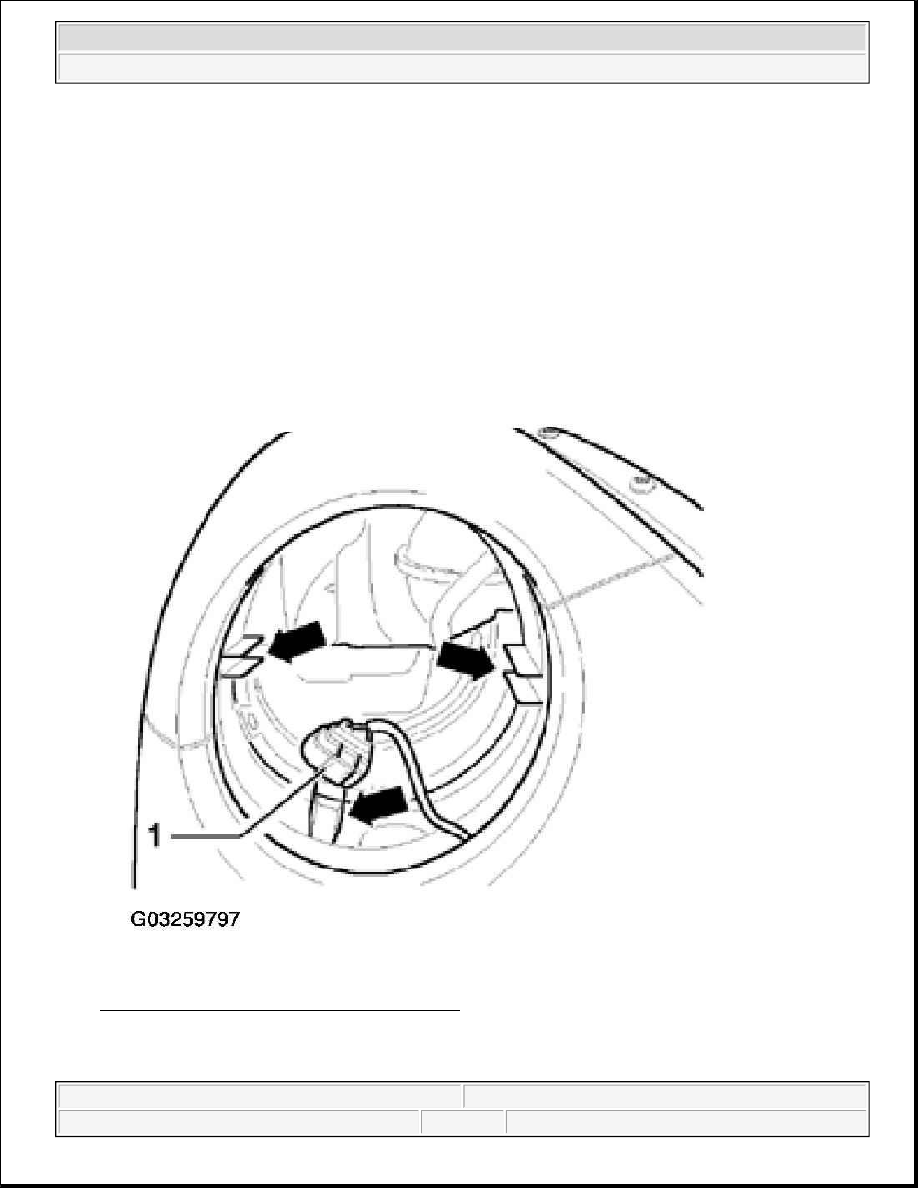

Insert headlight into guide tracks (arrows) and push inward.

Fig. 11: Inserting Headlight Into Guide Tracks
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Push down on lever in engine compartment to lock headlight.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Reconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Check headlight aim.

See HEADLIGHT ADJUSTMENT, CHECKING .

HEADLIGHTS, ADJUSTING

Left headlight:

A. Height adjustment

B. Lateral adjustment

NOTE:

z

Always adjust lights with optical headlight aimer VAS 5107, using detailed
aiming procedure and specifications

See HEADLIGHT ADJUSTMENT, CHECKING .

z

Low and high beams are adjusted simultaneously.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



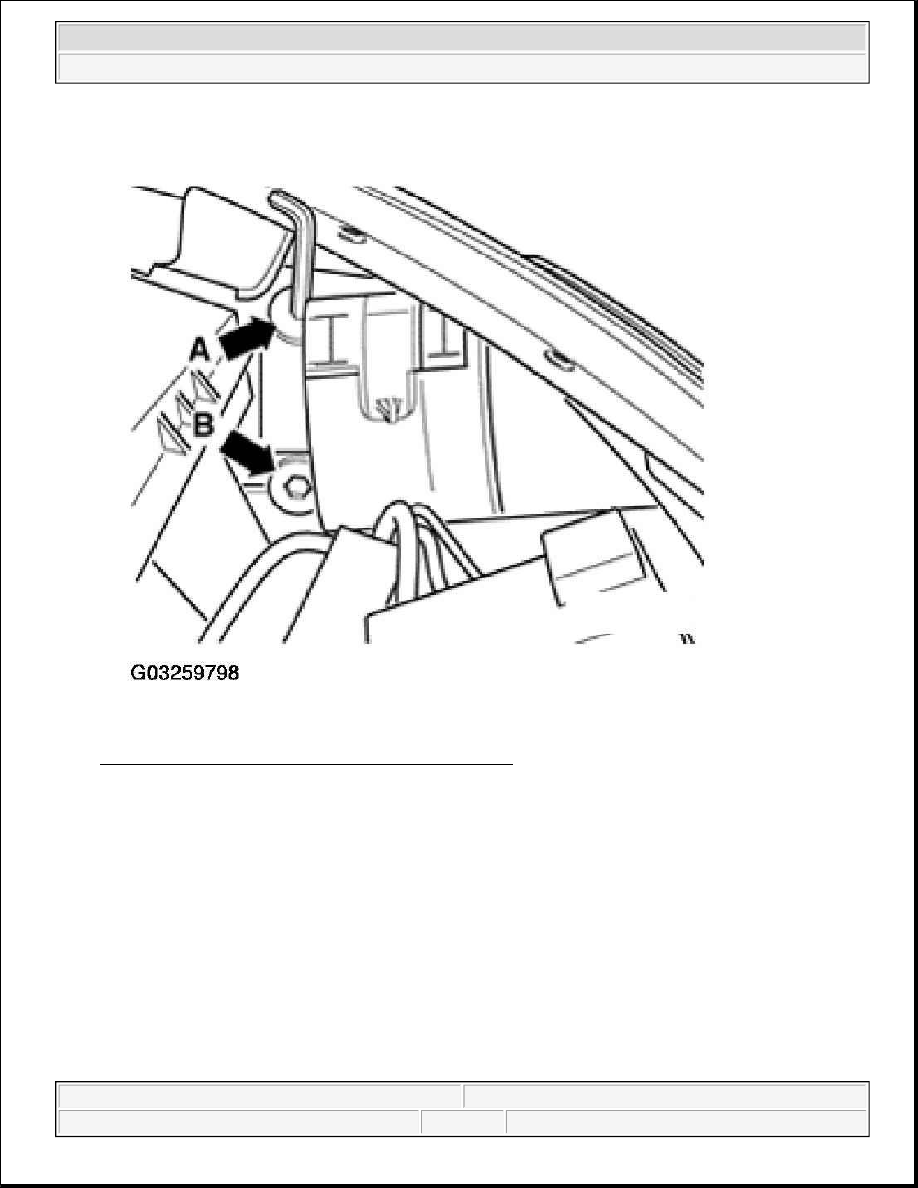

Fig. 12: Identifying Left Headlight Adjustment Points
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Right headlight:

A. Height adjustment

B. Lateral adjustment

{

Turn adjusting screws for lateral adjustment -B- and height adjustment -A- until correct setting is
achieved.
