z

Tighten screws and seal securing holes with sealant D2.

z

Connect multi-pin connector to ignition/starter switch.

z

Install steering column switches and steering wheel trim.

IGNITION/STARTER SWITCH, CONNECTOR ASSIGNMENTS

Connector, 8 pin

1. Terminal 50

2. Terminal 75

3. Terminal 30

4. Terminal P

5. Terminal 50b

6. Terminal 15

7. Terminal 30

8. Terminal 86s



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

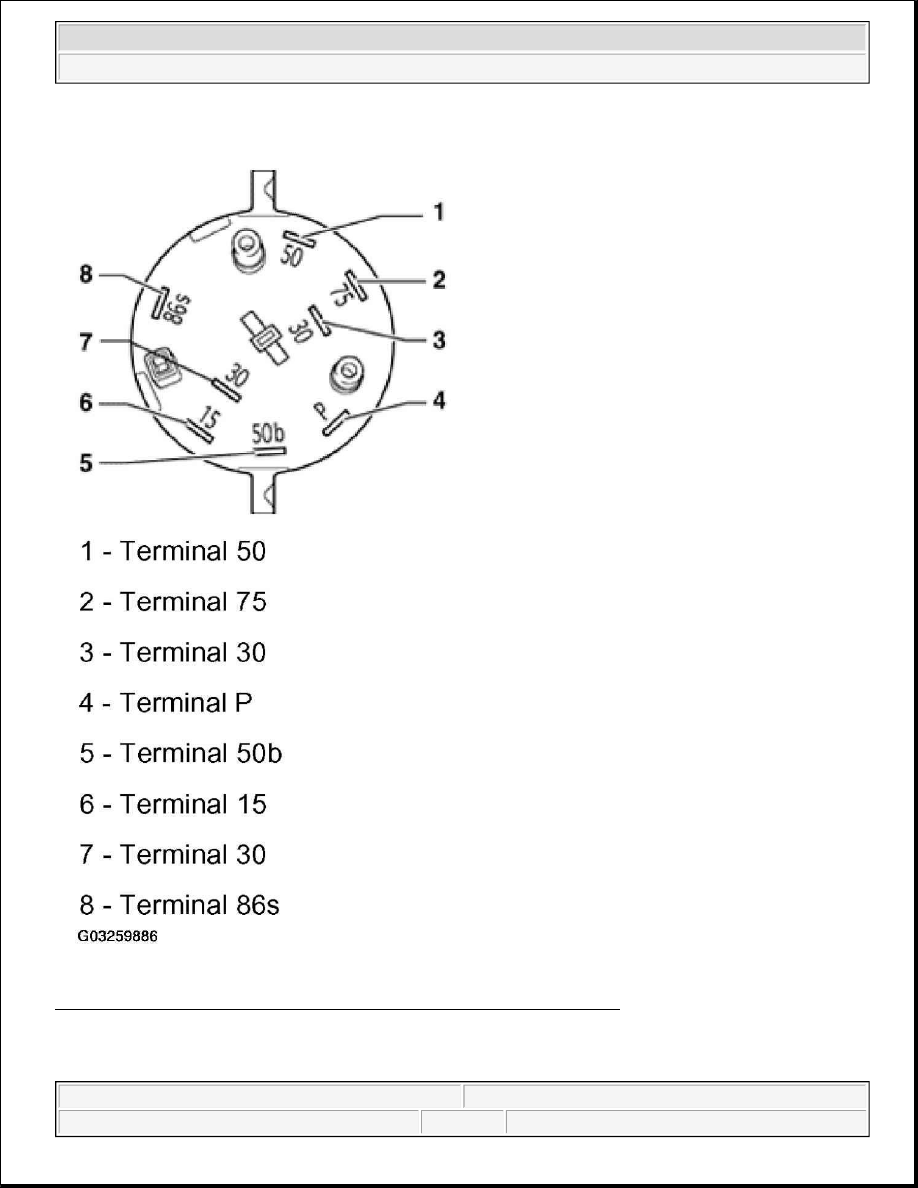

Fig. 100: Identifying Ignition/Starter Switch Connector (8-Pin) Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



1998-2004 ACCESSORIES & EQUIPMENT

Dual Horns Troubleshooting - New Beetle

CHECKING DUAL HORNS

REQUIRED FOR TROUBLESHOOTING:

z

Electrical Circuit Tester VW1466

z

Valid wiring diagram

PREREQUISITE:

z

S240 Fuse 40 (20A) OK

PREPARATION:

z

Remove lower instrument panel cover. See COVER IN DRIVER'S FOOT WELL, REMOVING AND
INS .

z

Remove dual horn relay J4 (production control number 204) from relay location 1

z

Insert test adapter VW1466/3 into relay location 1

z

Connect VW 1466 to test adapter

TROUBLESHOOTING PROCEDURE:

z

Perform test steps according to Dual Horn Test Table .

z

If specified value/test result is obtained, proceed to next step (test result OK)

z

If specified value/test result is not obtained, use Possible Causes If Specified Value/Test Result Was
Not Obtained for troubleshooting and repair.

z

Use valid wiring diagram for circuit testing

z

Disconnect test leads after each step

If malfunction has not been eliminated after performing steps 1 to 3, replace dual horn relay J4! .

After repairing malfunction, perform test on dual horns.

Dual Horn Test Table

NOTE:

If only one horn works, check the wiring to the inoperative horn first. See
appropriate SYSTEM WIRING DIAGRAMS article.

NOTE:

Before starting troubleshooting, battery negative terminal (-) must be securely
tightened.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Dual Horns Troubleshooting - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Dual Horns Troubleshooting - New Beetle



Possible Causes If Specified Value/Test Result Was Not Obtained

Test step:

1

2

3

Check:

Power supply (B+) (terminal
15)

Horn button H

Dual horn H1

Connector assignment VW 1466
red wire

from 6 to S+

from 4 to S+

from 8 to 2

black wire

from S- to L+

from S- to L+

-

blue wire

from L- to 8

from L- to 6

-

Additional steps:

Switch on ignition

Press horn button H

-

Specified value/test
result:

Indicator lamp (L) lights up

Indicator lamp (L) lights
up

Dual horn H1
sounds

Wiring Relay panel / component or component / component

-

S1/6 to H

S2/2 to H1

S1/4 to S240

or Horn Button H

-

X

-

or Dual horn H1

-

-

X

or Relay panel

X

X

X
