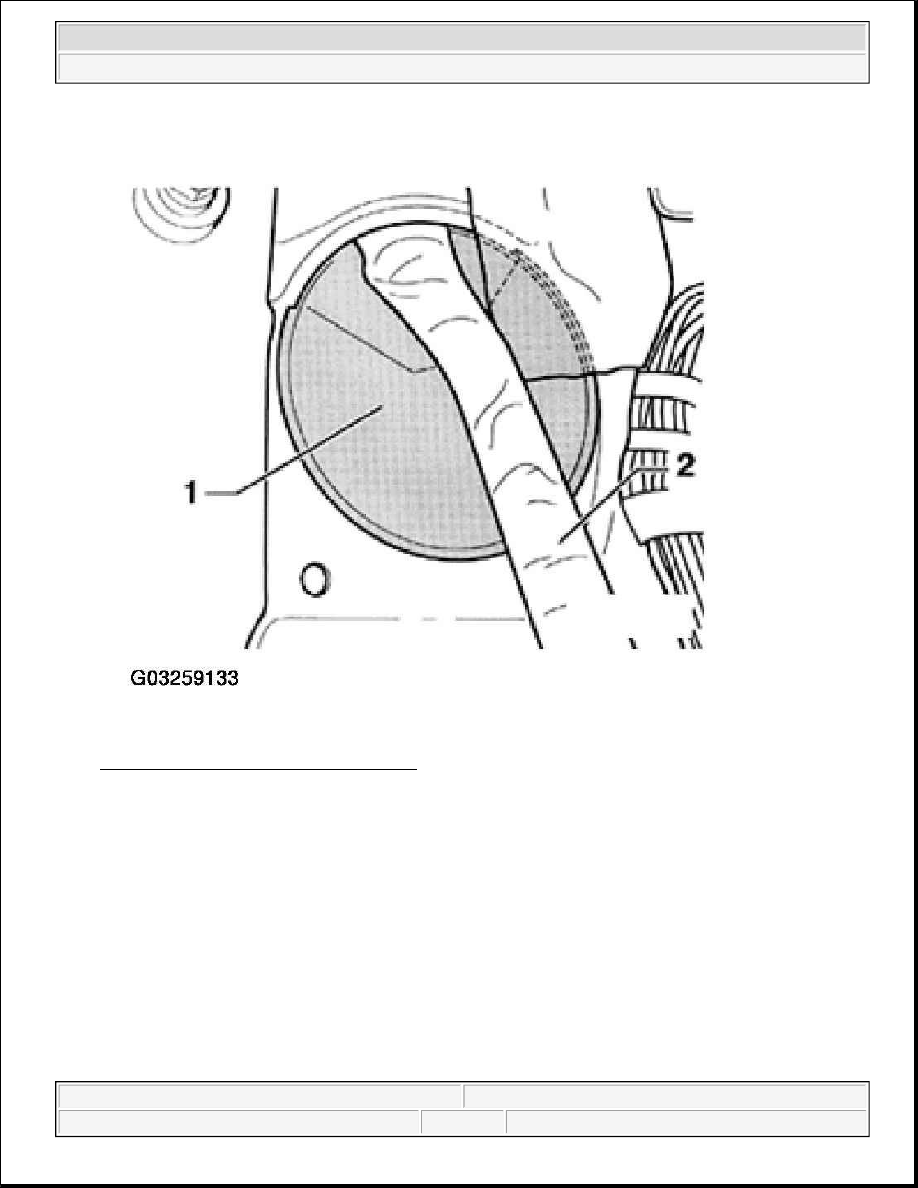

Fig. 29: Removing Upper Retaining Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Temporarily connect side window motor

z

Raise side window until the combi-nuts are visible in the assembly openings -arrow-.

z

Remove combi-nuts.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



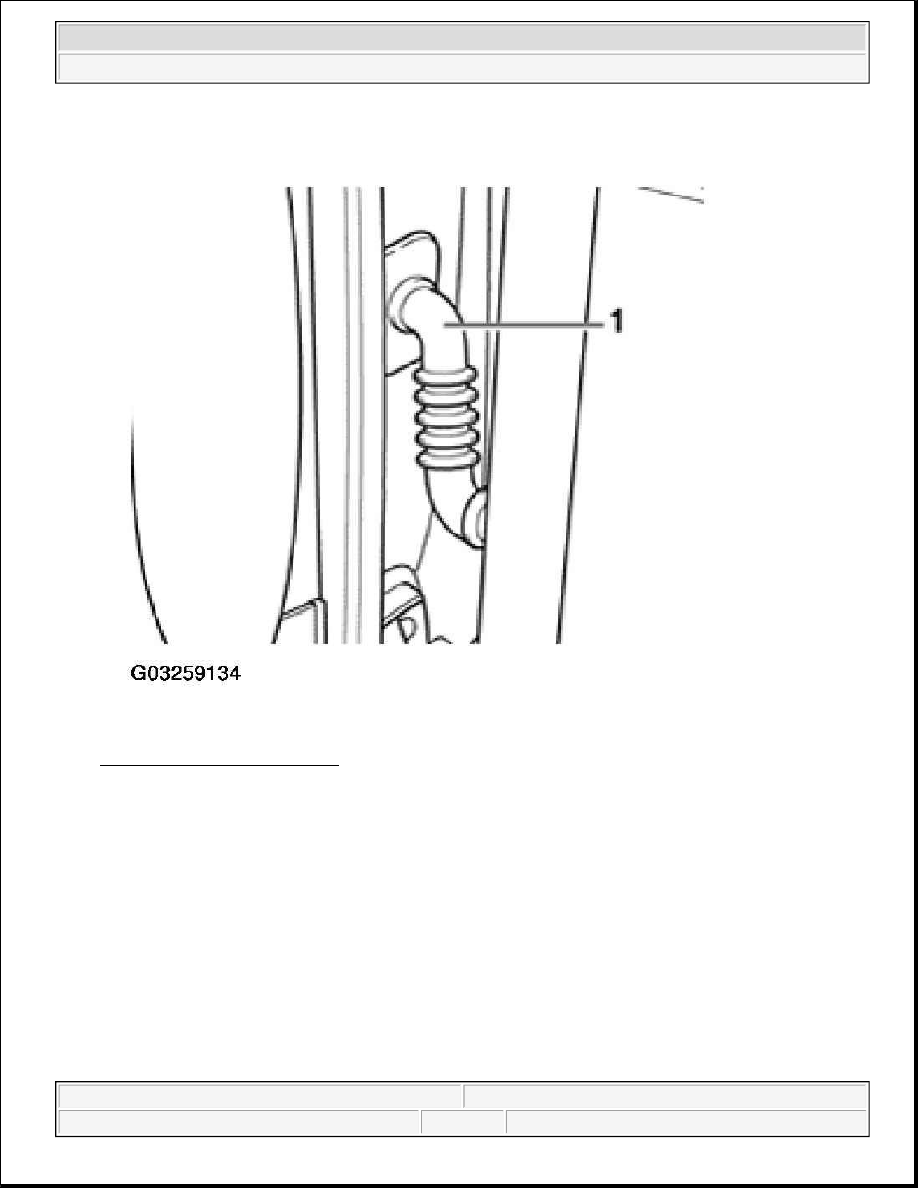

Fig. 30: Removing Combi-Nuts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Lower door window to approx. central position until combi-nuts are visible in the assembly openings -
arrow-.

z

Remove combi-nut.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



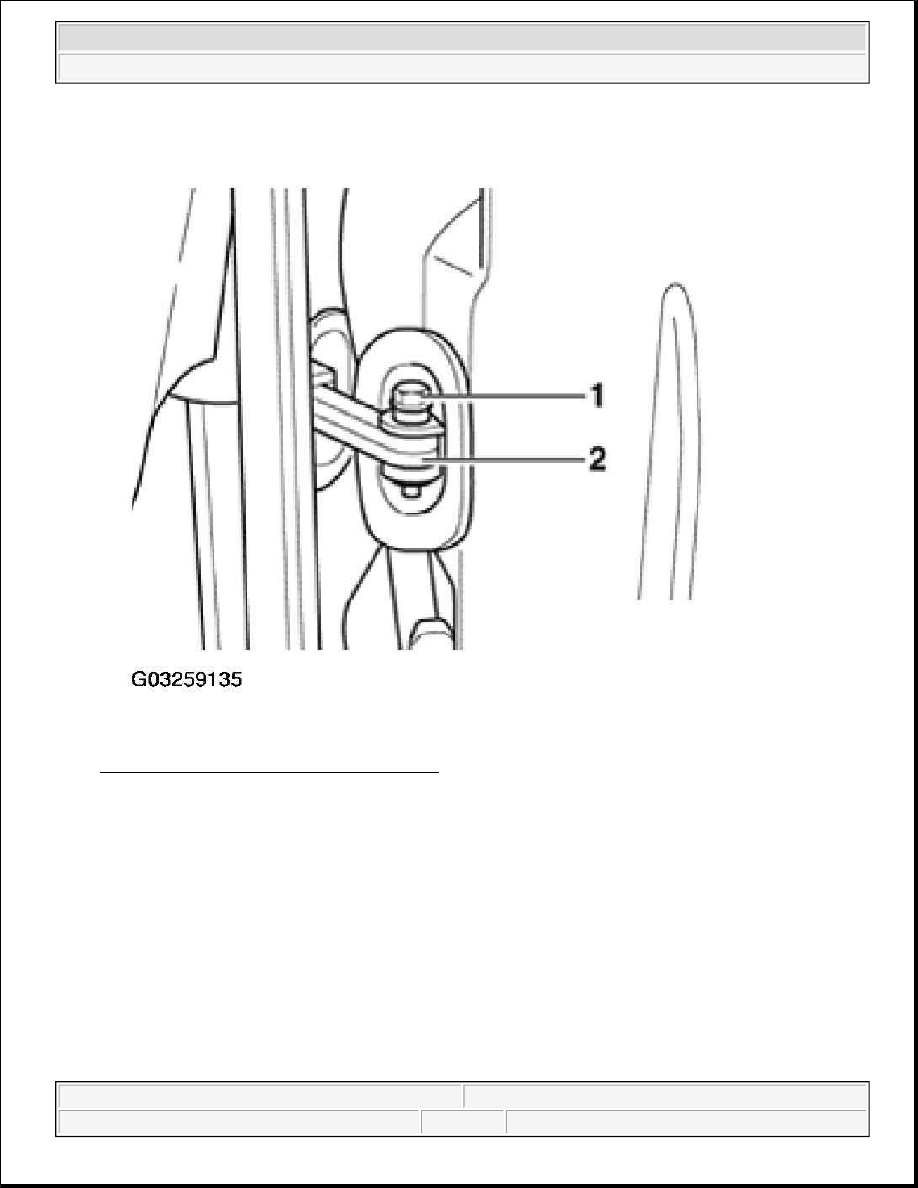

Fig. 31: Removing Side Window Combi-Nut
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Tilt side window toward interior (inward) and remove upward out of window slot.

Installing

Install in reverse order of removal.

SIDE WINDOW, ADJUSTING

z

Side trim, loudspeaker removed and canopy closed.

NOTE:

Check adjustment of side window during assembly.



2003 Volkswagen New Beetle GLS

1998-2004 EQUIPMENT & EQUIPMENT Glass, Window Regulators - New Beetle



z

Lower/rise side window to approx. central position until the combi-nut is visible in the assembly opening
-arrow-.

z

Loosen combi-nut.

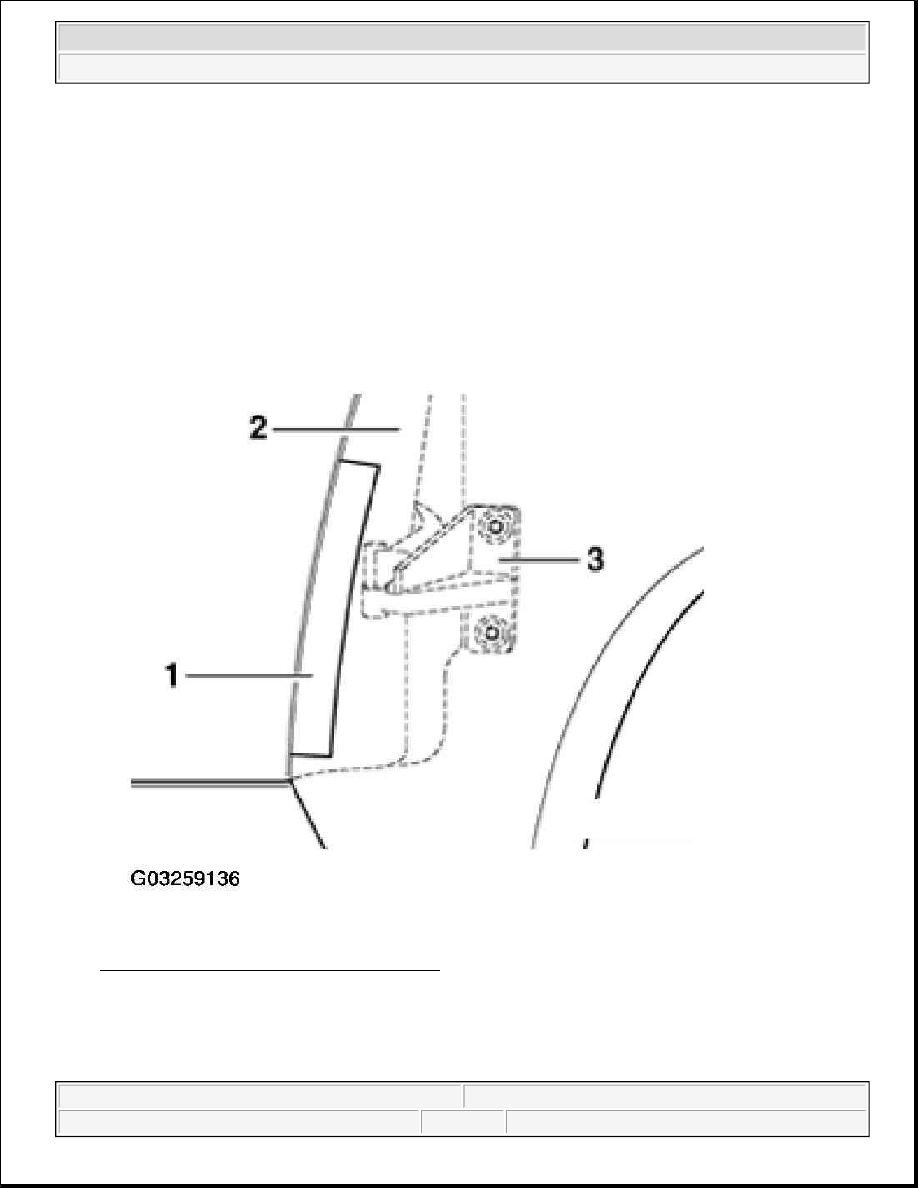

Fig. 32: Loosening Side Window Combi-Nut
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Raise door window until the combi-nut is visible in the assembly opening -arrow-.

z

Loosen combi-nuts.

NOTE:

z

It is essential to make sure that conciseness of joints/shut lines is
guaranteed between door window and side window.

z

If the side inclination (distance) is not correct this can be corrected via
adjuster on carrier plate.
