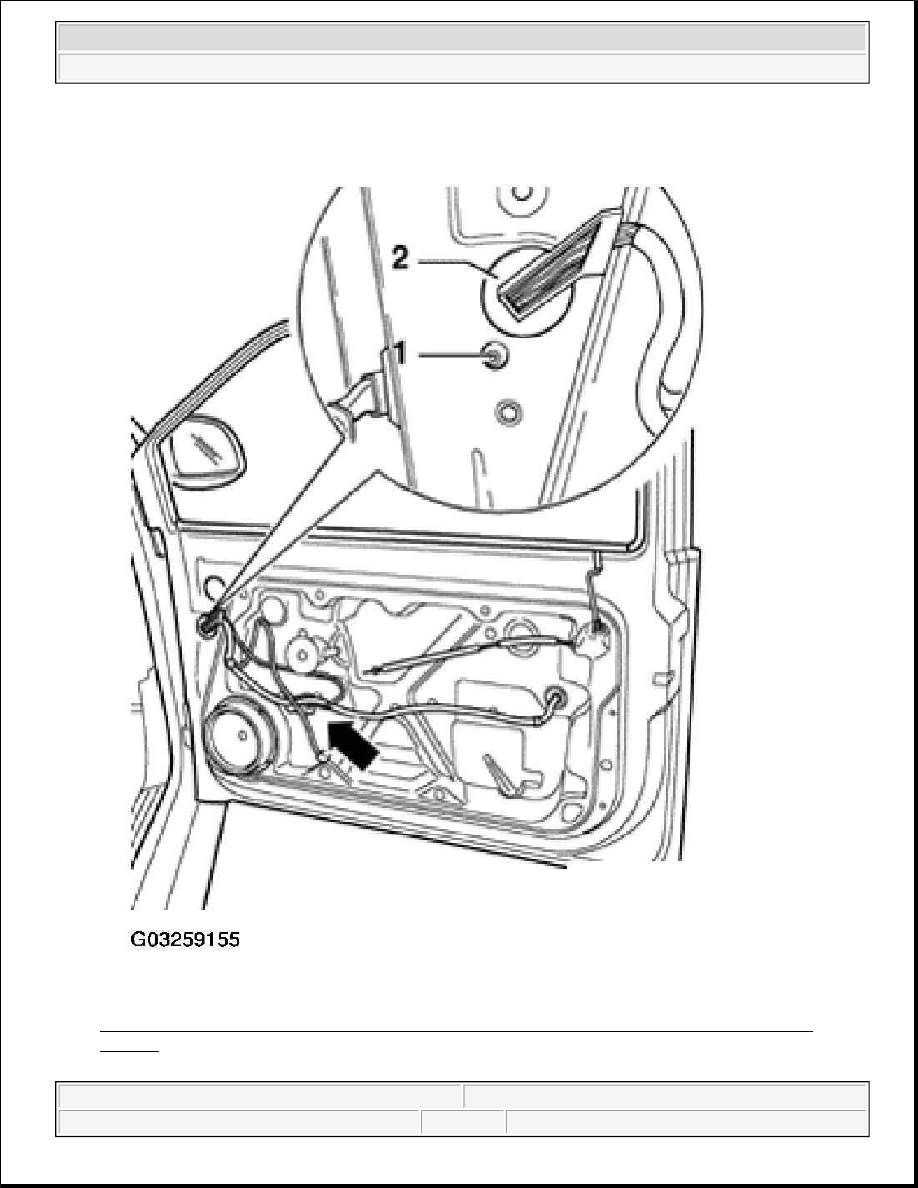

Fig. 39: Disconnecting Connection For Exterior Mirror And Unhook Wiring From Assembly
Carrier
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Unscrew bolts/screws -1-.

z

Torque setting: 20 N.m.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



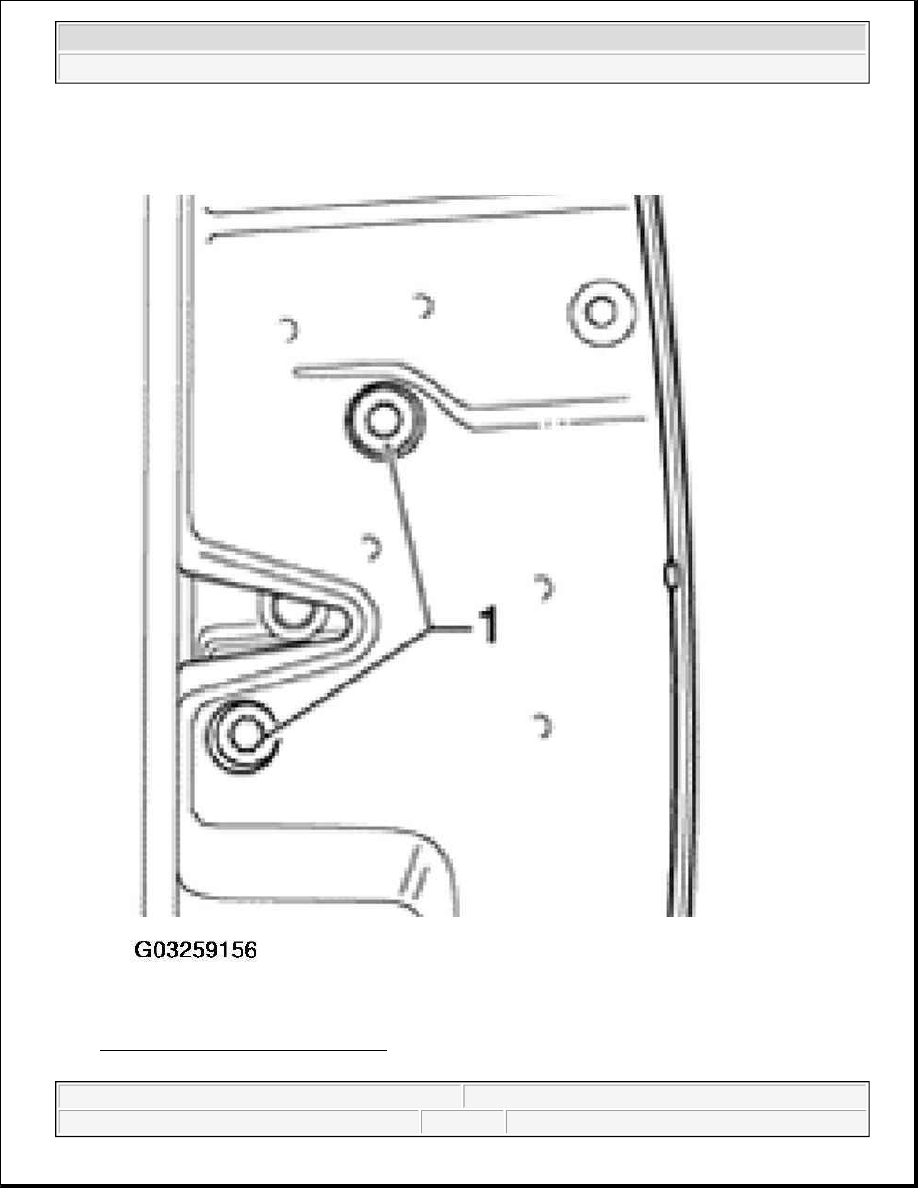

Fig. 40: Removing Door Bolts/Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Remove bolts/screws -1- to -11-. Remove top of assembly carrier off door, lift and remove out of door
toward hinges.

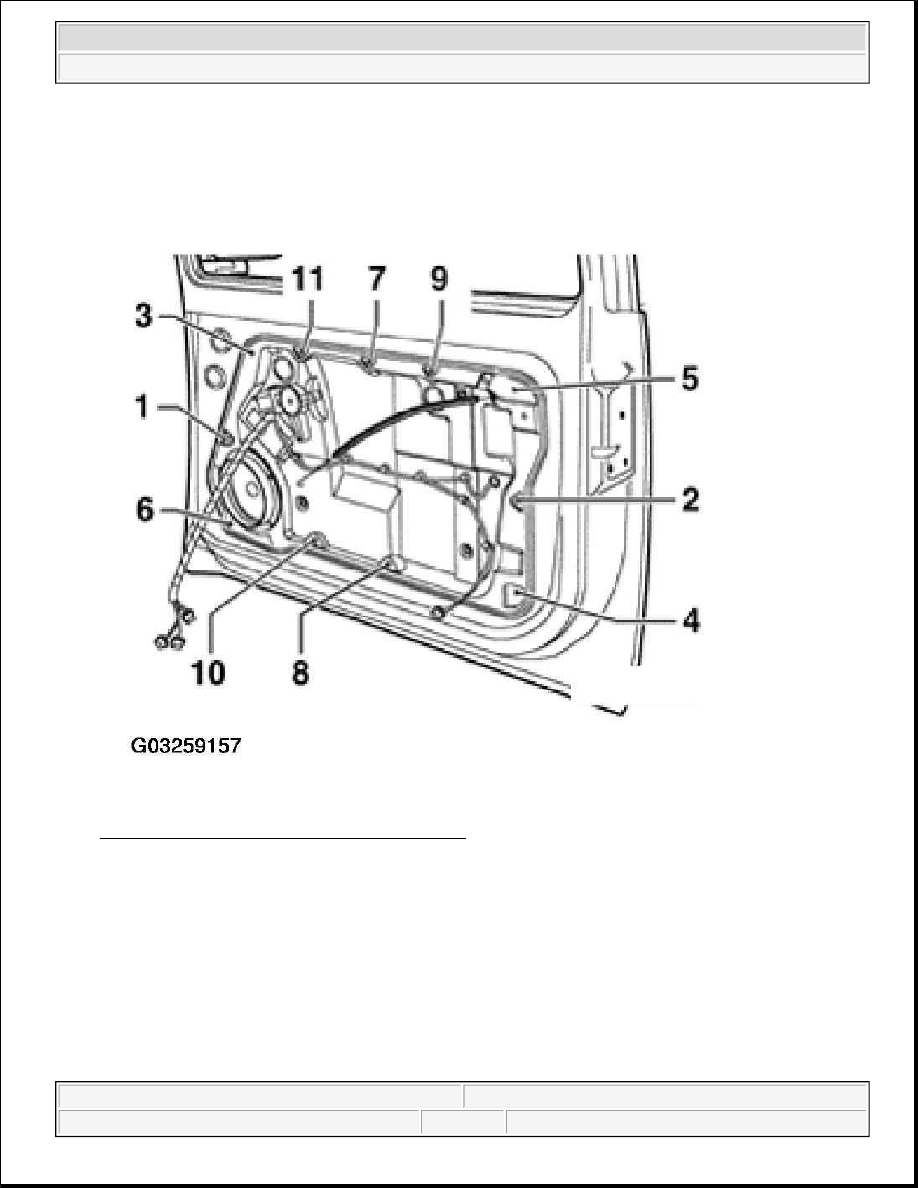

Fig. 41: Removing Door Bolts/Screws -1- to -11-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Turn mounting plate and pull connector off door lock.

z

Drive out clips -1- with a drift.
