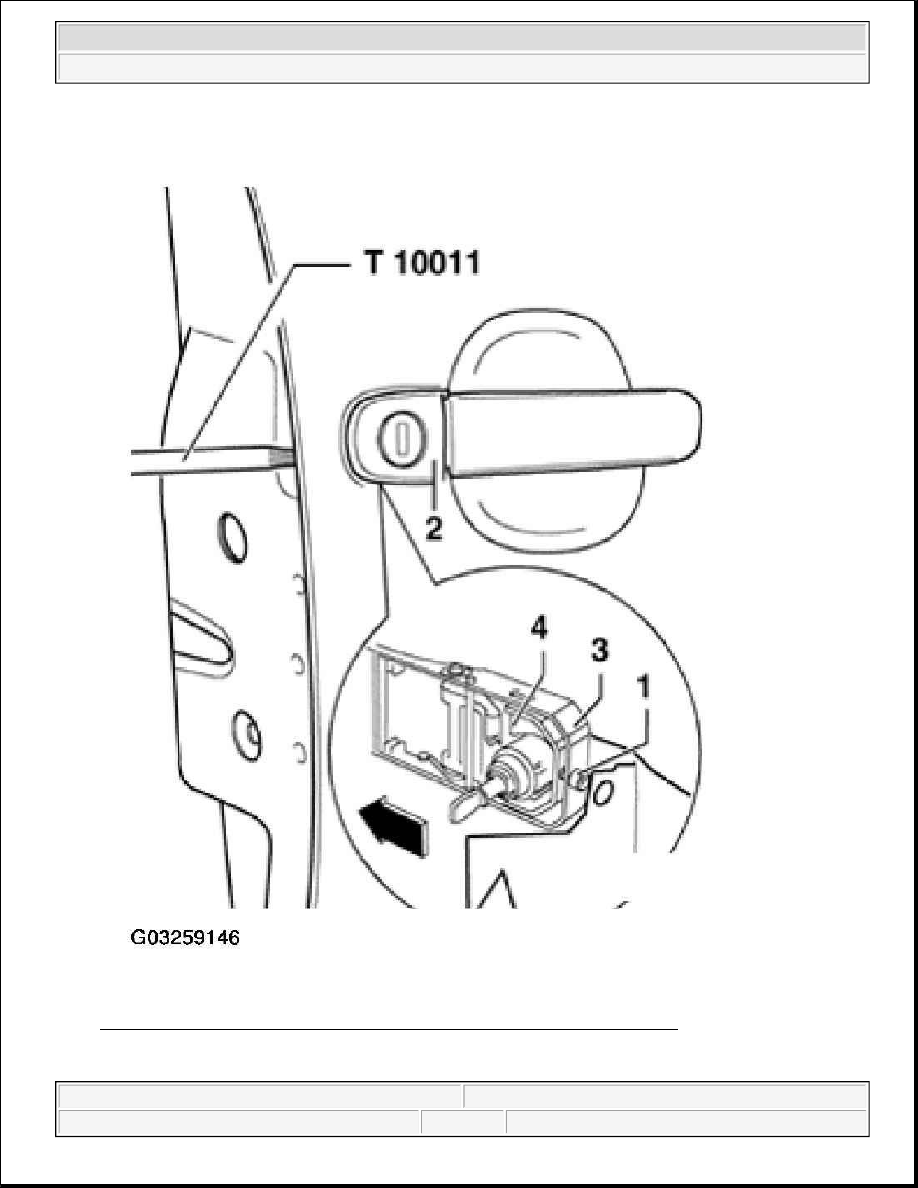

Fig. 30: Loosening Lock Cylinder Housing Bolt With Socket Insert T 10011
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



LOCK CYLINDER HOUSING, INSTALLING

z

Insert lock cylinder housing -2- (at right angles to door) into door handle bearing bracket.

z

Tighten bolt -1- using Socket Insert T10011. (This in turn slides -arrow- locking cylinder housing locking
device -4- in bearing bracket) -3-.

NOTE:

Lock cylinder housing is released before bolt -2- is completely out of locking
device -4-.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle

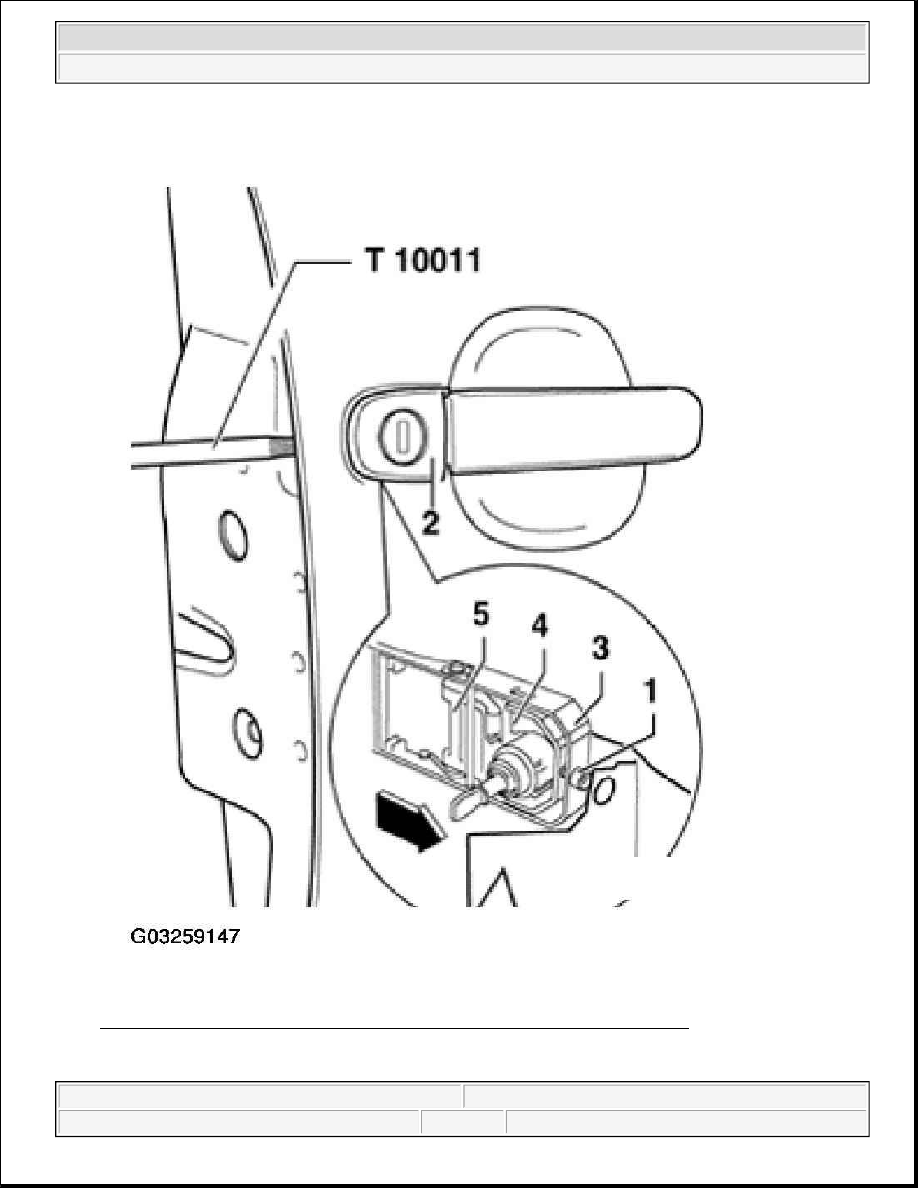

Fig. 31: Inserting Lock Cylinder Housing Into Door Handle Bearing Bracket
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Front Doors, Central Locking System - New Beetle



z

Always perform a functional check with door open, because if adjustment is not correct and
Bowden cable is not clipped in correctly door cannot be opened.

z

Install cover caps -1- for bolt/screw -2-.

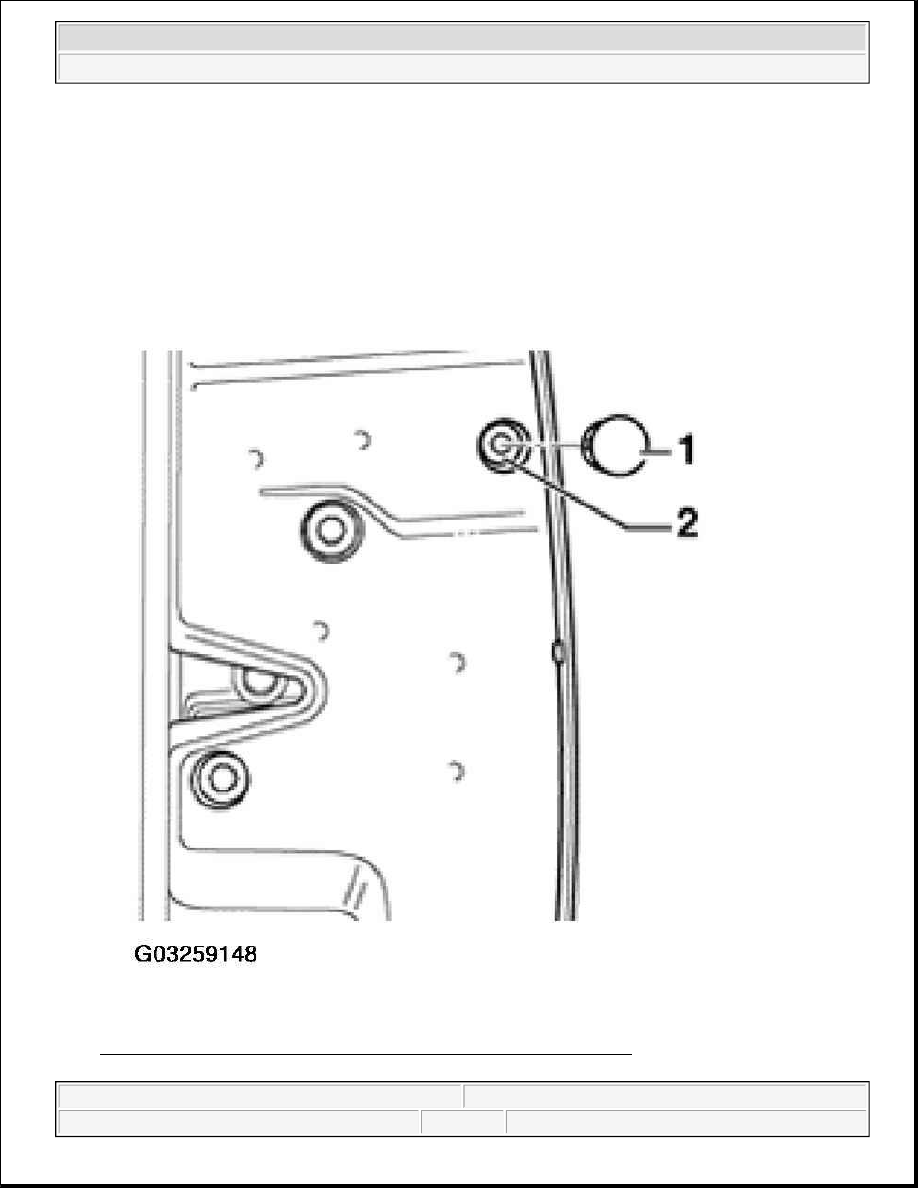

Fig. 32: Installing Cover Caps On Lock Cylinder Housing Bolt/Screw
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Moving locking device -4- simultaneously releases pretensioned and
blocked spring arm -5- for handle (can be heard).
